Luxbanx Duo Softbox
INSTRUCTIONS
2
Introduction
Thank you for choosing the Impact Luxbanx Duo softbox. All Luxbanx softboxes
are designed to control and soften light for your specific photographic needs.
Duo softboxes are compatible with continuous light sources (including quartz,
tungsten, HMI and other “hot” lights, as well as LED or fluorescent lights) and
flash (strobe) lighting sources. Be sure to read and follow the included power
and wattage guidelines for lights that can be used with the softbox you have
purchased.
Luxbanx Duo softboxes come in four shapes: square, rectangular, strip (a long,
narrow rectangle), and octagonal. In addition, softboxes come in extra-small,
small, medium, large and extra-large sizes. A speed ring (not included) is
required to mount the softbox to a light. Each softbox has a front diffuser, which
can be attached using touch fasteners. The diffuser can be removed to produce
more intense light with increased contrast. Duo softboxes have a bright-
textured silver interior finish, which produces bright light with less light loss
than a white interior. The removable internal baffle will soften and diffuse light
when installed in the softbox.
The size and shape of the softbox is related to the lighting effect produced —
the larger the softbox, the softer the light. The distance from the softbox to the
object being photographed also affects the quality of light produced — when
the softbox is close to the object, the light will be more intense, with more
contrast. When the distance is greater, the light will be more diffused, with less
contrast. The removable interior baffle will also soften and diffuse light — you
can add or subtract a degree of contrast through inserting or removing the
baffle.
Generally, the larger the object you’re photographing, the larger the softbox you
should use.
A large rectangular or octagonal softbox will give more even light
for a full-length portrait than a small softbox. The shape of the softbox affects
the light produced as well: for a slender object,
when photographing a slender
object, use a strip softbox that has a similar shape to produce more even
light than an octagonal softbox.
3
Instructions
Please follow these instructions carefully
when assembling your Luxbanx softbox.
There are four parts to your Luxbanx:
• The softbox fabric shell
• Flex rods
• Front diffuser
• Removable internal baffle
A speed ring (not included) is required to
assemble the Luxbanx softbox and mount
it to a light. Speed rings are available
separately.
Warnings ⚠
• Please read
and follow these
instructions and keep
this manual in a safe
place.
• Keep this unit away
from water and any
flammable gas or liquid.
• Use only with lights
of the recommended
wattage.
• Handle this unit with
care.
• Keep this unit away
from children.
• Use parts provided
by the manufacturer
only.
• Make sure this item
is intact and that no
parts are missing.
• All photos in
this manual are for
illustrative purposes
only.
Box Contents
• Softbox fabric shell
• Four flex rods (eight rods for
the octagonal softbox)
• One spare flex rod
• Internal baffle
• Front diffuser
• Carrying case
• User instruction manual
• Warranty
4
Luxbanx Assembly Instructions
1. Insert the small tip of a flex
rod through the guide loop
along the seam of the softbox
fabric shell. Insert the tip into
the anchoring pocket at the
front end of the softbox. The
large tip of the flex rod should
be positioned at the rear
of the softbox fabric shell.
Repeat this step with the
remaining flex rods.
2. With the speed ring’s reflector
mount facing away from the
softbox, insert the end of a
flex rod into a rod hole in the
speed ring.
NOTE: Some larger Luxbanx
models use a Heavy Duty Flex
Rod, which has a thicker end
to attach to the speed ring.
(See inset above.)
INSET:
Heavy Duty Flex Rod
5
Luxbanx Assembly Instructions
3. Insert the second flex rod in
the softbox fabric shell into
the hole in the speed ring that
is directly opposite the first
hole used. Flex the rod gently
but firmly until it is securely
seated in the speed ring.
4. Insert the third and fourth flex
rods into the speed ring in the
same manner. As each flex
rod is inserted, flex it gently
but firmly into position until
each rod is securely seated in
the speed ring.
INSET:
Strip Model
6
5. For octagonal softboxes,
continue in the same manner,
always working in opposite
pairs.
NOTE: the second pair of
flex rods installed should be
at a 90° orientation from the
first pair so that a square
framework is established.

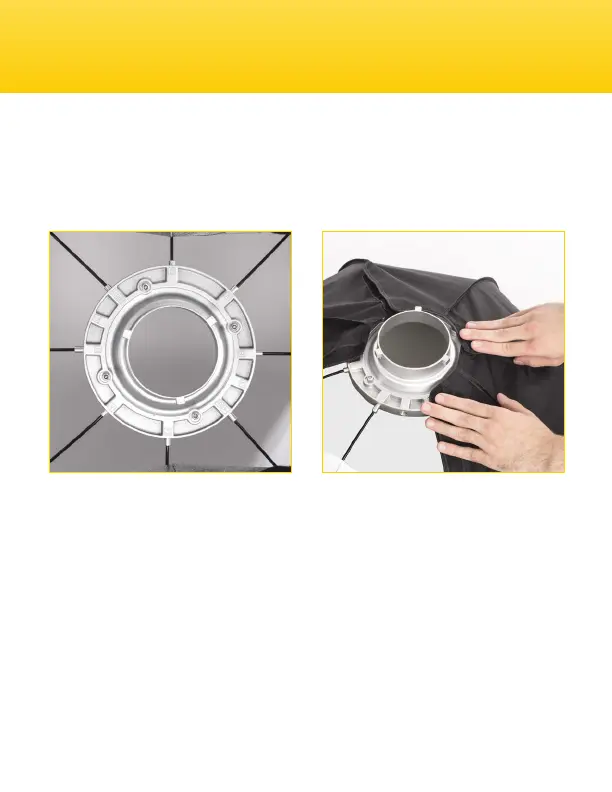

6. Fold the flaps of the softbox
shell over the speed ring and
press down on the touch
fasteners to close the back
of the softbox. If you’re using
a hot light (quartz, tungsten,
HMI, etc.), make sure to open
the four vents on the sides of
the softbox.
Luxbanx Assembly Instructions
7

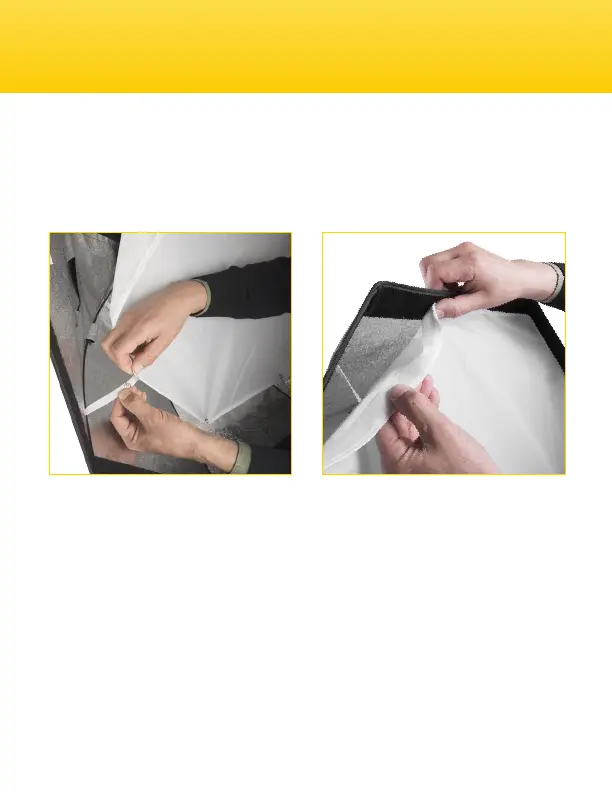

7. If you are using the internal
baffle, attach it to the interior
now, using the straps with
snaps that are built into the
softbox.
WARNING: Do not use the
internal baffle when using a
hot light with the Luxbanx
Duo softbox.
8. Attach the front diffuser to the
front of the softbox using the
touch fastener, making sure
the diffuser is in contact with
the softbox all the way around
its perimeter so no direct light
can escape.
9. With your light unit’s power
off, mount the speed ring to
the light unit according to its
manufacturer’s instructions.
Luxbanx Assembly Instructions
8
Luxbanx Assembly Instructions
NOTE: The first time you use your Luxbanx Duo softbox with a hot light,
there may be a slight odor and a small amount of smoke. This is a result of
manufacturing residue burning off, and it should only last for a minute or
two.
An optional Luxbanx grid provides
more control over the light of your
softbox by producing a narrower
beam of light than the softbox
alone.
When using the optional Luxbanx
Grid, be sure to install the softbox
front diffuser at the rear edge of the
softbox touch fastener strip. This
will allow enough of the softbox
touch fastener strip to be visible
so that there is room to install the
Luxbanx grid at the front edge of
the touch fastener strip. Press the
grid’s touch fastener firmly against
the softbox’s touch fastener strip
as smoothly as possible along
the length of one side. Repeat for
the remaining sides of the grid,
attaching sides in opposite pairs.
9
Luxbanx Disassembly Instructions
1. Turn off the power to your
light head and disconnect the
power cord from the power
supply.
2. Allow time for the light unit,
flex rods and speed ring to
cool off before proceeding.
3. Unmount the softbox
assembly from the light head.
4. Pull the flex rods out of the
speed ring using the same
opposite rod pattern used in
assembly.
5. You can leave the diffuser in
place if you wish. The softbox
will roll up for storage with
its diffuser and inner baffle in
place.
10
Recommended Accessories
Notes
• Luxbanx Grid
• Speed Ring (Required)
11
One-Year Limited Warranty
This IMPACT product is warranted to the original purchaser to be free from
defects in materials and workmanship under normal consumer use for a period of
one (1) year from the original purchase date or thirty (30) days after replacement,
whichever occurs later. The warranty provider’s responsibility with respect
to this limited warranty shall be limited solely to repair or replacement, at the
provider’s discretion, of any product that fails during normal use of this product in
its intended manner and in its intended environment. Inoperability of the product
or part(s) shall be determined by the warranty provider. If the product has been
discontinued, the warranty provider reserves the right to replace it with a model
of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect,
accident, alteration, abuse, improper installation or maintenance. EXCEPT AS
PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS
WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. This warranty provides you with specic legal rights, and
you may also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Impact Customer Service Department
to obtain a return merchandise authorization (“RMA”) number, and return the
defective product to Impact along with the RMA number and proof of purchase.
Shipment of the defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.impactstudiolighting.com
or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
IMPACT is a registered trademark of the Gradus Group.
© 2014 Gradus Group LLC. All Rights Reserved.
12
