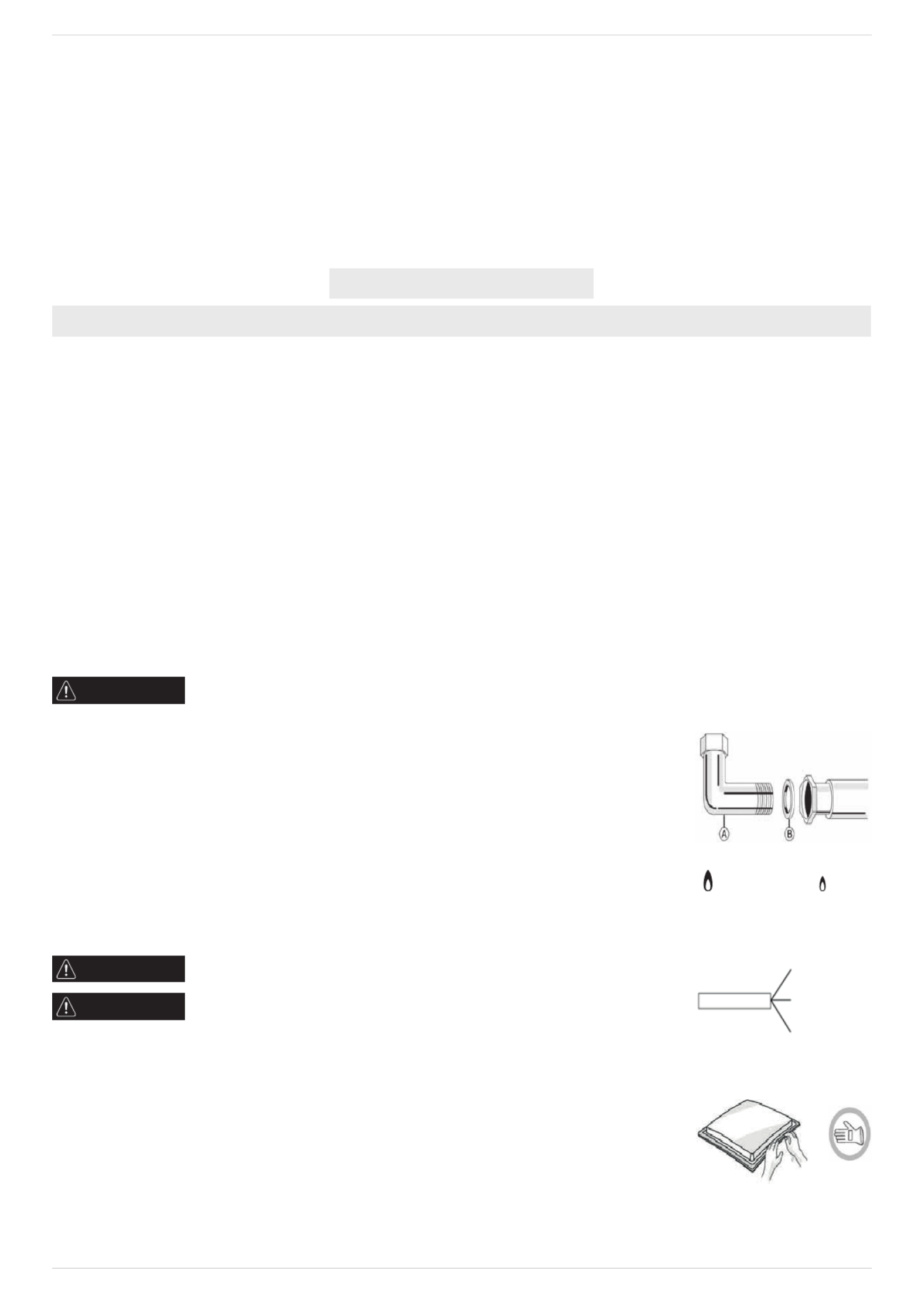

Side 1/6

IMPORTANT SAFETY INSTRUCTIONS

These instructions shall also be available on website: docs.indesit.eu

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

This manual and the appliance itself provide important safety messages, to be read and observed at all times.

This is the safety alert symbol, pertaining to safety, which alerts users to potential hazards to themselves and others.

All safety messages will follow the safety alert symbol and either the terms:

Indicates a hazardous situation which, if not avoided, will cause serious injury.

Indicates a hazardous situation which, if not avoided, could cause serious injury.

All Safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

- The appliance must be disconnected from the power supply before carrying out any installation work.

- Installation and maintenance must be carried out by a qualied technician, in compliance with the manufacturer’s instructions and local safety regulations. Do not repair

or replace any part of the appliance unless specically stated in the user manual.

If the information in this manual is not followed exactly, a re or explosion may result causing property damage or injury.

- Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this appliance.

What to do if you smell gas:

- Do not try to light any appliance.

- Do not touch any electrical switch.

- Do not use any phone in your building.

- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the re department.

- Installation and service must be performed by a qualied installer, service agency or the gas supplier.

- Use appliance in well ventilated rooms only.

The electrical and gas connections must comply with local regulations.

• When the hob is installed, provide a multi-pole circuit breaker with a contact separation of at least 3 mm, that

provides full disconnection.

• Regulations require that the appliance is grounded.

• The power cable must be long enough for connecting the appliance, once tted in its housing, to the power supply.

• Use only exible or rigid metal hose for gas connection.

• If necessary, the electrical power cable must be replaced exclusively with a power cable having identical

characteristics to the original supplied by manufacturer. This operation must be performed by a qualied electrician.

• The manufacturer cannot be held responsible for any injury to persons or animals or damage to property arising

from failure to comply with these requirements.

• Do not use multiple plug adapters or extension cords.

• Do not pull the power cable to disconnect it from the electrical supply.

• The electrical components must not be accessible to the user after installation.

• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.

• This hob (class 3) is designed solely for private household use for cooking food. Do not use this appliance as

a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating

of the hob. The Manufacturer declines all responsibility for inappropriate use or incorrect setting of the controls.

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating

elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance

can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. They shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• The use of a gas appliance produces heat and humidity in the room. Make sure the room is well-ventilated, or

install an extractor hood with exhaust duct.

DANGER

RNINGWA

400011192477

BUILT-IN GAS HOB

• Domestic animals should be kept away from the appliance.

• In case of prolonged use, additional ventilation may be necessary (by opening a window or increasing the hood

extraction speed).

• After use, make sure the knobs are in off position and close the main gas supply cock or the gas cylinder valve.

• Overheated oils and fats catch re easily. Always remain vigilant when cooking foods rich in fat, oil or alcohol

(e.g. rum, cognac, wine).

• Keep the packaging materials out of the reach of children.

• Before cleaning or maintenance wait for hob to cool down.

SAVE THESE INSTRUCTIONS

INSTALLATION

After unpacking the hob, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service.

These instructions are only valid for the countries whose symbols is given on the data plate (under the hob).

TECHNICAL INFORMATION FOR THE INSTALLER

• This product can be embedded in a worktop 20 to 50 mm thick.

• If there is no oven beneath the hob, insert a separator panel that has a surface at least equal to the opening in the work surface. This panel, that has to

close completely the cutout in order to avoid any contact with the bottom part of the hob, must be positioned at a maximum distance of 150 mm below

the upper surface of the work surface but, in no case less than 20 mm from the bottom of the hob. In the case that you intend to install an oven beneath

the hob, make sure that it is manufactured by Whirlpool and equipped with a cooling system. The manufacturer declines all liability if another brand

oven is installed beneath the hob.

• Before installation, make sure that:

-the local gas delivery conditions (nature and pressure) are compatible with the settings of the hob (see the rating plate and injector table);

- the outer surfaces of the furniture or appliances adjacent to the hob are heat resistant according to local regulations;

- this appliance is not connected to a fume exhaust device. It shall be installed in accordance with current installation regulations. Particular attention shall be given

to the relevant requirements regarding ventilation.

- combustion products are discharged outdoors through specic hoods or wall and/or window mounted electrical fans.

GAS CONNECTION

This operation must be performed by a qualied technician.

• The gas supply system must comply with local regulations.

• You can nd specic local regulations for some countries in the paragraph “Reference to Local Regulations”.If no information

concerning your Country is given, please ask details to your Installer.

• The connection of the hob to the gas pipe network or gas cylinder must be made by means of a rigid copper or steel pipe

with ttings complying with local regulations, or by means of a continuous-surface stainless steel hose complying with local

regulations. Interpose gasket (B) in the elbow connection.The maximum length of the hose is 2 m.

• FOR BELGIUM ONLY: It is necessary to replace the elbow connection (A) on the appliance, with the one supplied (if present).

IMPORTANT: if a stainless steel hose is used, it must be installed so as not to touch any mobile part of the furniture.

It must pass through an area where there are no obstructions and where it is possible to inspect it on all its length.

• After connection to the gas supply, check for leaks with soapy water. Light up the burners and turn the knobs from max position to minimum position to check

ame stability.

ELECTRICAL CONNECTION.

This operation must be performed by a qualied technician.

• The electrical connections must comply with local regulations.

• The earthing of this appliance is compulsory by law.

• Do not use an extension cord.

IMPORTANT: the data relevant to the voltage and power absorption are indicated on the rating plate.

ASSEMBLY

After having cleaned the perimeter surface, apply the supplied gasket to the hob as shown in the gure.

Position the hob in the worktop opening made respecting the dimensions indicated in the Instruction.

NOTE: the power supply cable must be long enough to permit its upward extraction.

To secure the hob, use the brackets (A) provided with it. Fit the brackets into the relevant bores shown by the arrow and fasten them by means of their screws in accordance

with the thickness of the worktop (see the following gures).

RNINGWA

Earth

(yellow/green)

EAVERTIZAR

Produkt Specifikationer

Mærke:	Indesit
Kategori:	Komfur
Model:	BB 752 /I (AN)
Vekselstrømsindgangsspænding:	230 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	680 mm
Dybde:	500 mm
Højde:	41 mm
Vægt:	13200 g
Produktfarve:	Anthracit
Kontroltype:	Dreje
Indbygget skærm:	Ingen
Timer:	Ingen
Placering af apparat:	Indbygget
Installationsrum bredde:	560 mm
Installationsrum dybde:	480 mm
Installationsrum højde:	30 mm
Komfurtype:	Gaskomfur
Overfladetype:	emaljeret
Antal kogeplader / madlavningsområde:	5
Blus/kogeplade zone 1 strøm:	1000 W
Blus/kogeplade zone 2 strøm:	3000 W
Blus/kogeplade zone 1 type:	Simre
Kogezone 1 form:	Rund
Blus/kogeplade zone 1 position:	Venstre front
Blus/kogeplade zone 1 strømkilde:	Gas
Blus/kogeplade zone 2 type:	Stor
Kogezone 2 form:	Rund
Blus/kogeplade zone 2 position:	Venstre bagende
Blus/kogeplade zone 2 strømkilde:	Gas
Kontrolposition:	Top forside
Tilsluttet belastning (elektrisk):	- W
Ovnbredde størrelse:	68 cm
Blus/kogeplade zone 3 type:	Regelmæssig
Blus/kogeplade zone 4 type:	Regelmæssig
Blus/kogeplade zone 4 strømkilde:	Gas
Kogezone 4 form:	Rund
Blus/kogeplade zone 3 strømkilde:	Gas
Kogezone 3 form:	Rund
Blus/kogeplade zone 3 position:	Højre bagende
Blus/kogeplade zone 4 position:	Højre forside
Indbygget hætte:	Ingen
Tilsluttet belastning (gas):	10600 W
Blus/kogeplade zone 5 position:	Central
Blus/kogeplade zone 5 strømkilde:	Gas
Antal gasbrændere:	5
Blus/kogeplade zone 5 type:	Tredobbelt krone
Blus/kogeplade zone 4 strøm:	1650 W
Blus/kogeplade zone 5 strøm:	3300 W
Blus/kogeplade zone 3 strøm:	1650 W
Kogezone 5 form:	Rund
Elektronisk tænding:	Ja
Sensorkog:	5
Simre brænder/kogezone form:	Rund
Regulær brænder/kogezone form:	Rund
Stor brænder/kogezone form:	Rund
Understøttet grydemateriale:	Støbejern
Wokbrænder:	Ja
