Side 1/5

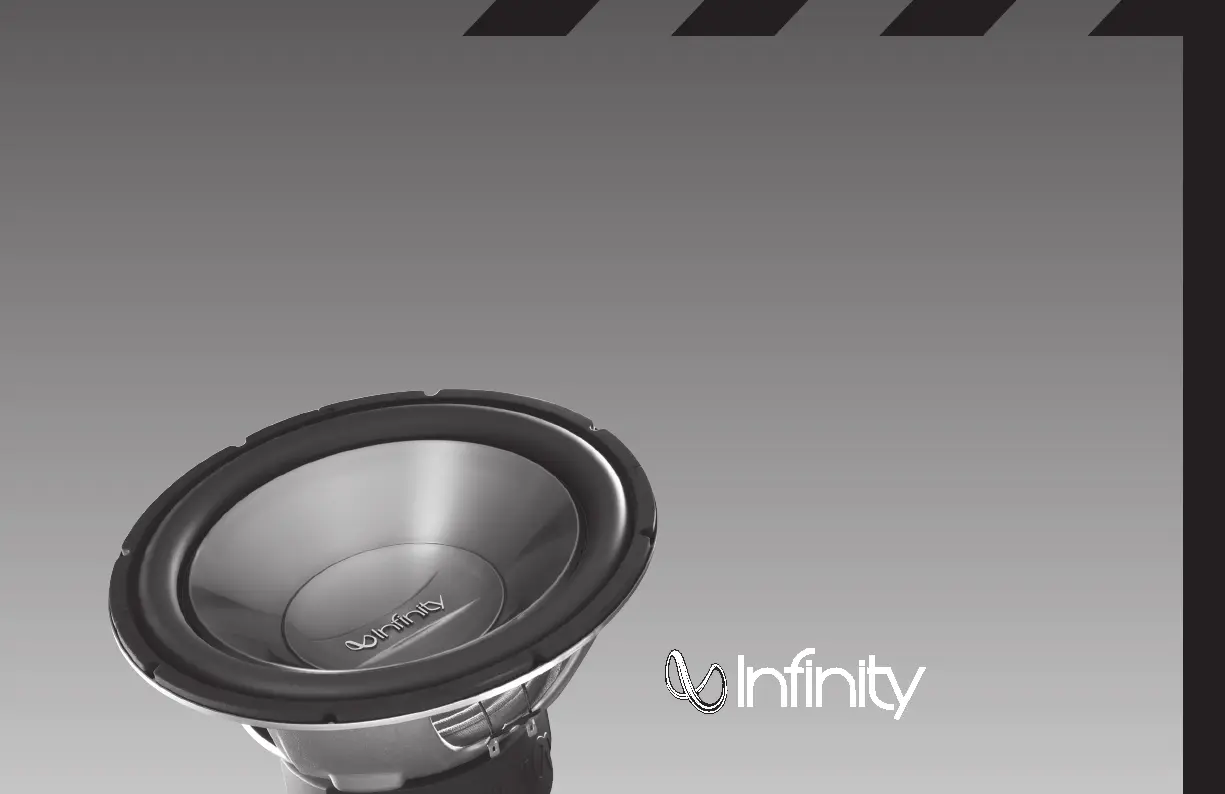

R E F E R E N C E

860w

1060w

1062w

1260w

1262w

ENGLISHDEUTSCHFRANÇAIS ESPAÑOL

NEDERLANDS

ITALIANOSVENSKDANSKSUOMI

PORTUGUÊS

POLSKI

Русский

R E F E R E N C E

THANK YOU

for choosing

an Infinity®Reference Series subwoofer.

Reference Series subwoofers are designed

to suit a broad range of car audio

applications and can be used in a wide

variety of enclosure types to produce

extended,powerful bass in a limited amount

of vehicle space.To ensure maximum

subwoofer performance, it is strongly

recommended that installation be left to

a qualified professional. Although these

instructions explain how to install a

Reference Series subwoofer in a general

sense, they do not show box-construction

details or exact installation methods for

your particular vehicle.If you do not feel

that you have the necessary experience,

do not attempt the installation yourself, but

instead ask your authorized Infinity dealer

about professional installation options.

Remember to keep your sales receipt with

this manual in a safe place so that both are

available for future reference.

WARNING

Playing loud music in an automobile can per-

manently damage your hearing, as well as

hinder your ability to hear traffic.The maxi-

mum volume levels achievable with Infinity

speakers,combined with high power amplifi-

cation, may exceed safe levels for extended

listening. Using low volume levels when dri-

ving is recommended. Infinity Systems

accepts no liability for hearing loss, bodily

injury or property damage as

a result of use or misuse of this product.

YOUR CAR

AND BASS

REPRODUCTION

Depending on the size of the vehicle’s

interior listening space,reproduced bass fre-

quencies below 80Hz are boosted by nearly

12dB per octave as frequency decreases in

the car. NOTE:This effect, known as the vehi-

cle’s transfer function, plays an important

part in shaping the

overall in-car response and is displayed

graphically, along with freespace response,

on the enclosed data sheet for your

Reference subwoofer.

CHOOSING AN

ENCLOSURE

Reference Series subwoofers are optimized

to perform best in small sealed,vented and

prefabricated band-pass enclosures.While

infinite-baffle mounting of Reference Series

subs is possible, power handling will be

greatly compromised because there’s no

enclosed volume of air to prevent the speak-

er’s cone from moving past its limit. For this

reason, infinite-baffle mounting

is not recommended for Reference Series

subwoofers.

You should choose the enclosure you will use

based on the type of music you listen to, how

much amplifier power you will use for the

subwoofer and how much space inside the

vehicle you can devote to a

subwoofer enclosure.

Because a sealed enclosure provides the

most control over the woofer’s movement,

a woofer mounted in a sealed enclosure

will handle more power than a woofer

mounted in another enclosure type. Sealed

enclosures provide more accurate sonic

reproduction than other enclosure types,

so they are well suited to all types of music.

Sealed-enclosure construction

is straightforward and there are many

prefabricated sealed enclosures available.

Optimum sealed enclosures are always

smaller than other types of enclosures

optimized for a particular speaker, so they

require the smallest amount of space inside

the vehicle.

Vented enclosures provide better efficiency

in the 40Hz – 50Hz range, but this efficiency

comes at the expense of sound in the

lowest octave (below 40Hz) and at the

expense of some control and power

handling. If you are using a small amplifier, a

vented box will provide more bass output

from less power.Vented enclosures are also

well suited to a variety of music types.

Because vented enclosures require the

volume of the enclosure and the size of

the port to have a specific relationship

with the characteristics of the woofer,

the enclosure must be built exactly to the

specifications provided.While there are

some prefabricated vented boxes available,

matching a prefabricated box to a particular

woofer is difficult. If you wish to use a vent-

ed enclosure, it is strongly recom-mended

that you have your authorized Infinity dealer

build it or verify that your design is correct

if you wish to build it yourself. An optimum

vented enclosure is always larger than the

optimum sealed box for the same woofer and

will require more space inside the vehicle.

ENGLISH
