EchoStream® EN1233S/D and EN1235S/D

Pendant Transmitter

Installation Instructions - 05596B

1 Overview

1.1 Inovonics Wireless Contact Information

If you have any problems with this procedure, contact Inovonics

Wireless technical services:

• E-mail: support@inovonics.com

• Phone: (800) 782-2709

1.2 Pendant Transmitter Components

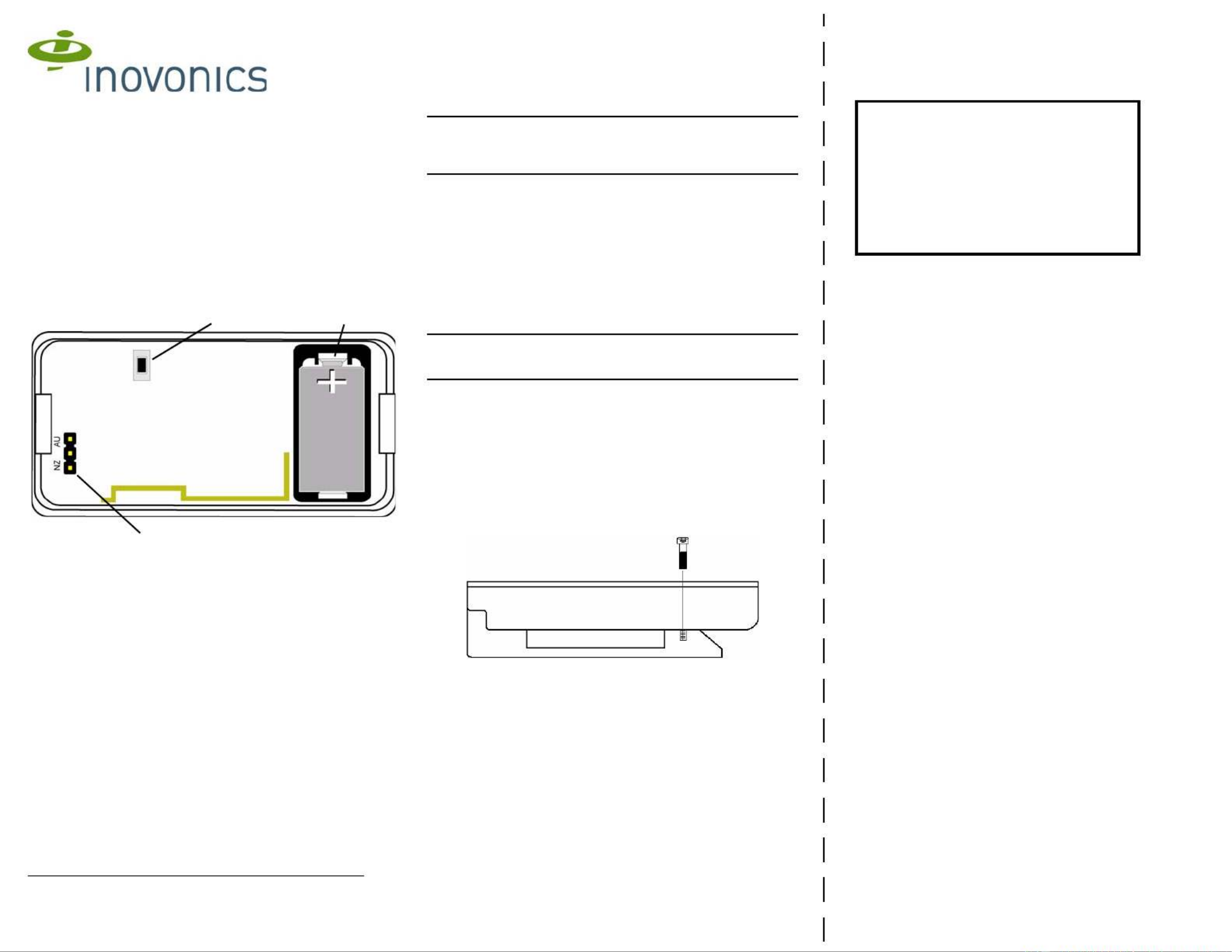

Figure 1 Pendant Transmitter components

2 Installation and Startup

2.1 Install/Replace the Battery

1. Pry the housing apart at either end and pull the two halves

apart.

2. If replacing a battery, remove the old battery.

3. Install the new battery.

4. Press the Reset button to initialize the transmitter.

2.2 Select the Frequency Band

EchoStream products are able to use a range of radio frequencies,

and must be configured for your geographic area. To configure the

transmitter:

1. Pry the housing apart at either end and pull the two halves

apart.

2. Place a selection jumper on the appropriate frequency band

selection pins.

• Leave the jumper off the pins to set the frequency range to

902-928 MHz for North America.

• Place the jumper on the bottom pins, marked NZ, to set the

frequency range to 921-928 MHz for New Zealand.

• Place the jumper on the top two pins, marked AU, to set the

frequency range to 915-928 MHz for Australia.

3. ResetPress the button to complete configuration.

Caution: When pressing the Reset button, make sure you don’t

also touch the frequency band selection pins. Touching the

frequency band selection pins while pressing the Reset button can

inadvertently set the pendant to the wrong frequency band.

2.3 Register the Pendant Transmitter

The pendant transmitter must be registered with the system in order

to be monitored and supervised. When supervised, the pendant

transmitter will send a check-in message to the serial receiver or

network coordinator every three minutes.

Each pendant has a unique factory-programmed identification

number. Refer to the control panel’s installation instructions for

details on registering a transmitter.

1. When prompted by the receiver to reset transmitter, press the

Reset button.

2. Replace the cover.

Caution: The pendant should be tested after registration to ensure

operation. To test the pendant, activate each of the conditions and

ensure an appropriate response.

3 Operation

3.1 Using The EN1233 Pendant Chain

Always use the chain included with the ES1233. Substituting

stronger cords or chains may result in injury to the wearer.

3.2 Converting the Pendant Transmitter Belt Clip

If you’d like to convert the pendant transmitter belt clip to a belt loop,

secure the bottom of the belt clip to the housing with a coarse

thread screw.

Figure 2 Use a coarse thread screw to secure the belt clip

3.3 Operate the Pendant Transmitter

To activate single button transmitters, press the button for at least

one second. To activate double button transmitters, press both

buttons simultaneously. Alarm signals are transmitted multiple times

and are indicated by the blinking transmission LED. When the

buttons are released, the transmitter sends an alarm restoral

signal.To test a transmitter, activate the alarm by pressing the

button(s).

4 Specifications

Typical battery life: 3-5 years

Battery type (BAT608): Panasonic CR2 or equivalent

Operating environment: 0 to 60°C (32 to 140°F), noncondensing

A BReset button Frequency band selection pins

CBattery

Printing Instructions

1. Print Duplex

2. Align and orient back page to match front

page.

3. Cut on dashed line

4. Fold cutsheet in half along the 8.5" axis.

Note: Specifications and data are subject to change without notice.

5 Warranty and Disclaimer

Note: Changes or modifications to this unit not expressly approved

by Inovonics Wireless Corporation may void the installer's authority

to operate the equipment as well as the product warranty.

Inovonics Wireless Corporation ("Inovonics") warrants its products

("Product" or "Products") to conform to its own specifications and to

be free of defects in materials and workmanship under normal use

for a period of thirty-six (36) months from the date of manufacture.

Within the warranty period, Inovonics will repair or replace, at its

option, all or any part of the warranted Product. Inovonics will not be

responsible for dismantling and/or reinstallation charges. To

exercise the warranty, the User ("User", "Installer" or "Consumer")

must work directly through their authorized distributor who will be

given a Return Material Authorization ("RMA") number by

Inovonics. Details of shipment will be arranged directly through the

authorized distributor.

This warranty is void in cases of improper installation, misuse,

failure to follow installation and operating instructions, alteration,

accident or tampering, and repair by anyone other than Inovonics.

This warranty is exclusive and expressly in lieu of all other

warranties, obligations or liabilities, whether written, oral, express,

or implied. There is no warranty by Inovonics that Inovonics product

will be merchantable or fit for any particular purpose, nor is there

any other warranty, expressed or implied, except as such is

expressly set forth herein. In no event shall Inovonics be liable for

an incidental, consequential, indirect, special, or exemplary

damages, including but not limited to loss of profit, revenue, or

contract, loss of use, cost of down time, or interruption of business,

nor any claim made by distributor's customers or any other person

or entity.

This warranty will not be modified or extended. Inovonics does not

authorize any person to act on its behalf to modify or extend this

warranty.

This warranty will apply only to Inovonics Products. Inovonics will

not be liable for any direct, incidental, or consequential damage or

loss whatsoever, caused by the malfunction of Product due to

products, accessories, or attachments of other manufacturers,

including batteries, used in conjunction with Inovonics Products.

Note: E-mail support@inovonics.com for a copy of the CE

Declaration of Conformity.
