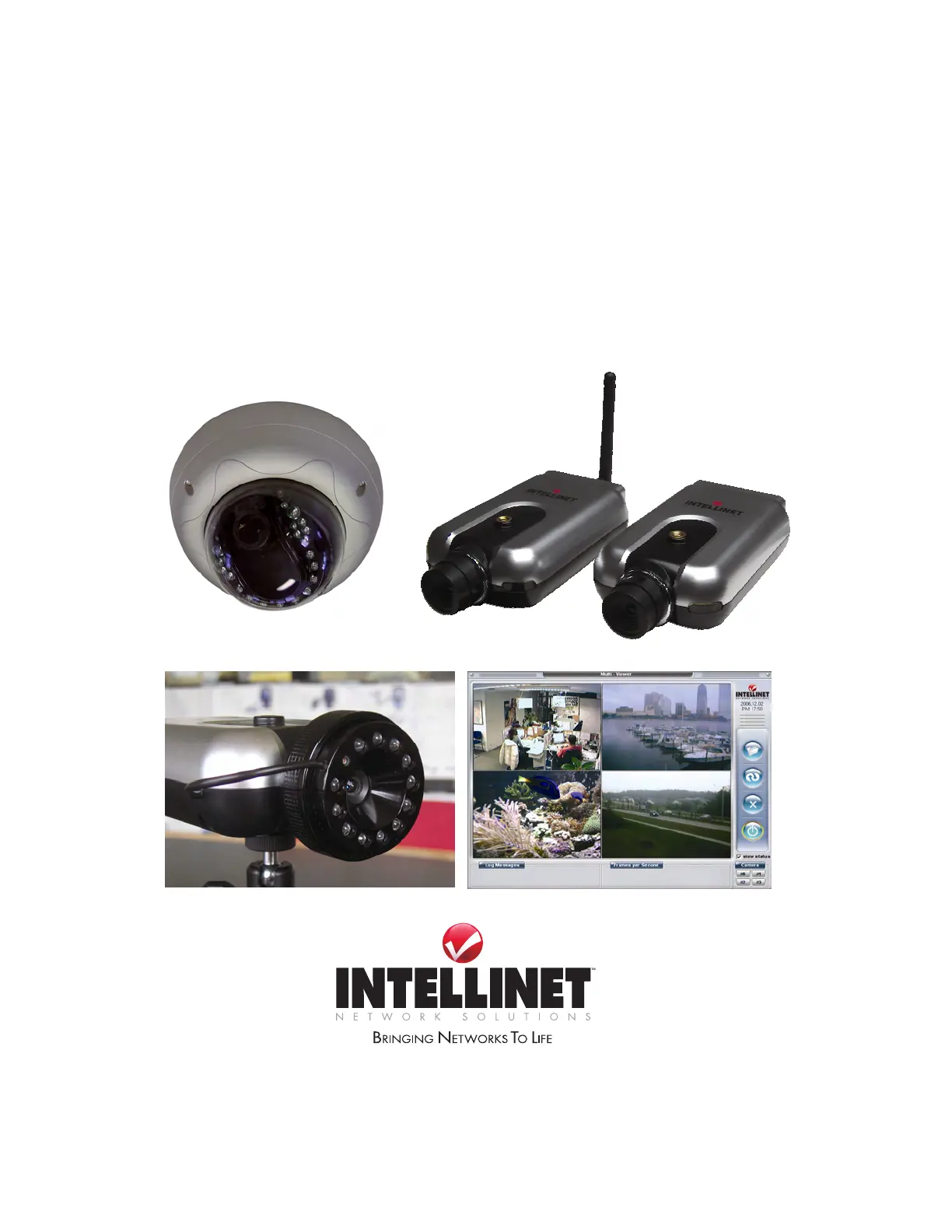

Side 1/128

INT-PSNC-UM-1106-07

PRO SERIES

Network Camera &

Video Server

USER MANUAL

- 2 -

Table of Contents

Safety and Regulatory Notices .................................................................................................... 3

Section 1: Product Overview

1.1 About the Pro Series Network Cameras and Video Servers........................................... 5

1.2 Main Features and Benefits ........................................................................................... 5

Section 2: Physical Description

2.1 Package Contents .......................................................................................................... 6

2.2 MPEG4 CCD Camera..................................................................................................... 7

2.3 MPEG4 CCD IR Camera……........................................................................................ 8

2.4 Network Video Server…..……......................................................................................... 9

2.5 Network Dome Camera …............................................................................................ 10

2.6 JPEG CMOS Camera 550710 ….................................................................................. 11

Section 3: Installation Summary and Examples ........................................................................ 13

Section 4: Assigning an IP address and Accessing the Camera’s Homepage

4.1 Connecting the Camera to a PC ...................................................................................15

4.2 Setting Up the IP Address Using IP Installer ……......................................................... 16

4.3 Accessing the Camera’s Homepage .............................................................................17

4.4 Homepage Options (MPEG4 Cameras).........................................................................17

4.5 Homepage Options (JPEG CMOS Camera 550710) ....................................................25

Section 5: Adjusting the Camera Lens

5.1 Adjusting the Focus .......................................................................................................26

5.2 Replacing the Lens ........................................................................................................26

Section 6: Administrator Menu

6.1 Overview of the Administrator Menu .............................................................................27

6.2 Image Configuration

6.2.1 MPEG4 CCD Cameras, Dome Cameras & Network Video Server.......................... 28

6.2.2 MPEG4 CMOS Cameras ………………................................................................... 33

6.2.3 JPEG CMOS Camera 550710 ….……..................................................................... 34

6.3 Network Configuration

6.3.1 MPEG4 Cameras, Dome Cameras & Network Video Server................................... 36

6.3.2 JPEG CMOS Camera 550710 …………………………………….............................. 39

6.4 User Configuration

6.4.1 MPEG4 Cameras, Dome Cameras & Network Video Server ……........................... 40

6.4.2 JPEG CMOS Camera 550710 ………………………………………........................... 41

6.5 Event Trigger Configuration

6.5.1 MPEG4 Cameras, Dome Cameras & Network Video Server ……........................... 42

6.5.2 JPEG CMOS Camera 550710 ………………………………………........................... 46

6.6 System Configuration

6.6.1 MPEG4 Cameras, Dome Cameras & Network Video Server ……........................... 47

6.6.2 JPEG CMOS Camera 550710 ………………………………………........................... 49

6.7 Wireless Configuration

6.7.1 Wireless Setup…..................................................................................................... 50

6.7.2 Wireless Security Settings …………........................................................................ 50

6.8 OSD (On-Screen-Menu) Configuration ........................................................................

Section 7: PoE Support.............................................................................................................. 61

Section 8: 8-Channel Viewing/Recording Software.................................................................... 63

Section 9: Multi-Viewer Software................................................................................................ 68

Section 10: ETSP Client Software.............................................................................................. 71

Section 11: RTSP Video Playback............................................................................................. 76

Section 12: SSL Encryption / Access via HTTPS....................................................................... 78

Section 13: Remote Access to a Camera & Router Setup…….................................................. 80

Section 14: Developer Information

14.1 Software Development Kit (SDK)…………………………............................................. 85

14.2 Direct Access to Internal JPEG…………………………............................................... 86

14.3 Motion-JPEG Access (MPEG4/M-JPEG models only) ............................................... 87

Produkt Specifikationer

Mærke:	Intellinet
Kategori:	Overvågningskamera
Model:	INT-PSNC-UM-1106-07
Type:	IP-sikkerhedskamera
Bredde:	87 mm
Dybde:	158 mm
Højde:	45 mm
Vægt:	1100 g
Brugervejledning:	Ja
Produktfarve:	Sort, sølv
Opbevaringstemperatur (T-T):	0 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Ethernet LAN-porte (RJ-45):	1
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Understøttede videoformater:	M-JPEG, MPEG4
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	720 x 480 pixel
Understøttede grafikopløsninger:	352 x 240,640 x 480 (VGA),720 x 480
Forbindelsesteknologi:	Ledningsført
Certificering:	FCC Class B, RF: EN300328, EMC: EN301489-1/-7, EN60950-1
Strømforbrug (maks.):	6 W
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Understøttede netværksprotokoller:	TCP/IP, UDP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, ARP, ICMP, RTSP, RTC
LED-indikatorer:	Ja
Strømkilde type:	DC, PoE
Antal brugere:	50 bruger(e)
Mikrofonindgang:	Ja
Understøttede Windows-operativsystemer:	Windows 2000, Windows Vista, Windows XP
Understøttede Mac-operativsystemer:	Ja
Understøttede Linux-operativsystemer:	Ja
Hvidbalance:	Auto, Manual
Sensortype:	CMOS
Samlet antal megapixels:	2 MP
Lydsystem:	2-vejs
Digital zoom:	4.5 x
Processormodel:	ARM9
Progressiv scanning:	Ja
Flashhukommelse:	8 MB
Fjernbetjening visning:	Ja
Kamerapanorering kontrol:	Ja
Kontrol af kamerahældning:	Ja
Minimumsbelysning:	0.1 Lux
Antal sensorer:	1
Optisk sensorstørrelse:	1/3.2 "
Nærmeste fokuseringsafstand:	1 m
Fast brændvidde:	6 mm
Billedhastighed:	25 fps
Justering af billedkvalitet:	Brightness, Contrast, Saturation
Ethernet-grænsefladetype:	Hurtigt ethernet
Bevægelsessensor (video):	Ja
Antal kameraer:	1
Signal/støjforhold:	42.3 dB
ROM kapacitet:	32 MB
Kamera lukker type:	Elektronisk
Videostreaming:	Ja
Antal linser:	1
PTZ-kontrol:	Ja
Advarsel notifikationstype:	E-mail
Klemrække port:	Ja
Prøvetagningshastighed:	3.4 kHz
Lydsystem fuld dupelx:	Ja
Objektivets synsvinkel, diagonal:	53 °
Anti-flimmer:	Ja
PTZ-tilstande:	Digital PTZ
Bitrate kontrol:	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
