Attach the brackets to the speaker using the

supplied 8/32 screws lock washers & at washers .

CD E

PAGE 4 PAGE 1

20180827

535 Airpark Road, Napa, California 94558 • Phone: 707.265.6343 | Fax: 707.265.6334 • www.jamesloudspeaker.com

Installation guide for the 63SA-4/63SA-7HO/63SA-8HO.8 In-Ceiling Small Aperture

® Speaker

63SA-4/63SA-7HO/63SA-8HO.8

1) #2 Phillips screwdriver

or drill with #2 Phillips

drill bit

2) Straight edge or level

3) Wood or drywall screws

The brackets (Part No.

SA-BRKT-11-22) are

designed for 16” On-center

constructions, however can

be adjusted to accommodate

construction from 11” to

22.5” joist spacing (Fig. 1).

Tools Required:

Assemble the parts

4 - 1.25” Wood or drywall

screws

Parts List: Supplied by Installer

1 - 63SA-4/63SA-7HO/63SA-8HO.8

2 - Mounting Brackets

4 - 8-32 x 1/2 Pan Head

Machine Screws

4 - #8 Lock Washers

4 - #8 Flat Washers

4 - 6/32 Course Head Screws

1 - Foam Dust Guard

Parts List: Supplied

1 - Trim Kit

Spacer Ring(s)

Parts: Ordered Separately

Tighten these screws just enough to allow

movement for adjustment during installation.

Note: brackets can be mounted to either the sides

of the ends of the speaker enclosure for added

installation ﬂexibility.

Attach the nishing trim kit

P/N SA63-SP-0.125

Recommend testing sub to assure all

components are working.

Attach the nishing trim kit

Install foam dust guard.

Drywall, tape, mud, etc.

Safely store the supplied grille for the nal assembly, If you

also received the 63SAM-4 or 63SAM-7 module, store this

as well.

If you received a 63SAS-4, 63SAS-7, or 63SAS8.8 preconstruction

assembly, be sure to order the 63SAM-4 or 63SAM-7 module when

ready for nishing.

Fig. 1

11”

25.5”

There are four trim kits

avilable to choose from

Products suitable for use in

dry outdoor environments

*63SA-4 Sensitivity: 87dB @ 2.83V/1M

Fig. 15

Fig. 18

Fig. 20

SA63-3S-SRSA63-3R-SR SA63-3S-WSA63-3R-W

For 1/2” Drywall omit spacer (a)

For 5/8” Drywall use spacer (b)

If the drywall is in excess of 5/8”

add additional 1/8” spacers as

needed

Fig. 17

Freq. RESPONSE

IMPEDANCE

SENSITIVITY

AMP RANGE

RMS POWER

40-22kHz ±3dB

4 Ohms

88dB @ 2.83V/1M

25-125 Watts

50 Watts

Small Aperture

Installation

Video

Trim Kit

Finishing

Playlist

Fig. 16

Fig. 19

PAGE 3PAGE 2

Installation guide for the 63SA-4/63SA-7HO/63SA-8HO.8 In-Ceiling Small Aperture

® Speaker

63SA-4/63SA-7HO/63SA-8HO.8

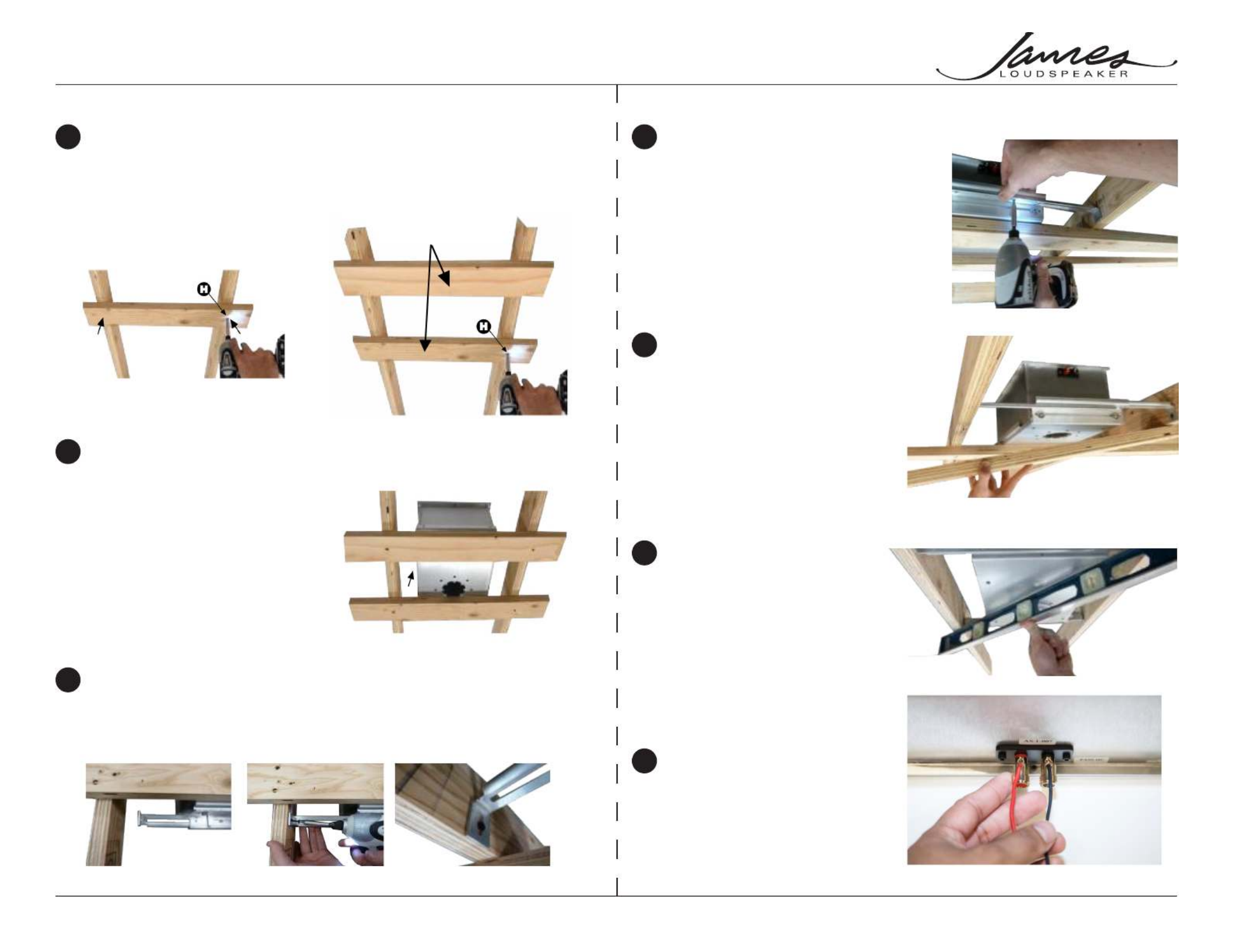

Mount temporary holders to joists

Firmly secure the bracket to the speaker

Remove the temporary holders from the joists

Double check that the face of the speaker

is plumb with joist

Strip an insert wires into terminals

Place the speaker on top of the temporary holders

Fix the brackets to the joists

Cut a couple of 2 x 4s or 1 x 2s, a

few inches wider than the ceiling

joists. Then with a couple of drywall

screws, mount the temporary holders

to the joists. (Drywall screws not

included).

Note: 63SA-7HO is

pictured in steps 2,4,7.

Procedures for 63SA-4

and 63SA-8HO.8 are

identical.

Expand the bracket to ﬁt from joist to joist (Fig. 8). Then ﬁx to the joists using a drywall

screw (Fig. 9). Make certain the bracket is ﬂush with the joists (Fig. 10). (Drywall screws

not included).

These will help you hold

the speaker up and make

the speaker mount ﬂush

to the future drywall. Tighten screws enough

to securely ﬁx the bracket

to the speaker enclosure.

Be careful not to strip the

threads on the brackets

(Fig. 11).

You can adjust the side-

to-side position of the

speaker by sliding the

bracket before tightening.

Remove drywall screws

and remove the temporary

holders (Fig. 12).

Adjust if needed (loosen

the bracket slightly and

adjust the speaker’s

position up or down or as

required (Fig. 13).

Minimum 18-gauge wire,

heavier gauges for longer

wire runs.

Fig. 5

Fig. 11

Fig. 12

Fig. 13

Fig. 14

Fig. 7

Fig. 8 Fig. 9 Fig. 10

Fig. 6

Produkt Specifikationer

Mærke:	James
Kategori:	Højttaler
Model:	63SA-7
Bredde:	247.65 mm
Dybde:	161.92 mm
Højde:	345.95 mm
Vægt:	6350 g
Udgangseffekt (RMS):	50 W
Husmateriale:	Aluminium
Anbefalet brug:	Universel
Frekvensområde:	38 - 22000 Hz
Impedens:	4 ohm (Ω)
Diskanthøjttaler:	Ja
Antal drivere til diskant:	1
Sensitivitet:	85 dB
Diskant diameter:	19 mm
Bashøjttaler:	Ja
Antal bashøjttalerdrev:	1
Woofer diameter:	165 mm
