PBF Pre-construction Board Installation guide

PBF (

FLUSH

) PRE-CONSTRUCTION BOARD INSTALLATION GUIDE

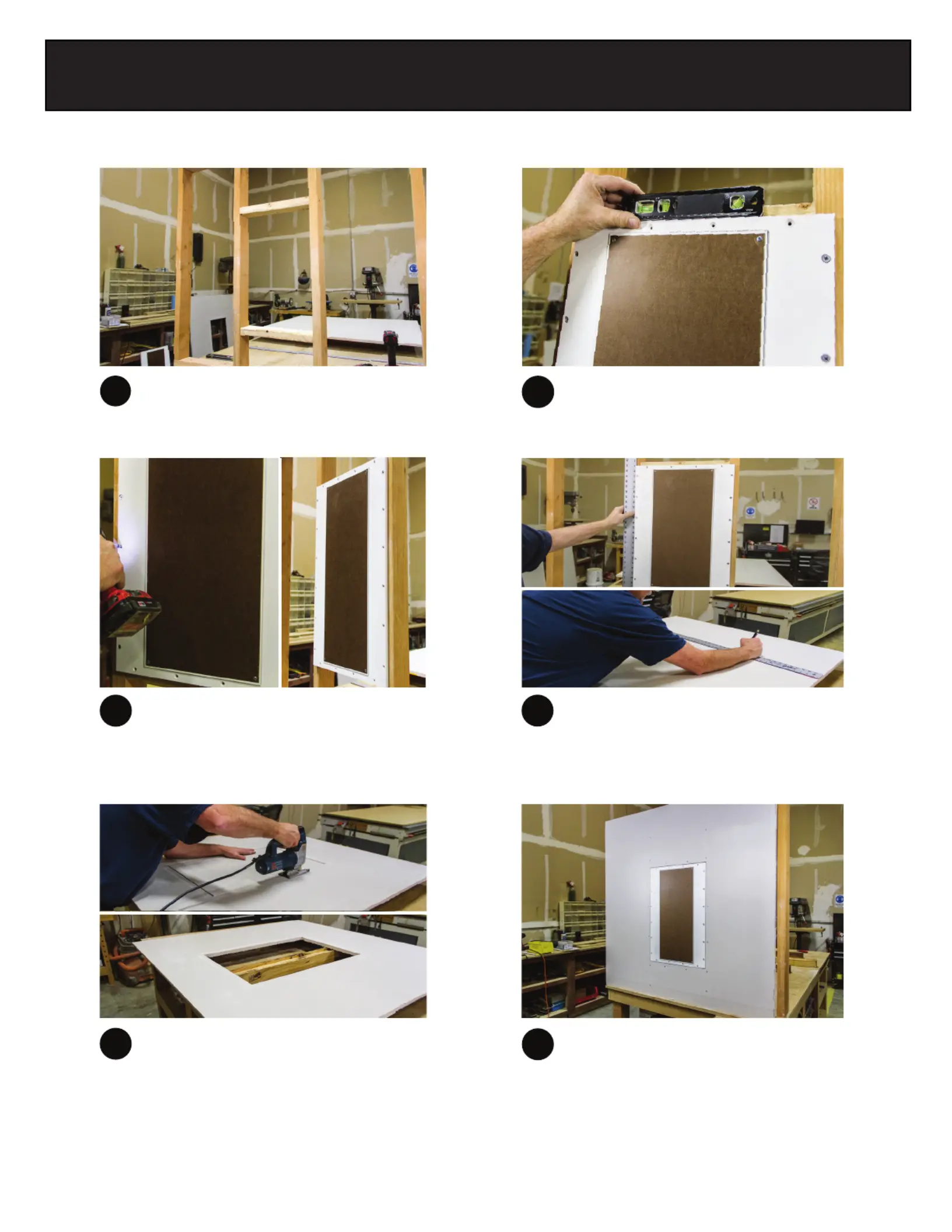

Before installing the PBF pre-construction board,

we recommend securing two horizontal studs, at

PBF board height, between the vertical studs of

the chosen installation location to add additional

support.

Measure the PBF board and make an outline of the

board on a new panel of sheet rock.

After this has been done, ensure that the

board is level before fully securing it to the

wall studs.

Lay the frame panel of sheet rock over the PBF

board and fasten the frame to studs of the wall.

Cut along the traced path to make a frame for

the pre-construction board.

Once the board has been properly leveled, fasten

the PBF board to the vertical and horizontal studs.

James Loudspeaker | 535 Airpark Road, Napa, CA 94558 | 707.265.6343 | www.JamesLoudspeaker.com

20171027

PBF PRECONSTRUCTION BOARD INSTALLATION GUIDE

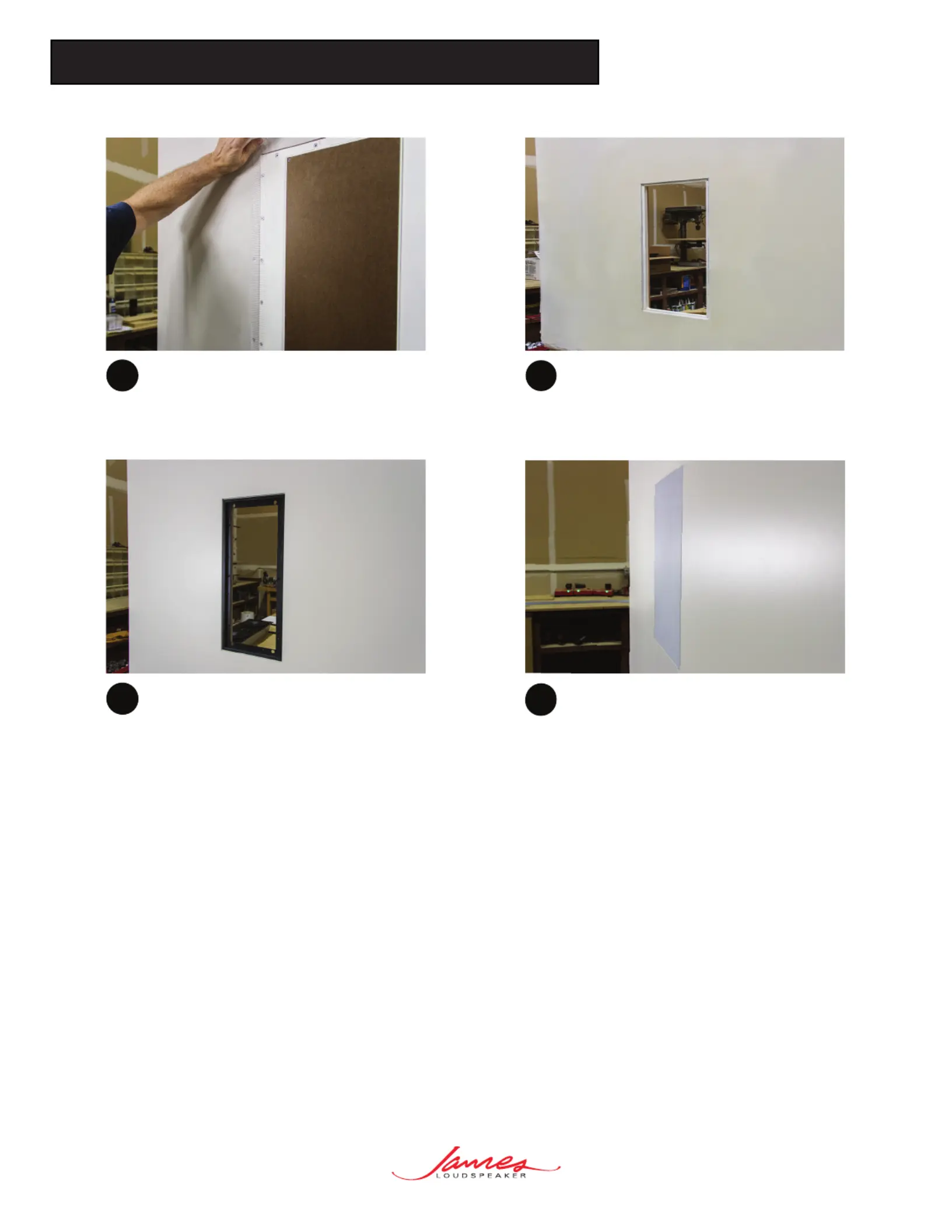

After the speaker installation is completed, the

grille will be ﬂush with the wall.

Mount the speaker bracket to the wall, and begin

the speaker installation process.

After you ﬁnish the mudding process,the inner

plug can now be removed and sanding can be

performed to remove any unwanted surface

features.

Now, cover the seams around the board with

mesh tape, and begin the mudding process.

Make sure to apply mud up to the lip of the PBF

board.
