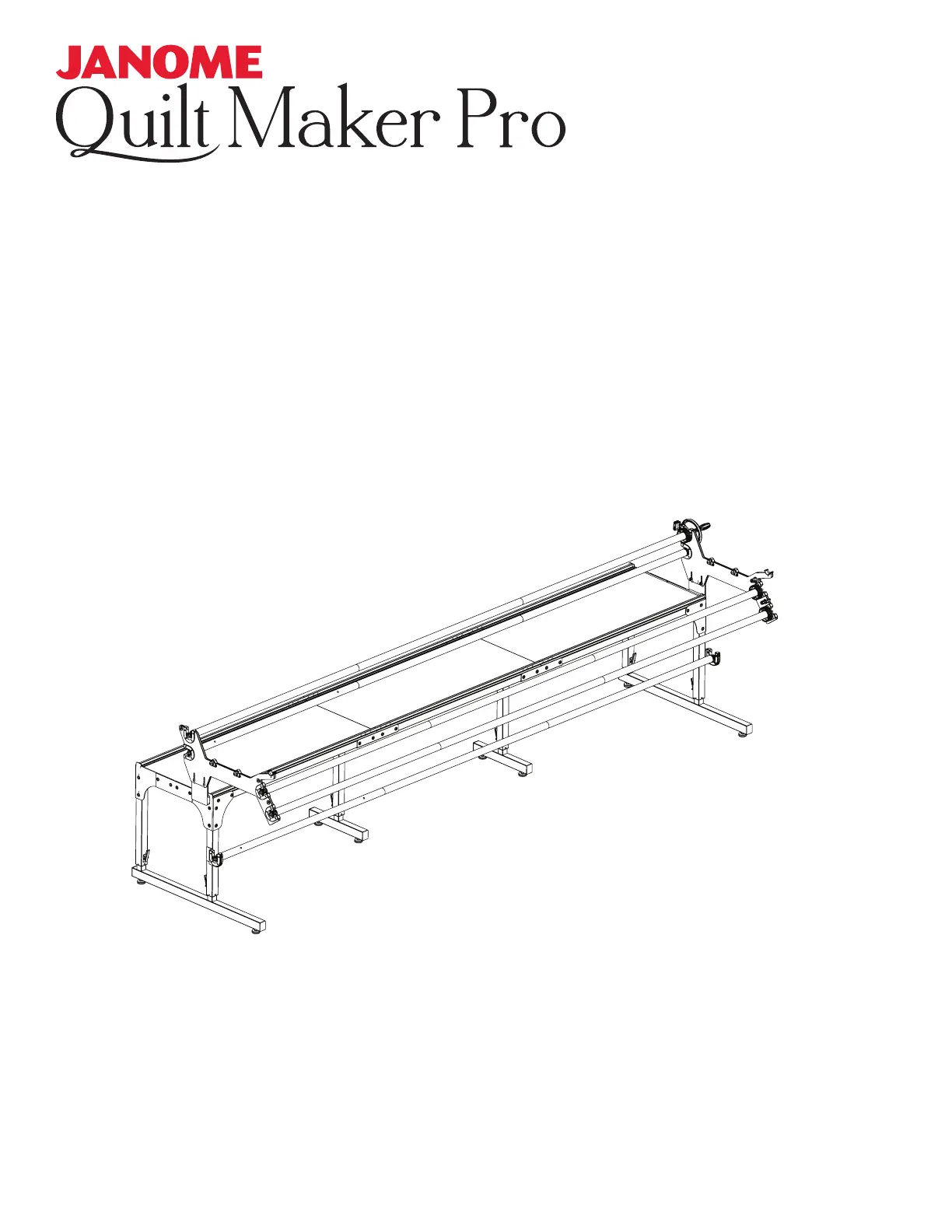

1janome.com Quilt Maker Pro

12’ Quilting Frame Assembly

Table of Contents

Parts List ......................................2

Hardware List ..................................3

Quilt Maker Pro 12’ Quilting Frame

Box Contents ..................................4

Step 1- Frame Side Assembly ....................5

Step 2- Table Assembly .........................6

Step 3- Middle Leg Assembly ....................7

Step 4- End Leg Assembly ......................8

Step 5- Precision-Glide Track Assembly ...........11

Step 6- Ratchet Stop Assembly .................14

Step 7- Pole Bracket Assembly ..................16

Step 8- Pole Coupler Assembly .................17

Step 9- Pole End Assembly (including

Ratchet Wheel, Hand Wheel) ............18

Step 10- Pole to Frame Assembly ...............21

Step 11- Rubber End Cap Assembly ..............21

Step 12- Hook and Loop Strips Attachment .......22

Step 13- Bungee Clamp Assembly ...............22

Step 14- Hook and Loop Strips

on Poles Assembly ....................23

Step 15- Attach Leaders ........................23

Step 16- Adjusting Quilt Maker Pro 12’

Quilting Frame Height. . . . . . . . . . . . . . . . . .24

Loading the Frame & Using the Pole Cradles .....25

What’s Included

Your Quilt Maker Pro 12’ Quilting Frame should have been

delivered in four separate boxes. Upon opening, please

check immediately to see if you have received the items

listed in the Parts and Hardware lists found on pages 2, 3

and 4. In addition, the following items will be found in:

Box 1: Quilt Maker Pro 12’ Quilting Frame Assembly

Instructions Manual

Box 4: (3) Leaders

(3) Hook and loop strips to attach leaders

to poles

If you ﬁnd you are missing any items, please contact

Janome immediately at 1-800-631-0183 or by emailing

custrel@janome-america.com.

12’ Quilting Frame

Assembly Instructions

2 janome.com

201704

Quilt Maker Pro

12’ Quilting Frame Assembly

Fig. 6-1

FIG. 6-2

TRACK SUPPORT

12FT BLACK PLASTIC TRACK

COUPLER

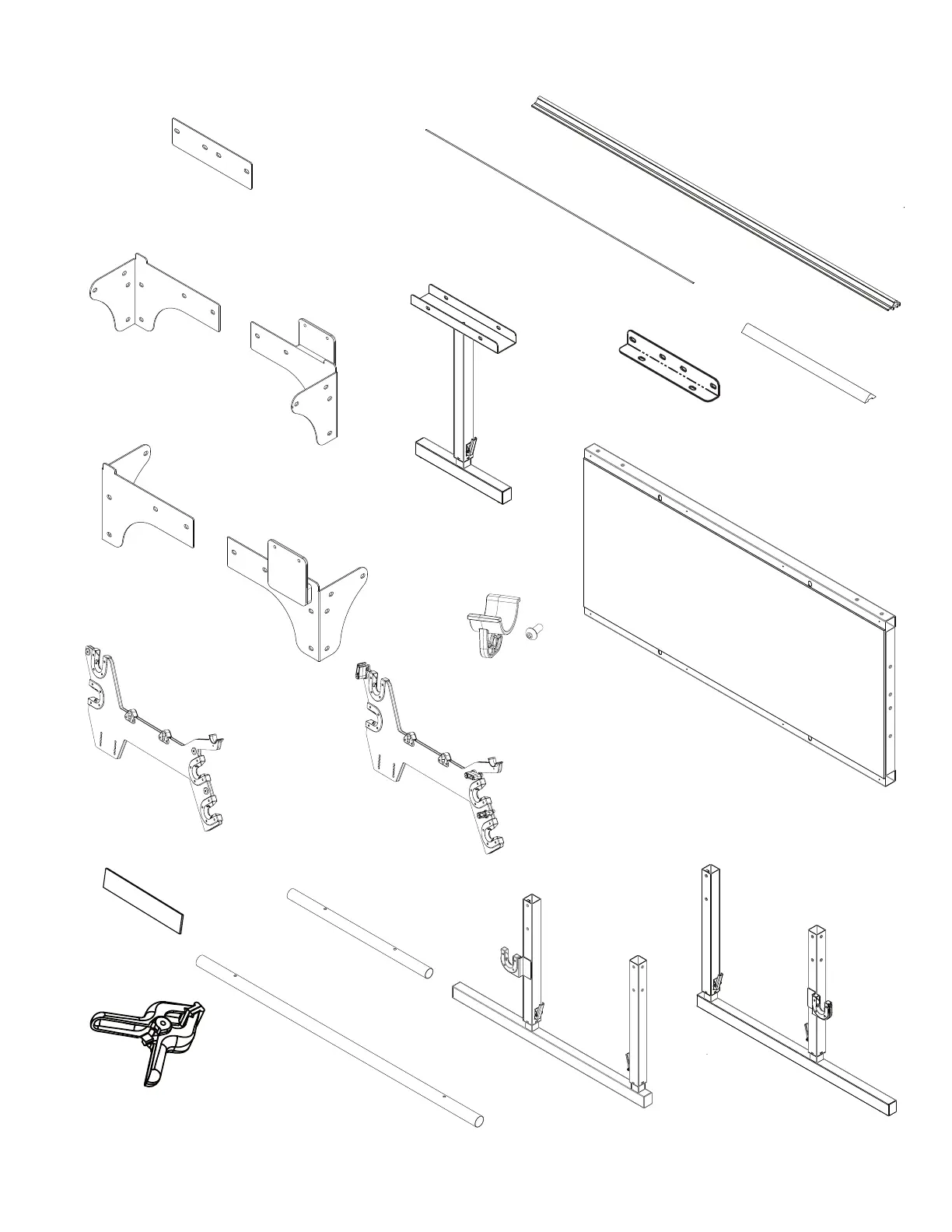

Quilt Maker Pro 12’ Quilting Frame

Parts List

QF09318-512

LEFT FRAME SIDE, BACK

QF09318-511

LEFT SIDE FRAME, FRONT

QF09318-412

RIGHT FRAME SIDE, BACK

QF09318-411

RIGHT SIDE FRAME, FRONT

QF09318-700

POLE ASSY

QF09318-730

QF09318-740

POLE ASSY

QF09318-512

LEFT FRAME SIDE, BACK

QF09318-511

LEFT SIDE FRAME, FRONT

QF09318-412

RIGHT FRAME SIDE, BACK

QF09318-411

RIGHT SIDE FRAME, FRONT

QF09318-700

POLE ASSY

QF09318-730

QF09318-740

POLE ASSY

Table Splice Brace (4)

Box 3

Fig. 5-5

Bottom minus screws

TABLE SECTION

RIGHT POLE BRACKET

MIDDLE LEG STAND

QF09318-500

END LEG STAND, LEFT

QF09318-400

END LEG STAND, RIGHT

BATTING BAR BRACKET

QF09318-510

QF09318-410

BATTING BAR BRACKET

QF09318-05

TABLE SPLICE BRACE

COUPLER

QF09318-01

Right Frame

Side Front (1)

Box 3

Right Frame

Side Back (1)

Box 3

Table Section (3)

2 in Box 1 and 1 in Box 4

Right Side Leg (1)

Box 3

Frame Side

Coupler (2)

Box 3

Fig. 5-5

Bottom minus screws

Left Side Leg (1)

Box 3

Fig. 6-1

FIG. 6-2

TRACK SUPPORT

12FT BLACK PLASTIC TRACK

COUPLER

Track Support Section (6)

With table section: Four in Box 1 and two in Box 4

12ft Plastic Track (4) (Black)

Box 3

TABLE SECTION

RIGHT POLE BRACKET

MIDDLE LEG STAND

QF09318-500

END LEG STAND, LEFT

QF09318-400

END LEG STAND, RIGHT

BATTING BAR BRACKET

QF09318-510

QF09318-410

BATTING BAR BRACKET

QF09318-05

TABLE SPLICE BRACE

COUPLER

QF09318-01

Track Support

Coupler (4)

Box 3

Bungee Clamp (4)

Box 3

Hook and Loop

Strip (2)

Box 1

4’ Pole Section

Ten in Box 2 and ﬁve in Box 4

Fig. 9-1

Fig. 9-2

Fig. 8-1

Fig. 9-4

Fig. 9-3

Fig. 6-1

FIG. 6-2

TRACK SUPPORT

12FT BLACK PLASTIC TRACK

COUPLER

Fig. 9-1

Fig. 9-2

Fig. 8-1

Fig. 9-4

Fig. 9-3

2’ Coupler (10)

Box 2

TABLE SECTION

RIGHT POLE BRACKET

MIDDLE LEG STAND

QF09318-500

END LEG STAND, LEFT

QF09318-400

END LEG STAND, RIGHT

BATTING BAR BRACKET

QF09318-510

QF09318-410

BATTING BAR BRACKET

QF09318-05

TABLE SPLICE BRACE

COUPLER

QF09318-01

Middle Leg (2)

Box 3

Plugged-Hole Pole Bracket (1)

Box 1

Open-Hole Pole Bracket (1)

Box 1

Pole Cradle & Screw (2)

Left Frame Side

Front (1)

Box 3

Left Frame Side

Back (1)

Box 3
