JBL CS-5 Manual

JBL Bil højttaler CS-5

Læs gratis den danske manual til JBL CS-5 (2 sider) i kategorien Bil højttaler. Denne vejledning er vurderet som hjælpsom af 13 personer og har en gennemsnitlig bedømmelse på 4.4 stjerner ud af 7 anmeldelser. Har du et spørgsmål om JBL CS-5, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/2
www.jbl.com
3
3
3
1
4
4
2
1
1
2
2
5
JBL
®
CS SerieS
car audio speaker
spanish translation
french translation
german translation
dutch translation
danish translation
finnish translation
portuguese translation
russian translation
polish translation
swedish translation
turkish translation
s. chinese translation
t. chinese translation
japanese translation
CS-4
CS-5, CS-6 CS-5C, CS-6C
2x
CS-69
CS-5C, CS-6C
CS-4, CS-5, CS-6, CS-69 CS-5C, CS-6C
iNSTALLATiON MANUAL
SPANiSH TrANSLATiON
FreNCH TrANSLATiON
iTALiAN TrANSLATiON
GerMAN TrANSLATiON
DUTCH TrANSLATiON
DANiSH TrANSLATiON
FiNNiSH TrANSLATiON
POrTUGUeSe TrANSLATiON
rUSSiAN TrANSLATiON
POLiSH TrANSLATiON
SWeDiSH TrANSLATiON
TUrKiSH TrANSLATiON
S. CHiNeSe TrANSLATiON
T. CHiNeSe TrANSLATiON
JAPANeSe TrANSLATiON
2x

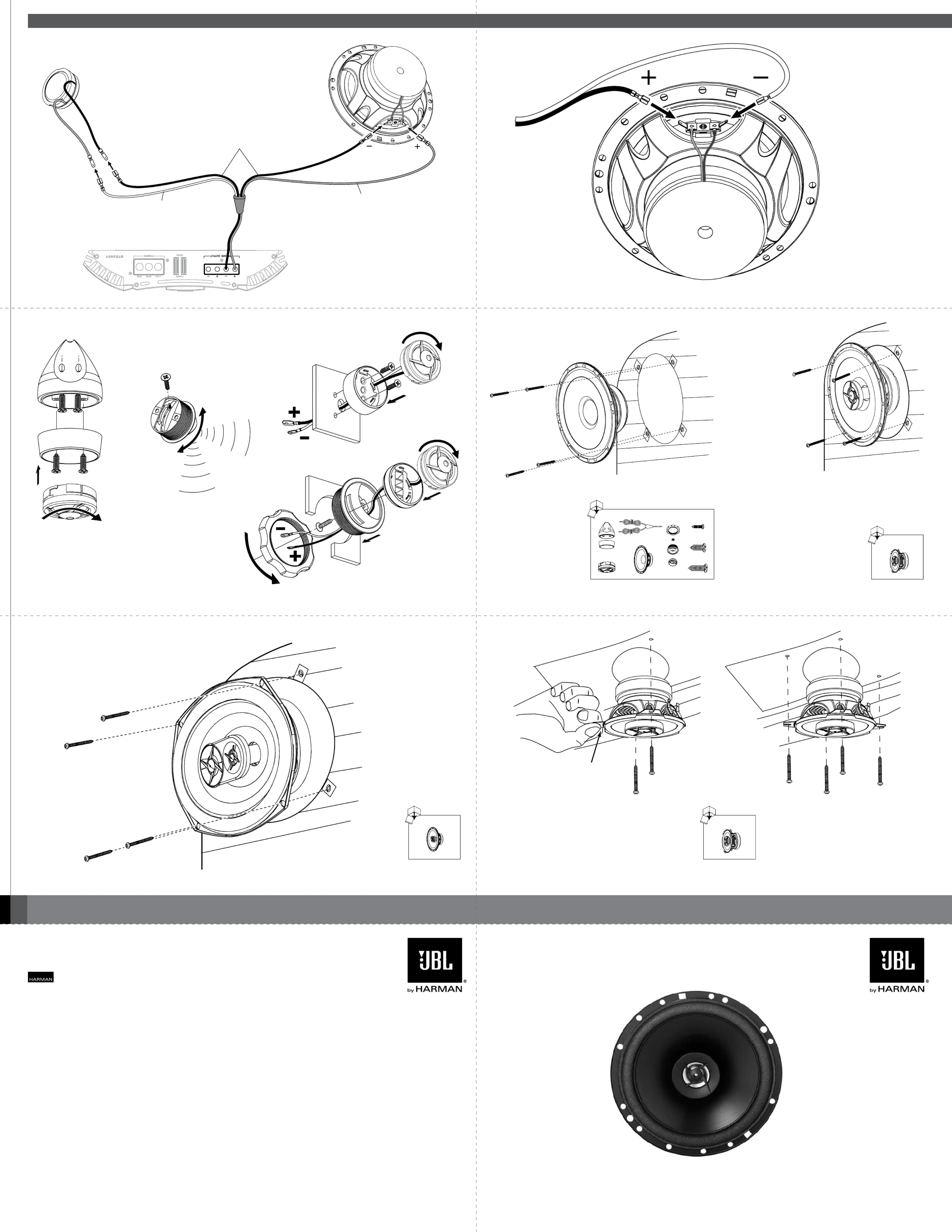

Break off tabs for two-hole mounting
Spanish translation
French translation
Italian translation
German translation
Dutch translation
Danish translation
Finnish translation
Portuguese translation
Russian translation
Polish translation
Swedish translation
Turkish translation
S. Chinese translation
T. Chinese translation
Japanese translation
www.jbl.com
HARMAN Consumer, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
2x
+
–
–
+
Red / Spanish translation / French translation / Italian
translation / German translation / Dutch translation /
Danish translation / Finnish translation / Portuguese
translation / Russian translation / Polish translation /
Swedish translation / Turkish translation / S. Chinese
translation / T. Chinese translation / Japanese
translation
Black / Spanish translation / French translation
/ Italian translation / German translation / Dutch
translation / Danish translation / Finnish translation /
Portuguese translation / Russian translation / Polish
translation / Swedish translation / Turkish translation
/ S. Chinese translation / T. Chinese translation /
Japanese translation
Yellow / Spanish translation / French translation
/ Italian translation / German translation / Dutch
translation / Danish translation / Finnish translation /
Portuguese translation / Russian translation / Polish
translation / Swedish translation / Turkish translation
/ S. Chinese translation / T. Chinese translation /
Japanese translation
2x
2x
2x
4x
4x
2x
2x
2x
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C
BL (T.m) 3.13 3.81 4.07 5.38 3.73 3.73
DCR (ohms) 3.13 3.10 3.09 3.09 3.14 3.09
Mms (g) 5.07 8.00 10.97 19.54 8.27 11.24
Sd (cm
2
) 55.42 103.87 143.14 222.66 103.87 143.14
Cms (um/N) 476 408 359 399 470 445
Vas (1) 2.05 6.18 10.33 27.78 7.12 12.80
Fs (Hz) 102.49 88.15 80.20 57.00 80.77 71.18
Qes
1.04 0.95 1.03 0.75 0.95 1.12
Qms
8.99 8.64 5.51 5.60 8.00 4.94
Qts
0.93 0.85 0.87 0.66 0.85 0.91
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

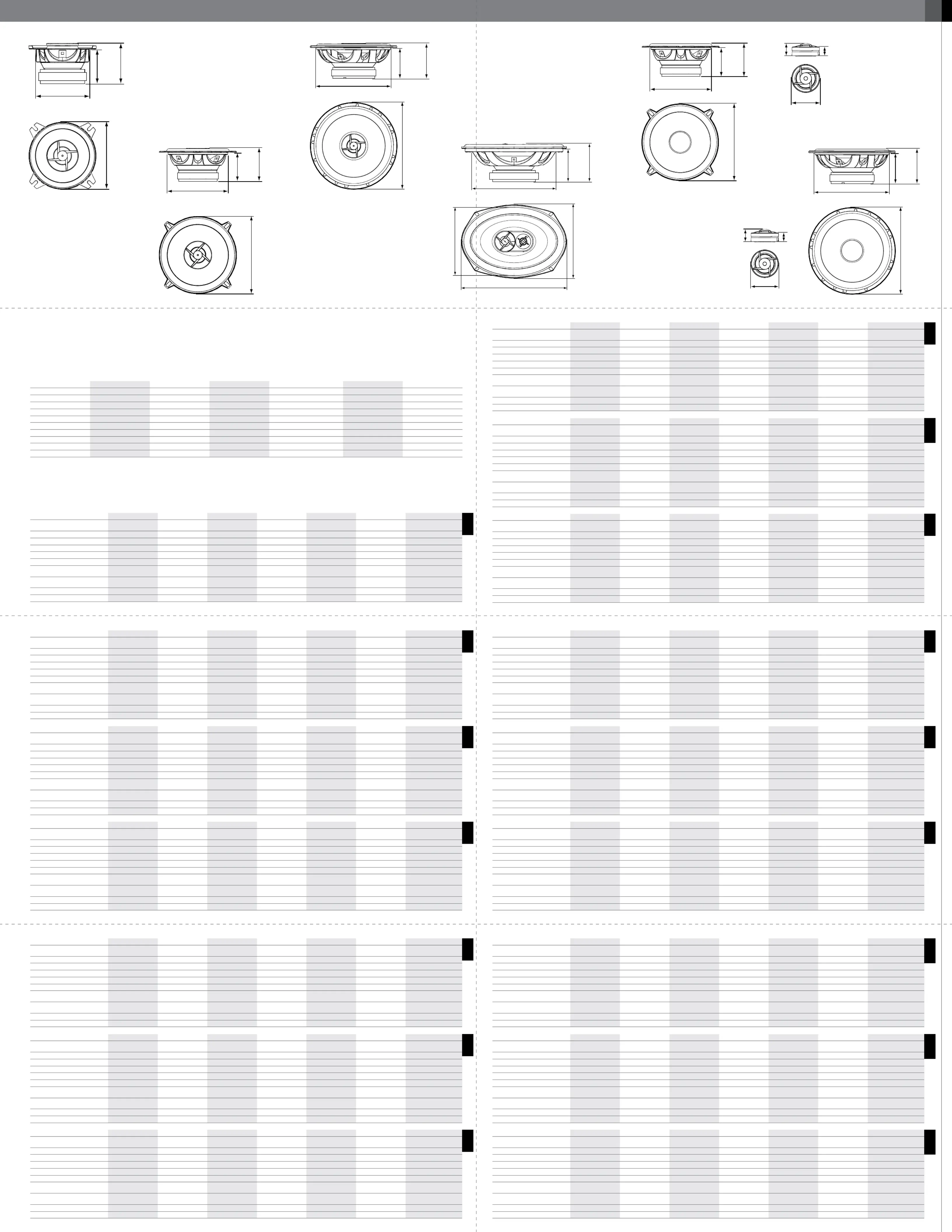

SPECIFICATIONS
Russian
CS-4
3-15/32"
(88mm)
2"
(51mm)
2-5/16"
(59mm)
3-29/32"
(99mm)
CS-5
4-3/4"
(120mm)
2-9/16"
(65mm)
5-1/8"
(130mm)
2-9/32"
(58mm)
CS-6
5-5/8"
(143mm)
2-5/16"
(59mm)
2-5/8"
(67mm)
6-1/2"
(166mm)
CS-69
8-23/32"
(221mm)
9-1/4"
(235mm)
2-31/32"
(75mm)
3-11/32"
(85mm)
6-1/2"
(165mm)
5-29/32"
(150mm)
CS-5C
17/32"
(14mm)
1-13/16"
(46mm)
2-9/32"
(58mm)
2-1/2"
(64mm)
5-1/8"
(130mm)
4-3/4"
(120mm)
23/32"
(18.5mm)
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Spanish
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
French
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Italian
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
German
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Dutch
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Danish
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Polish
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Swedish
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Turkish
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
S. Chinese
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
T. Chinese
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Japanese
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Finnish
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
Portuguese
CS-4 CS-5 CS-6 CS-69 CS-5C CS-6C CS-5C, CS-6C Tweeter
Type
4" (100mm)
two-way speaker
5-1/4" (130mm)
two-way speaker
165mm
two-way speaker
6" x 9"
(152mm x 230mm)
three-way speaker
5-1/4" (130mm) two-way
component system
165mm two-way
component system
1" (25mm)
component tweeter
Continuous power handling
30W 35W 45W 70W 40W 50W --
Peak power handling
90W 105W 135W 210W 120W 150W --
Frequency response
75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --
Nominal impedance
4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --
Sensitivity (2.83V/m)
90dB 93dB 93dB 94dB 92dB 92dB --
External diameter
3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)
9-1/4" x 6-1/2"
(235mm x 165mm)
5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "
Mounting cutout diameter
3-15/32 (88mm)"
4-3/4" (120mm)
5-5/8 (143mm)"
8-23/32 x 5-29/32" "
(221mm x 150mm)
4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "
Total depth
2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "
Mounting depth
2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "
SPECIFICATIONS
English
THIELE-SMALL PARAMETERS GERMAN TRANSLATION PORTUGUESE TRANSLATION TURKISH TRANSLATION
SPANISH TRANSLATION DUTCH TRANSLATION RUSSIAN TRANSLATION S. CHINESE TRANSLATION
FRENCH TRANSLATION DANISH TRANSLATION POLISH TRANSLATION T. CHINESE TRANSLATION
ITALIAN TRANSLATION FINNISH TRANSLATION SWEDISH TRANSLATION JAPANESE TRANSLATION
CS-6C
5-5/8"
(143mm)
1-13/16"
(46mm)
6-1/2"
(166mm)
2-5/16"
(59mm)
2-19/32"
(66mm)
23/32"
(18.5mm)
17/32"
(14mm)

Produkt Specifikationer

Mærke: JBL
Kategori: Bil højttaler
Model: CS-5
Frekvensområde: 70 - 20000 Hz
Impedens: 4 ohm (Ω)
Højttaler, type: 2-vejs
Diameter: 133 mm
Diskanthøjttaler: Ja
Sensitivitet: 93 dB
Højttalere: 1
Vurderet effekt: 35 W
Maksimal strøm: 105 W
Separate komponenter: Ingen

Har du brug for hjælp?

Hvis du har brug for hjælp til JBL CS-5 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Bil højttaler JBL Manualer

JBL

JBL 408GTi Manual

25 December 2024
JBL

JBL 504GTi Manual

25 December 2024
JBL

JBL 404GTi Manual

25 December 2024
JBL

JBL CS265 Manual

25 December 2024
JBL

JBL CS308 Manual

25 December 2024
JBL

JBL CS205 Manual

25 December 2024
JBL

JBL CS206 Manual

25 December 2024
JBL

JBL CS264 Manual

25 December 2024
JBL

JBL CS496 Manual

25 December 2024
JBL

JBL CS-6C Manual

25 December 2024

Bil højttaler Manualer

Nyeste Bil højttaler Manualer

Audiotec Fischer

Audiotec Fischer Match Up C42BMW-FRT Manual

9 April 2025
Focal

Focal IC VW 165 Manual

29 Marts 2025
Focal

Focal IC REN 130 Manual

29 Marts 2025
Focal

Focal IS REN 130 Manual

29 Marts 2025
Focal

Focal IS RNS 165 Manual

28 Marts 2025
Focal

Focal IS PSA 165 Manual

26 Marts 2025
Sony

Sony XS-W104ES Manual

12 Januar 2025
Hertz

Hertz HEX 6.5 IC-W Manual

31 December 2025
JL Audio

JL Audio Stealthbox SB-F-150-SPRCRW/13TW5v2/TN Manual

30 December 2025
Kicker

Kicker 51KST2504 Manual

27 December 2024
