iNSTALLATiON MANUAL

eiNBAUANLeiTUNG

GUiDe D’iNSTALLATiON

MANUAL De iNSTALACiÓN

MONTAGeHANDLeiDiNG

iNSTALLAZiONe MANUALe

iNSTALLATiONSMANUAL

iNSTALLATiONSVeJLeDNiNG

ASeNNUSOHJe

取付説明書

安装手册

РУКОВОДСТВО ПО

УСТАНОВКЕ

PODRĘCZNIK INSTALACJI

MANUAL De iNSTALAÇÃO

安裝手冊

KUrULUM KiLAVUZU

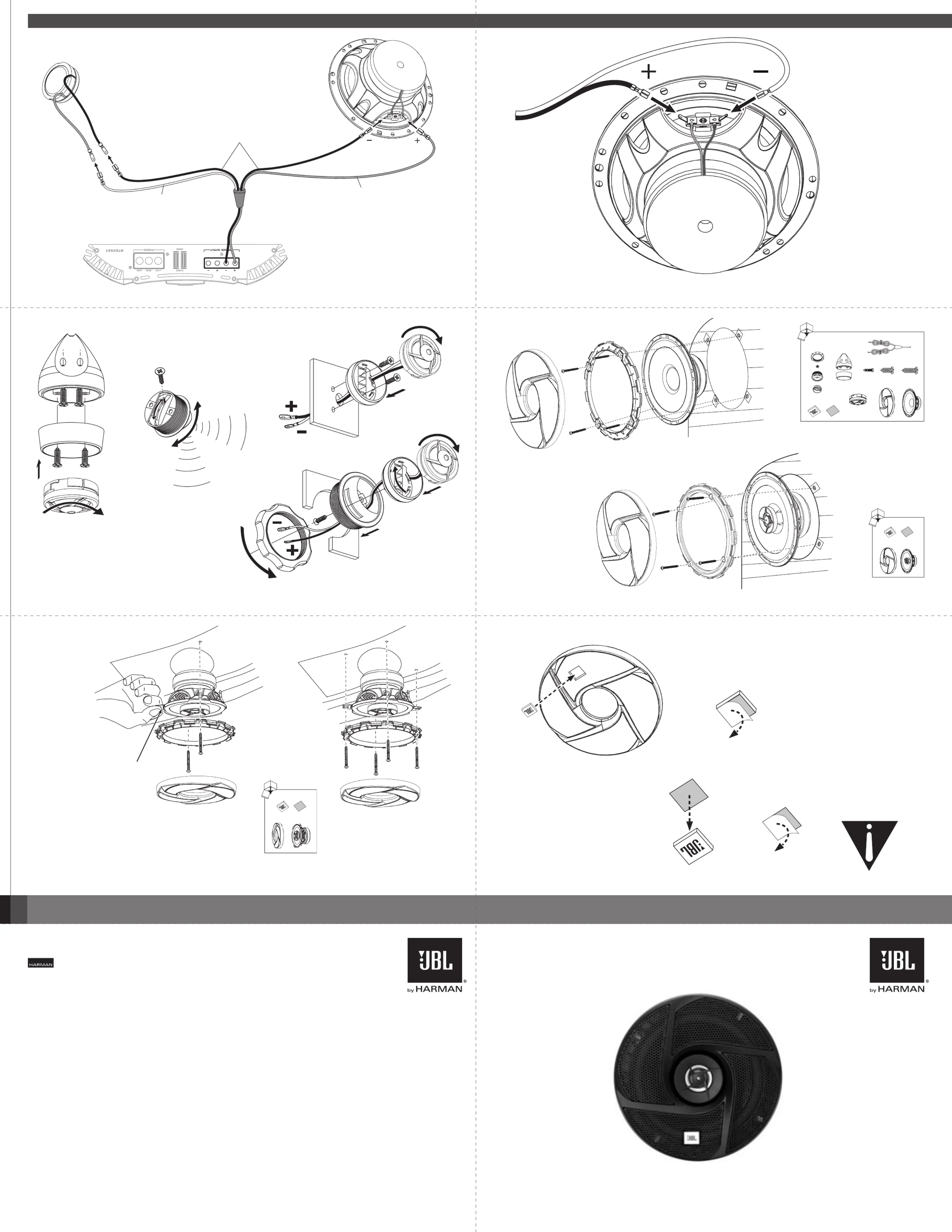

Break off tabs for two-hole mounting

Für die 2-Lochmontierung die Klappen herausbrechen

Languettes sécables pour montage à deux trous

Romper las pestañas para montaje de doble agujero

Afbreektabs voor twee-gatsmontage

Linguette di apertura per montaggio a doppio foro

Bryt av ﬂikar för två hål montering

Afbrækkelige tapper til to-huls-montering

kaksireikäiselle asennukselle

穴マウント用爪（取付前に折り取る）

折断用于双孔安装的接片

Отрывное ушко для двух гнезд крепления

Wyłamać zaślepki, aby zamontować głośnik dwiema

śrubami

Guias de furação para montagem de dois oríﬁcios

請折斷垂片以便用兩孔裝設

İki delikli montaj için tırnakları kırın

–

Red / Rot / Rouge / Rojo / Rood / Rosso / Röd / Rød

/ Punainen / / / 赤红色

Красный

czerwony

Vermelho / / Kırmızı紅

Black / Schwarz / Noir / Negro / Zwart / Nero / Svart

/ Sort / Musta / / / 黒、白黑色

Черный

Czarny

Preto / / 黑色

Siyah

Yellow / Gelb / Jaune / Amarillo / Geel / Giallo / Gul

/ Gul / Keltainen / / / 黄色黄色

Желтый

Żółty

Amarelo / / 黃

Sarı

2x 2x

2x2x

2x 2x

www.jbl.com

HARMAN Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

JBL is a trademark of HARMAN International Industries, Incorporated, registered in the

United States and/or other countries.

Features, speciﬁcations and appearance are subject to change without notice.

JBL on HARMAN International Industries, Incorporatedin tavaramerkki, joka on rekisteröity

Yhdysvalloissa ja/tai muissa maissa.

Ominaisuuksia, teknisiä tietoja ja ulkoasua voidaan muuttaa ilman erillistä ilmoitusta.

JBL ist eine Marke von HARMAN International Industries, Incorporated, eingetragen in

den USA und/oder anderen Ländern.

Alle Leistungsmerkmale und Speziﬁkationen sowie das mechanische Design können sich

ohne vorherige Ankündigung ändern.

JBLは米国およびその他の国々におけるHARMAN International Industries, Incorporated

の登録商標です。

製品の仕様および外観は、改良のため予告無く変更する場合があります。

JBL est une marque de HARMAN International Industries, Inc., déposée aux États-Unis

et/ou dans d’autres pays.

Les fonctionnalités, les spéciﬁcations et l’aspect du produit peuvent être modiﬁés sans

préavis.

JBL 为在美国及/或其它国家注册的哈曼国际工业公司

（）的商标。 HARMAN International Industries, Incorporated

以上规格如有变更，恕不另行通知。

JBL es una marca de HARMAN International Industries, Incorporated, registrada en los

Estados Unidos y/u otros países.

Las funciones, las especiﬁcaciones y el formato están sujetos a cambios sin previo aviso.

JBL

является торговой маркой

HARMAN International Industries, Incorporated

зарегистрированной в США и/или других странах.

Функции, характеристики и внешний вид описываемых компонентов могут быть изменены

без предварительного уведомления

JBL is een handelsmerk van HARMAN International Industries, Incorporated, geregistreerd

in de Verenigde Staten en/of andere landen.

Eigenschappen, speciﬁcaties en vormgeving kunnen zonder voorafgaande kennisgeving

worden gewijzigd.

. Wszelkie prawa zastrzeżone.

JBL

to znak towarowy

HARMAN International Industries, Incorporated

zarejestrowane w

Stanach Zjednoczonych i/lub innych krajach.

Cechy, dane techniczne i wygląd produktów mogą być przedmiotem zmian bez uprzedniego

poinformowania.

JBL è un marchio proprietario di HARMAN International Industries, Incorporated,

registrato negli Stati Uniti e/o altre nazioni.

Funzionalità, speciﬁche e aspetto sono soggetti a modiﬁca senza preavviso.

JBL é uma marca comercial da HARMAN International Industries, Incorporated, registada

nos Estados Unidos e/ou noutros países.

As funções, as especiﬁcações e o aspecto estão sujeitos a alteração sem aviso prévio.

JBL är ett varumärke som tillhör HARMAN International Industries, Incorporated, som är

registrerad i USA och/eller andra länder.

Funktioner, speciﬁkationer och design kan komma att ändras utan föregående

meddelande.

JBL HARMAN International Industries, Incorporated 是在美國及/或其他國家或地區

的註冊商標。

功能、規格和外觀如有更改，恕不另行通知。

JBL varemærket tilhører HARMAN International Industries, Inc., registreret i USA og/eller

andre lande.

Der forbeholdes ret til ændring af beskrivelse, speciﬁkationer og udseende uden varsel.

JBL,

HARMAN International Industries, Incorporated

ﬁrmasının ABD ve/veya diğer ülkelerde

tescil edilen ticari markasıdır.

Özellikleri, teknik özellikleri ve görüntüsü önceden haber verilmeden değiştirilebilir.

1. 2.

仕様

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C

GT6-5C, GT6-6C ツイーター

形式

2ウェイ・スピーカー

5-1/4"

2ウェイ・スピーカー

6-1/2"

2ウェイ・スピーカー

6" x 9"

3ウェイ・スピーカー

5-1/4" 2ウェイ・

コンポーネント・システム

6-1/2" 2ウェイ・

コンポーネント・システム

コンポーネント・ツイーター

定格入力

30W 35W 45W 70W 40W 50W --

最大許容入力

90W 105W 135W 210W 120W 150W --

周波数特性

75Hz 20kHz 70Hz 20kHz 55Hz 20kHz 40Hz 20kHz 70Hz 20kHz 55Hz 20kHz～～～～～～

インピーダンス

4 4 4 4 4 4 オームオームオームオームオームオーム

出力音差レベル(2.83V/m)

90dB 93dB 93dB 94dB 92dB 92dB --

外形寸法

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

取付穴径

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

最大奥行

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

埋め込み寸法

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

Japanese

GT6-4

3-15/32"

(88mm)

(51mm)

2-5/16"

(59mm)

3-29/32"

(99mm)

GT6-5

4-3/4"

(120mm)

2-9/16"

(65mm)

5-1/8"

(130mm)

2-9/32"

(58mm)

GT6-6

5-5/8"

(143mm)

2-5/16"

(59mm)

2-5/8"

(67mm)

6-1/2"

(166mm)

GT6-69

8-23/32"

(221mm)

9-1/4"

(235mm)

2-31/32"

(75mm)

3-11/32"

(85mm)

6-1/2"

(165mm)

5-29/32"

(150mm)

GT6-5C

27/32"

(21mm)

1-13/16"

(46mm)

2-9/32"

(58mm)

2-1/2"

(64mm)

5-1/8"

(130mm)

4-3/4"

(120mm)

GT6-6C

5-5/8"

(143mm)

1-13/16"

(46mm)

6-1/2"

(166mm)

2-5/16"

(59mm)

2-19/32"

(66mm)

27/32"

(21mm)

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C

BL (T.m) 3.13 3.81 4.07 5.38 3.73 3.73

DCR (ohms) 3.13 3.10 3.09 3.09 3.14 3.09

Mms (g) 5.07 8.00 10.97 19.54 8.27 11.24

Sd (cm

) 55.42 103.87 143.14 222.66 103.87 143.14

Cms (um/N) 476 408 359 399 470 445

Vas (1) 2.05 6.18 10.33 27.78 7.12 12.80

Fs (Hz) 102.49 88.15 80.20 57.00 80.77 71.18

Qes

1.04 0.95 1.03 0.75 0.95 1.12

Qms

8.99 8.64 5.51 5.60 8.00 4.94

Qts

0.93 0.85 0.87 0.66 0.85 0.91

TECHNISCHE DATEN

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C

GT6-5C, GT6-6C Hochtöner

Typ

2-Wege Lautsprecher

5-1/4"

2-Wege Lautsprecher

6-1/2"

2-Wege Lautsprecher

6" x 9"

3-Wege Lautsprecher

5-1/4" 2-Wege

Komponentensystem

6-1/2" 2-Wege

Komponentensystem

Hochtöner

Dauerbelastbarkeit

30 W 35 W 45 W 70 W 40 W 50 W --

Spitzenbelastbarkeit

90 W 105 W 135 W 210 W 120 W 150 W --

Frequenzbereich

75 Hz – 20k Hz 70 Hz – 20k Hz 55 Hz – 20k Hz 40 Hz – 20k Hz 70 Hz – 20k Hz 55 Hz – 20k Hz --

Nennimpedanz

4 Ohm 4 Ohm 4 Ohm 4 Ohm 4 Ohm 4 Ohm --

Wirkungsgrad @ 2,83V/1 Meter

90 dB 93 dB 93 dB 94 dB 92 dB 92 dB --

Außendurchmesser

99 mm 130 mm 166 mm 235 mm x 165 mm 130 mm 166 mm 46 mm

Durchmesser des

Montageausschnittes

88 mm 120 mm 143 mm 221 mm x 150 mm 120 mm 143 mm 120 mm

Vollständige Tiefe

59 mm 65 mm 67 mm 85 mm 64 mm 66 mm 21 mm

Einbautiefe

51 mm 58 mm 59 mm 75 mm 58 mm 59 mm 58 mm

Deutsch

CARACTÉRISTIQUES

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C Tweeter

Type

haut-parleur deux voies

5-1/4"

haut-parleur deux voies

6-1/2"

haut-parleur deux voies

6" x 9"

haut-parleur trois voies

5-1/4" système

composant deux voies

6-1/2" système

composant deux voies

tweeter composant

Puissance continue admissible

30W 35W 45W 70W 40W 50W --

Puissance crête admissible

90W 105W 135W 210W 120W 150W --

Réponse en fréquence

75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Impédance nominale

4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --

Sensibilité @ 2,83V/1m

90dB 93dB 93dB 94dB 92dB 92dB --

Diamètre extérieur

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

Diamètre de découpe

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

Profondeur totale

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

Profondeur de montage

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

Français

ESPICIFICACIONES

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C Tweeter

Tipo

altavoces de dos vías

5-1/4"

altavoces de dos vías

6-1/2"

altavoces de dos vías

6" x 9"

altavoces de tres vías

5-1/4" componente de

sistema de dos vías

6-1/2" Componente de

sistema de dos vías

Componente tweeter

Manejo de potencia continua

30W 35W 45W 70W 40W 50W --

Manejo de potencia punta

90W 105W 135W 210W 120W 150W --

Respuesta en frecuencia

75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Impedancia nomina

4 ohmios 4 ohmios 4 ohmios 4 ohmios 4 ohmios 4 ohmios --

Sensibilidad 2.83V @ 1 metro

90dB 93dB 93dB 94dB 92dB 92dB --

Diámetro exterior

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

Montaje de diámetro recorte

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

Profundidad total

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

Profundidad de montaje

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

Español

SPECIFICATIES

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C Tweeter

Type

twee-wegluidspreker

5-1/4"

twee-wegluidspreker

6-1/2"

twee-wegluidspreker

6" x 9"

drie-wegluidspreker

5-1/4" twee-weg

component systeem

6-1/2" twee-weg

component systeem

component tweeter

Continuvermogen afhandeling

30 W 35 W 45 W 70 W 40 W 50 W --

Piekvermogen afhandellng

90 W 105 W 135 W 210 W 120 W 150 W --

Frequentiebereik

75 Hz – 20k Hz 70 Hz – 20k Hz 55 Hz – 20k Hz 40 Hz – 20k Hz 70 Hz – 20k Hz 55 Hz – 20k Hz --

Nominale impedantie

4 ohm 4 ohm 4 ohm 4 ohm 4 ohm 4 ohm --

Gevoeligheid 2,83V @ 1 meter

90 dB 93 dB 93 dB 94 dB 92 dB 92 dB --

Uitwendige diameter

3-29/32" (99 mm) 5-1/8" (130 mm) 6-1/2" (166 mm)

9-1/4" x 6-1/2"

(235 mm x 165 mm)

5-1/8 (130 mm) 6-1/2 (166 mm) 1-13/16 (46 mm)" " "

Montage uitsparingsdiameter

3-15/32 (88 mm)"

4-3/4" (120 mm)

5-5/8 (143 mm)"

8-23/32 x 5-29/32" "

(221 mm x 150 mm)

4-3/4 (120 mm) 5-5/8 (143 mm) 4-3/4 (120 mm)" " "

Totale diepte

2-5/16 (59 mm) 2-9/16 (65 mm) 2-5/8 (67 mm) 3-11/32 (85 mm) 2-1/2 (64 mm) 2-19/32 (66 mm) 27/32 (21 mm)" " " " " " "

Inbouwdiepte

2 (51 mm) 2-9/32 (58 mm) 2-5/16 (59 mm) 2-31/32 (75 mm) 2-9/32 (58 mm) 2-5/16 (59 mm) 2-9/32 (58 mm)" " " " " " "

Nederlands

SPECIFICHE

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C Tweeter

Tipo

diffusore a due vie

5-1/4"

diffusore a due vie

6-1/2"

diffusore a due vie

6" x 9"

diffusore a tre vie

5-1/4" sistema

componente a due vie

6-1/2" sistema

componente a due vie

tweeter componente

Gestione continua corrente

30W 35W 45W 70W 40W 50W --

Gestione corrente picco

90W 105W 135W 210W 120W 150W --

Risposta in frequenza

75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Impedenza nominale

4 ohm 4 ohm 4 ohm 4 ohms 4 ohm 4 ohm --

Sensibilità 2.83V @ 1 metro

90dB 93dB 93dB 94dB 92dB 92dB --

Diametro esterno

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

Diametro soglia di montaggio

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

Profondità totale

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

Profondità di montaggio

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

Italiano

SPECIFIKATIONER

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C

GT6-5C, GT6-6C

Diskanthögtalare

Type

två-vägshögtalare

5-1/4"

två-vägshögtalare

6-1/2"

två-vägshögtalare

6" x 9"

tre-vägshögtalare

5-1/4" två-vägs

komponentsystem

6-1/2" två-vägs

komponentsystem

komponent diskanthögtalare

Kontinuerlig märkeffekt

30W 35W 45W 70W 40W 50W --

Toppeffekt hantering

90W 105W 135W 210W 120W 150W --

Frekvensområde

75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Nominel impedans

4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --

Känslighet 2,83V @ 1 meter

90dB 93dB 93dB 94dB 92dB 92dB --

Yttre diameter

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

Montering utskuren diameter

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

Totalt djup

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

Monteringsdjup

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

Svenska

规格

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C 高音扬声器

类型

二分频扬声器

5-1/4"

二分频扬声器

6-1/2"

二分频扬声器

6" x 9"

三分频扬声器

5-1/4" 二分频分体式扬

声器系统

6-1/2" 二分频分体式扬

声器系统

分体式高音扬声器

持续功率

30 35 45 70 40 50 --瓦瓦瓦瓦瓦瓦

峰值功率

90 105 135 210 120 150 --瓦瓦瓦瓦瓦瓦

频响

75 – 20 70 – 20 55 – 20 40 – 20 70 – 20 55 – 20 --赫兹至千赫兹赫兹至千赫兹赫兹至千赫兹赫兹至千赫兹赫兹至千赫兹赫兹至千赫兹

标称阻抗

4 4 4 4 4 4 --欧欧欧欧欧欧

灵敏度 (2.83V/m)

90 93 93 94 92 92 --分贝分贝分贝分贝分贝分贝

外径

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

安装开口直径

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

总深度

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

安装深度

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

简体中文

ХАРАКТЕРИС ТИКИ

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C

GT6-5C

GT6-6C

Высокочастотная головка

Тип

стерео спикер

5-1/4"

стерео спикер

6-1/2"

стерео спикер

6" x 9" трехканальный

громкоговоритель

5-1/4" стерео

компонентная система

6-1/2" стерео

компонентная система

головка

Мощность 30Вт 35Вт 45Вт 70Вт 40Вт 50Вт --

Пиковая мощность 90Вт 105Вт 135Вт 210Вт 120Вт 150Вт --

Диапазон частот 75Гц – 2кГц 70Гц – 20кГц 55Гц – 20кГц 40Гц – 20кГц 70Гц – 20кГц 55Гц – 20кГц --

Номинальный импеданс 4 Ом 4 Ом 4 Ом 4 Ом 4 Ом 4 Ом --

Чувствительность (2,83 В на 1 м) 90дБ 93дБ 93дБ 94дБ 92дБ 92дБ --

Внешний диаметр 3-29/32" (99мм) 5-1/8" (130мм) 6-1/2" (166мм)

9-1/4" x 6-1/2"

(235мм x 165мм)

5-1/8" (130мм) 6-1/2" (166мм) 1-13/16" (46мм)

Монтажный диаметр 3-15/32" (88мм) 4-3/4" (120мм) 5-5/8" (143мм)

8-23/32" x 5-29/32"

(221мм x 150мм)

4-3/4" (120мм) 5-5/8" (143мм) 4-3/4" (120мм)

Глубина 2-5/16" (59мм) 2-9/16" (65мм) 2-5/8" (67мм) 3-11/32" (85мм) 2-1/2" (64мм) 2-19/32" (66мм) 27/32" (21мм)

Монтажная глубина 2" (51мм) 2-9/32" (58мм) 2-5/16" (59мм) 2-31/32" (75мм) 2-9/32" (58мм) 2-5/16" (59мм) 2-9/32" (58мм)

Русский

Dane techniczne

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C

GT6-5C

GT6-6C

Głośnik wysokotonowy

Typ

głośnik 2-drożny

5-1/4"

głośnik 2-drożny

6-1/2"

głośnik 3-drożny

6" x 9"

zestaw 2-drożny

5-1/4"

zestaw 2-drożny

6-1/2"

tweeter

Moc RMS 30W 35W 45W 70W 40W 50W --

Moc szczytowa 90W 105W 135W 210W 120W 150W --

Pasmo przenoszenia 75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Impedancja 4 omy 4 omy 4 omy 4 omy 4 omy 4 omy --

Skuteczność (2,83V@1m) 90dB 93dB 93dB 94dB 92dB 92dB --

Średnica głośnika 3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8" (130mm) 6-1/2" (166mm) 1-13/16" (46mm)

Średnica otworu montażowego 3-15/32" (88mm) 4-3/4" (120mm) 5-5/8" (143mm)

8-23/32" x 5-29/32"

(221mm x 150mm)

4-3/4" (120mm) 5-5/8" (143mm) 4-3/4" (120mm)

Głębokość głośnika 2-5/16" (59mm) 2-9/16" (65mm) 2-5/8" (67mm) 3-11/32" (85mm) 2-1/2" (64mm) 2-19/32" (66mm) 27/32" (21mm)

Głębokość montażu 2" (51mm) 2-9/32" (58mm) 2-5/16" (59mm) 2-31/32" (75mm) 2-9/32" (58mm) 2-5/16" (59mm) 2-9/32" (58mm)

Polski

ESPECIFICAÇÕES

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C

GT6-5C, GT6-6C

Saída de Agudos

Tipo

altifalante de duas vias

5-1/4"

altifalante de duas vias

6-1/2"

altifalante de duas vias

6" x 9"

altifalante de três vias

5-1/4" componente

sistema de duas vias

6-1/2" componente

sistema de duas vias

componente saída de agudos

Potência Contínua em funcionamento

30W 35W 45W 70W 40W 50W --

Pico de Potência em funcionamento

90W 105W 135W 210W 120W 150W --

Frequência de resposta

75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Impedância nominal

4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --

Sensibilidade (2,83V @ 1m)

90dB 93dB 93dB 94dB 92dB 92dB --

Diâmetro exterior

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

Diâmetro do corte de montagem

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

Profundidade total

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

Profundidade de montagem

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

Português

規格

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C 高頻揚聲器

類型

雙向喇叭

5-1/4"

雙向喇叭

6-1/2"

雙向喇叭

6" x 9"

三向喇叭

5-1/4" 6-1/2" 雙向元件系統雙向元件系統

元件高頻揚聲器

連續供電處理

30W 35W 45W 70W 40W 50W --

尖峰供電處理

90W 105W 135W 210W 120W 150W --

頻率反應

75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

標稱阻抗

4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --

靈敏度 )(2.83V/m)

90dB 93dB 93dB 94dB 92dB 92dB --

外部直徑

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

托架輪廓直徑

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

總厚度

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

裝設後之厚度

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

繁體中文

TEKNIK ÖZELLIKLER

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C Tweeter

Tip

iki yönlü hoparlör

5-1/4"

iki yönlü hoparlör

6-1/2"

iki yönlü hoparlör

6" x 9"

üç yönlü hoparlör

5-1/4" iki yönlü

bileşen sistemi

6-1/2" iki yönlü

component system

bileşen tweeter

Kesintisiz güç kullanımı 30W 35W 45W 70W 40W 50W --

Tepe gücü kullanımı 90W 105W 135W 210W 120W 150W --

Frekans Tepkisi 75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Nominal Empedans 4 ohm 4 ohm 4 ohm 4 ohm 4 ohm 4 ohm --

Duyarlılık (2.83V, 1m) 90dB 93dB 93dB 94dB 92dB 92dB --

Harici çap 3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8" (130mm) 6-1/2" (166mm) 1-13/16" (46mm)

Montaj kesici çapı 3-15/32" (88mm) 4-3/4" (120mm) 5-5/8" (143mm)

8-23/32" x 5-29/32"

(221mm x 150mm)

4-3/4" (120mm) 5-5/8" (143mm) 4-3/4" (120mm)

Toplam derinlik 2-5/16" (59mm) 2-9/16" (65mm) 2-5/8" (67mm) 3-11/32" (85mm) 2-1/2" (64mm) 2-19/32" (66mm) 27/32" (21mm)

Montaj derinliği 2" (51mm) 2-9/32" (58mm) 2-5/16" (59mm) 2-31/32" (75mm) 2-9/32" (58mm) 2-5/16" (59mm) 2-9/32" (58mm)

Türkçe

SPECIFIKATIONER

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C Tweeter

Type

tovejs-højttaler

5-1/4"

tovejs-højttaler

6-1/2"

tovejs-højttaler

6" x 9"

trevejs-højttaler

5-1/4" tovejs-

komponentsystem

6-1/2" tovejs-

komponentsystem

komponent-tweeter

Kontinuerlig strømstyring

30W 35W 45W 70W 40W 50W --

Spidsbelastning-strømstyring

90W 105W 135W 210W 120W 150W --

Frekvensgang

75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Nominel impedans

4 ohm 4 ohm 4 ohm 4 ohm 4 ohm 4 ohm --

Følsomhed 2,83V, 1m

90dB 93dB 93dB 94dB 92dB 92dB --

Ekstern diameter

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

udskåret diameter

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

Total dybde

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

Monteringsdybde

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

Dansk

TEKNISET TIEDOT

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C

GT6-5C, GT6-6C Diskant

Tyyppi

kaksitiekaiutin

5-1/4"

kaksitiekaiutin

6-1/2"

kaksitiekaiutin

6" x 9"

kolmitiekaiutin

5-1/4"

kaksitie-erillissarja

6-1/2"

kaksitie-erillissarja

diskanttikaiutin

Continuous power handling

30 W 35 W 45 W 70 W 40 W 50 W --

Peak power handling

90 W 105 W 135 W 210 W 120 W 150 W --

Taajuusvaste

75 Hz – 20k Hz 70 Hz – 20k Hz 55 Hz – 20k Hz 40 Hz – 20k Hz 70 Hz – 20k Hz 55 Hz – 20k Hz --

Nimellisimpedanssi

4 ohmia 4 ohmia 4 ohmia 4 ohmia 4 ohmia 4 ohmia --

Herkkyys 2,83V @ 1 m

90 dB 93 dB 93 dB 94 dB 92 dB 92 dB --

ulkohalkaisija

3-29/32" (99 mm) 5-1/8" (130 mm) 6-1/2" (166 mm)

9-1/4" x 6-1/2"

(235 mm x 165 mm)

5-1/8 (130 mm) 6-1/2 (166 mm) 1-13/16 (46 mm)" " "

asennusaukon halkaisija

3-15/32 (88 mm)"

4-3/4" (120 mm)

5-5/8 (143 mm)"

8-23/32 x 5-29/32" "

(221 mm x 150 mm)

4-3/4 (120 mm) 5-5/8 (143 mm) 4-3/4 (120 mm)" " "

kokonaissyvyys

2-5/16 (59 mm) 2-9/16 (65 mm) 2-5/8 (67 mm) 3-11/32 (85 mm) 2-1/2 (64 mm) 2-19/32 (66 mm) 27/32 (21 mm)" " " " " " "

asennussyvyys

2 (51 mm) 2-9/32 (58 mm) 2-5/16 (59 mm) 2-31/32 (75 mm) 2-9/32 (58 mm) 2-5/16 (59 mm) 2-9/32 (58 mm)" " " " " " "

Suomi

THIELE-SMALL PARAMETERS THIELE-SMALL-PARAMETERS THIELE-SMALL PARAMETRIT

PARAMETRY THIELE-SMALL

THIELE-SMALL PARAMETER PARAMETRI THIELE PICCOLO

ティール・スモール・パラメータ

PARÂMETROS THIELE-SMALL

PARAMÈTRES DE THIELE-SMALL THIELE-SMALL-PARAMETERAR

低频参数

THIELE-SMALL參數

PARÁMETROS THIELE-SMALL THIELE-SMALL PARAMETRE

ПАРАмЕТРы Тиля-СмОлля THIELE-SMALL PARAMETRELERİ

GT6-4 GT6-5 GT6-6 GT6-69 GT6-5C GT6-6C GT6-5C, GT6-6C Tweeter

Type

4" (100mm)

two-way speaker

5-1/4" (130mm)

two-way speaker

6-1/2" (165mm)

two-way speaker

6" x 9" (152mm x 230mm)

three-way speaker

5-1/4" (130mm) two-way

component system

6-1/2" (165mm) two-way

component system

1" (25mm)

component tweeter

Continuous power handling

30W 35W 45W 70W 40W 50W --

Peak power handling

90W 105W 135W 210W 120W 150W --

Frequency response

75Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz 40Hz – 20kHz 70Hz – 20kHz 55Hz – 20kHz --

Nominal impedance

4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms --

Sensitivity (2.83V/m)

90dB 93dB 93dB 94dB 92dB 92dB --

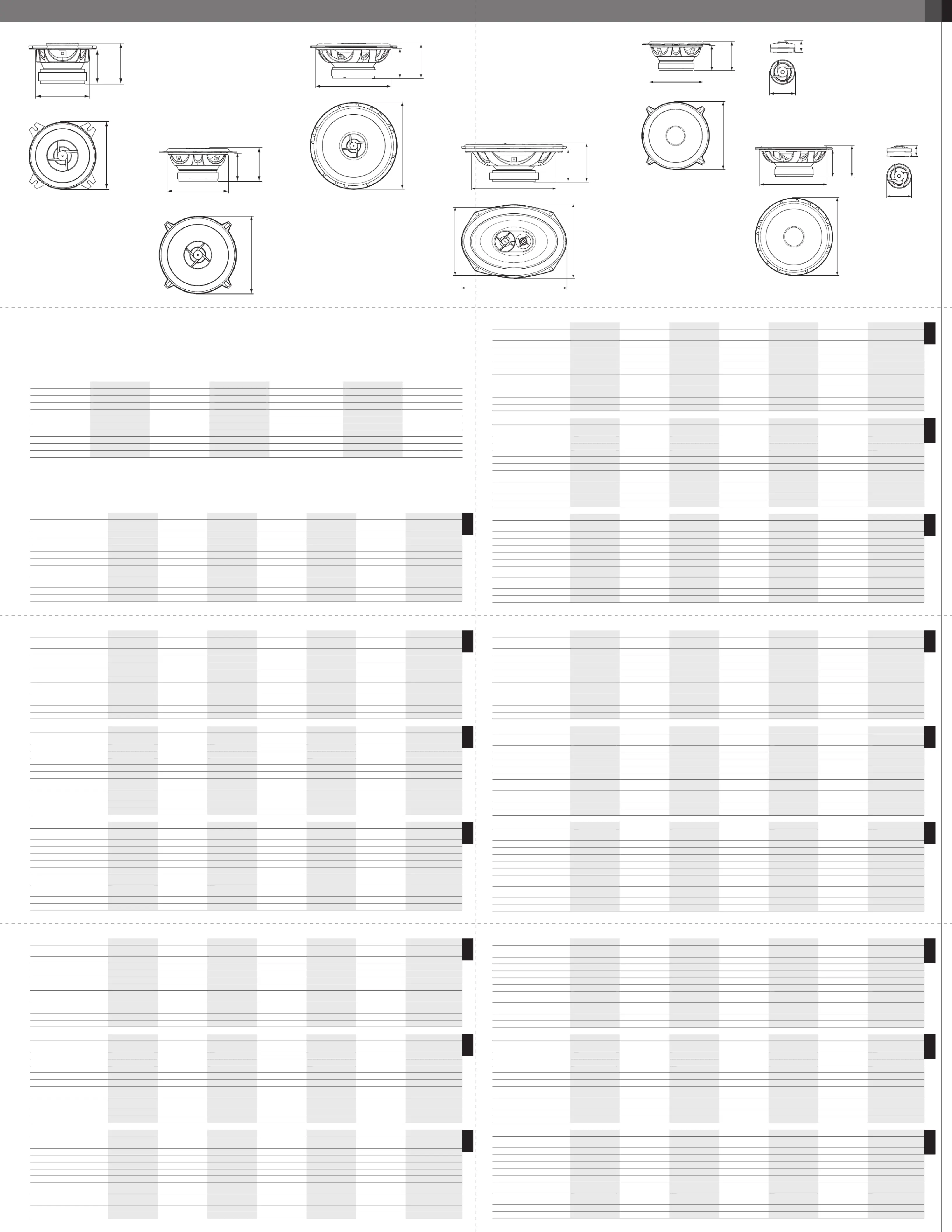

External diameter

3-29/32" (99mm) 5-1/8" (130mm) 6-1/2" (166mm)

9-1/4" x 6-1/2"

(235mm x 165mm)

5-1/8 (130mm) 6-1/2 (166mm) 1-13/16 (46mm)" " "

Mounting cutout diameter

3-15/32 (88mm)"

4-3/4" (120mm)

5-5/8 (143mm)"

8-23/32 x 5-29/32" "

(221mm x 150mm)

4-3/4 (120mm) 5-5/8 (143mm) 4-3/4 (120mm)" " "

Total depth

2-5/16 (59mm) 2-9/16 (65mm) 2-5/8 (67mm) 3-11/32 (85mm) 2-1/2 (64mm) 2-19/32 (66mm) 27/32 (21mm)" " " " " " "

Mounting depth

2 (51mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-31/32 (75mm) 2-9/32 (58mm) 2-5/16 (59mm) 2-9/32 (58mm)" " " " " " "

SPECIFICATIONS

English

Produkt Specifikationer

Mærke:	JBL
Kategori:	Bilhøjttaler
Model:	GT6-4
Frekvensområde:	75 - 20000 Hz
Impedens:	4 ohm (Ω)
Højttaler, type:	2-vejs
Diskanthøjttaler:	Ja
Sensitivitet:	90 dB
Woofer diameter:	100 mm
Vurderet effekt:	30 W
Maksimal strøm:	90 W
Separate komponenter:	Ingen
