SERIES II ENCLOSURES

THANK YOU FOR CHOOSING THIS JBL

PRODUCT

This product has been designed to deliver great bass performance from a compact, easily installed enclosure. To get the best performance

from your enclosure, we strongly recommend that you entrust installation to a qualified professional. Although these instructions explain how

to install your enclosure in a general sense, they do not show specific installation methods that may be required for your particular vehicle.

If you do not have the necessary tools or experience, do not attempt the installation yourself. Instead, please ask your authorized JBL

car

audio dealer about professional installation. To help us serve you better if your enclosure ever requires warranty service, please retain your

original sales receipt and serial number.

INSTALLATION WARNINGS AND TIPS

INSTALLATION TIPS

• Always wear protective eyewear when using tools.

• Turn off all audio components and other electrical devices before you start. Disconnect the negative (–) lead from your vehicle’s battery.

• Check clearances on both sides of a planned mounting surface. Be sure that screws or wires will not puncture brake lines, fuel lines or

wiring harnesses, and that wire routing will not interfere with the safe operation of the vehicle.

• When making electrical connections, make sure they are secure and properly insulated.

• Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.

• Do not mount speakers where they will get wet.

CHOOSING A MOUNTING LOCATION FOR THE ENCLOSURE

Choose a mounting location that doesn’t interfere with cargo, the fold-down rear seat or the trunk lid. The best location is usually a corner

of the trunk or cargo area. Securely mount the enclosure to the mounting surface.

WARNING: Playing loud music in an automobile can permanently damage your hearing as well as hinder your ability to hear traffic.

Listening at low levels while driving is recommended. HARMAN International accepts no liability for hearing loss, bodily injury or property

damage resulting from use or misuse of this product.

CONNECTING THE SUBWOOFER ENCLOSURE

Setting the Impedance

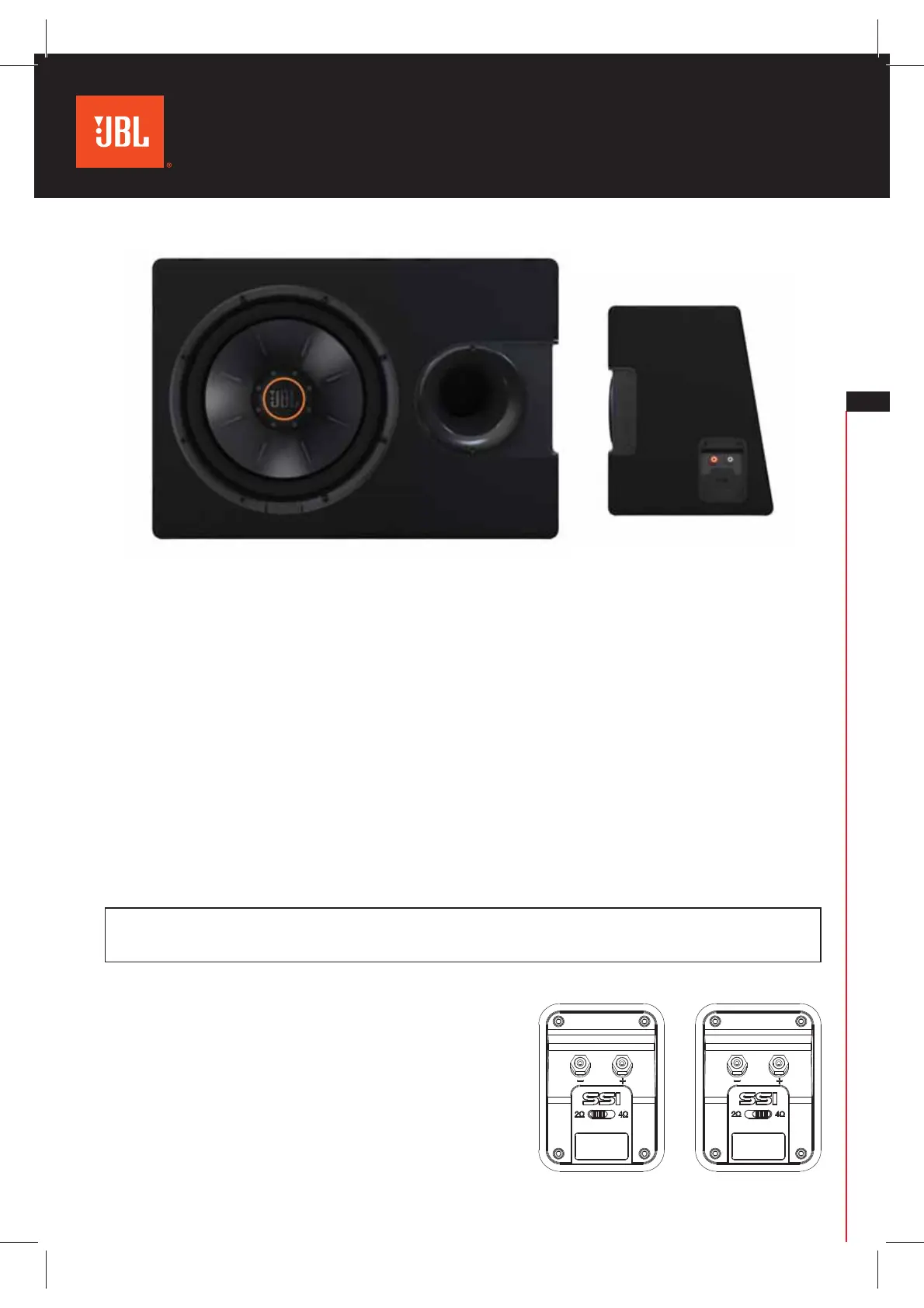

The Series II Enclosures both feature the Selectable Smart Impedance™ (SSI)

switch. This exclusive feature lets you set the subwoofer’s impedance to either

2 ohms or 4 ohms with the flip of a switch (see illustration below). This allows

you to extract the most from your subwoofer amplifier in any situation.

The SSI 2-ohm setting increases the subwoofer’s output over the 4-ohm setting

by up to 3dB, depending on the amplifier. Performance is identical in all other

respects. If the connected amplifier is rated for 2-ohm operation and its 2-ohm

power ratings are within the subwoofer’s power-handling specifications, setting

the SSI switch in the 2-ohm position will achieve maximum output.

IMPORTANT: Make sure the subwoofer amplifier is turned OFF before setting

the SSI switch. Do not change the switch position while the subwoofer amplifier

is operating. Doing so could damage the amplifier.

2-Ohm Setting

4-Ohm Setting

Produkt Specifikationer

Mærke:	JBL
Kategori:	Subwoofer
Model:	S2-1224SS
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Udgangseffekt (RMS):	275 W
Frekvensområde:	25 - 175 Hz
Impedens:	4 ohm (Ω)
Sensitivitet:	93 dB
Form:	Firkant
Subwoofer inkluderet:	Ja
Vurderet effekt:	275 W
Maksimal strøm:	1100 W
Indbygningsdybde:	- mm
Forstærker inkluderet:	Ingen
