Side 1/4
TOUR, MONITOR, ARENA,
STAGE, STADIUM, VOICE,
BALCONY
JBL VENUE
™
OWNER’S GUIDE
®
JBL VENUE
™
halls, recording studios and movie theaters around the world and has become
the hands-down choice of leading recording artists and sound engineers.
With the JBL Venue Series, innovative technologies such as titanium-laminate-
dome tweeters, EOS
™
waveguides and PolyPlas
™
transducer reinforcement are
available to you. Enjoy!
UNPACKING THE SPEAKERS
If you suspect damage from transit, report it immediately to your dealer. Keep
the shipping carton and packing materials for future use.
PLACEMENT
NEVER drag the speaker to move it, as this will damage the spikes, the
feet and/or the wood cabinet itself. Always lift the speaker and carry it to its
new location.
CAUTION: Floorstanding (tower) loudspeakers have a high center
of gravity and may become unstable and tip over during events such as
earthquakes, or if rocked, tipped or improperly positioned. If this is a concern,
these speakers should be anchored to the wall behind them, using the same
procedures and hardware customary for anchoring bookcases and wall
units. The customer is responsible for proper installation and proper selection
of hardware.
STEREO
Before deciding where to place your speakers, survey your room and think
about placement, keeping the following points in mind, using Figure 1 as a
guide:
• For best results, place the speakers 6'– 8' (1.5m–2.5m) apart.
• Position each speaker so that the tweeter is approximately at ear level.
• Generally, bass output will increase as the speaker is moved closer to a wall
or corner.
• Refer to “Home Theater” below if you also plan to use the speakers for
home theater reproduction.

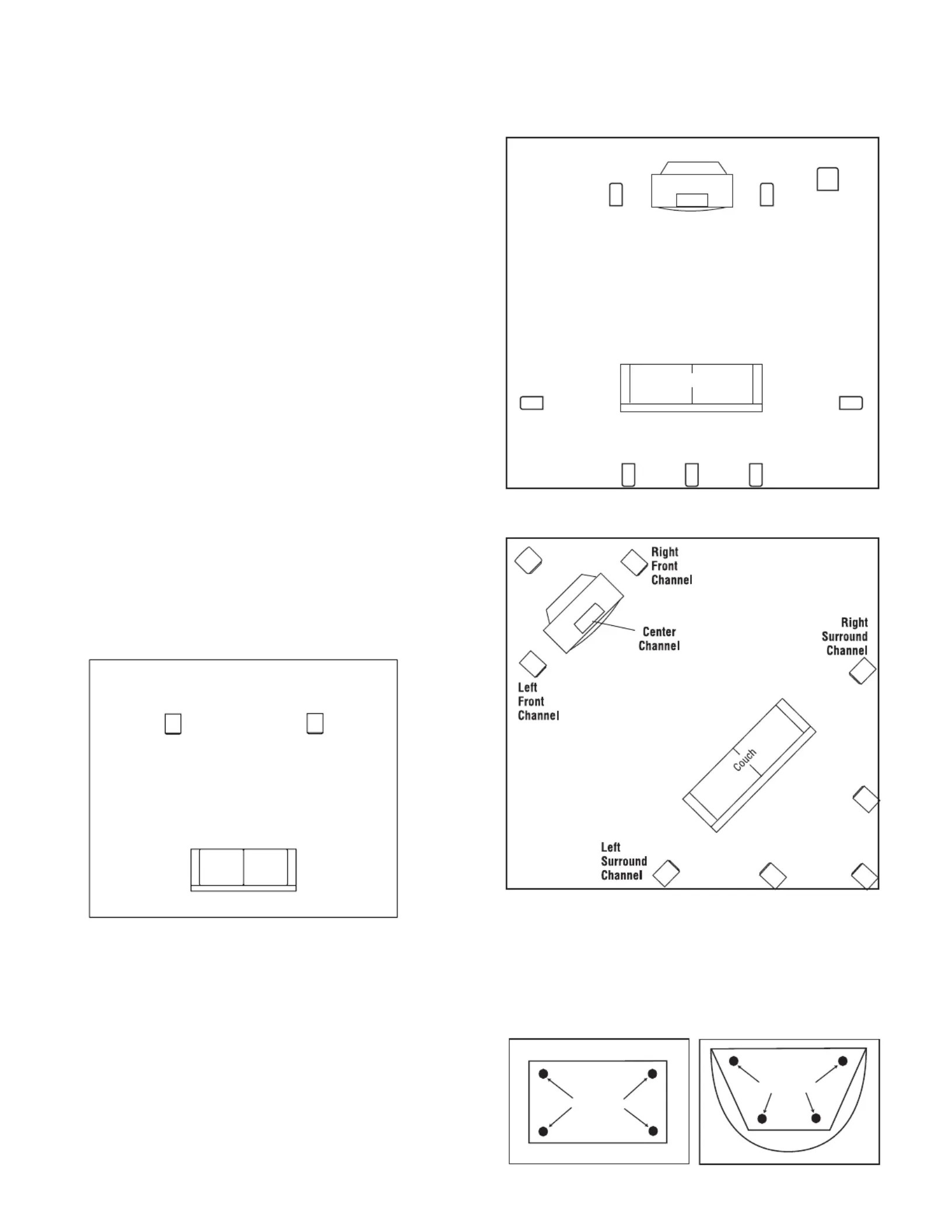

Figure 1. Experiment with speaker placement to obtain the best bass level and stereo
imaging in your room.
HOME THEATER
For front-channel use, place one speaker on the left and another on the right,
along either side of the television monitor. Since the speakers are magnetically
shielded, you can place them near the TV without worrying about the field dis-
torting the TV picture.
For surround-channel use, place speakers on bookshelves or stands alongside
the listening position. Tour and Balcony are also wall-mountable. Final place-
ment depends on room acoustics, availability of space and your listening pref-
erence (Figures 2 and 3).
In 6- or 7-channel configurations, place the rear channel(s) behind the listening
position, as shown in Figures 2 and 3.
NOTE: A JBL powered subwoofer will add impact and realism to both
music and film soundtracks. Contact your JBL dealer for recommendations
on subwoofer models for your application.
Figure 2. This overhead view shows a typical home theater plan. Left/right rear
channels are for a 7-channel system. The center rear channel is for a 6-channel system.
Figure 3. This figure shows an alternate layout, which may be more suitable for some
rooms. Left/right rear channels are for a 7-channel system. The center rear channel is
for a 6-channel system.
INSTALLING FEET
Balcony, Tour, Monitor, Arena
The supplied self-adhesive rubber feet may be attached to the bottom corners
of your speakers to protect your furniture.
Place pads here
Place pads here
Left Rear
Channel
JBL Subwoofer
(optional)
Right Rear
Channel
Center Rear
Channel
Couch
Left
F o tr n
Cha elnn
Left
S o durr un
Cha elnn
Left Rear
Cha elnn
Right Rear
Cha elnn
Ce te Rean r r
Cha elnn
Right
S o durr un
Cha elnn
Right
F o tr n
Cha elnn
Ce ten r
Cha elnn
JBL S bwoofeu r
(optio al)n
Listening Position
Left
Channel
Right
Channel
2
