Decorator Panel Dimensions and Installation.

Three Panel Method

Routed Raised Panel Method

Refrigerator Door

Routed Area

Front Panel ( 3/4" Max.)

Backing Panel ( 1/4")

Trim Frame

Surrounding Door

Refrigerator Door

Front Panel ( 3/4" Max.)

Backing Panel ( 1/4")

Trim Frame

Surrounding Door

Spacer Panel ( 1/16")

12884405 06/08

Spacer

Panel

16-3/4

(425mm)

43-3/16

(1097mm)

23

(584mm)

34-3/4

(883mm)

1/16

(2mm)

Front

Panel

17-3/4

(451mm)

44-1/8

(1121mm)

24

(610mm)

35-3/4

(908mm)

3/4 max

(19mm)

Backing

Panel*

17-3/8

(441mm)

43-13/16

(1113mm)

23-9/16

(599mm)

35-5/16

(897mm)

1/4

(6mm)

Panel

Type

* For ease of installation cut backer panel corners at

45° - 1 x 1

1" (25.4mm)

Typ.

Thickness

Suggested Panel Assembly Methods

WEIGHT REQUIREMENTS FOR PANEL INSERTS



Individual refrigerator door panels should not exceed 15 lbs. (7 kg).



Freezer drawer panel should not exceed 15 lbs. (7 kg).

Door Panel

WARNING

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

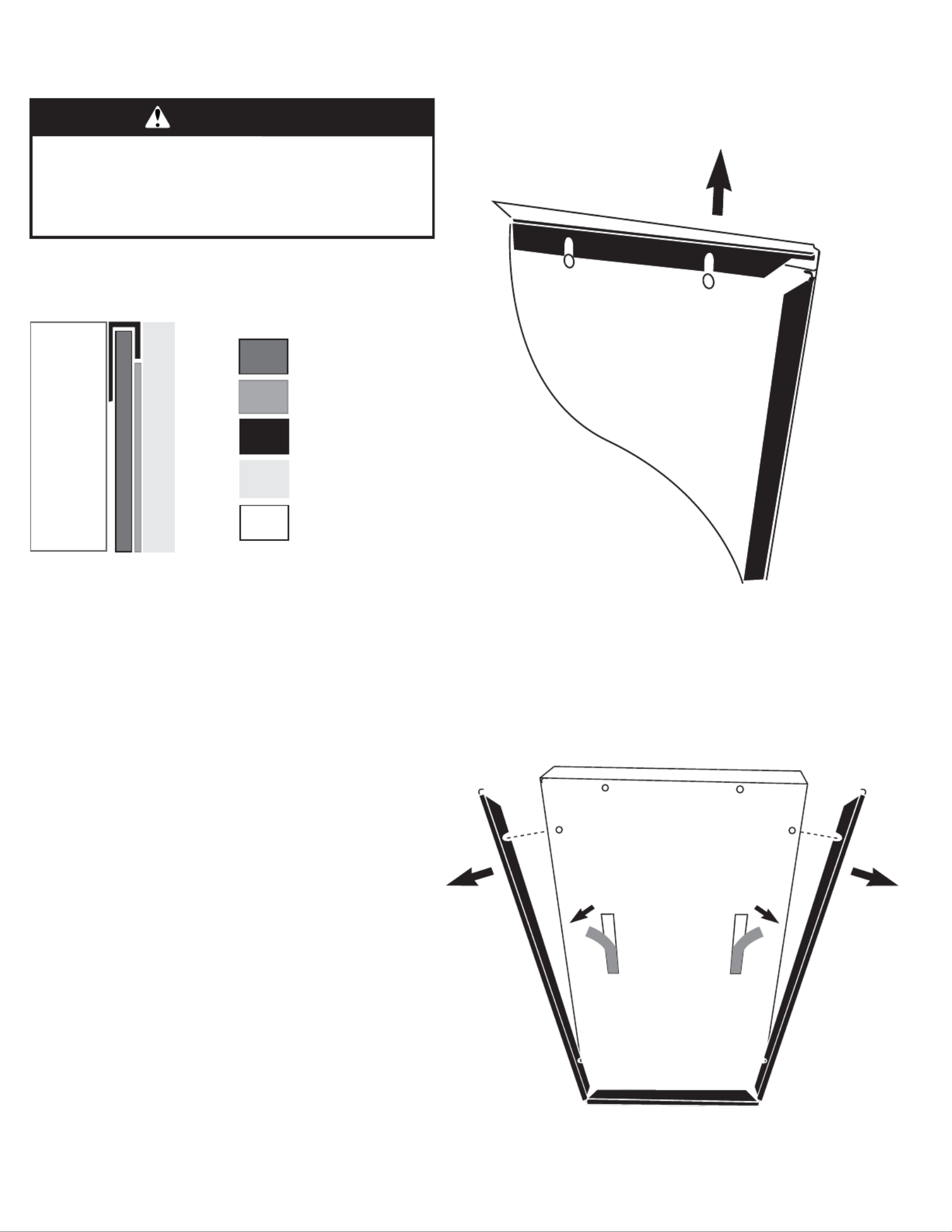

1. Lift upper locking trim from the door .

Installation common with all panels.

2. Remove side trim from either side of door.

Remove backing from adhesive tape.

NOTE: Consult your cabinetmaker for creation

of decorator panels. Customer to provide own

handles.

See user guide for door removal if necessary.

NOTE: For ease of assembly and to familiarize

yourself with the installation process, add the

custom panel to the lower freezer drawer first.

Before removing backing from adhesive

tape assure the decorator panel fits the

door.

Decorator Panel Installation

Backing Panel

Spacer Panel

Trim

Front Panel

Door
