Hydraulic Bottle Jacks

JHJ-2 (stock no. 453301)

JHJ-3 (stock no. 453303)

JHJ-5 (stock no. 453305)

JHJ-2 JHJ-3 JHJ-5

Rated capacity 2 ton 3 ton 5 ton

Minimum height (in.) 7-1/8 7-1/2 7-7/8

Piston height (in.) 4-1/2 4-1/2 4-5/8

Head screw (h/in.) 2 2-3/8 2-3/4

Maximum height

(in.)

13-5/8 14-3/8 15-1/2

Base size (LxW/in.) 4-1/2 x 2-1/2

4-9/16 x 2-

13/16

5-5/8 x 3-1/4

Weight (lbs) 5 6 9

Part No. M-453301

Revision J1 04/2019

JET

a Division of JPW Industries, Inc.

427 New Sanford Rd.

LaVergne, Tennessee 37086

Ph.: 800-274-6848

www.jettools.com

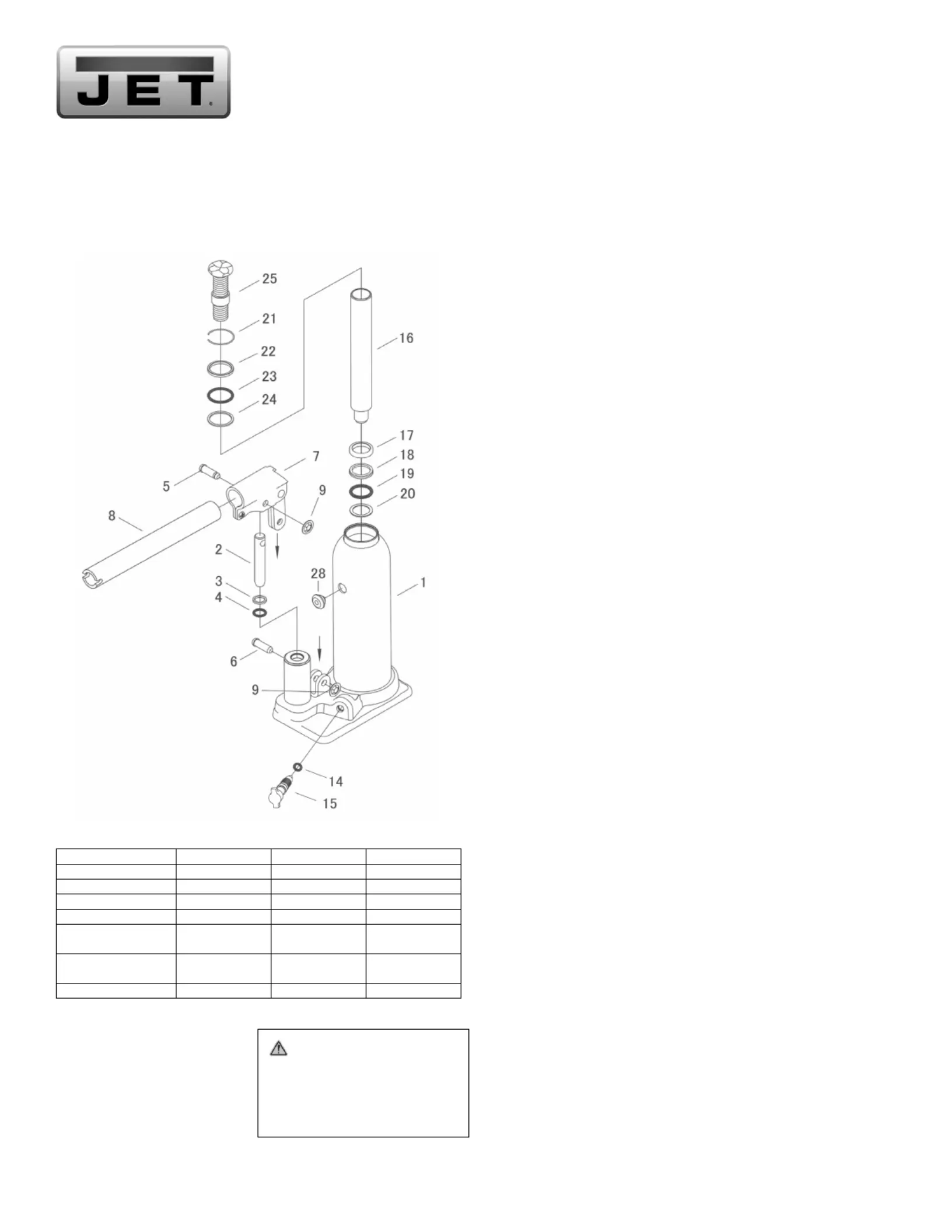

JHJ-2

Index No. Part No. Description

................. JHJ001-RK ......... Repair Kit

2 ............... JHJ001-02 .......... Pump Plunger

3 ............... JHJ001-03 .......... Pump Backup Ring*

4 ............... JHJ001-04 .......... Pump Packing*

5 ............... JHJ001-05 .......... Pump Plunger Pin

6 ............... JHJ001-06 .......... Pump Stay Pin

7 ............... JHJ001-07 .......... Handle Socket Assembly

8 ............... JHJ001-08 .......... Handle 2pc.

9 ............... JHJ001-09 .......... Pin Stopper Ring

14 ............. JHJ001-14 .......... Release Packing* (all sizes)

15 ............. JHJ001-15 .......... Release Assembly 1-7/8” (old)

................. JHJ001-15A ....... Release Stem 2-1/4” (new)

16 ............. JHJ001-16 .......... Ram

17 ............. JHJ001-17 .......... Ram Packing Seat

18 ............. JHJ001-18 .......... Ram Backup Ring*

19 ............. JHJ001-19 .......... Ram Packing*

20 ............. JHJ001-20 .......... Ram Packing Stopper

21 ............. JHJ001-21 .......... Snap Ring

22 ............. JHJ001-22 .......... Stuffing Ring

23 ............. JHJ001-23 .......... Cylinder Packing*

24 ............. JHJ001-24 .......... Stopper Ring

25 ............. JHJ001-25 .......... Adjusting Screw Assembly

28 ............. JHJ001-28 .......... Oil Plug* (all sizes)

JHJ-3

................. JHJ003-RK ......... Repair Kit

2 ............... JHJ001-02 .......... Pump Plunger

3 ............... JHJ001-03 .......... Pump Backup Ring*

4 ............... JHJ001-04 .......... Pump Packing*

5 ............... JHJ001-05 .......... Pump Plunger Pin

6 ............... JHJ001-06 .......... Pump Stay Pin

7 ............... JHJ001-07 .......... Handle Socket

8 ............... JHJ003-08 .......... Handle 2pc.

9 ............... JHJ001-09 .......... Pin Stopper Ring

14 ............. JHJ001-14 .......... Release Packing*

15 ............. JHJ001-15 .......... Release Assembly Old

................. JHJ001-15A ....... Release Stem New

16 ............. JHJ003-16 .......... Ram

17 ............. JHJ003-17 .......... Ram Packing Seat

18 ............. JHJ003-18 .......... Ram Backup Ring*

19 ............. JHJ003-19 .......... Ram Packing*

20 ............. JHJ003-20 .......... Ram Packing Stopper

21 ............. JHJ003-21 .......... Snap Ring

22 ............. JHJ003-22 .......... Stuffing Ring

23 ............. JHJ003-23 .......... Cylinder Packing*

24 ............. JHJ003-24 .......... Stopper Ring

25 ............. JHJ003-25 .......... Adjusting Screw Assembly

28 ............. JHJ001-28 .......... Oil Plug*

JHJ-5

................. JHJ005-RK ......... Repair Kit

2 ............... JHJ001-02 .......... Pump Plunger

3 ............... JHJ001-03 .......... Pump Backup Ring*

4 ............... JHJ001-04 .......... Pump Packing*

5 ............... JHJ001-05 .......... Pump Plunger Pin

6 ............... JHJ001-06 .......... Pump Stay Pin

7 ............... JHJ001-07 .......... Handle Socket Assembly

8 ............... JHJ005-08 .......... Handle 3pc.

9 ............... JHJ001-09 .......... Pin Stopper Ring

14 ............. JHJ001-14 .......... Release Packing*

15 ............. JHJ001-15 .......... Release Assembly Old

................. JHJ001-15A ....... Release Stem New

16 ............. JHJ005-16 .......... Ram

17 ............. JHJ005-17 .......... Ram Packing Seat

18 ............. JHJ005-18 .......... Ram Backup Ring*

19 ............. JHJ005-19 .......... Ram Packing*

20 ............. JHJ005-20 .......... Ram Packing Stopper

21 ............. JHJ005-21 .......... Snap Ring

22 ............. JHJ005-22 .......... Stuffing Ring

23 ............. JHJ005-23 .......... Cylinder Packing*

24 ............. JHJ005-24 .......... Stopper Ring

25 ............. JHJ005-25 .......... Adjusting Screw Assembly

28 ............. JHJ001-28 .......... Oil Plug*

* denotes part included in repair kit

WARNING: This product can

expose you to chemicals including

styrene which is known to the

State of California to cause

cancer. For more information go to

http://www.p65warnings.ca.gov.
