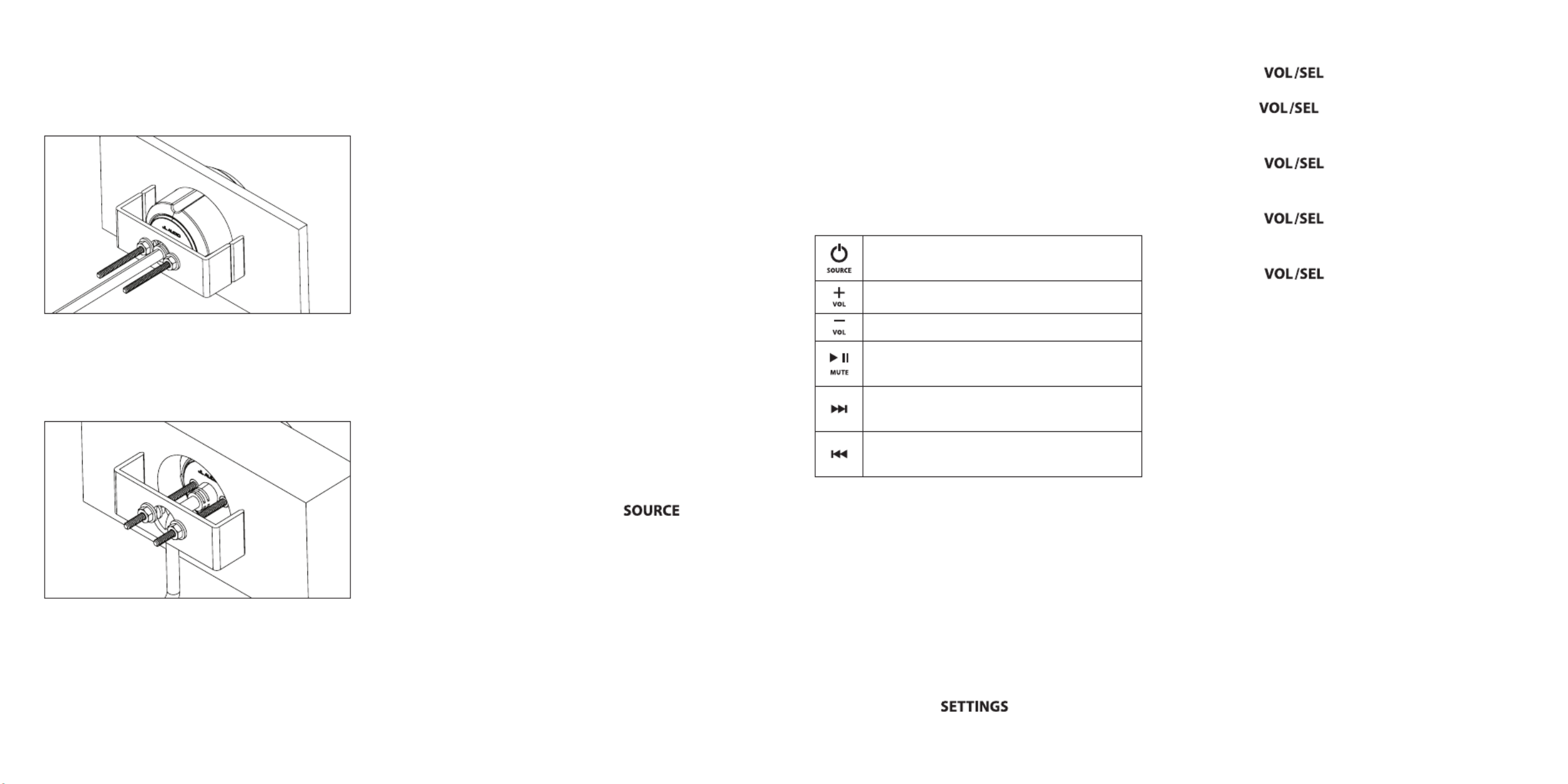

MediaMaster® Wired Remote Controller

Product Description

The MMR-20-BE is a water-resistant

(IP67 rated), wired remote controller designed

to add auxiliary control functionality to

MediaMaster® source units. Depending

on your system layout, you may add up to

three MMR-20-BE remote controllers to a

single source unit. Each MMR-20-BE can be

connected up to 75 ft. (22.8 m) away from its

source unit. A Y-splitter and remote extension

cables are sold separately and available in

different lengths to suit different mounting

locations.

What’s Included

(1) MMR-20-BE wired remote controller

(1) Lipped gasket (preinstalled)

(1) Flat gasket (optional)

(2) Stainless steel threaded studs

(4) Stainless steel nuts (7 mm)

(4) Stainless steel washers

(1) Aluminum C-bracket

(1) User Manual

Safety Considerations

• While this product is designed to be water-

resistant, it should never be submerged

under water or subjected to high-pressure

water spray.

• Do not mount in areas of extreme heat.

• Ensure this product is securely installed so

that it does not come loose in the event

of a collision/sudden jolt or as a result

or repeated vibrations during normal

operation.

• Check before drilling to make sure that you

will not be drilling into a fuel tank, gas/brake

line, wiring harness, or other vital system.

• Secure all wiring as needed, using cable

ties or wire clamps to protect them from

moving parts and sharp edges.

Mounting & Installation

A 2-inch (50 mm) hole is required for

mounting, along with adequate rear access

to secure/tighten the hardware. The included

hardware accommodates installations in flat

panels up to 1.5-inches (38 mm) thick.

The C-bracket is designed with break lines

to allow adjustment for different mounting

panel thicknesses. To remove a leg section,

use pliers and bend back and forth at

a break line to separate. Be mindful of

resultant sharp edges and file if necessary.

Make sure to carefully plan the routing of

the remote’s connection cables prior to

cutting or drilling any panels.

1. Select an appropriate mounting location

and cut a 2-inch (50 mm) hole using an

appropriate tool/hole saw.

2. The preinstalled lipped gasket can be used

for most installations or where an existing

mounting hole may be slightly larger than

2-inches. If you desire a reduced profile

appearance, you may replace the lipped

gasket with the optional flat gasket.

3. Apply thread sealer (not included) onto

the threaded studs and insert them into

the inserts at the rear of the MMR-20-BE,

and hand tighten.

4. Install a nut and washer near the middle

section of each stud (see diagram) and

place the MMR-20-BE into the mounting

hole.

5. From behind the mounting panel, slide

the C-bracket onto the threaded studs and

press it forward, towards the MMR-20-BE

6. Apply thread sealer and adjust the position

of the previously installed nuts and

washers to support the C-bracket while

still allowing the legs to of the C-bracket

to press against the rear of the mounting

panel.

7. Apply thread sealer and install a remaining

nut and washer onto each stud. Tighten

the C-bracket to the mounting panel.

Flat

Gasket

(optional)

Lipped

Gasket

(preinstalled)

Remove

leg sections

as neeeded

MMR-20-BE

Thin Panel Installation Example

Route the cable through the C-bracket as shown to

avoid chafing/damage (with the strain relief extended

past the center hole).

Thick Panel Installation Example

Route the cable as shown to avoid chafing/damage

(not through the center hole in the C-bracket).

Connection Cables

Connection cables (sold separately) are

available in 6 ft. (MMC-6) and 25 ft. (MMC-25)

lengths to suit different mounting locations.

A Y-splitter (MMC-2Y) (sold separately) may be

used to connect an additional remote to a

single source unit.

Each remote controller may be connected

a maximum 75 ft. (22.8 m) of cable length

away from its source unit. Remote controllers

and cables utilize a 5-pin connector with a

watertight threaded collar to securely mate

their ends together. Connectors are keyed

and must be aligned to fit properly. Once

connected, make sure that cables are securely

routed using cable ties or wire clamps, keeping

connections away from areas where they could

be submerged in water.

LED Source Indicators

Blue LED indicators on the front of the remote

controller are used to report the currently

selected source. Pressing the button

will cycle through each source option (RADIO/

USB/Bluetooth®/AUX).

Since the MMR-20-BE does not incorporate a

display screen, all available tuner options (AM/

FM/WB SiriusXM®) are combined as “RADIO”.

When RADIO is chosen, the last tuner used

will be selected. To change tuners, use the

MediaMaster® source unit.

2. Turn to Display and press to enter.

3. Use to select or Day Mode Night

Mode and press to enter.

4. Turn to Brightness and press

to enter.

5. Turn to Remote Backlight and

press to enter.

6. Turn to adjust the remote’s

brightness and press to set.

IP67 Water Resistance Rating

This product has been tested to withstand

immersion in water, up to 1 meter (3.28 ft.)

deep, for up to 30 minutes (when properly

installed). Note: while designed to be water

resistant, this product should never be

submerged under water for prolonged periods

or subjected to activity that creates pressure on

it that exceeds its depth rating.

11-15-2016 • Printed in China

2-Year Limited Warranty (U.S.A.)

Visit www.jlaudio.com for warranty details.

For Service Information in the U.S.A. please call JL Audio

customer service: (954) 443-1100 during normal business hours

(Eastern Time) • JL Audio, Inc • 10369 N Commerce Parkway,

Miramar, FL 33025

International Warranties:

Products purchased outside the United States of America are

covered only by that country’s distributor and not by JL Audio, Inc.

• Press to turn the source unit ON

• Press to cycle through sources (RADIO/USB/Bluetooth®/AUX)

• Press and hold to turn the source unit OFF

• Press to increase volume

• Press to decrease volume

• Press to mute audio (AM/FM/WB SiriusXM®/AUX)

• Press to pause or resume the current selection

(USB/Bluetooth®)

• Press to select the next Favorite (AM/FM/WB SiriusXM®)

• Press to select the next track (USB/Bluetooth®)

• Press and hold to fast-forward (USB)

• Press to select the previous Favorite (AM/FM/WB SiriusXM®)

• Press to select the previous track (USB/Bluetooth®)

• Press and hold to fast-rewind (USB)

Control Functions

Below is a list of MMR-20-BE command

functions. The functionality of some controls

will vary depending on the current source and/

or last tuner selected. Note: The MediaMaster®

source unit only accepts commands from the

MMR-20-BE when its display is on a Now

Playing Screen or in the SOURCE: Select

menu screen.

MMR-20-BE Backlight Settings

Brightness settings for the MMR-20-BE’s

LEDs and buttons can be accessed in the

MediaMaster® source unit’s System Settings

menu. Adjustments can be set independently

for Day and Night lighting modes.

To access the remote controller backlight

settings on the MediaMaster® source unit:

1. Press and hold to access the

System Settings: Main Menu.
