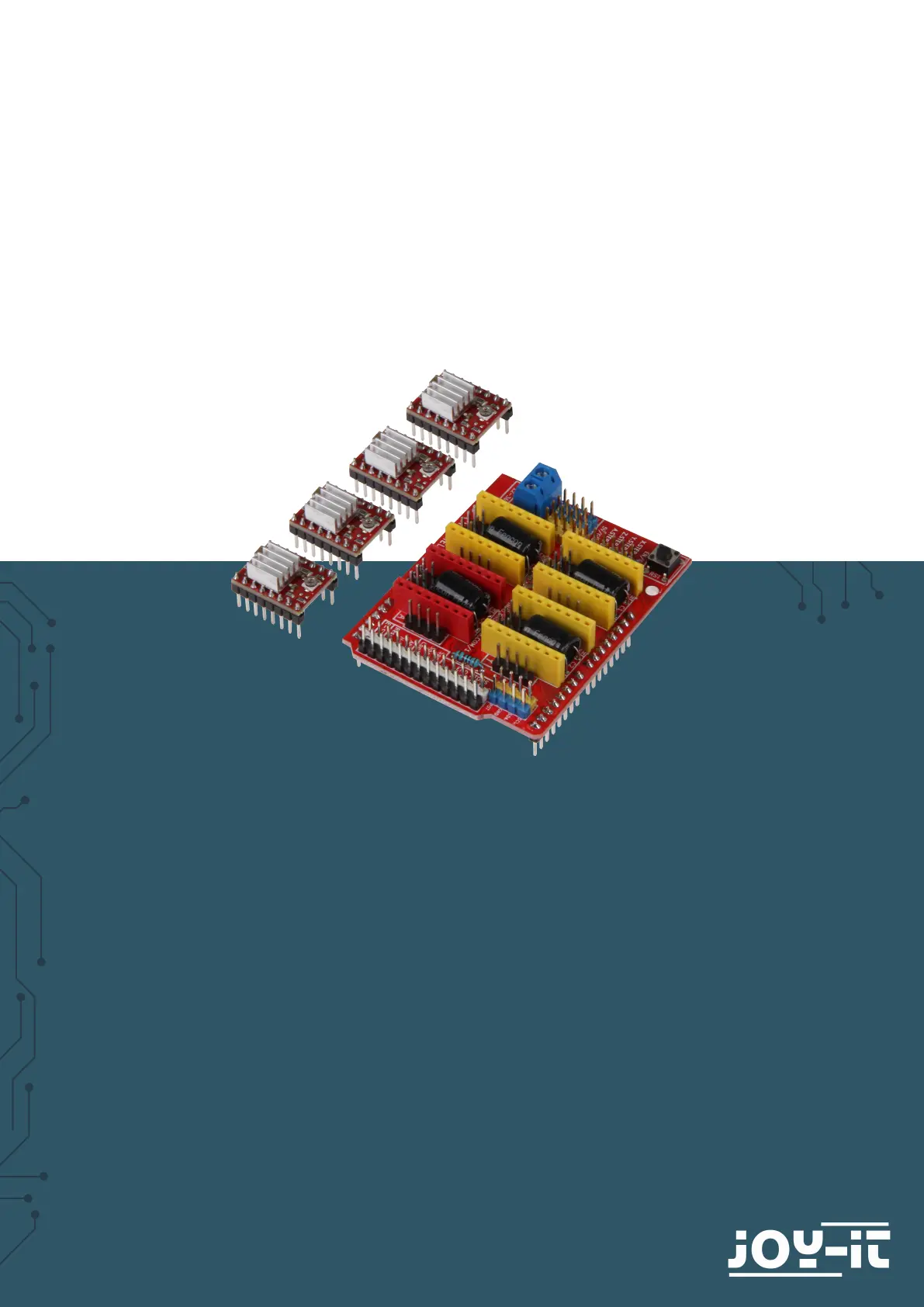

CONTROLLER BOARD CNC

4x A4988 motor driver for Arduino Uno

Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net





Dear Customer,

Thank you for choosing our product. In the following, we will show you what

to consider during commissioning and use.

If you encounter any unexpected problems during use, please feel free to

With this set you lay the foundation for installing a custom CNC router. The

controller board is suitable for use with the Arduino Uno or Arduino Uno

compatible boards and can be operated with 12 to 36 V as required. Up to 4

axes can be controlled with the included A4988 motor drivers.

The expansion board is easy to drive as it is 100%  compatible.

Since potentially dangerous machines can be controlled with this expansion

board, please observe the following safety instructions:



Do not remove chips by hand. Use aids such as brushes, hand brushes or

compressed air for this purpose. Never change tools or workpieces while the

tool spindle is running. Make sure that the workpieces are adequately secu-

red so that the resulting load, e.g. during drilling or milling, can never move

the workpiece out of its position. Never leave the machine running unatten-

ded! Always keep a suicient safety distance to the running machine.



When using components of other manufacturers, please inform yourself

about their safety regulations and observe them.



Produkt Specifikationer

Mærke:	Joy-It
Kategori:	Ikke kategoriseret
Model:	Ard-CNC-Kit1
Bredde:	53 mm
Dybde:	68 mm
Højde:	18 mm
Vægt:	46 g
Produktfarve:	Rød
Produkttype:	Avanceret sæt
Indgangsspænding:	12 - 36 V
Kapabilitet:	Arduino
Mærke kompatibilitet:	Arduino
