STEP-UP CONVERTER
SBC-XL6019
2. GENERAL INFORMATION
Dear customer,
Thank you for purchasing our product. In the following, we will show you
which things should be noted during the use.
Should you encounter any unexpected problems, do not hesitate to
contact us.

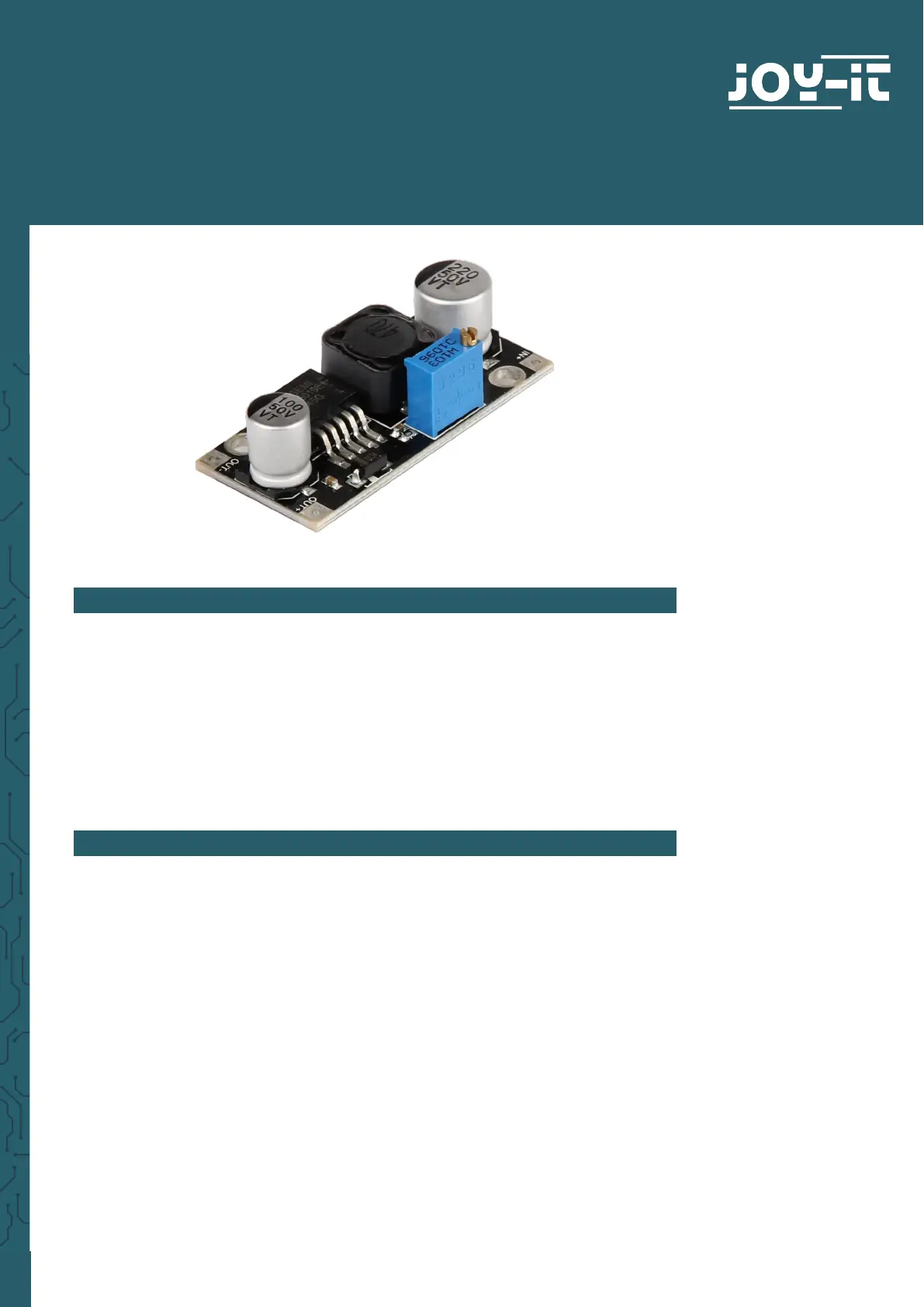

The DC step-up voltage regulator based on an XL6019 switching regulator is
continuously adjustable between 5 V and 40 V with help of a potentiometer.
This makes it suitable for projects in which the voltage source delivers a lo-
wer voltage than the required one. This step-up converter can also be used
in projects where dierent voltages are required.
1. TABLE OF CONTENTS
1. Table of contents
2. General information
3. Use of the step-up converter
4. Other information
5. Support
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
3. USE OF THE STEP-UP CONVERTER

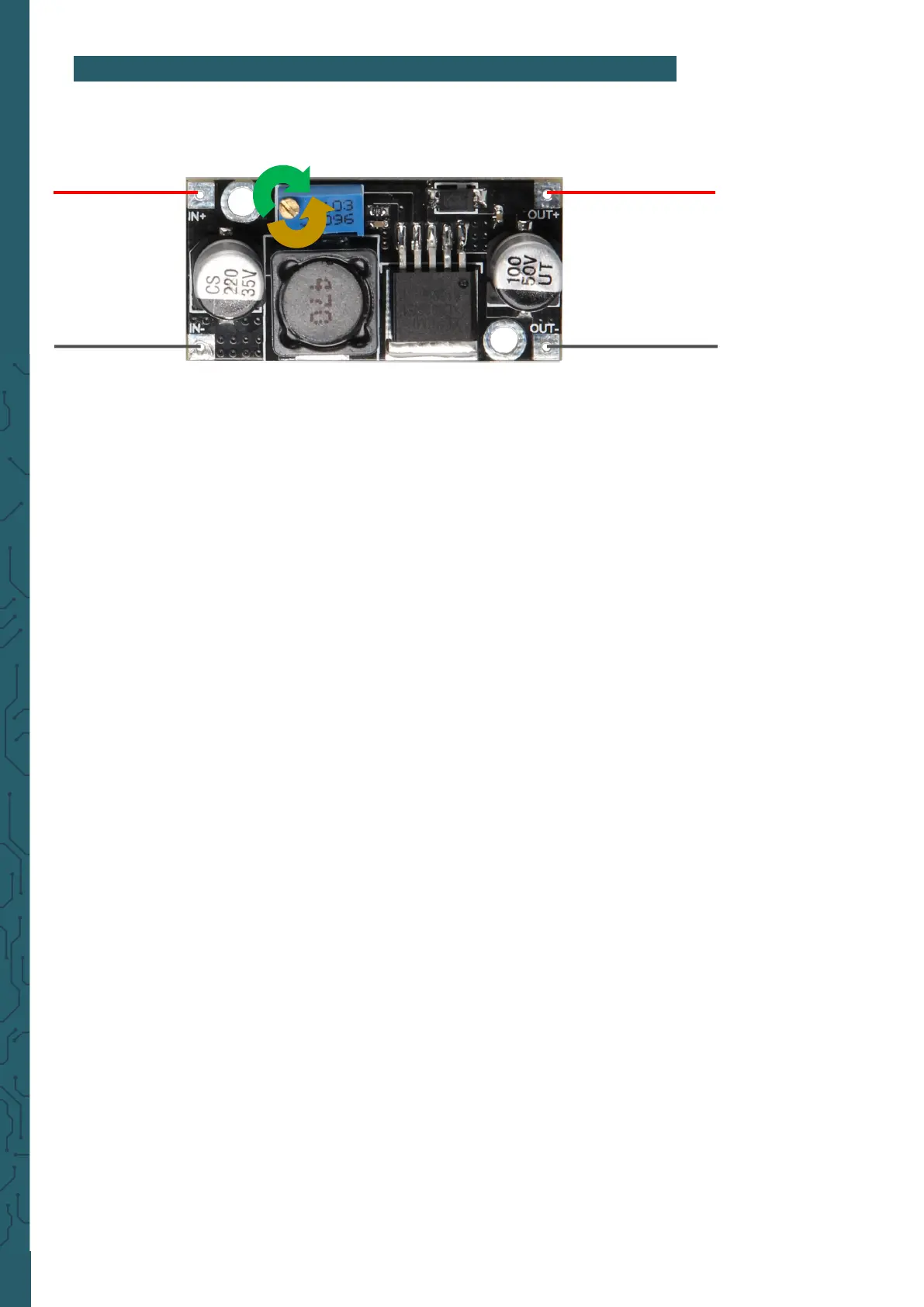

Connect the voltage converter with the contact IN+ to the positive pole and
with the contact IN- to the negative pole of your DC voltage source.
Now connect a measuring device to the contacts OUT+ and OUT-. Now you
can adjust the output voltage with the blue potentiometer. Please note that
the output voltage cannot be lower than the input voltage, as this is a step-
up converter.
If you have set the voltage correctly, you can now connect the circuit to be
supplied to the OUT+ and OUT- contacts.
Note that the input current must not exceed 5 A and the output current must
not exceed 1.5 A.
+ +
IN: 5 V - 40 V DC OUT: 5 V - 40 V DC
_ _
reduce output voltage
increase output voltage
