Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net

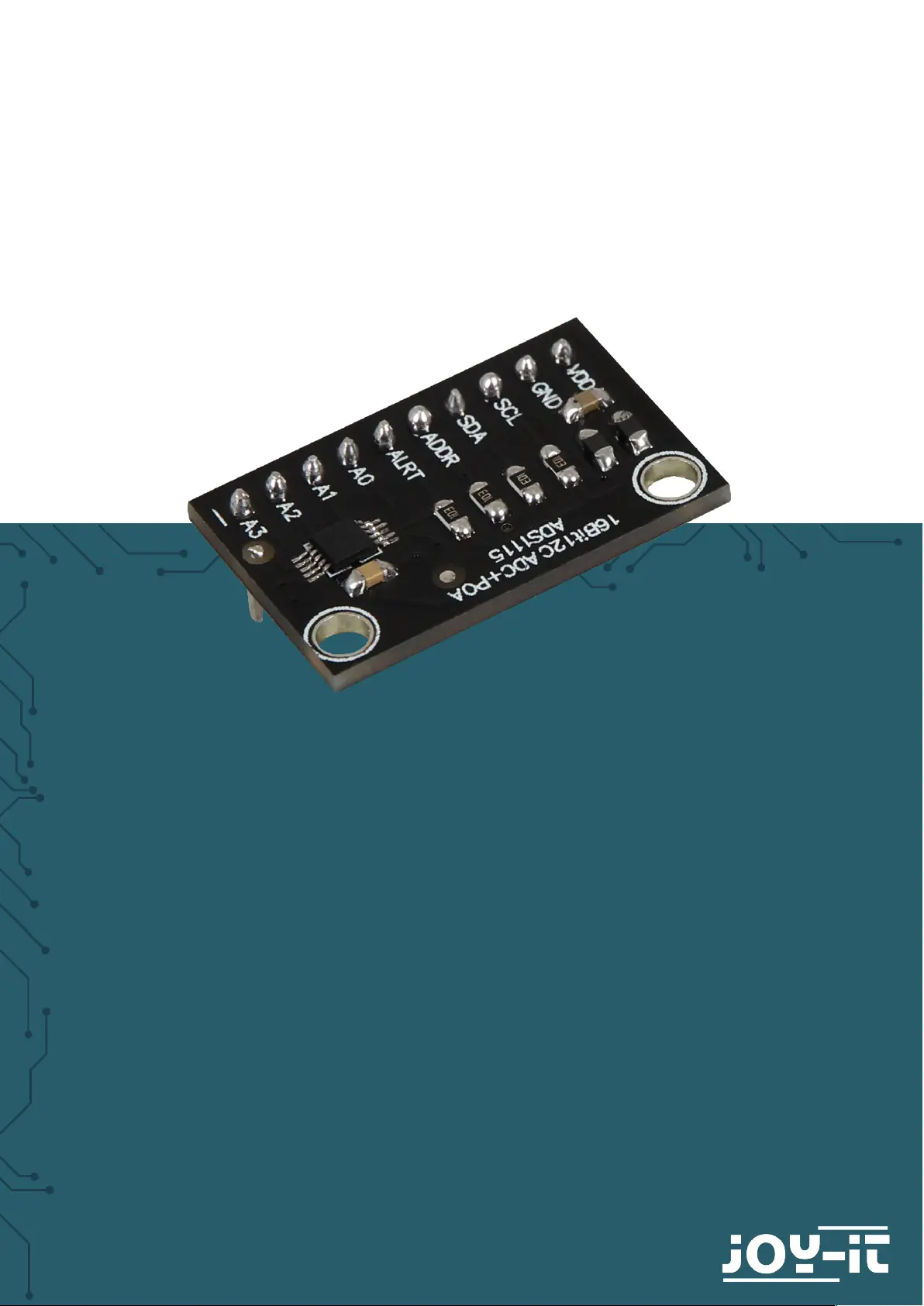

ANALOG TO DIGITAL CONVERTER
COM-KY053ADC
1. GENERAL INFORMATION
Dear Customer,
thank you for choosing our product. In the following, we will show you
what to pay attention to during commissioning and use.
If you encounter any unexpected problems during use, please feel free to
contact us.
This analog to digital converter (or in short ADC) can be configured to 4
dierent I2C addresses. These can be chosen freely, but in the further
course the standard address 0x48 is used.
In the following table you can see all possible addresses and also how to
configure them. The main thing to note here is that the ADDR pin of the
ADC is responsible for changing the address.
2. CHANGE OF THE I2C ADDRESS
Von Zu Adresse
ADDR Pin GND Pin 0x48
ADDR Pin VDD Pin 0x49
ADDR Pin SDA Pin 0x4A
ADDR Pin SCL Pin 0x4B
The state of the ADDR pin is continuously sampled. Be sure to connect
the ADDR pin to the other pins while ensuring the possibility of further
connection.
In this section we briefly explain the functions of each pin.

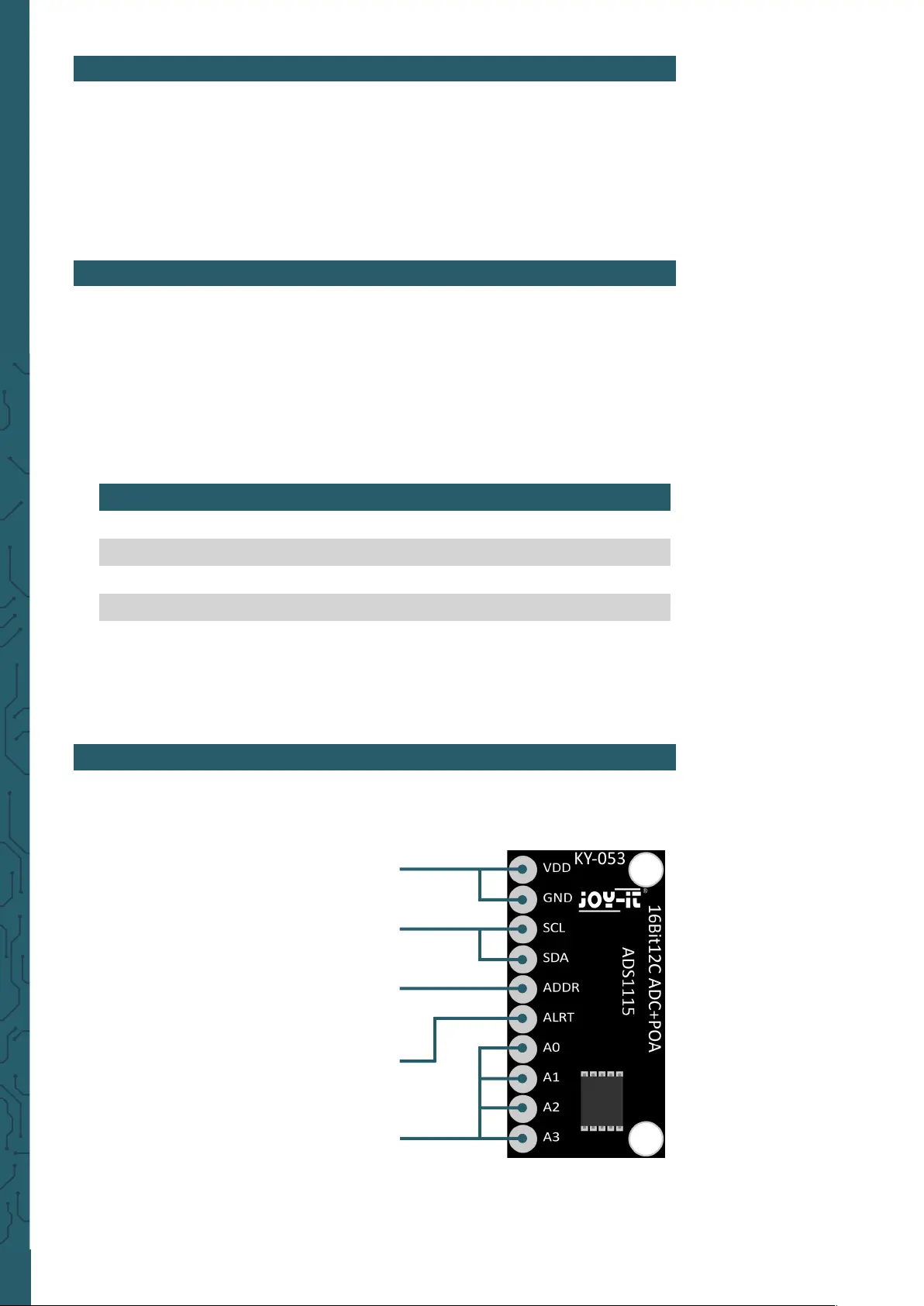

3. PIN ASSIGNMENT
VDD & GND: Power supply
SCL & SDA: I2C interface
ADDR: Used to select the I2C slave
address.
A0 to A4: Analog inputs.
ALRT: Used to send a signal when
the conversion is ready or when the
comparator output is ready.
