TTL TO RS485 CONVERTER
COM-TTL-RS485
Dear Customer,
Thank you for choosing our product. In the following, we will show you
what to consider during commissioning and use.
Should you encounter any unexpected problems during use, please feel
free to contact us.
1. GENERAL INFORMATION
2. BASIC INFORMATION
This UART TTL to RS485 converter allows you to add an RS485 interface
to your single board computer. The module is easy to operate and is
controlled via the UART interface. With up to 1 km transmission range,
data transfers with widely spaced devices are no problem. Its design and
size make the module highly integrable. Due to its high immunity to
interference, it is particularly oen used in industrial areas.
The LEDs labeled RX and TX on the product are status LEDs that
visually indicate serial communication on the corresponding pin.
1
2
3
4
7
5
6

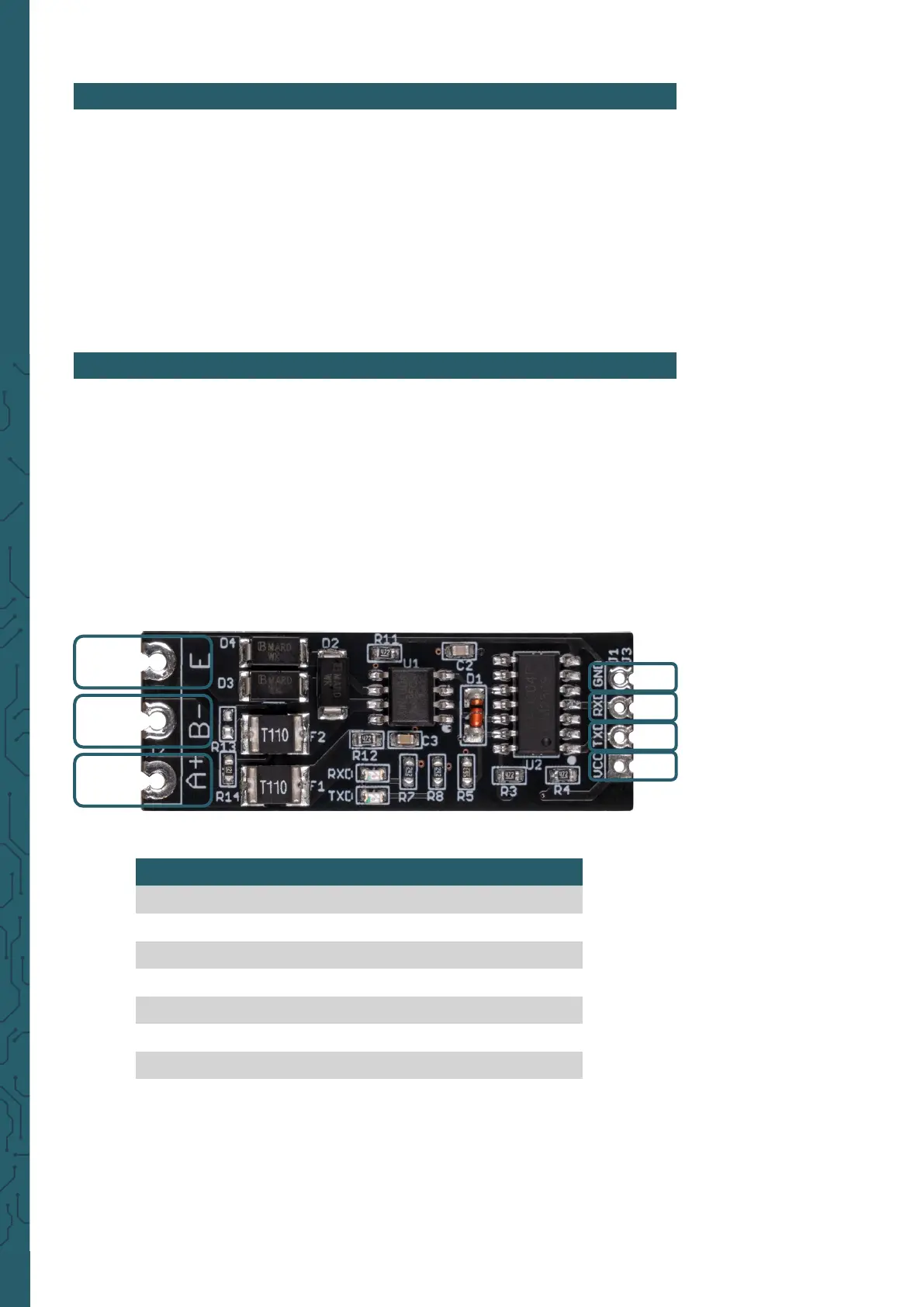

Digit Function
1 GND Ground potential
2 RXD UART data output
3 TXD UART data input
4 VCC Supply voltage
5 A+ RS485 non-inverted signal
6 B- RS485 inverted signal
7 E RS485 Ground Potential
