Side 1/12

Part No.K290223ML

Issue 2: August 2008

GP Acoustics (UK) Ltd., Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K.

Tel: + 44 (0)1622 672261 Fax: + 44 (0)1622 750653

GP Acoustics (US) Inc., 10 Timber Lane, Marlboro, New Jersey 07746 U.S.A.

Tel: +(1) 732 683 2356 Fax: +(1) 732 683 2358

GP Acoustics GmbH, Am Brambusch 22, D-44536 Lünen, Deutschland.

Tel: +49 (0) 231 9860-320 Fax: +49 (0) 231 9860-330

GP Acoustics (France) SAS, 39 Rue des Granges Galand - BP60414,

37554 Saint Avertin CEDEX, France.

Tel : +33(0)2 47 80 49 01 Fax: +33(0)2 47 27 89 64

GP Acoustics (HK) Limited, 6F, Gold Peak Building, 30 Kwai Wing road,

Kwai Chung, N.T., Hong Kong.

Tel : +852 2410 8188 Fax: +852 2401 0754

KEF JAPAN 1-11-17, Honcho, Koganei-City, Tokyo, JAPAN 184-0004

Tel: +81 (0)42-388-2030 E-mail: info@kef.jp

www.kef.com

KEF and Uni-Q are registered trademarks. Uni-Q is protected under GB patent 2 236929, U.S. Pat. No. 5,548,657 and other worldwide patents.

KEF reserve the right, in line with continuing research and development, to amend or change specifications.

Design Two-way bass reflex Two-way bass reflex

Two and a half-way bass reflex Two and a half-way bass reflex

Three-way bass reflex

Drive units

130mm (5.25in.) Uni-Q 165mm (6.5in.) Uni-Q 130mm (5.25in.) LF 165mm (6.5in.) LF 2 x 165mm (6.5in.) LF

19mm (0.75in.) alu dome HF 19mm (0.75in.) alu dome HF 130mm (5.25in.) Uni-Q 165mm (6.5in.) Uni-Q 165mm (6.5in.) Uni-Q

19mm (0.75in.) alu dome HF 19mm (0.75in.) alu dome HF 19mm (0.75in.) alu dome HF

Frequency response 50Hz - 40kHz 45Hz - 40kHz 40Hz - 40kHz 36Hz - 40kHz 33Hz - 40kHz

Crossover frequency 2.5kHz 2.5kHz 2.5kHz 2.5kHz 180Hz - 2.5kHz

Amplifier requirements

10-100W 15-120W 15-130W 15-150W 15-200W

Sensitivity (2.83V/1m) 88dB 89dB 88dB 90dB 91dB

Maximum output 108dB 110dB 109dB 111dB 113dB

Nominal impedance 8Ω 8Ω 8Ω 8Ω 8Ω

Magnetic shielding Yes Yes Yes Yes Yes

Weight 4.5kg (9.9lbs) 6.45kg (14.2lbs) 10.2kg (22.5lbs) 14kg (30.9lbs) 16.3kg (35.9lbs)

Dimensions 301 x 175 x 261 mm 365 x 220 x 327 mm 815 x 175 x 261 mm 865 x 220 x 327 mm 942 x 220 x 327 mm

H x W x D 11.8 x 6.9 x 10.3 in. 14.4 x 8.7 x 12.9 in. 32 x 6.9 x 10.3 in. 34 x 8.7 x 12.9 in. 37 x 8.7 x 12.9 in.

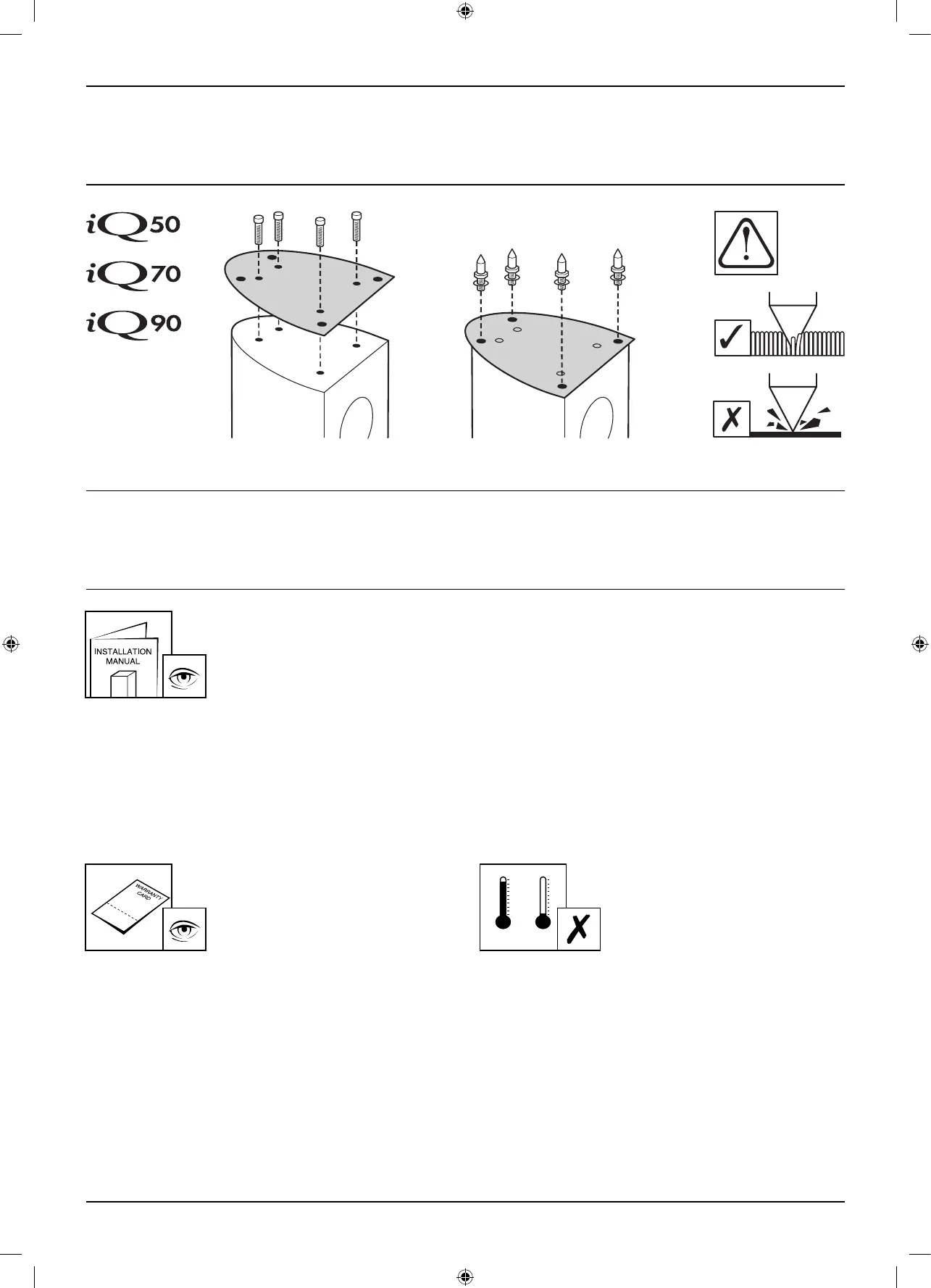

Plinth Dimensions N/A N/A 28 x 250 x 295 mm 28 x 288 x 348 mm 28 x 288 x 348 mm

H x W x D 1.1 x 9.8 x 11.6 in. 1.1 x 11.3 x 13.7 in. 1.1 x 11.3 x 13.7 in.

Design Three-way bass reflex

Drive units

2 x 130mm (5.25in.) LF

130mm (5.25in.) Uni-Q

19mm (0.75in.) alu dome HF

Frequency response 65Hz - 40kHz

Crossover frequency 280Hz - 2.8kHz

Amplifier requirements

15-150W

Sensitivity (2.83V/1m) 90dB

Maximum output 111dB

Nominal impedance 8Ω

Magnetic shielding Yes

Weight 8.8kg (19.4lbs)

Dimensions 165 x 512 x 255 mm

H x W x D 6.5 x 20.1 x 10 in.

Installation Manual

Manuel d’installation

Installationshandbuch

Manuale d’installazione

Manual de instalación

Manual de instalação

Installatiehandleiding

Installationsanvisning

Podręcznik instalacji

(GB) Specifications

(F) Spécifications

(D) Technische Merkmale

(I) Specifiche

(ES) Especificaciones

(P) Especificações

(NL) Technische gegevens

(DK) Specifikationer

(PL) Specyfikacja techniczna

(RU)

(GR)

(JP)

(CN)

(TC)

(K)

K7269_iQ08_Combined.qxd 17/9/08 12:42 Page 2

Инструкция по установке

Εγχειρίδιο Εγκατάστασης

取り扱い説明書

安装手册

安裝手冊

설치방법

iQ Manual_II-Rev02.indd 1 2008-9-24 11:50:18

Produkt Specifikationer

Mærke:	KEF
Kategori:	Højttaler
Model:	iQ30
Bredde:	220 mm
Dybde:	327 mm
Højde:	365 mm
Vægt:	6450 g
Produktfarve:	Sort
Udgangseffekt (RMS):	120 W
Anbefalet brug:	Universel
Frekvensområde:	45 - 40000 Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	2.0 kanaler
Højttaler, placering:	Bordplade/bogreol
Antal drivere:	2
Diskanthøjttaler:	Ja
Antal drivere til diskant:	1
Sensitivitet:	89 dB
Diskant diameter:	0.75 "
Bashøjttaler:	Ja
Antal bashøjttalerdrev:	1
Woofer diameter:	165 mm
Højttaler kabinet:	Refleks
Woofer diameter (britisk mål):	6.5 "
Højttalerplacering:	Front
Magnetisk afskærmet:	Ja
