KMTC9 | KMTC11
Manual del Propietario | Español
Gabinete de torre KICKER MARINE
Benutzerhandbuch | Deutsch
KICKER MARINE Can-Gehäuse
Manuel d’utilisation | Française
Boîtiers pour haut-parleurs verticaux
KICKER MARINE
KMTC
Marine Tower System
Owner’s Manual
Owner’s Manual
2
KICKER Marine Tower Systems
Owner’s Manual
Authorized KICKER Dealer:
Purchase Date:
Serial Number:
MODEL: KMTC9 | KMTC11
The KICKER KMTC Marine Tower Systems are the perfect way to bring your music out into the marine or
power sports environment. The KMTC9 and KMTC11 come loaded with KICKER KM LED speakers. The
injection-molded ABS enclosures are UV treated, splash resistant, and weather resilient. Mount the KMTC
Marine Tower Systems in your boat or get creative with a pair of them in the garage, on your 4x4 or Side-by-
Side’s roll bars, or in any other bar-mounted application.
INSTALLATION
IMPORTANT: You apply a thin layer of the included anti-seize compound to threaded fasteners must ALL
before installation.
Before you begin: Determine the location and placement of the KMTC Marine Tower System onto the
pipe or tube to which you are mounting. Spreading the KMTC Marine Tower System apart will provide better
stereo performance, and is usually preferable. When determining the best locations for mounting, be careful
to look for obstacles or obstructions that could complicate mounting the KMTC. Please keep in mind the
routing of your speaker wires as this can affect where you fi nally mount your cans. If routing speaker wire
through tubing, drill a 9/16” size hole in the bar for a wire grommet before mounting.

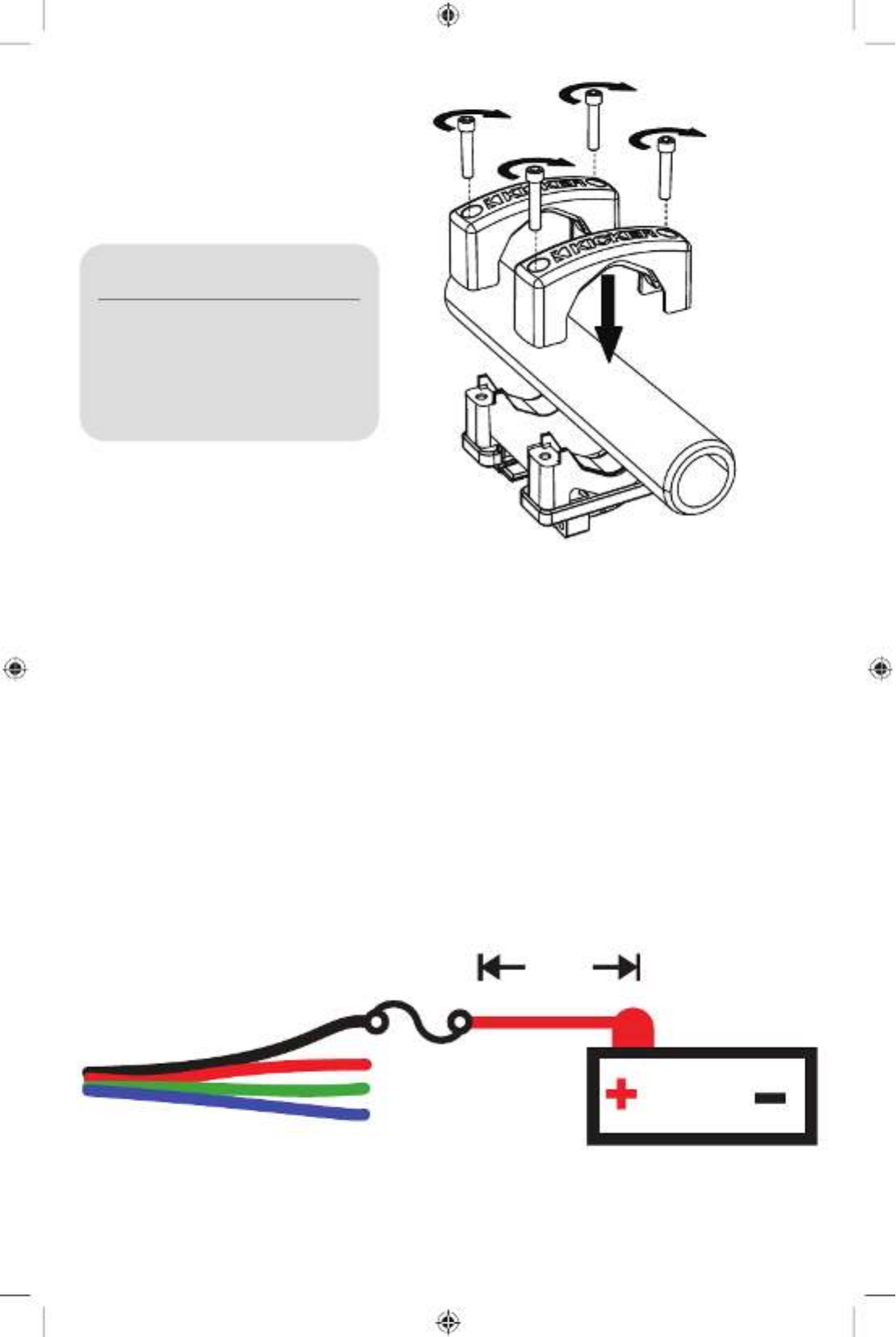

Step 1: Position the KMTC lower mounting brackets around the pipe or tubing to which you will be
mounting, then use the included socket-head screws to secure the upper mounting brackets to the bracket
assembly (Fig. 1). Use the screw size best suited for your application. Make sure the bottom bolts (Fig. 2 -
1-1/2” in length) are tight. Kicker recommends adding medium strength (blue) thread locker to these bottom
bolts before installation to prevent them from backing out over time.
Model: KMTC9 KMTC11
Woofer [in, cm] 9, 23 11, 28
Horn Loaded Compression Driver [in,mm] 1, 25 1, 25
Compression Driver Voice Coil Diameter [in,mm] 1-3/8, 35 1-3/8, 35
Dome Material Titanium Titanium
Rated Impedance [Ω] 4 4
Sensitivity [1W, 1m] 92 dB 93 dB
Frequency Response [Hz] 20-20,000 20-20,000
Peak Power Handling [ Watts] 600 600
Recommended Amplifi er Power [Watts RMS] 150–300 150–300
Enclosure Diameter/Width [in, cm] 9-13/16, 24.9 11-7/8, 30.2
Enclosure Depth [in, cm] 10-7/8, 27.7 12-11/16, 32.3
Enclosure Height (from bottom of roll bar) [in, cm] 11-9/16, 29.4 13-5/8, 34.6
Enclosure Height (bracket top to enclosure bottom) [in, cm] 13-9/16, 34.4 15-9/16, 39.6
High Pass [dB], at Frequency [Hz] 12db/oct, 2,500 Hz 12db/oct, 2,500 Hz
3
Bar Diameter Bolt Length
1-1/2” to <1-3/4” 1-1/8”
1-3/4” to 2-1/4” 1-1/2”
<2-1/4” to <2-7/8” 2”
2-7/8” to <3” 2-1/2”
3” to 3-1/8” 3”
lower mounting
bracket
Figure 1
upper mounting
bracket
stainless steel socket-head cap screws
(1/4” Allen wrench – 5/16”-18 threads)
12V
}Ground
+12V
2A fuse
(max) ≤7”
(17.5cm)
battery
LED Wiring
Black : +12V Red : Ground Green : Ground Blue : Ground
Transparent Blue : Speaker + Transparent Gray : Speaker –
Copper : Horn Tweeter + Silver : Horn Tweeter –
Step 2: Connect the speaker and tweeter wires to your source unit or amplifi er. KICKER recommends you
solder the connections and secure them with heat shrink. It is also strongly recommended that you use a
full-range amplifi er signal. A high-pass crossover set from 30Hz–50Hz should be used, and can be set to
70Hz for music with heavy bass.
When hard-wiring the RGB lighting, the black lead is +12V and the red, green, and blue leads are ground.
Splice and combine the ground wires to yield a different color. There are seven colors available, depending
on your wiring confi guration. KICKER recommends using the KMLC lighting controller (sold separately) for
more colors, patterns, and special effects.
Figure 2
5
swivel lever bracket gate
thumb nuts
1 2
3
Step 4: Install the two swivel levers, adjusting them to be loose (open) when the lever is parallel to the tube,
then secure the bracket gate to the enclosure using the included thumb nuts. When the swivel levers are
locked in place, or closed, the bracket rotation assembly will be clamped tight. With the swivel levers open,
fi nish by tightly securing both thumb nuts. You may need to retighten one after tightening the other.

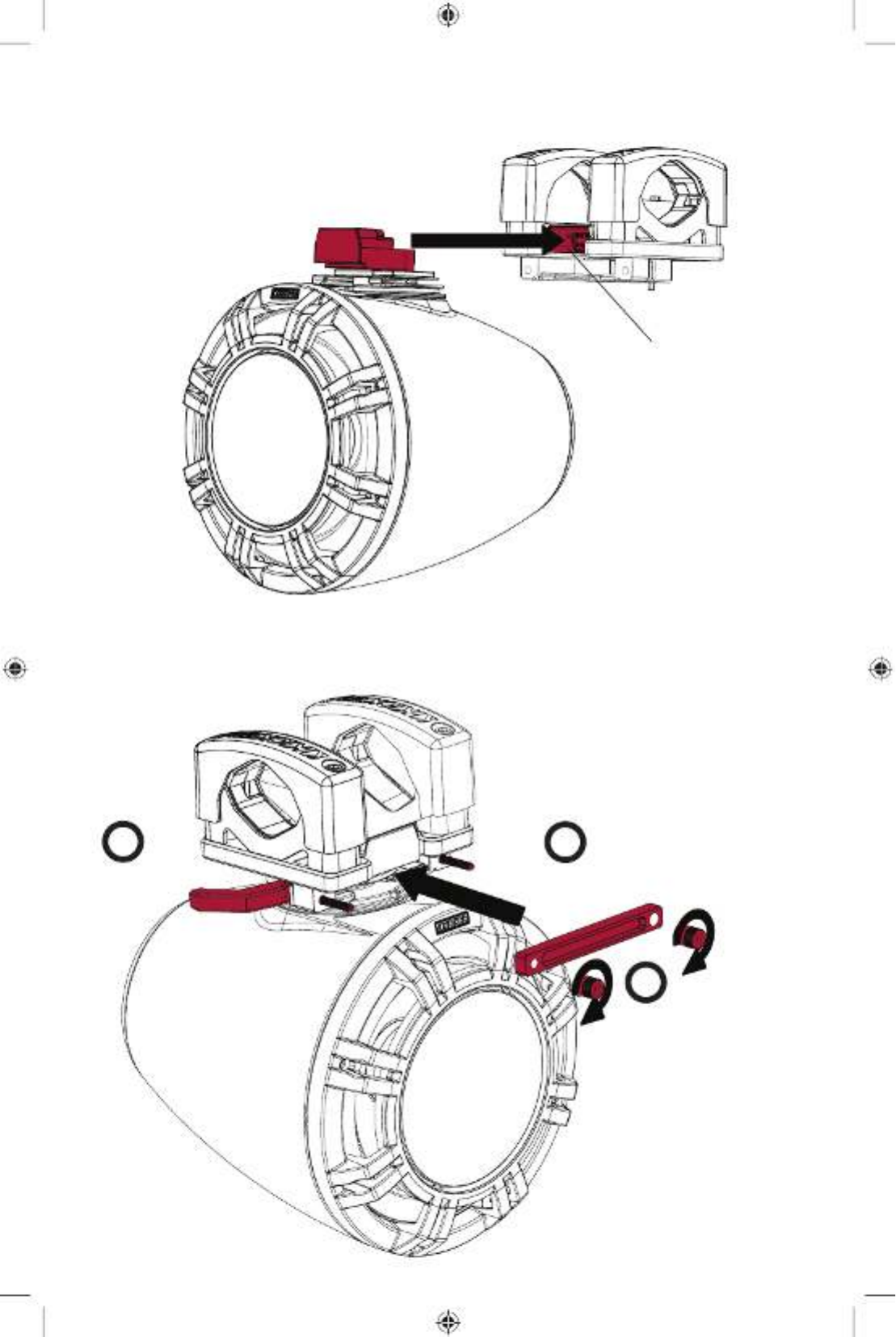

Step 3: Install the keyed connector of the KMTC speaker’s swivel assembly into the keyed socket of the
bracket assembly. The front of the keyed connector should be fl ush with the keyed socket.
keyed connector
keyed socket
To mount the enclosure
without swivel adjustment, use
the included socket-head cap
screws to secure the bracket
gate instead of the swivel
levers.
8
Diámetro de Longitud del
la barra perno
1-1/2” to <1-3/4” 1-1/8”
1-3/4” to 2-1/4” 1-1/2”
<2-1/4” to <2-7/8” 2”
2-7/8” to <3” 2-1/2”
3” to 3-1/8” 3”
soporte de
montaje inferior
Fig. 1
soporte de
montaje superior
tornillos de cabeza hueca de acero inoxidable
(1/4” llave Allen – 5/16”-18 roscas)
12V
}
+12V
≤7”
(17.5cm)
LED Wiring
Negro : +12 V Rojo : a tierra Verde : a tierra Azul : a tierra
Azul transparente: Altavoz + Gris transparente : Altavoz –
Cobre: Bocina tweeter + Plateado: Bocina tweeter –
Paso 2: conecte los cables del altavoz y del tweeter a su unidad fuente o amplifi cador. KICKER le
recomienda soldar las conexiones y asegurarlas con termorretracción.
Al realizar la instalación eléctrica permanente de la iluminación RGB, el cable negro es +12 V, y los cables
rojo, verde y azul son a tierra. Empalme y combine los cables a tierra para producir un color diferente. Hay
siete colores disponibles, según su confi guración del cableado. KICKER le recomienda utilizar el controlador
de iluminación KMLC (se vende por separado) para obtener más colores, patrones y efectos especiales.
Conexión
a tierra
2A
fusible
(max)
batería
