Side 1/4

CVR

COMP SUBWOOFERVR

CVR , CVR , CVR , CVR15 12 10 8

2007 Stillwater Designs

CVR8

2 or 4

44.3

400 (200)

83.1

.408 (10.37)

7.56

9.36

.912

.831

.495 (14.01)

41.1 (674)

8 1/2 (21.5)

7 1/16 (17.9)

4 5/16 (11)

WiringOptions

CompVR subwoofers are available with dual 2Ω

(ohm) or dual 4Ωvoice coils. Both coils must be

connected to a source of amplification. The dual

2Ωwoofer will generate a 1Ωload if the coils are

wired in parallel or a 4Ωload in series. The dual

4Ωwoofer will provide a 2Ωload wired in parallel

or 8Ωload wired in series. The terminals with the

white dots are for the first voice coil. The terminals

with solid-red and solid-black markings are for the

second voice coil. See Figures 1 and 2.

PERFORMANCE

Congratulations on your

KICKER purchase

Please record your purchase

information and keep your sales

receipt for validation of warranty.

Note: All specifications and performance figures are subject to change.

Measurements based on 4 ohm voice coil models.

Please visit the www.kicker.com for the most current information.

INSTALLATION

COMPVRSUBWOOFER

Owner’sManual

CVR CVR CVR CVR15 /12 /10 /8

Models:

COMPVRSUBWOOFER 3

Authorized Kicker Dealer:

Purchase Date:

Subwoofer Model Number:

Subwoofer Serial Number:

_________________________

SealedEnclosureApplications

The CompVR generates more sound pressure than competing subwoofers on the market and excels

when used in the recommended sealed boxes. These sealed enclosure designs give the smoothest

response with increased energy at the lowest frequencies, 20 to 30Hz. These designs deliver massive

amounts of highly-accurate bass and can be driven with punishing levels of amplifier power.

The CompVR high performance suspension system can operate in a larger sealed enclosure. This

maximum enclosure volume application is ideal for SQ (ultra sound quality) installations. The SQ

enclosure generates a very flat response curve and superbly extends the subbass response.

CompVR subwoofers perform well in any size sealed enclosure between the Compact and SQ volume

recommendations. These systems will exhibit benefits of both designs: Compact produces high-impact

bass, and SQ generates low bass frequency protraction. Overall, the system will sound more like the

recommended enclosure design it is closest to in enclosure volume. These enclosure recommendations

have been calculated with the airspace inside the enclosure and include the displacement of the woofer.

All sealed-enclosure airspace should be filled to 50% loose poly-fil (polyester fiberfill) stuffing. Do not

make the airspace greater than the SQ, maximum enclosure volume, recommendation.

Model:

CVR8

CVR10

CVR12

CVR15

Sealed Maximum VolumeSQ (Enclosure )

1.8 ft3(51L) Power Handling = 140W RMS

3 ft3(85L) Power Handling = 300W RMS

4.6 ft3(130L) Power Handling = 300W RMS

5.2 ft3(147L) Power Handling = 500W RMS

Sealed Minimum VolumeCompact (Enclosure )

.4 ft3(11.3L) Power Handling = 200W RMS

.8 ft3(22.7L) Power Handling = 400W RMS

1 ft 3(28.3L) Power Handling = 400W RMS

1.8 ft 3(51L) Power Handling = 500W RMS

Model:

CVR8

CVR10

CVR12

CVR15

Panel B, in (cm)

11x8.125 (27.9x20.6)

13.5x10.125 (34.3x25.7)

14.5x11 (36.8x27.9)

17.25x13.5 (43.8x34.3)

Panel A, in (cm)

11x11 (27.9x27.9)

13.5x13.5 (34.3x34.3)

14.5x14.5 (36.8x36.8)

17.25x17.25 (43.8x43.8)

Volume, ft3(L)

.4 (11.3)

.8 (22.7)

1 (28.3)

1.8 (51)

Panel C, in (cm)

9.5x8.125 (24.1x20.6)

12x10.125 (30.5x25.7)

13x11 (33x27.9)

15.75x13.5 (40x34.3)

P m o u h uanel Di ensi ns forCompact Enclosures Sealed sing 3/4” (1.9cm) t ick MDF: (See Fig re 3)

Model:

Nominal Impedance [Zn], ohm [per coil]

Resonance Frequency [fs], Hz

Power Handling Watts, Peak (RMS)

Sensitivity [SPLo], dB @ 1W, 1m

Effective Excursion [EXmax™], in (mm)

DC Resistance [Re], ohm [coils in series]

Mechanical Q-Factor [Qms]

Electrical Q-Factor [Qes]

Total Q-Factor [Qts]

Equivalent Volume [Vas], ft

3(L)

Net Displacement, in

3(cc)

Outer Frame Diameter, in (cm)

Hole Cut-Out Diameter, in (cm)

Mounting Depth, in (cm)

CVR15

2 or 4

20.8

1000 (500)

89.1

.492 (12.5)

6.84

10.81

.442

.425

9.23 (261.45)

243.6 (3992)

15 3/8 (39)

13 7/8 (35.2)

8 1/8 (20.6)

CVR12

2 or 4

26.1

800 (400)

86.7

.498 (12.64)

6.99

9.99

.556

.527

3.37 (95.37)

122.1 (2001)

12 1/2 (31.7)

11 1/8 (28.3)

6 5/16 (16.1)

CVR10

2 or 4

33.2

800 (400)

85.5

.501 (12.73)

6.71

8.93

.640

.597

1.42 (40.24)

75.3 (1234)

10 5/8 (27)

9 1/4 (23.5)

5 9/16 (14.1)

Performance

The Kicker CompVR subwoofers were specially designed for “Livin’ Loud” out in the harsh automotive

environment. CompVR subwoofers are versatile and surpass the competition in a sealed or vented box.

They are made of advanced materials and construction techniques to maintain optimal performance for

years to come.

Please allow two weeks of break-in time for the subwoofer to reach optimum performance. To get the best performance

from your new Kicker subwoofers, we recommend using genuine Kicker Accessories and Wiring.

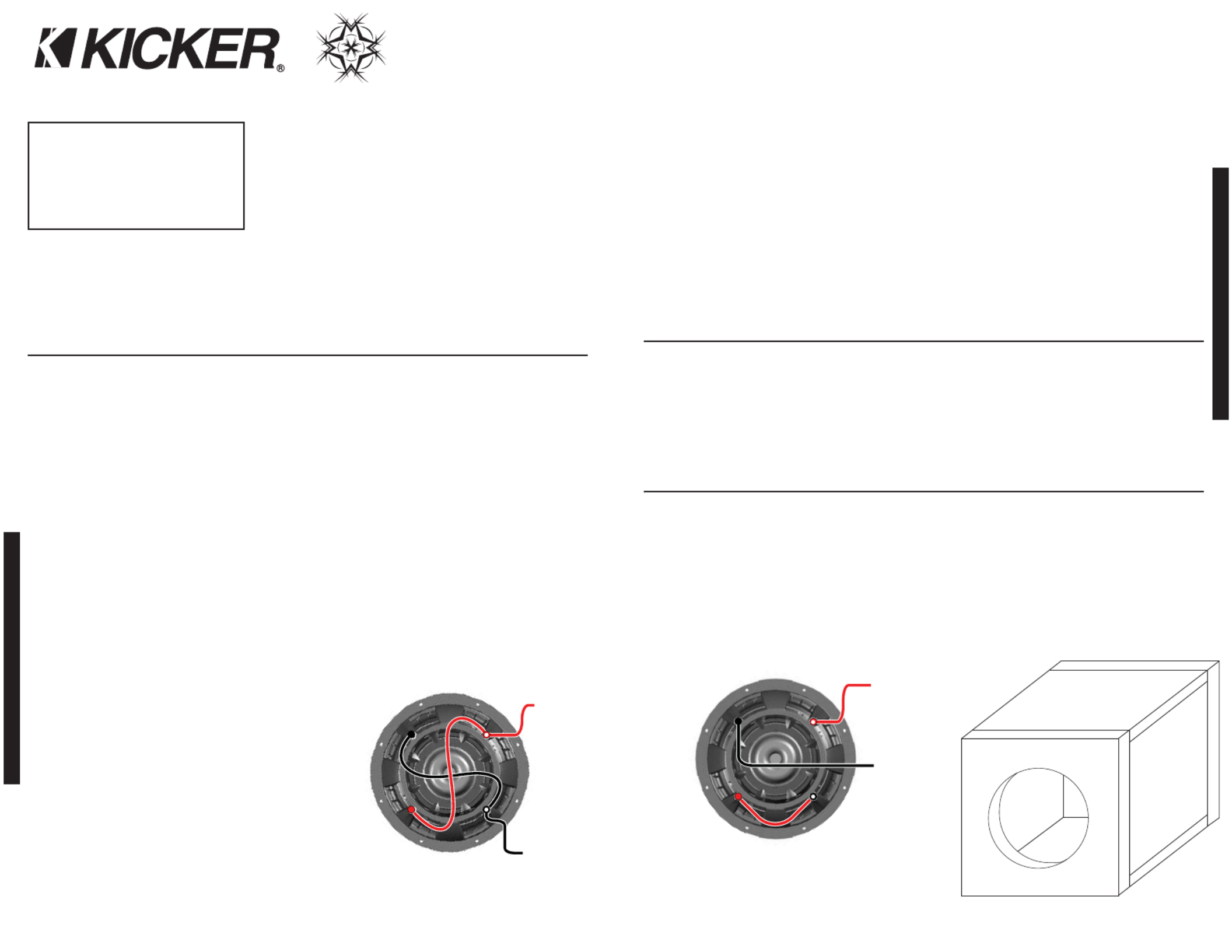

ParallelWiring

Dual 2 Voice Coils = 1Ω Ω Load

Dual 4 Voice Coils = 2Ω Ω Load

F uig re 1

Coil 1 +

Coil 2+

Coil 2 -

Coil 1 -

Amplifier -

Speaker

Connection

Amplifier +

Speaker

Connection

F uig re 3

SeriesWiring

Dual 2 Voice Coils = 4Ω Ω Load

Dual 4 Voice Coils = 8Ω Ω Load

F u ig re 2

Coil 1 +

Coil 2+

Coil 2 -

Coil 1 -

Amplifier -

Speaker

Connection

Amplifier +

Speaker

Connection

CompVR Subwoofer - Covered by one or more of the following patents:

U.S. Pat #'s 6,611,604, 6,731,773 D473,216, D456,386, D449,293,

D355,193, Taiwan Pat. #162,154; Other U.S. and foreign patents pending.
