Introduction

Your SupraSafe is the latest in Rapid Entry key

control. To fully utilize it’s built-in security features,

we recommend that reasonable care be given to the

location and method of mounting.

The vault is coated with a tough, baked polyurethane

abuse; however, it is always best to locate the vault

in an area which is sheltered from excessive moisture

and possible mechanical damage.

Important! Contact your local

department for

mounting location

and instructions.

Installation for Supra-Max, SupraSafe

1, SupraSafe 2HS/2HSR, and Supra-

Safe 2HS/TS-Vault

1. Mount the vault so that the moisture drain hole is

on the bottom.

2. Use a level to plumb the vault square.

3. Four 5/16-inch lag bolts have been provided for

surface mounting the vault.

Important! When installing the vault, do not

over-tighten the four mounting bolts as this

may distort the outside shell of the vault.

4. To secure the vault to a masonry/brick wall, it

is necessary to use the anchors provided with

the 5/16 lag bolts mounting kit. Drill a 1/2” hole

approximately 1-3/4” deep into the masonry/brick

wall. It is recommended to use a carbide/masonry

bit to prevent cracking or shattering. Gently pound

the anchor into the hole with a hammer so that it is

5. Caulk between the vault and the wall for better

once the vault has been installed.

7. We strongly recommend the wiring of the tamper

or licensed electrician. The circuit shall conform to

NEC class 2 or 3, or UL class 634 standards. In no

case shall the wiring supply more than 30 volts at

50 ma. Consult local codes and ordinances prior to

installations.

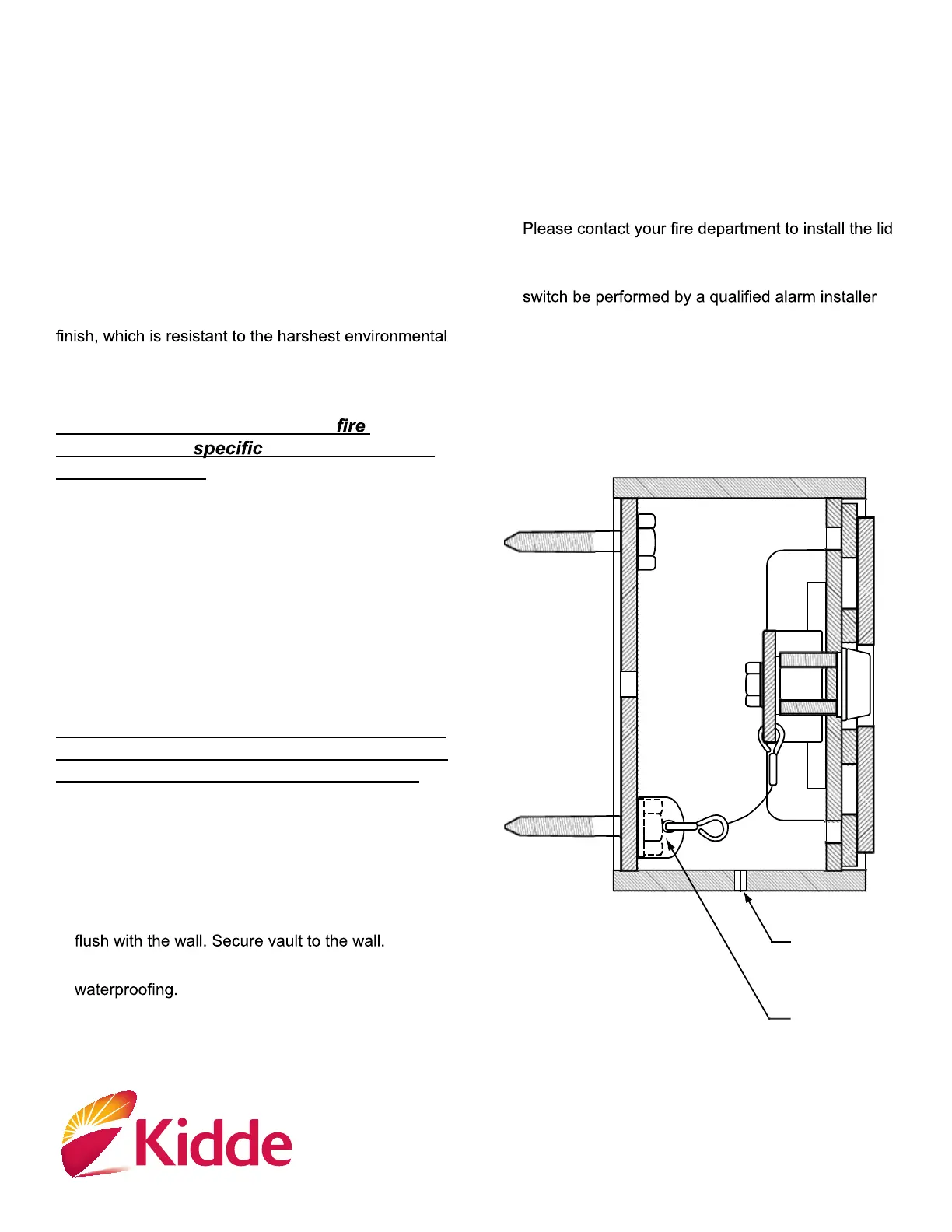

Figure 1. Side View of Mounted Vault

Drain hole

Chain mounting

bracket

P/N 10102664P1 • Feb 2013

Ra trypid En Systems

In llsta ation Instructions

Instructions for SupraSafe 2HSR and

SupraSafe 2HSR/TS Vaults

The SupraSafe 2HSR and SupraSafe 2HSR/TS vaults

are designed to be recessed into a wall for attractive

ush mounting. These units can be adapted to t a

variety of hollow wall situations or can be installed in

a sold concrete wall which has been cored to a six

inch diameter. For concrete or masonry walls in new

construction, we recommend the use of our Cast-in-

Place Mounting Kit described below.

With the SupraSafe 2HSR/TS, removal of the tamper

switch is not necessary during installation. The alarm

wiring to the tamper switch should be pulled tight

so that any attempt to force the vault out of the wall

will break the wire or pull terminals loose. Push-On

type terminals are supplied for connection to tamper

switch. Tamper switch can be connected for either

open or closed circuits.

Cast-in-Place Mounting Kit (P/N: 454000)

The Cast-in-Place Mounting kit is used only with the

SupraSafe 2HSR and SupraSafe 2HSR/TS vaults.

The kit contains a shell housing and mounting

hardware to be cast in place in new masonry or

concrete construction. After construction is completed,

the vault mounts inside the recessed shell housing so

that the small moisture drain hole is on the bottom.

Installation

The mounting kit may be fastened to the inside wall

of a concrete form or set in place during construction

of a masonry wall. Wiring conduit may be connected

through one of several knockout holes in shell housing.

The orientation of the mounting kit requires that the

rebar on the backplate be horizontal. Mount the

housing shell to the backplate so that the tamper switch

adjustment screw is on the left side of the housing.

Important! Care should be taken to insure that the

front of the shell housing, including the cover plate and

screw heads, is ush with nish wall. Shell housing

should be plumbed with a level. Leave cover and

screws in place until vault is ready to be mounted inside.

Four mounting studs are provided for securing the

vault and chain-lid assembly within the housing shell.

1. Place vault in housing shell of mounting kit so

that the vault’s small moisture drain hole is on the

bottom. Align the tamper switch of the vault with

the tamper switch adjustment screw of the housing

shell. The tamper switch adjustment screw has a

slotted head to adjust for proper switch operation.

2. Install washers and nuts onto the two top mounting

studs within the vault. Do not over-tighten mounting

nuts as this may distort outside ange.

3. Slip the chain mounting bracket (attached to the

chain-lid assembly) over the lower right-hand stud

prior to installing the bottom washers and nuts in the

vault. This will permanently attach the lid to the vault.

4. Please contact your re department to install the lid

once the vault has been installed.

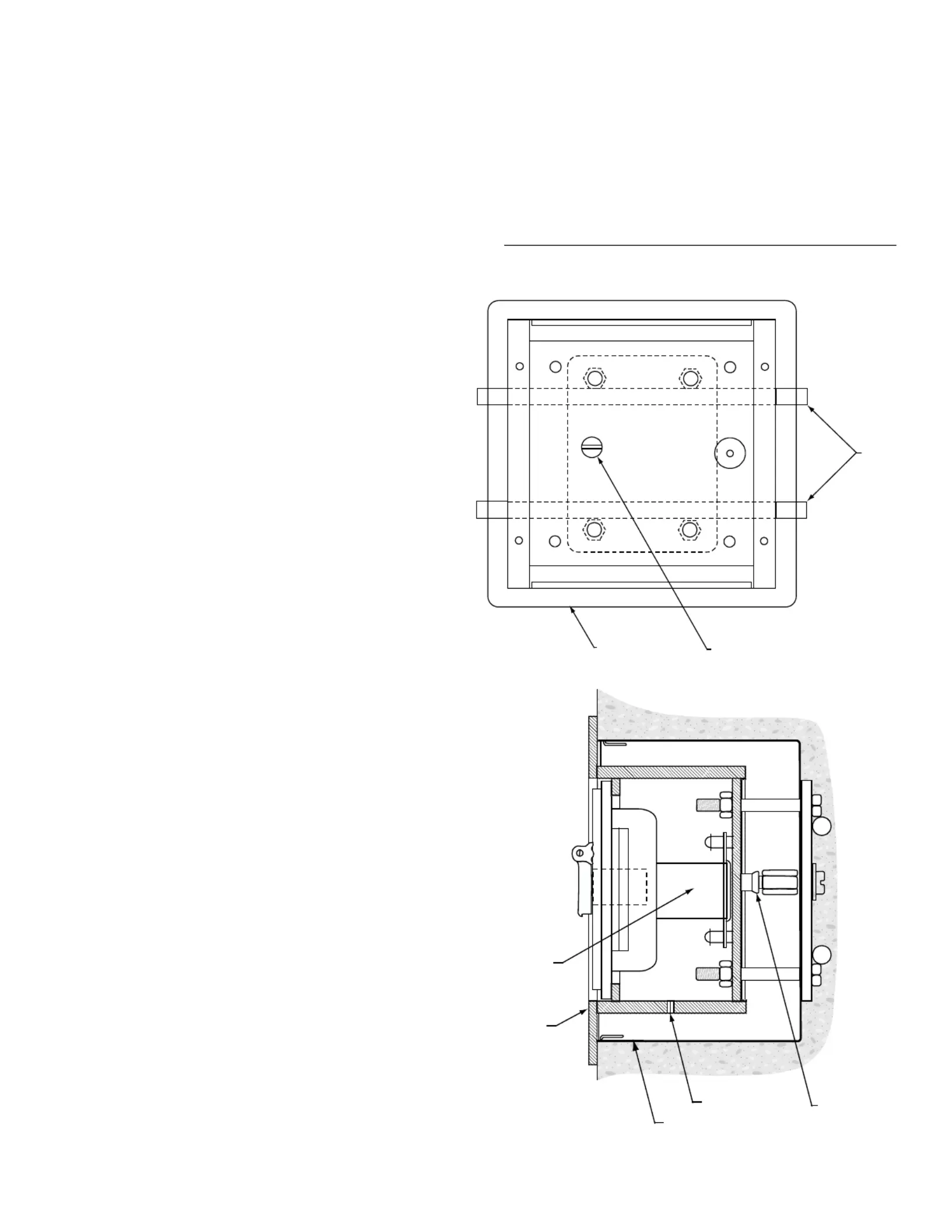

Figure 2. Cast-in-Place Mounting Kit and Side View of Installation

Face plate

Rebar

Tamper switch

adjusting screw

Adjusting

screw tamper

switch

Drain hole

Cast-in-Place

Mounting Kit

SupraSafe

2HSR or

2HSR/TS

Vault

Tamper

Switch

(2HSR/TS,

2HS/TS only)
