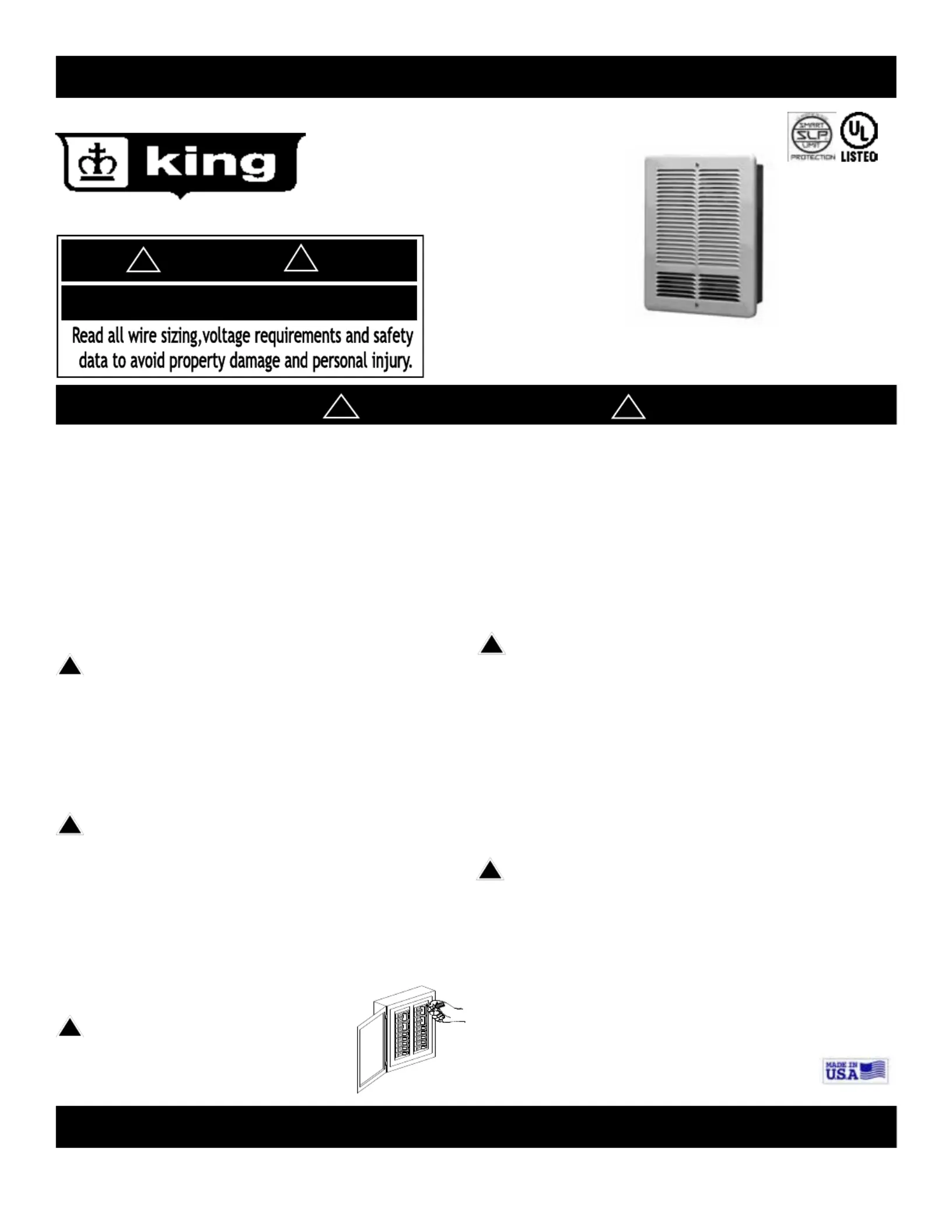

1. Read all instructions before wiring or using this

heater.

2. WARNING: This heater is hot when in use. To

avoid burns, do not let bare skin touch hot sur-

faces. Keep combustible materials, such as furni-

ture, pillows, bedding, papers, clothes, boxes,

etc., and curtains at least 3ft (.9 m) from the

front of the heater and keep them away from the

sides and rear.

3. CAUTION: Extreme caution is necessary when any

heater is used by or near children or invalids and

whenever the heater is left operating and unat-

tended.

4. Do not operate any heater after it malfunctions.

Disconnect power at service panel and have

heater inspected by qualified electrician for re-

pair before reusing.

5. Do not use outdoors.

6. WARNING: To disconnect heater,

turn controls to OFF, and turn

OFF power to heater circuit at

IMPORTANT INSTRUCTIONS

ELECTRIC SHOCK OR FIRE HAZARD

DANGER

WARNING

Read Carefully - These instructions are written in an effort to prevent potential difficulties that might arise during

installation. Studying the instructions first may save you considerable time and money later. Observing the following

procedures will keep installation time to a minimum. . Save these instructions for future use

Covers all W Series models

W Fan Force Electric

Space Heater

King Electrical Mfg. Co. 9131 10th Ave So. Seattle, WA 98108 206- -0400 www.king-electric.com 762

IMPORTANT INSTRUCTIONS

When using electrical heating appliances, basic precautions should always be followed to

reduce the risk of fire, electric shock and injury to persons, including the following:

main disconnect panel.

7. WARNING: Do not insert or allow foreign objects

to enter any ventilation or exhaust opening as this

may cause an electric shock, fire, or damage to

the heater.

8. To prevent a possible of fire, do not block air in-

takes or exhaust in any manner.

9. A heater has hot and arching or sparking parts

inside. Do not use it in areas where gasoline,

paint, or flammable vapors or liquids are used or

stored.

10. WARNING: heater only as Use this described in this

manual. Any other use is not recommended theby

manufacturer and may cause fire, electric shock,

explosion property.or injury to people and or

SAVE THESE INSTRUCTIONS

Figure 1

Figure 2

ELECTRIC SHOCK OR FIRE HAZARD

Figure 3

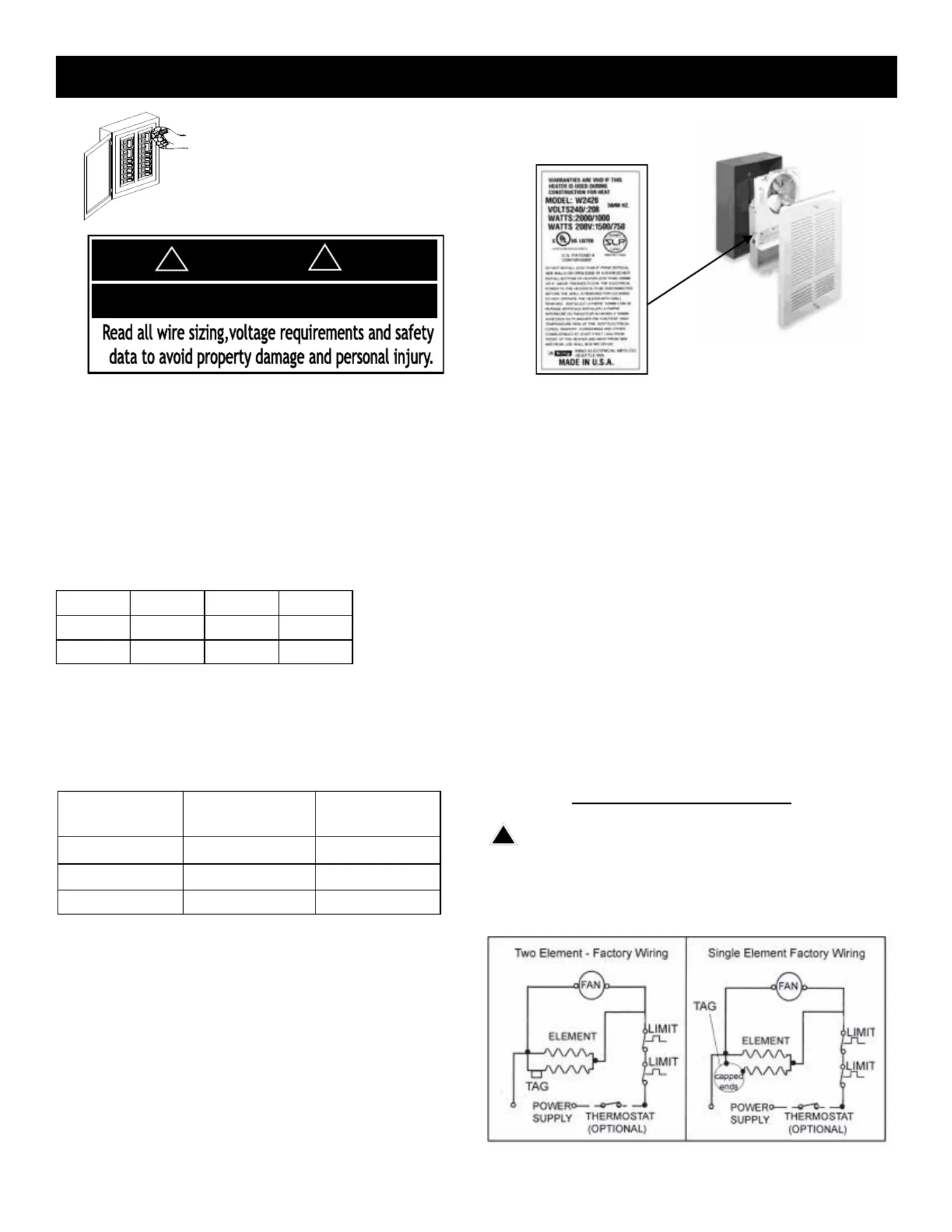

W INSTALLATION INSTRUCTIONS

CAUTION!

Turn OFF all electrical power

to install heater

Rating Label Location

Total Amps

Minimum AWG. Wire

Size (Copper

Circuit Breaker or

Fuse Size

0 thru 12 15 amp #14

12.1 thru 16 20 amp #12

16.1 thru 24 30 amp #10

Minimum Clearances for heater: Table 1

Front TOP BOTTOM SIDES

36 in 12 in 4 in 6 in

0.9 m 30.5 cm 10.2 cm 15.2 cm

Selecting A Location For Your Heater:

DO NOT install less than 6” (15cm) from vertical side

walls or open edge of door. This heater must have an

unrestricted airflow. DO NOT select a location where it

is likely to be blocked by furniture, curtains, etc. Be

sure the location selected allows sufficient space for the

heater as shown by Table 1. DO NOT locate this heater

in an area where combustible vapors, gases liquids, or

excessive lint, dust or moisture is present.

The wire and breaker sizing chart will give a general rule

of installation size. Consult an electrician if you are not

knowledgeable about wiring codes.

Wire and Breaker Sizing: Table 2

WIRING: Branch Circuit Connection

1. Connect heater only to the voltage, amperage and

frequency specified on the nameplate.

2. Wiring procedures and connections shall be in accor-

dance with all National and local codes having juris-

diction.

3. Set the bag containing the grille and packet with

two (2) grille screws aside.

4. Loosen mounting screw and remove fan heater as-

sembly.

5. A knockout of 1/2 inch conduit size (7/8 inch /

2.2cm) is provided in the back and side of the heater

for power to enter. Provide proper strain relief con-

nectors for your wire entering the wallbox.

6. Install wallbox a minimum of 6” from vertical side-

walls and 4” above floor. The front edge of wall

can MUST extend 1/2” beyond finished wall sur-

face.

7. Secure wallbox to the 2 x 4 studs using the two (2)

holes on the side of the wallbox. Secure to wall stud

on opposite side if required.

8. Connect supply wires, attach ground feed wire to

the green ground wire with wire nuts.

9. Reinstall heater assembly into wallbox with screw at

top of interior.

10. Install grille securely with screws provided in

packet. Do not over tighten.

11. Test unit by turning thermostat up past room tem-

perature. You will see a puff of smoke as the ele-

ments are energized and the fan turns on. This is a

normal burn off of manufacturing lubricants and will

dissipate in 5 minutes.

12. Heater will continue to run until the room tempera-

ture you set is reached and then turn itself off until

the temperature drops again.

CAUTION - High temperature. Risk of fire , keep electri-

cal cords, drapery, furnishings, and other combusti-

bles at least 3 feet (0.9 m) from the front of the

heater as well as away from the side and rear. To

reduce the risk of fire, do not store or use gasoline or

other flammable vapors and liquids in the vicinity of the

heater.

Figure 2

Wiring Diagram Figure 5

Zero clearance to insulation.

Figure 4

DANGER
