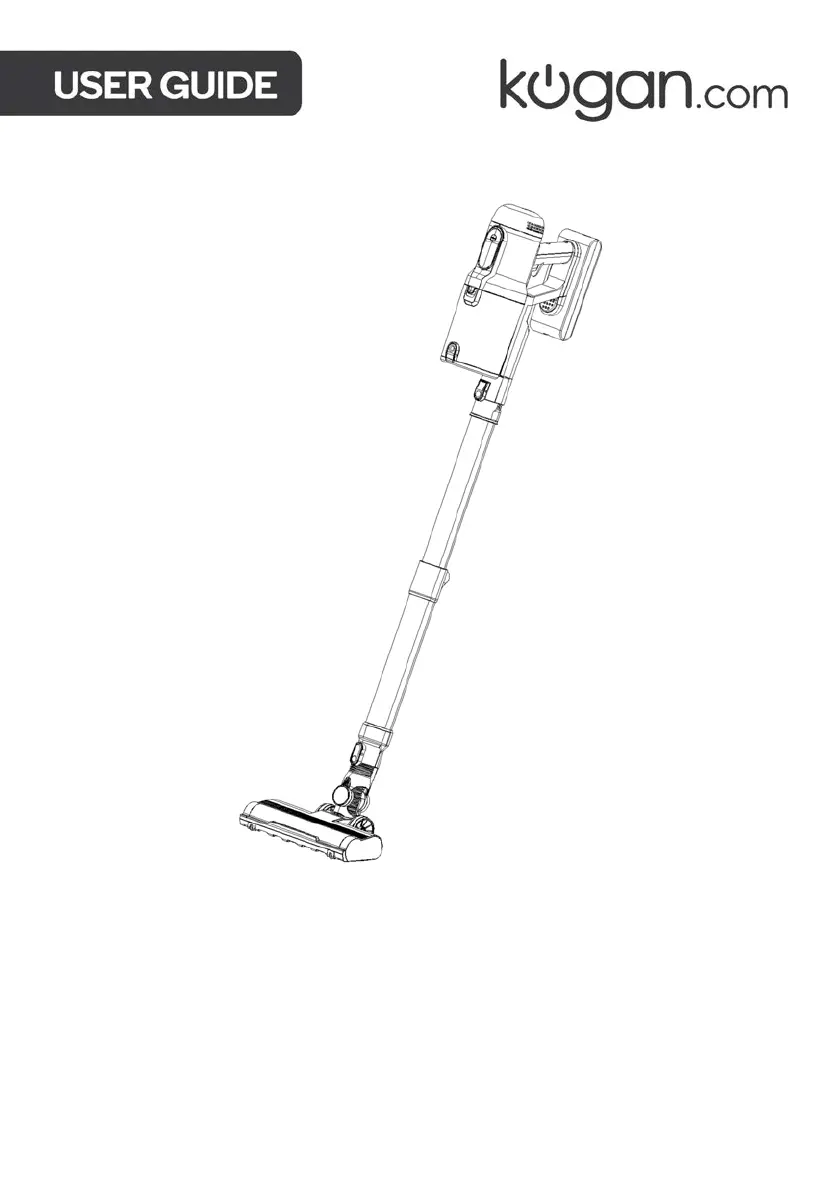

Side 1/20

MX12 PRO CORDLESS

STICK VACUUM CLEANER

KAVACSTM12X

Safety & Warnings

Components

Overview

Assembly

Operation

Cleaning and Care

Troubleshooting

Specifications

Read all instructions in this guide before using this product. Retain this guide for future

reference. Do not skip, substitute or modify any steps or procedures in this guide, as doing

so could result in personal injury or product damage.

To reduce potential fire risks, electric shock or injury, always observe the basic safety

prevention measures during use, including but not limited to the following:

Power safety:

• Ensure that the power supply voltage matches the voltage marked on the charger.

• D o not store the charger by wrapping the charger wire around the charger.

• The charger wire must be kept away from hot surfaces or sharp objects.

• The charger wire cannot be replaced. If the charger wire shows any signs of damage,

cease use immediately and contact help.Kogan.com for support.

• D o not touch the charger or the appliance with wet hands.

• When cleaning and maintaining the machine, ensure that appliance has been

disconnected from the power supply.

• Always hold by the power plug when connecting and disconnecting to avoid damaging

the cord.

• Never immerse any part of the plug or vacuum cleaner in water or other liquids.

• Never leave while the vacuum cleaner is working.

Battery safety:

• Only use the original battery supplied by Kogan.com. Do not use any other model or

c apacity of the battery.

• Do not burn or expose the battery for to high temperatures.

• Only use the original battery. Replacing with a difference battery may cause safety

risks.

• Do not disassemble, expose to impact, squeeze or place the battery into the fire.

• If the battery has any malfunction or abnormality, cease use immediately and contact

help.Kogan.com for support.

• Do not short circuit the metal contacts on the battery. Doing so may cause the battery

to overheat and lead to personal injury.

SAFETY & WARNINGS

During : use

• This product is not intended for use by persons (including children over 10 years old) with

reduced physical, sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the product in

a safe way by the person responsible for their safety, and understand the hazards

involved.

• Children over 10 years old must only use this appliance under the supervision of their

guardians.

• Do not allow children under 10 years old to operate or play with this appliance.

• During operation or when performing maintenance, children under 10 years old should

be kept away from the appliance.

• D o not use this machine outdoors or in humid areas or grasp it with wet hands.

• If the machine becomes physically damaged, placed outdoors or falls into water, cease

use immediately and contact help.Kogan.com for support.

• To avoid blockages, don’t place large objects into the suction nozzle of the vacuum

cleaner. Keep the suction nozzle away from lint, hair and other objects that may cause

a blockage and frequently clean the appliance.

• To avoid injury, keep your hair, clothes, fingers and other body parts away from the

suction nozzle and movable parts.

• Avoid sucking in any burning or smoking garbage, such as cigarette ends, matches,

soot and other objects.

• Do not use the vacuum cleaner to clean flammable substances or liquids, such as

gasoline or places where there may be gasoline, kerosene, paint, alcohol, detergent,

etc.

• Keep this appliance away from hot surfaces or sources of heat.

• Do not use the vacuum cleaner before installing the filter.

• Turn off the machine before connecting or replacing any accessories.

• Keep the vacuum cleaner indoors and use it in dry rooms only.

• Do not use it for other purposes unless otherwise specified in this user guide.

• Do not use the vacuum cleaner as a toy. Children nearby must be supervised.

• Be careful when cleaning stairs.

• Only use accessories included with this product and recommended by Kogan.com.

• This vacuum cleaner is not suitable for cleaning water or other liquids. Do not vacuum

water or wet debris.

• D o not use on concrete pavement, asphalt pavement and other rough surfaces.

• The vacuum cleaner is designed for household use only. Do not use it in factories or

commercial environments.

• D o not vacuum construction waste or heavy metal dust.

• Pay close attention when pets are near the vacuum cleaner.

• Do not leave the power on when the vacuum is unattended.

• Disconnect the charger when not in use after full charging or before maintenance.

• If the power cord is damaged, cease use immediately and contact help.Kogan.com for

support.

Cleaning & Maintenance:

• To ensure the correct operation of the vacuum, the filter and dust cup will need to be

emptied and cleaned regularly.

• To ensure optimal performance of the vacuum, follow the “Cleaning and Care”

instructions outlined in this user guide.

• T o prevent personal injury and avoid irreparable damage, do not modify this product in

any way

• Only use replacement parts or spare parts provided by Kogan.com.

WARNING:

• D s s o not use water, solvent or polishing agent to clean the surface

of the appliance. Clean with dry cloth.

• Do not to submerge the vacuum cleaner in water or use a machine

to clean it.

Vaccum b ody

Wall bracket

Retractable extension tube

Electric brush

2- - in 1 Bristle Brush

Crevice tool

Battery

Charger

COMPONENTS

OVERVIEW

O utlet filter cover

Control panel

Dust cup lock

Dust cup

Dust cup release button

Extension rod lock

Retractable extension rod

Trigger

Battery

Battery release

button

Charging input

Brush release button

Roller brush

Charging

indicator

Control Panel

Brush b i lockage ndicator

Air- b i duct lockage ndicator

Eco Speed a indic tor

Normal a Speed indic tor

Battery l i evel ndicator

Automatic m ode

Suction c ontrol

H igh Speed indica tor

1. Align the roller retractable extension rod brush to the and push it gently. It will

connect with an audible click.

2. Align the retractable extension rod with the vacuum cleaner body and push it

gently. It will connect with an audible click.

3. The roller brush and other brush heads can be connected directly to the vacuum

cleaner body when a more compact unit is desired (for example, cleaning a car

interior).

4. Slide the battery along the guide slot towards the rear of the vacuum main body

until . it locks firmly in place

ASSEMBLY

Wall Bracket

1. Select a location that is easily accessible and has enough room for the vacuum to

be mounted vertically. Ensure that the mounting location is close to an electrical

outlet so that you can plug in the vacuum charger.

2. Using the wall bracket as a template, mark the location of the holes that will need

to be drilled.

3. Attach the wall bracket to your chosen location:

o If mounting into a wall stud, use screws to attach the wall bracket to the wall.

o If mounting into plaster or masonry, wall anchors will need to be used for

added support.

Note: Screws and wall anchors not supplied.

4. Once the wall bracket is securely attached to the wall, you can hang the vacuum

cleaner on it.

Turning the Vacuum On/Off

1. Once assembly is complete, press the trigger to turn on the vacuum.

2. Pressing a the trigger second time will turn the vacuum off.

S Cuction ontrol

Suction power can be set to three levels (ECO,

Normal & High) by pressing the suction control

button.

1. When the vacuum is turned on, the

machine will operate at the suction level

set during the previous usage.

2. Press suction control button and the

vacuum will shift between ECO, Normal

& High mode. The corresponding

indicator(s) will illuminate.

Auto Mode

Press the “Auto” button to place the vacuum into

Auto modes. In this mode the vacuum

automatically adjusts the suction power

depending on the surface that is being cleaned.

Trigger

OPERATION

Suction

control

Auto

Retractable E Rxtension od

U sed for cleaning high places such as ceilings, roofs, air conditioners and curtains.

C ompatible with the included brush heads.

Electric Brush

Used . for cleaning hard floors and carpet

2-in1 Bristle Brush

• The bristle brush is suitable for cleaning places such as curtains, car interior and air

conditioners or any areas where hair can collect.

• The fine hairbrush can deeply clean small areas such as computer keyboards.

• The retractable brush can suck and clean simultaneously to remove dust efficiently.

C Trevice ool

This is suitable for cleaning various crevices and narrow areas in the household and the car.

Charging

1. Hang the vacuum on the wall bracket, connect the charger to an electrical outlet,

and plug the charger into the charging input on the wall bracket. The charger can

also be plugged directly into the charging input on the battery.

2. When charging, the charging indicator will flash the battery is fully GREEN. When

charged the indicator will stay on.

Battery Replacement

1. To replace the battery, press the battery release button and pull the battery away

from the machine body.

2. Attach the replacement battery to the machine body, the battery will “click” into

place when it is correctly installed.

WARNING:

T o avoid damaging to the vacuum cleaner, charge only with the

supplied charger.

• Only the the dust cup bristle and , , outlet filter 2- -in 1 b rush crevice tool can be washed

with warm soapy water. After cleaning, they must be thoroughly dried before being

reinstalled into s. the vacuum. Never immerse any other parts in water or other liquid

• Only use a soft, slightly damp cloth to clean the housing of the vacuum cleaner. Do not

allow any liquid substances to enter the vacuum cleaner.

• Do not clean using a ny corrosive chemicals or abrasives.

• Do not use when the filter is damaged or worn.

During Operation

• Do not let the unit get close to heaters or any other sources of heat (ovens, radiators

etc.).

• To prevent damage, before vacuuming, remove large and sharp objects from the area

to be cleaned. Do not vacuum any inflammable objects or liquids, such as gasoline,

cigarettes or alcohol.

Emptying the Dust Cup

P ress the release dust cup button on top of the dust cup. The bottom cover of the dust cup

will open allowing the contents to be emptied.

CLEANING & CARE

Note:

To maintain proper suction and operation, ensure the dust cup is emptied after each

use and cleaned regularly.

Cleaning the Dust Cup and Filters

1. Press and hold the dust cup lock to separate

the dust cup form the vacuum body.

2. Remove the filter assembly by pulling the

handle away from the dust cup.

3. Separate the HEPA filter from the metal

filter by rotating it counter- clockwise.

4. Use a soft brush to clean the dust from

components.

5. Wipe the dust cup with a damp cloth.

6. Rinse the metal filter with clean water.

Note: Do not clean the HEPA filter with water.

7. Allow the dust cup and filters to thoroughly air dry for 24 hours before reassembly.

Note: s Do not use the vacuum filters without the filter installed.

Notes:

To ensure optimal performance, it is recommended to replace the filter every three

months (depending on the usage).

WARNING:

T o avoid damaging to the vacuum cleaner, do not use any equipment

to clean or dry the filters. Allow to air dry naturally.

Metal filter

Dust cup

HEPA filter

Handle

Cleaning Outlet Filter

1. On the back of the vacuum body, rotate the outlet -filter cover in an anti clockwise

direction so the arrow is pointing to the unlock icon.

2. Remove the outlet filter cover from the vacuum body. Note: If the filter is damaged

or worn, it must be replaced with a new filter.

3. Separate the outlet filter from the cover and wash the filter with warm water.

4. After washing, ensure the filter is left to air dry for at least 24 hours before

reassembly. Note: . Do not use the vacuum filters without the filter installed

5. Replace the filter cover and rotate in a clockwise direction to secure it place (arrow

is pointing to the lock icon).

Cleaning the Roller Brush

To allow for cleaning the roller can be removed from the roller brush by following the below

steps:

1. Move the lock (indicated by lock symbols) on the right side of the roller brush to the

open lock position and take out the retaining bracket.

2. Remove the roller and clean off any debris.

3. Reinstall the roller in reverse order: reinsert the retaining bracket and press it down

until it clicks back into place.

Storage

• Store the vacuum in a cool, dry place that's away from direct sunlight and inaccessible

to children and pets.

• To store the device, hang it on the wall bracket. The 2- -in 1 brush and crevice tool can

be attached to the wall bracket for convenient storage.

• If the vacuum is not being used for an extended period, remove the battery from the

vacuum body and recharge it prior to the next use.

Outlet filter

Issue

Possible Cause

Solution

W . eak suction power

• Dust cup and filters are

filled with dust.

• The brush head is

blocked by hairs.

• Empty the dust cup and

clean the filters.

• Clean the brush head.

Abnormal sounds.

The extension rod is blocked.

Clear the blockage inside of

the extension rod.

If abnormal noises continue,

cease use and contact

help.Kogan.com for support.

Brush blockage indicator

flashes.

The roller brush head is dirty.

Clean the roller brush.

Air duct blockage

indicator flashes.

Air duct or dust cup is

blocked.

Clear the blockage and

empty the dust cup.

Battery will not charge

Using a third- party charger

to charge the product.

Use the supplied charger.

Roller brush/LEDs is not

working.

Roller brush is wrapped in

hair and debris.

Clean the roller brush.

Vacuum wont power on.

The battery is depleted.

• Charge the battery.

• Replace the battery if

required.

The suction nozzle or air

duct is block.

Clear the blockage.

The suction nozzle is

blocked.

Clear the suction nozzle.

Auto mode failure.

Dust blocking the dust

sensor on the inlet of the

vacuum body.

Clean the roller brush and

extension tube.

TROUBLESHOOTING

Voltage supply

29.6V (Li-ion 2500mAh)

Power

450W

Charging time

Approx. 5-6 h ours

Operating time

Up to 50 mins (when the battery is full charged)

Charger

Input

100- . 240V~ 50/60Hz 0 5A MAX

Output

35V DC, 0. 5A

Protection Class

Disposal

This marking indicates that this appliance should not be disposed with

other house-hold wastes. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, recycle it responsibly to

promote the sustainable reuse of material resources.

SPECIFICATIONS

NOTES

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set- up.

For the most up- -to date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com

Produkt Specifikationer

Mærke:	Kogan
Kategori:	Støvsuger
Model:	KAVACSTM12X

Har du brug for hjælp?

Hvis du har brug for hjælp til Kogan KAVACSTM12X stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Støvsuger Kogan Manualer

Kogan Z12 Pro Manual

19 December 2024

Kogan Mighty Cyclonic KAVACBA22WA Manual

19 December 2024

Kogan MX15 Pro Manual

1 Oktober 2024

Kogan MX9 KAVACSTM09B Manual

1 Oktober 2024

Kogan KAAIRDSTBLA Manual

26 September 2024

Kogan MX12 Pro KAVACSTM12X Manual

5 September 2024

Kogan KAVACSTM10X Manual

5 September 2024

Kogan KAVACSTM12X Manual

5 September 2024

Kogan KAVACSTV15A Manual

5 September 2024

Kogan KAVAPETV02P Manual

5 September 2024

Støvsuger Manualer

Nyeste Støvsuger Manualer

Numatic Hetty Quick HTY100 Manual

9 April 2025

Bosch Unlimited 7 BCS712E Manual

8 April 2025

Ghibli & Wirbel POWER EXTRA 21 Manual

8 April 2025

Ghibli & Wirbel POWER EXTRA 31 Manual

8 April 2025

Ghibli & Wirbel POWER EXTRA 7 Manual

8 April 2025

RYOBI One+ P714K Manual

8 April 2025

Concept VP8224 Manual

30 Marts 2025

LG V-C7262HT Manual

26 Marts 2025

Xiaomi Mi Vacuum Cleaner Light Filter Manual

25 Marts 2025

Philips Performer Expert FC8723 Manual

22 Marts 2025
