USER S’ GUIDE
AudioGate 4
E 3
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . 3
Switching Between Views . . . . . . . . . . . . . 4
Player View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Edit/Recording View . . . . . . . . . . . . . . . . . . . . . .4
The Songlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Master Volume/Input Level . . . . . . . . . . . . . . . . .5
Peak/Level Meter and Clip Indicator . . . . . . . . . .5
Using the Peak/Clip Hold Function . . . . . . . . . . . . . . 6
Clearing the Peak Hold and Clip Indicators Manually 6
AudioGate Information . . . . . . . . . . . . . . . . . . . .6
Registering Files and Projects . . . . . . . . . 7
Song Registration . . . . . . . . . . . . . . . . . . . . . . . .7
Registering an MR project. . . . . . . . . . . . . . . . . . . . . 7
Registering an Audio File . . . . . . . . . . . . . . . . . . . . . 8
Registering an iTunes Song . . . . . . . . . . . . . . . . . . . 8
Registering a new Recording . . . . . . . . . . . . . . . . . . 8
Selecting a Registered Song . . . . . . . . . . . . . . . .9
Removing a Song . . . . . . . . . . . . . . . . . . . . . . . . .9
Sorting the Songlist. . . . . . . . . . . . . . . . . . . . . . .9
Using Playlists . . . . . . . . . . . . . . . . . . . . . 10
Creating a new Empty Playlist . . . . . . . . . . . . .10
Creating a new Playlist by Selecting a Song . .11
Sorting the Playlist . . . . . . . . . . . . . . . . . . . . . . .11
Removing, Exporting, and Writing a Playlist to
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Playing Songs . . . . . . . . . . . . . . . . . . . . . 12
Playing Back a Song . . . . . . . . . . . . . . . . . . . . .12
Transport Controls . . . . . . . . . . . . . . . . . . . . . . .13
Contents of the Upper Viewer Display . . . . . . .14
Direct Locate . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Repeat Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Shuffle Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Audio Device Settings . . . . . . . . . . . . . . . . . . . .16
Input/output devices for KORG products . . . . . . . . 16
Automatic Sample Rate Switching . . . . . . . . . .17
Playing Back 1-bit Audio Files Directly . . . . . .18
Playback Volume Auto Adjust . . . . . . . . . . . . .19
Playing an Audio CD/DSD Disc . . . . . . . 20
Eject Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Recording . . . . . . . . . . . . . . . . . . . . . . . . . 21
Transport Controls . . . . . . . . . . . . . . . . . . . . . . 21
Contents of the Upper Viewer Display . . . . . . 22
Recording Device Settings . . . . . . . . . . . . . . . 23
Recording File Settings . . . . . . . . . . . . . . . . . . 24
Recording Procedure . . . . . . . . . . . . . . . . . . . . 27
Editing a Song . . . . . . . . . . . . . . . . . . . . . 28
Editing the Current Song . . . . . . . . . . . . . . . . . 28
Editing the Text Data . . . . . . . . . . . . . . . . . . . . . . . .28
Editing the Picture Data . . . . . . . . . . . . . . . . . . . . . .28
Editing the Control Data . . . . . . . . . . . . . . . . . . . . . .29
Batch Editing—Song Information . . . . . . . . . . . . . . .30
Batch Editing—Multiple Songs . . . . . . . . . . . . 32
Dividing a Song . . . . . . . . . . . . . . . . . . . . . . . . 33
Combining Songs . . . . . . . . . . . . . . . . . . . . . . 34
Channel Linking . . . . . . . . . . . . . . . . . . . . . . . . 35
Normalizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Marks that can be Imported . . . . . . . . . . . . . . . . . . .36
Marks that can be Exported . . . . . . . . . . . . . . . . . . .36
Editing Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Undo and Redo . . . . . . . . . . . . . . . . . . . . . . . . . 37
Reverting an Edit (Undo) . . . . . . . . . . . . . . . . . . . . .37
Re-executing the Edit (Redo) . . . . . . . . . . . . . . . . . .37
Converting Songs for Export . . . . . . . . . 38
Exporting an Audio File . . . . . . . . . . . . . . . . . . 38
Optional Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Creating an Audio CD or DSD Disc . . . . . . . . 46
Optional Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Auto Update Function . . . . . . . . . . . . . . . 51
Manually Checking for Updates . . . . . . . . . . . 51
Automatically Checking for Updates . . . . . . . 52
Other Settings . . . . . . . . . . . . . . . . . . . . . 53
Changing the Folder where Temporary Files are
Created . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Resetting the Warnings of All Dialog Boxes . 53
Checking the real-time conversion processing
. . 54
Switching Background . . . . . . . . . . . . . . . . . . 54
Supported Formats . . . . . . . . . . . . . . . . . 56
Supported File Formats . . . . . . . . . . . . . . . . . . 56
Supported Disc Formats . . . . . . . . . . . . . . . . . 57
List of Shortcuts . . . . . . . . . . . . . . . . . . . 59
3
Introduction
Welcome to the Korg AudioGate High Resolution Music Player.
AudioGate is an advanced music player and audio recorder, as well as a flexible file conversion application. Best of
all, AudioGate is fully compatible with 1-bit DSD audio. When Installed on your computer, AudioGate can play,
manage, and convert the format of your digital audio files so that you can enjoy hearing them reproduced with the
highest levels of clarity—including direct playback of 1-bit digital audio files. Combined with certified audio
devices—such as the Korg DS-DAC recording of 1-bit audio data.Series—AudioGate allows the direct
In addition, AudioGate allows projects or files created using the Korg MR Series of DSD 1-bit recorders, DS-DAC-
10R, or Nu I* to be converted into any audio file format you choose for export or to create an audio CD or DSD disc.
Convenient file-editing features including cut, fade, and normalize add professional edge to your finished product.
Please note that regardless of format, each audio element in an AudioGate Songlist is referred to as a Song.
*Nu I is sold only in Japan.
7
Registering Files and Projects
In order for AudioGate to work with the audio files and MR projects (created using a KORG MR Series recorder)
saved on your computer, they must first be registered with the AudioGate Library.
Each registered item is referred to as a Song.
Registering a Song does not create a copy of the file in AudioGate. Instead, file information needed to work as
the Song in AudioGate is registered. Before you proceed, we recommend that projects recorded on your MR
Series unit be copied to the hard drive of your computer.
When many Songs are registered at a time, it will take time for them to appear in the Songlist. In addition, the
Song waveform display requires time to be analyzed during registration, so the Song waveform may also take a
while to appear.
Song Registration
Registering an MR project
When registering data that was created on a Korg MR Series digital recorder, it is possible to register just the audio
file. However, it is best practice to register the entire MR project. This way, AudioGate can also access any Marks
that were added during recording, and divided audio files will be automatically joined so that they can be handled
as a single Song.
• Drag the MR project (the entire MR project folder) that you want to register into the songlist.
Alternatively, you can click the Menu button and select [File] - [Add Audio Files...] and then choose the MR Proj-
ect by selecting the .prj file from within the folder.
When the Library Songlist is displayed, the MR project is registered to the Library as songs.
When a Playlist is displayed, the MR project is registered to the selected Playlist as well as to the Library.
Simply registering an MR project in the AudioGate library does not create a backup of the file. We recommend
that you make a copy beforehand of projects recorded on a Korg MR Series to the hard disk of your computer.
drag & drop
8
Registering an Audio File
Audio files can be registered as Songs for use with AudioGate. Any file in one of the many formats which Audio-
Gate supports can be imported and registered as a Song (see page 56).
• Drag the audio file that you want to register into the songlist.
Alternatively, you can simply click the Menu button and select [File] - [Add Audio Files...].
When the Library Songlist is displayed, the audio file is registered to the Library as songs.
When a Playlist is displayed, the audio file is registered to the selected Playlist as well as to the Library.
When the Library Songlist is displayed, you cannot register a Song that has already been registered. You are
ignored when it drag-and-drop.
Registering an iTunes Song
Your iTunes songs can also be registered into the AudioGate Library.
1. Click the menu button to select [File] - [Add iTunes songs].
2. The selected iTunes song(s) is now registered into the Library.
Your iTunes songs will only be registered into the AudioGate Library when they are selected using the proce-
dure described above [Add iTunes songs]. A Song already registered in the library will not registered in dupli-
cate.
Registering a new Recording
When recording using AudioGate, as soon as recording has stopped, the new recording will be automatically regis-
tered into the AudioGate Library as well as into the current Playlist.
drag & drop
10
Using Playlists
By creating a Playlist, you can group together your favorite Songs registered to the AudioGate Library by theme,
genre, artist, etc. Once you’ve created a Playlist, you can add, remove, sort and select individual songs, just as in the
Library.
When you register a Song into the Playlist that has not yet been registered into the Library, the Song will be auto-
matically registered into the Library as well as the Playlist.
When Song information is updated for a Song that's in a Playlist, the Song information will be updated in the
Library, so any other playlists in which the song is registered are also updated.
Creating a new Empty Playlist
1. Click the Side bar Display button at the upper left corner of the Songlist.
2. The Playlist bar will appear. Click the + button in the right corner.
A new Playlist named “Playlist” will appear.
3. To change the Playlist name, click on the name section.
If you do not change the name, new Playlists will be named [Playlist n], with n being a number that automatically
increases by 1 with each Playlist created.
4. Click Library above the Playlist bar to display the Songs registered in the Library.
5. Select Songs in the Library to register them into the Playlist displayed in the side bar.
Move the mouse pointer onto the song, and click the Context Menu icon displayed to the right of the Title to
select the [Add to Playlist] function and register the Song to the Playlist.
To select multiple songs, hold down the Ctrl key (Mac: Command key) and click.
You can also select the [Add to Playlist] function to register the Song by right-clicking (Windows) or control-
clicking (Mac).
6. When you select a Playlist displayed under the Playlist bar, the Songs registered to that Playlist will appear in
the Songlist.
Side bar
Display button
Context
menu icon
Side bar
Display button
Side bar
Play List bar
11
Creating a new Playlist by Selecting a Song
Move the mouse pointer onto the Song in the Songlist, and click the Context Menu icon displayed on the right side
of the Title to select the [New Playlist from Selection] function.
You can also select and register the [New Playlist from Selection] by right-clicking (Windows) or control-clicking
(Mac).
Sorting the Playlist
Songs in a Playlist can be sorted using the same methods used to sort the Songs in the Library Songlist (see page 9).
In addition, selecting a song enables the dragging and sorting of Songs to achieve the desired order.
Removing, Exporting, and Writing a Playlist to Disc
Right-click (control-click for the Mac) on the name of the Playlist you wish to remove, and select Remove Selected
Playlist. Export and Burn Disc can be chosen as well. For more information on the other choices see page 38 (Export)
and/or page 46 (Burn Disc).
Removing the Playlist deletes the registered information of the Songs in the selected Playlist only. These same
Songs will remain registered in the Library Songlist and in any other Playlists in which they appear.
12
Playing Songs
Using AudioGate, you can playback any Song that has been registered in the Library Songlist. This provides a use-
ful way to playback Songs of any format supported in AudioGate (includes 1-bit audio format) in the same sam-
pling frequency, to check the file contents or to set an editing point (see page 36).
The playback provided by AudioGate is a convenient feature that utilizes a high-speed filter and direct 1-bit
DSD output. In order to experience the exceptional fidelity provided by 1-bit audio, please use the Korg DS-
DAC Series, a certified USB audio device, or a device that supports 1-bit audio, such as the Korg MR Series.
In AudioGate, the currently selected Song title is indicated by a Playback / Pause icon to the left side of the title.
The artist name, title, and album name related to the Current Song will appear in the upper section of the Viewer
Display. The current position in the playback of the Song can be seen in the Time Information. (
Refer to “Con-
tents of the Upper Viewer Display” on page 14.)
Playing Back a Song
Double-click on any Song in the Songlist to make it the Current Song. Playback will begin automatically.
If you experience problems with playback—for example if there is no sound or if there are frequent clicks or
pops in the playback—please refer to “Audio Device Settings” on page 16.
Play/Pause
Icon
Double-click the song
you want to play
14
Contents of the Upper Viewer Display
The top half of the display (upper Viewer Display) provides important information related to the Current Song.
Item Information
Sample Rate of
the Audio Device
The sample rate of the audio device is shown. The Current Song is converted to
this sample rate in real time as it plays.
Artist Indicates the name of the artist related to the Current Song.
Title Indicates the name of the Current Song.
Album Indicates the name of the album related to the Current Song.
Search Window You can search the Library Songlist by All, Title, Artist, or Album.
Click the magnifier Mark to the left side of the search window to search
When selecting All, the search is executed using all of the items (Title, Artist and
Album). If the Songlist data contains the searched items, the Songs meeting this
search criteria will be displayed.
Format Indicates the file format, number of channels, sample rate, and bit depth of the
Current Song. When playing files with irreversible compression, the “bit depth”
icon will show the “bit rate” (e.g., 128 kbps).
Time Information The current playback position and the overall time of the Current Song are dis-
played.
Sample Rate of the Audio Device
Title
TitleArtist Album
Format
Time Information
Time Information
Artist
Album
Format
Search Window
Sample Rate of the Audio Device Search Window
Song waveform display L
Song waveform display R
Song waveform display
15
Direct Locate
This feature allows you to accurately specify the current position directly from the keyboard.
1. While a Song is playing or stopped, click the Time Information indicator.
2. The counter will become an editable field. From the keyboard, enter the new counter position (e.g., 2:30).
You may omit the colon (:) and simply enter “230” (interpreted as “2:30”) or “1204” (interpreted as “12:04”).
3. Press the Enter key on the keyboard.
Note that the current position has changed.
Repeat Mode
The Repeat feature has three settings: Repeat the entire Playlist, Repeat the Current Song, and Off (no repeat). Each
time you click on the Repeat icon, it will advance to the next setting in the order listed above.
Repeat Mode is available during playback only (Play View).
Shuffle Mode
The Shuffle feature plays Songs in a shuffled order. Click on the Shuffle icon to turn the Shuffle mode On and Off.
Shuffle Mode is available during playback only (Play View).
Click
16

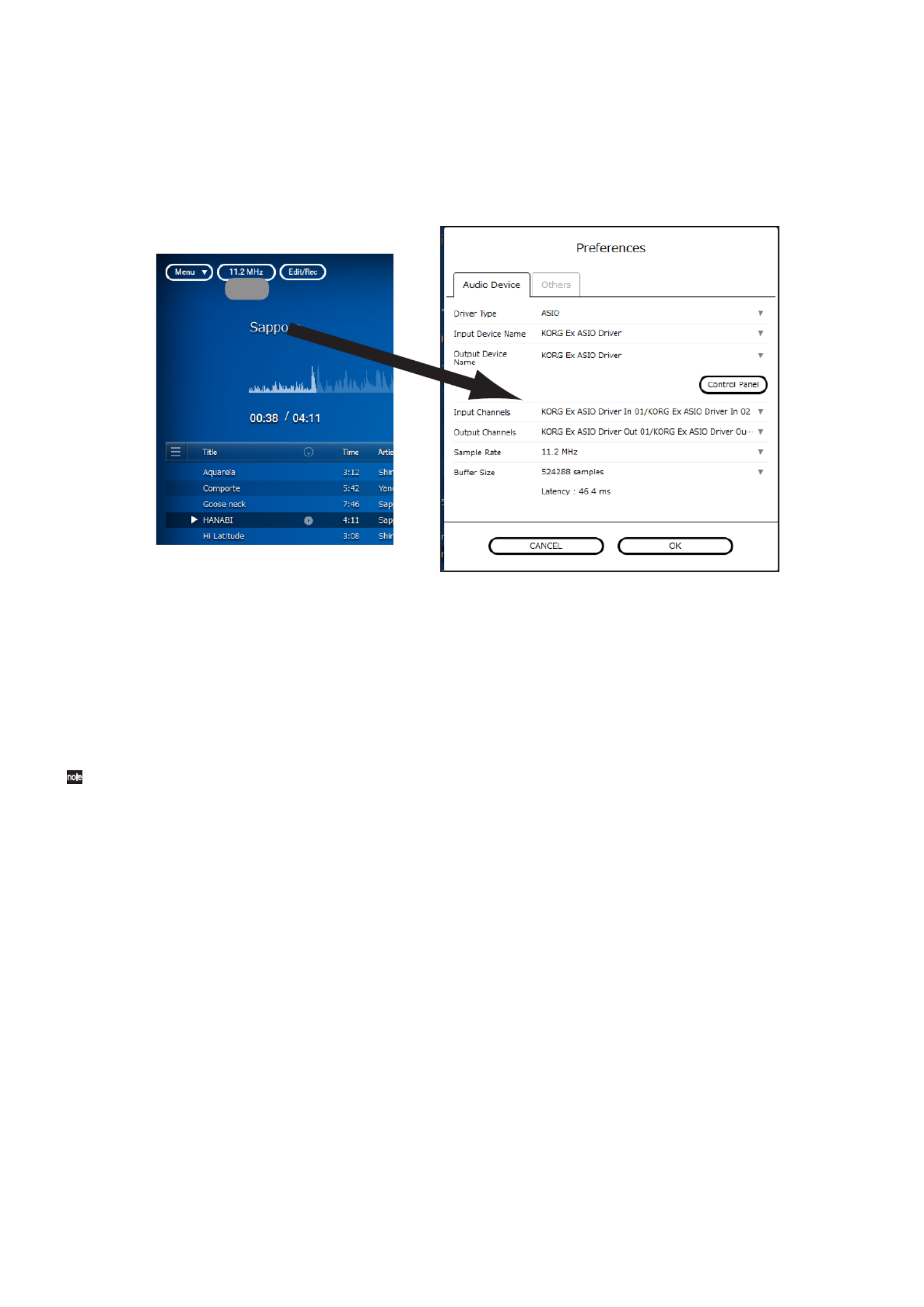

Audio Device Settings
To access your Audio Device settings, click on the Sample Rate indicator in the upper Viewer Display.
If the Song does not play correctly, please check these settings to make sure that each item is configured properly. In
addition, you can also click the Menu button and select [Edit] - [Preferences...] to display the settings of the Audio
Device. This is also where the recording input device and sample rate parameters are set.
A fast CPU is required for stable playback of 1-bit audio files directly, or real-time conversion from PCM to 1-bit
audio files. If any skip or noise occu ing the buffer size may help improvers frequently during playback, adjust
the performance. To avoid errors due to CPU overload during recording, we recommend that you set this to the
maximum value.
This is where input devices and the sample rate to be used for recording are set.
Input/output devices for KORG products
*1: Input devices for DS-DAC-100, DS-DAC-100m, and DS-DAC-10 cannot be configured.
*2: DS-DAC-10R and Nu I are sold only in Japan.
If the device does not support the sample rate for the song, the song will be played back while being converted
in real time using the optimum algorithm, at the highest PCM sample rate for that device.
Driver type Output device name/input device name *1 Name of supported KORG product
ASIO (Win) KORG Ex ASIO Driver Nu I *2
KORG 2ch 1bit Audio Device DS-DAC-10R
KORG USB Audio Device Driver DS-DAC-100, DS-DAC-100m, DS-DAC-10 *2
Core Audio (Mac) KORG Ex Audio Device Nu I *2
KORG 2ch 1bit Audio Device DS-DAC-10R
KORG USB Audio Device Driver DS-DAC-100, DS-DAC-100m, DS-DAC-10 *2
Click
18
Playing Back 1-bit Audio Files Directly
When using a certified device AudioGate can play1-bit audio files (DSDIFF, DSF or WSD) directly, without any PCM
conversion.
You can only use this function with KORG certified audio devices such as the DS-DAC series. Please see the
device list on our website:
https://www.korg.com/products/audio/audiogate4/
Please follow the steps below with your audio device connected to your computer.
1. Click the display section of the sample rate in the audio device.
You can also access these parameters by clicking the Menu button and selecting [Edit] - [Preferences...].
2. Click the [Audio Device] tab.
3. In the [Driver Type] section, select [ASIO] (Mac [CoreAudio]).
4. Select the correct audio device in the [Output Device Name] section.
5. Select “Auto” on [Sample Rate].
When playing back an unsupported 11.2 MHz file on the Korg DS-DAC Series, the file will be played back while
being converted in real time using the optimum algorithm at 192 kHz, the highest PCM sampling frequency for
that device.
6. Select a song from the song list in DSDIFF, DSF or WSD format to play back.
Click
Click
19

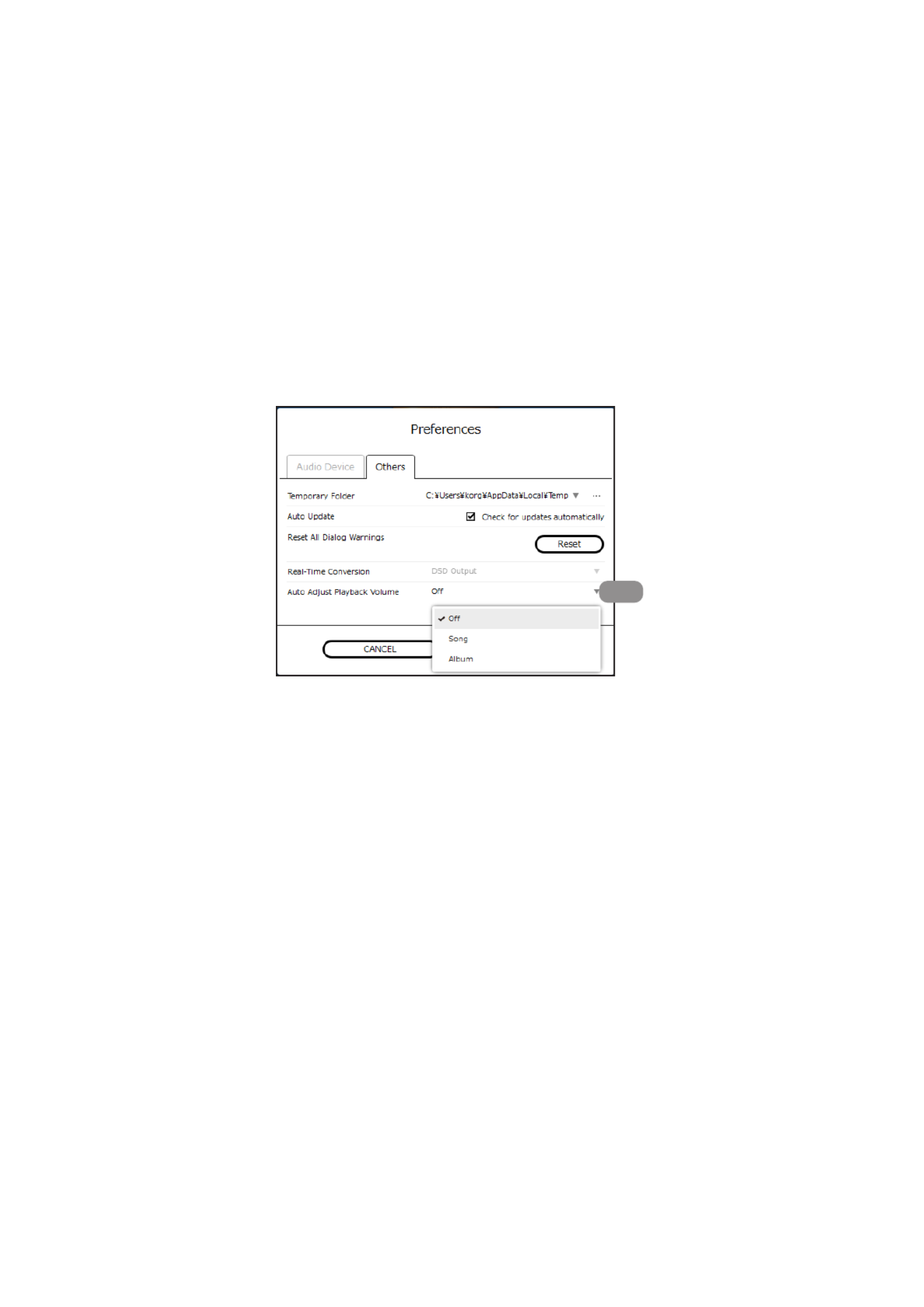

Playback Volume Auto Adjust
This feature enables you to enjoy listening to all Songs at nearly the same volume level, as AudioGate automatically
adjusts the playback volume of every Song. The Playback Volume Auto Adjust works during playback only, and
does not adjust the gain of the audio file itself.
1. Click the display section of the sample rate in the audio device.
You can also access these parameters by clicking the Menu button and selecting [Edit] - [Preferences...].
2. Click the [Other] tab.
3. Select the setting of the [Auto Adjust Playback Volume] feature.
Off: The Auto Adjustment Playback Volume function will not be applied.
Song: Playback volume of each Song will be adjusted.
Album: Playback volume of each Song will be adjusted while preserving the volume balance between Songs in
the album.
Click
20
Playing an Audio CD/DSD Disc
In addition to playing the Songs registered in the Library Songlist, AudioGate can play back the individual tracks of
an audio CD/DSD disc.
For information on how to playback a song, see “Song Playback.”
You cannot load a DSD disc using a drive that does not support DVD.
1. Insert the disc into your computer’s CD/DVD drive.
If another window (a different application) appears, close that window.
If your computer does not detect a disc, the “No audio discs found” message will be displayed. Wait for a
brief time, and if the disc e is correctly connected to your computeris still not detected, check whether the driv
and make sure that there is no problem with the disc that has been inserted.
2. If no side bar is displayed, click the Side bar Display button.
3. When Disc bar is added to the side bar, click the displayed “Audio CD” (or “DSD disc”).
A list of the Songs on the disc will appear in the Songlist.
At this time, no Songs are registered to the Library Songlist.
If the audio CD you're inserting into the drive contains embedded CD-TEXT data, or if the DSD disc contains
embedded ID3v2.3 data, the track titles will be used as the Song names.
If you want to save each track on the Audio CD/DSD disc as an audio file, export it to the desired folder on your
computer. If you're registering this into the Playlist or editing it, you must register it into the Library Songlist.
(Refer to “Song Registration” on page 7.)
Eject Disc
Select the Disc to eject by right-clicking (Windows) or control-clicking (Mac). Alternatively, you can select [Controls]
- [Eject Disc] by clicking the menu button.
21
Recording
With the AudioGate, you can connect a Nu I or DS-DAC-10R and record analog signals in 1-bit or PCM format.
The following explains recording with the Nu I or DS-DAC-10R.
When recording using a device other than the Nu I or DS-DAC-10R, there will be limitations in recording for-
mat depending on the device used.
If the Song does not record correctly, click the sample rate display area, and check the settings again to make sure
that each item is configured properly. You can also access the Audio Device settings by clicking the Menu button
and choosing [Edit]-[Preferences...].
Be sure to keep an eye on the remaining media capacity when recording many songs.
For the formats that can be used for recording, see “Supported Formats” on page 56
.
Transport Controls
These Transport Buttons can be used to control the AudioGate Record functions.
Alternatively, you can select [Controls] by clicking on the Menu button.
The To, REW, FF, and From buttons cannot be used during recording.
Controller Name Function
Play/Pause button During recording, use this button to pause the recording. Click the button again to resume
recording. Recording will continue to the same file until the stop button is clicked.
Record button Click this button to begin recording, and the button will lit. During recording, Click the Play/
Pause button to pause the recording—the Record button will remain lit.
Stop button Click the Stop button to cease recording and to unarm the Record function.
Recording bar During recording, the white portion of the bar will extend to the right. When it reaches the
right side, it will begin again from the left side.
Play/Pause
Recording bar
Stop
Record
22
Contents of the Upper Viewer Display
The top half of the display (upper Viewer Display) provides important information related to the song currently
being recorded.
Item Information
Sample Rate The recording sample rate is shown. The incoming analog single will be con-
verted to this frequency/format and then recorded.
Artist When recording is paused, you can set the Artist’s name.
Title When recording is paused, you can set the Title of the Song.
Album When recording is paused, you can set the Album name.
Format When recording, this indicates the file format, number of channels, sample rate,
and bit depth of the recording. When the Recording Phono Equalizer is selected,
the phono equalizer type will also be shown.
Time Information The elapsed recording time and the set recording time will be displayed.
The recording time can be directly edited, so that recording will stop when the
specified time elapses. The Total Recording Time can also be set in the Rec Set-
ting. (Refer to “Recording File Settings” on page 24.)
TitleArtist Album
Format
Time Information
Sample Rate of the Audio Device Search Window
23
Recording Device Settings
To access the Recording Device settings, click on the Sample Rate indicator in the upper Viewer Display. In addition,
you can also click the menu button and select [Edit] - [Preferences...] to access the Recording Device settings.
Please configure these AudioGate settings while the devices to be used for recording are connected to your com-
puter.
1. Click the [Audio Device] tab.
2. In the [Driver Type] section, select [ASIO] (Mac [CoreAudio]).
3. Select the recording input device under [Input Device Name].
4. Select the audio device to use for playback in the [Output Device Name] section.
Separate input/output devices cannot be set when using ASIO.
5. As the [Sample Rate], select the sampling rate for recording.
If this is [Auto], the sampling rate of the last-played song is used.
When making 1-bit recordings, set the input and output devices to be the same device.
Click
24
Recording File Settings
This shows you how to configure the settings for recording a file from analog signals inputted from the Nu I or
DS-DAC-10R.
1. Click the [Rec Setting] button on the Edit/Recording View.
The recording file setting screen will be displayed.
2. In the “Destination” area, click the [...] button and choose the output destination folder for the recording file.
3. Decide on a prefix (the characters to use at the beginning of the filename) to be used for the recording file-
name.
If you select "Default Prefix," the word "Recording" will be used at the beginning of the filename. If you select
"User Prefix," you will be able to set whatever characters you like in place of the word "Recording".

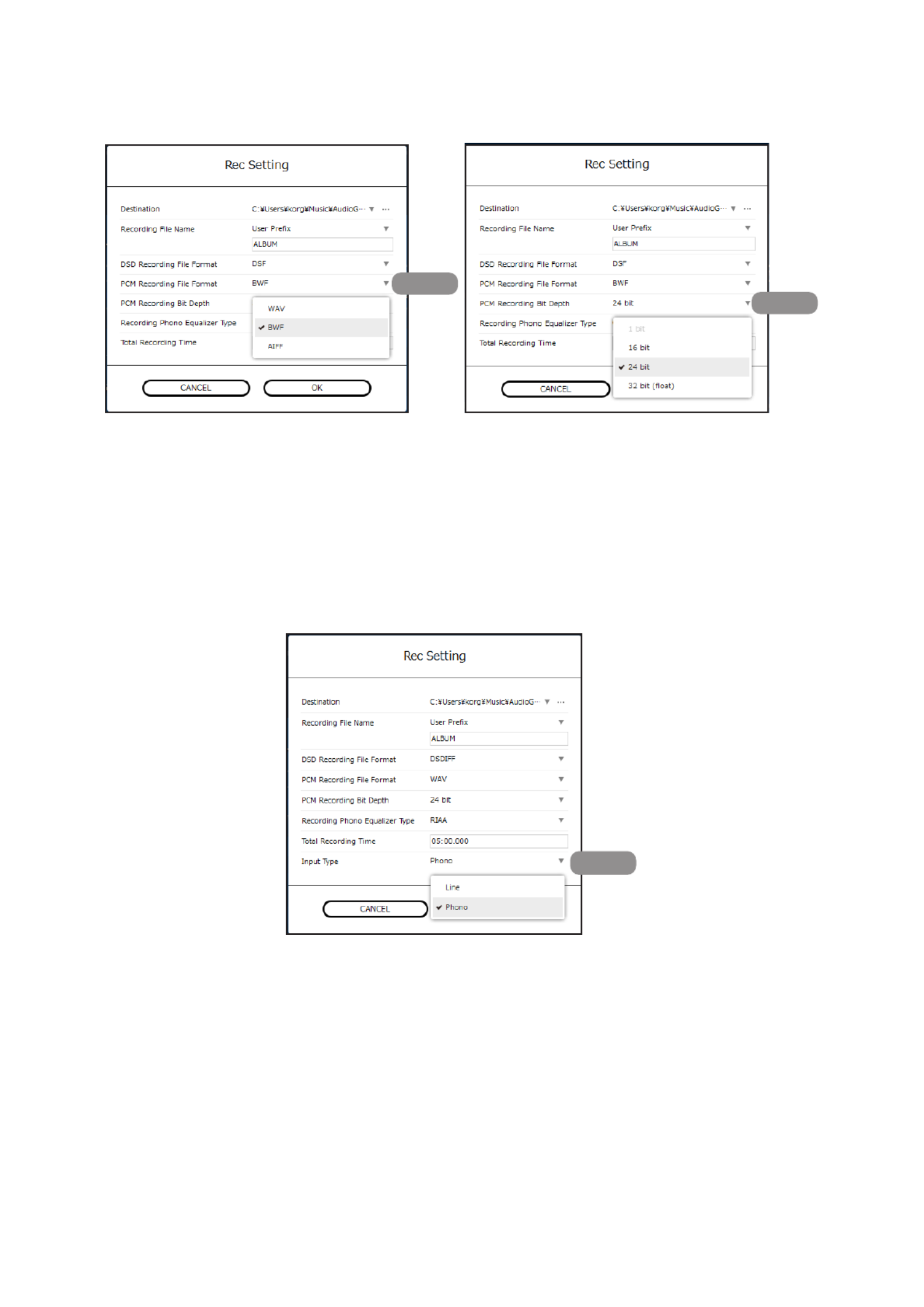

4. Select the audio file format to use when recording 2.8 MHz, 5.6 MHz or 11.2 MHz (1-bit).
The selected recording file will be created as a stereo file.
Click
Select the recording-
destination folder
Click
Select
25
5. Select the file format and bit depth to use when recording from 44.1 kHz to 384 kHz.
The selected recording file will be created as a stereo file.
6. Set the Input Type.
This function is only for the DS-DAC-10R.
Line
Select this input if you wish to record the analog signal from the LINE OUT of an audio device.
Phono
Select this input if you will connecting an analog signal from the PHONO output (MM cartridge-compatible) of
an analog record player to the DS-DAC-10R.
Select
Select
Select
26
7. If the input is set to "Phono", you can choose a Recording Phono Equalizer Type.
Select the curve to use when recording with a phono equalizer. RIAA is normally recommended. When selecting
a phono equalizer during playback, set this to "Off".
When recording with a phono equalizer, the equalizer curve cannot be changed afterwards. Turn this setting
to "Off" if you are recording a record but aren't sure of the equalizer curve.
*1. The record lathes used in the process of producing vinyl records cut a wider groove as the frequency of the
sound becomes lower; this makes it difficult for the needle to accurately trace the groove during playback,
and also decreases the recording time. For this reason, the record being cut is equalized to attenuate the low-
frequency range and boost the high-frequency range, and the opposite curve is applied during playback. This
compensation is applied by the “phono equalizer.”
*2. RIAA is the standard recording/playback equalization curve for vinyl records defined by the Recording Indus-
try Association of America. It became a standard in 1954, but prior to that date there was no standardization
between the various record labels. Since the curve is not indicated on the records themselves, it’s not possible
to know which curve was used to record a given record; however it is said that nearly all records can be cov-
ered by the RIAA curve and five other curves. Try selecting different curves in AudioGate and enjoy the
resulting changes in tonality.
8. Set the Total Recording Time.
The maximum time that can be set is 6 hours.
9. Click the [OK] button.
That’s it! You’re done with Recording File settings.
Select
27
Recording Procedure
1. Click the Input Monitor Settings button on AudioGate.
The colors on the Input Monitor Settings button will invert.
2. Input the analog signal, and adjust the input level. Set the Nu I input level in the Nu I Control Panel. For the
DS-DAC-10R, set the value with the AudioGate input level slider.
It's crucial to adjust the input level in order to record a clean sound that contains as little noise and distortion as
possible. Before recording, adjust the recording source level so that it is as high as it can be, just before the clip
indicator lights up.
When the line output of a device is connected to the DS-DAC-10R and "Phono" is selected, the sound will dis-
tort, even if the clip indicator does not light up. Be sure to monitor the sound and make the proper settings.
3. After adjusting the levels, click the AudioGate Record button to begin recording.
The Input Monitor Settings button will turn off, and the Record button will change to remain lit.
The artist and album columns in the upper Viewer Display will be blank, and the Song name in the title will
automatically be generated based on the recording date and time (for example, “Recording_20151121092032”).
The waveform will not display when recording. The elapsed time is indicated by the bar that extends to the right.
4. Click the Add button at any time during recording to add a Mark at that location in the Song.
These “Marks” can be used during playback to rapidly find and locate a specific location in the Song.
5. To finish recording, click the Stop button.
The Record button light will turn off.
When the recording stops on the recorded song, it becomes the Current Song, and is automatically registered in the
Library Songlist and in the current Playlist (Recording). Recorded Songs that have already been registered can be
played and edited, as with other songs.
6. Check the results of your recording.
Click the Play button to listen to the recording, and to make sure that everything recorded successfully.
After recording, it will take a little time to display the waveform (depending on the song length), but the Song
can be played back or edited immediately. (Refer to “Editing a Song” on page 28.)
Input level slider
Click
Click
Click
Recording bar
Title
28
Editing a Song
AudioGate allows individual Songs in the Songlist to be divided into sections, or combined into one.
This allows you to export selected regions from an audio file, or combine multiple consecutively-recorded files into
a single file before you export it. You can also edit the gain, fade, and DC cut settings of each song, and edit text data
such as the Title, Album, and Artist Name.
In addition—although you can edit some part of it in Player View—you can make much more detailed changes to
the Song in Edit View.
Edits applied to a Song will be commonly reflected in both the Library and the Playlist. However, changes made
to regarding dividing, combining, and the channel link function executed in the Library Songlist will not be
reflected in the Playlist.
Editing the Current Song
Editing the Text Data
The Artist, Title, and Album fields that appear above the waveform display in the Edit View Upper Viewer Display
can be edited individually, or in groups using the Batch Edit feature.
•Artist, Title, Album
Click on the text field to make the information editable. Type in the new information using the computer key-
board. When finished, press the Enter key to finalize your changes.
•All text data
You can use the Batch Edit feature to modify the text information for a group of Songs at once. (Refer to “Batch
Editing—Song Information” on page 30 and refer to “Batch Editing—Multiple Songs” on page 32.)
The title is used as the name of the output file when exporting.
If the Song has no information about the title, the file name will be displayed in the Title field.
It is possible to enter Japanese (multi-bite text) as the title. However, you should use English alphanumeric char-
acters if you intend to export the Song as an MR project.
Editing the Picture Data
You can attach a picture to your Song. The attached picture is displayed in Player View. If you want to change the
attached image, click the displayed image and then select the desired image file.
Simply attaching an image file does not embed the image in the audio file, instead the link is registered in the
AudioGate. This means that if you move the image file, it will no longer be displayed in AudioGate. In order to
embed the picture, you must export the Song or create a disc.
If you want to delete the attached image, move the mouse pointer onto the image and click the X button.
Deleting the attached picture in AudioGate does not delete the original image file.
AudioGate can load images in the following formats:
• Image files in JPEG or PNG format
• Image files embedded in an AIFF, DSF, MP3, WMA, AAC, Apple lossless, or FLAC format audio files
AudioGate can embed the picture attached to a Song when exporting the following formats:
• AIFF, DSF, MP3, WMA, or FLAC format audio files
• DSD discs
30
Batch Editing—Song Information
The Song editable metadata information includes the text data, the image data (attached picture), and the control
data (see page 29). This information can be easily edited in the “Batch Edit Song Information...” view.
When a file is exported, this information is embedded in the header of the exported file.
Embedding to AAC and the Apple lossless file is not supported.
It is possible to enter Japanese (multi-byte text) as text information, but you should use English alphanumeric
characters if you intend to export in a format other than AIFF, DSF, MP3, WMA, FLAC file or DSD Disc. Due to
limitations in the file format, characters other than English alpha-numeric will be ignored when exporting.
You can change the text information and attached image for the selected song together here.
1. Move the mouse pointer onto the targeted Song in the Songlist, and click the Context Menu icon displayed to
the right of the Title to select the [Batch Edit Song Information...].
Alternatively, you can select [Edit] - [Batch Edit Song Information...] by clicking the Menu button.
You can also select and register the [Batch Edit Song Information...] by right-clicking (Windows) or control-
clicking (Mac).
2. Click the text of the desired items in the “Batch Edit Song Information...” view to enter the text.
32
Batch Editing—Multiple Songs
You can use batch editing to edit the metadata of multiple Songs at once.
1. Click the Song on the Songlist to select it.
2. To select multiple songs, hold down the Ctrl key (Mac: Command key) and choose other songs.
3. Move the mouse pointer onto the selected song, and click the Context Menu icon displayed to the right of the
Title to select the [Batch Edit Song Information...] function.
Alternatively, you can select [Edit] - [Batch Edit Song Information...] by clicking the Menu button.
You can also access the [Batch Edit Song Information...] by right-clicking (Windows) or control-clicking (Mac)
in the Songlist.
4. Click the button to the left of each item you want to edit, so that the desired buttons are selected.
5. Edit the data for the items you selected.
See procedure 3: “Batch Editing—Song Information” on page 30.
6. Click the OK button.
The metadata editing window will close, and the edits will be reflected in the Songlist.
33
Dividing a Song
You can divide the Current Song into two separate Songs at any point.
When you divide a song, the original Song will be left as it was, and the two new Songs created by the Divide oper-
ation will be registered into the Songlist with new names.
1. Use the song playback functions to move to the point where you want to divide the Song.
2. Make sure that playback is paused, and click the Divide button.
Alternatively, you can perform the same thing by clicking the Menu button and selecting the [Edit] - [Divide].
You will see that the Song has been divided in the Songlist.
Text data and control information will generally be carried over into both Songs following the Divide operation.
Click
Move to the
dividing point
Last half
First half
34
Combining Songs
Combining Songs splices the end of one Song directly to the beginning of another Song. When you combine songs,
the original Songs will be left as they were, and the new Song created by the Combine operation will be registered
into the Songlist with a new name.
Here's how you can combine two or more Songs into a single Song.
1. In the Songlist, click a Song to select it.
2. Hold down the Ctrl key (Mac: Command key), and click on additional Songs to select them.
3. Move the mouse pointer onto the selected song, and click the Context Menu icon displayed to the right of the
Title to select the Combine button.
Alternatively, you can select [Edit] - [Combine] by clicking the Menu button.
You can also select and register the [Edit] - [Combine] by right-clicking (Windows) or control-clicking (Mac).
You will see that the Songs have been combined in the Songlist.
You can use the Combine function to join recordings together that were not originally separated by the MR
Recorder’s automatic split function, however a faint noise may be introduced at the point where the Songs are
joined.
You can't combine Songs of differing formats.
You can't combine Songs that are in compression formats such as MP3, AAC, Apple lossless (ALAC), or WMA.
Text data and control information will generally be taken from the top Song in the list.
Click
Hold down the
Ctrl key and click
Produkt Specifikationer
| Mærke: | Korg |
| Kategori: | Hi-Fi system |
| Model: | AudioGate 4 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Korg AudioGate 4 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Hi-Fi system Korg Manualer
13 Juni 2025
6 Juni 2025
6 Februar 2025
15 November 2024
7 August 2024
31 Juli 2024
24 Juli 2024
23 Juli 2024
23 Juli 2024
21 Juli 2024
Hi-Fi system Manualer
- Topcom
- JBL
- Andover
- Boss
- Polaroid
- Logitech
- Nokia
- Glide Gear
- ION
- Marquant
- IFi
- Razer
- TV One
- Gemini
- Quantis
Nyeste Hi-Fi system Manualer
5 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
