Kramer Electronics, LTD confidential.

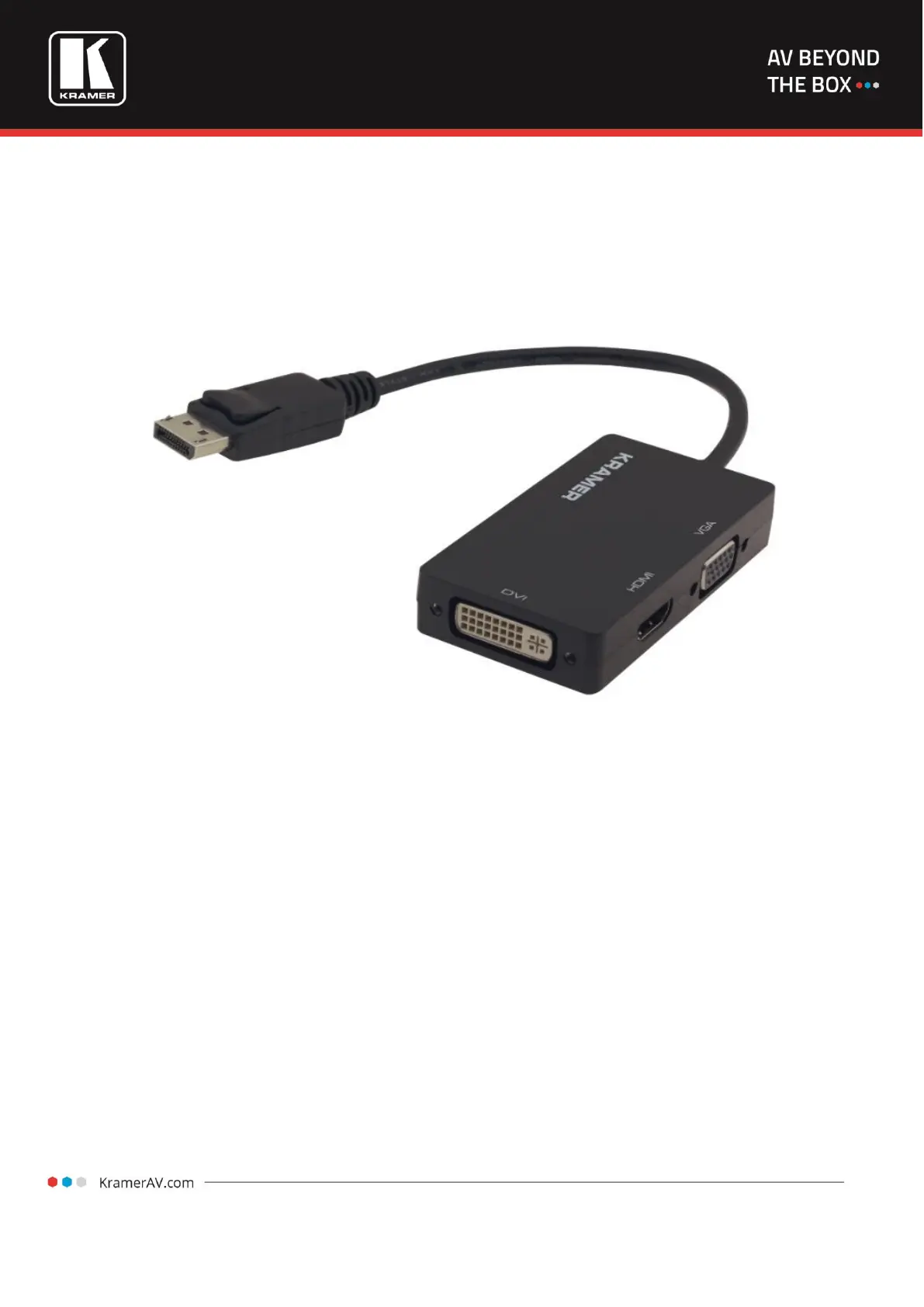

The ADC-DPM/M2 adapter can seamlessly connect any source, via the DisplayPort,
to a high definition display via one of its HDMI, DVI or VGA outputs.
The ADC-DPM/M2:
Supports DisplayPort 1.1a dual-mode input
Supports VGA output with a maximum resolution of 1600x1200
Supports an HDMI/DVI output with a resolution of up to 1920x1080p@60Hz,
225MHz/2.25Gbps per channel (6.75Gbps total), 12-bits per channel (36-bit
total) deep color
Automatically detects the connected display
Is powered by the DisplayPort source
ADC-DPM/M2
Kramer Electronics, LTD confidential.
Technical Specifications
INPUT:
1 DisplayPort 1.1a on a 20-pin connector
OUTPUTS:
1 DVI connector
1 HDMI connector
1 VGA connector
BANDWIDTH:
Supports 2.25Gbps/225MHz per channel, and up
to 6.75Gbps bandwidth
VERTICAL FREQUENCY RANGE:
50/60Hz
OUTPUT RESOLUTIONS:
VGA: up to 1600x1200
HDMI/DVI: 480i, 480p,576p,720p,1080i, 1080p
POWER CONSUMPTION:
700mW; no external power needed
OPERATING TEMPERATURE:
0° to + 70°C (32° to 158°F)
STORAGE TEMPERATURE:
-10° to + 80°C (14° to 176°F)
HUMIDITY:
10% to 85%, RHL non-condensing
DIMENSIONS:
7.8cm x 4.5cm x 1.5cm (3.1" x 1.8" x 0.6") W, D, H
WEIGHT:
0.05kg (0.11lbs) approx.
Outline Dimensions
