Installation Instructions

MODELS:

CLS-AOCH/xl (Low Smoke Version)

CP-AOCH/xl (Plenum Version)

Fiber Optic High Speed Pluggable HDMI Cable

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where

updates to this user manual may be found.

We welcome your questions, comments, and feedback.

www.kramerAV.com

info@kramerel.com

P/N:

2900-300532

Rev:

CLS-AOCH/xl / CP-AOCH/xl Fiber Optic High Speed Pluggable HDMI Cable

Congratulations on purchasing your Kramer CLS-AOCH/xl / CP-AOCH/xl Plug and Play active Fiber

Optic High Speed Pluggable HDMI Cable which is suited for critical and versatile installations.

The CLS-AOCH/xl / CP-AOCH/xl provides an extremely

high quality signal over a wide range of resolutions, up to

4K@60Hz (4:2:0) / 4K@ 30Hz (4:4:4). This cable is

available in different lengths from 33ft (10m) to 328ft (100m).

The CLS-AOCH/xl / CP-AOCH/xl has a slim design to let

you pull the cables easily (together with the supplied pulling

tool) through small-sized conduits.

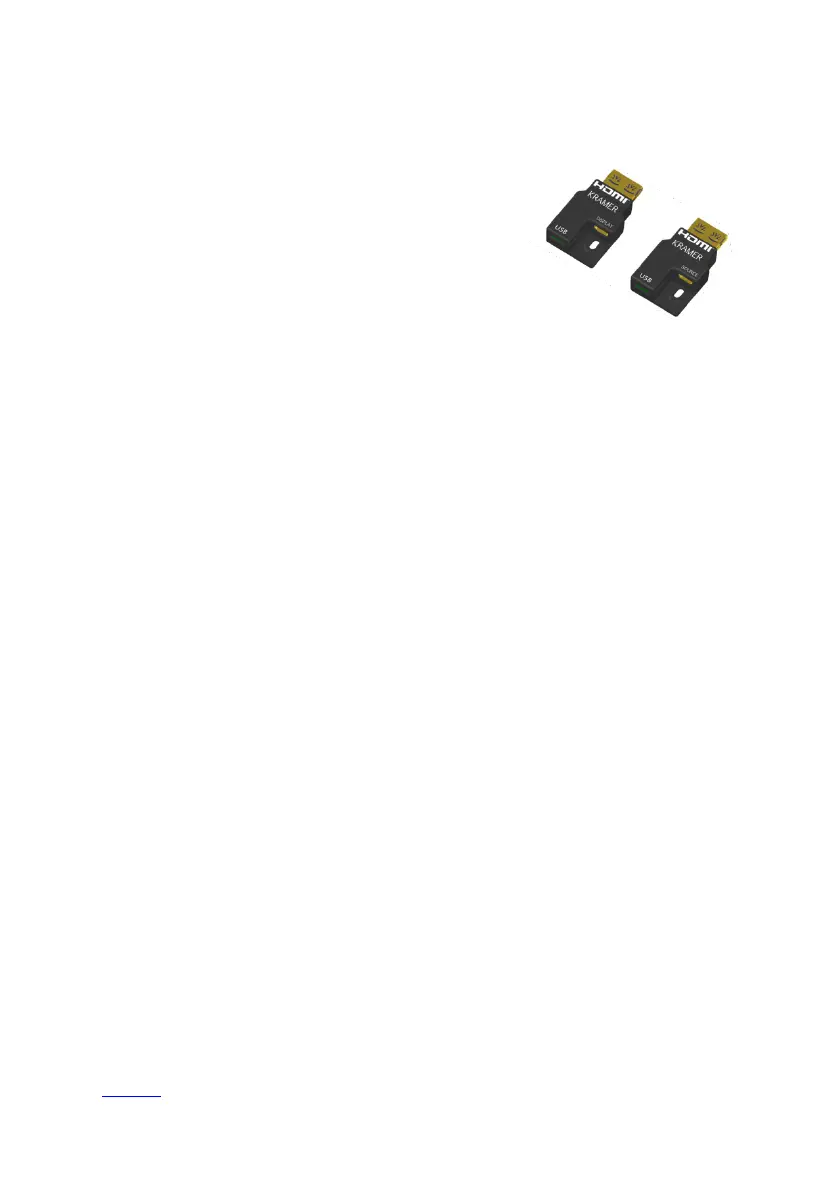

Figure 1: HDMI Connector plugs

(Source and Display)

The CLS-AOCH/xl / CP-AOCH/xl is ideal for long distance transmission in professional AV systems,

indoor and outdoor digital signage and kiosks, home theater systems, surgical theaters, facility

automation systems and whenever high resolution video and audio are required.

Features

The CLS-AOCH/xl / CP-AOCH/xl:

• Supports a wide range of resolutions up to 4K@60Hz (color space 4:2:0) and 4K@30Hz (color

space 4:4:4) Full HD, 3D, Deep Color

• Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio

• Is HDMI compliant: EDID, CEC, HDCP

• Features K-Lock Pull-Resistant Connectors that provide 15lbs of restraining force for a non-slip

connection

• Reduced EMI and RFI

• Has built-in powering with low power consumption

• Includes a micro USB port to connect to an external 5V power supply (mostly on the display

side)

• Has high pulling strength and compression load

• Has Source / Display clearly printed on the connector as well as tagged on the cable for easy

identification

Cable Dimensions

The CLS-AOCH/xl / CP-AOCH/xl includes four optical fibers and six AWG 28 wires with compact size

HDMI connectors. On the source side, the micro HDMI connector enables smooth pulling of the cable.

The SOURCE end connects to the source (for example, a DVD, Blu-ray or game console box) and the

DISPLAY end to the acceptor (for example, a projector, an LCD display or a tablet device),

see Figure 2

(note that SOURCE appears here as an example).

Produkt Specifikationer

Mærke:	Kramer
Kategori:	Kabler til computere og periferiudstyr
Model:	CLS-AOCH/XL-262
Antal pr. pakke:	1 stk
Brugervejledning:	Ja
Produktfarve:	Blå
Understøttede videotilstande:	1080p
3D:	Ja
Opbevaringstemperatur (T-T):	0 - 50 °C
Relativ luftfugtighed ved drift (H-H):	5 - 85 %
HDCP:	Ja
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	4096 x 2160 pixel
Understøttede grafikopløsninger:	1920 x 1080 (HD 1080)
Certificering:	IEC 60332-1, IEC 60754-1, IEC 61034-2
Kabellængde:	80 m
Bæredygtighedscertifikater:	RoHS
Farvedybde:	8 Bit
Plug and play:	Ja
Maksimal opdateringshastighed:	60 Hz
Stik 1:	HDMI Type D (Micro)
Stik 2:	HDMI Type D (Micro)
Stik 1 køn:	Hanstik
Stik 2 køn:	Hanstik
Stikforbindelse kontakter plettering:	Guld
Dataoverførselshastighed:	10.2 Gbit/sek.
Stik 1 formfaktor:	Lige
Stik 2 formfaktor:	Lige
Kabeldiameter:	3.4 mm
Grænseflade-adaptere inkluderet:	HDMI hunstik - micro HDMI hanstik
AWG-ledningsstørrelse:	28
Kabelmateriale:	Fiberoptisk
Dolby-teknologier:	DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD
Kabel kappemateriale:	Lav røg ingen halogen (LSZH)
Trækresistent stik:	Ja
Trækresistent teknologi:	K-Lock
Aftrækningskraft:	6.8 kg
