VS- Card 34 Family Quick Start

P/N:

2 9 0 0 - 3 0 1 2 0 9 QS

Rev:

Scan for full manual

VS-34 Family Card Installation Sheet

Quick Start Guide

This guide helps you install and use your VS-34 Family Card for the rst time.

Go to www.kramerav.com/downloads/VS-34FD to download the latest user manual.

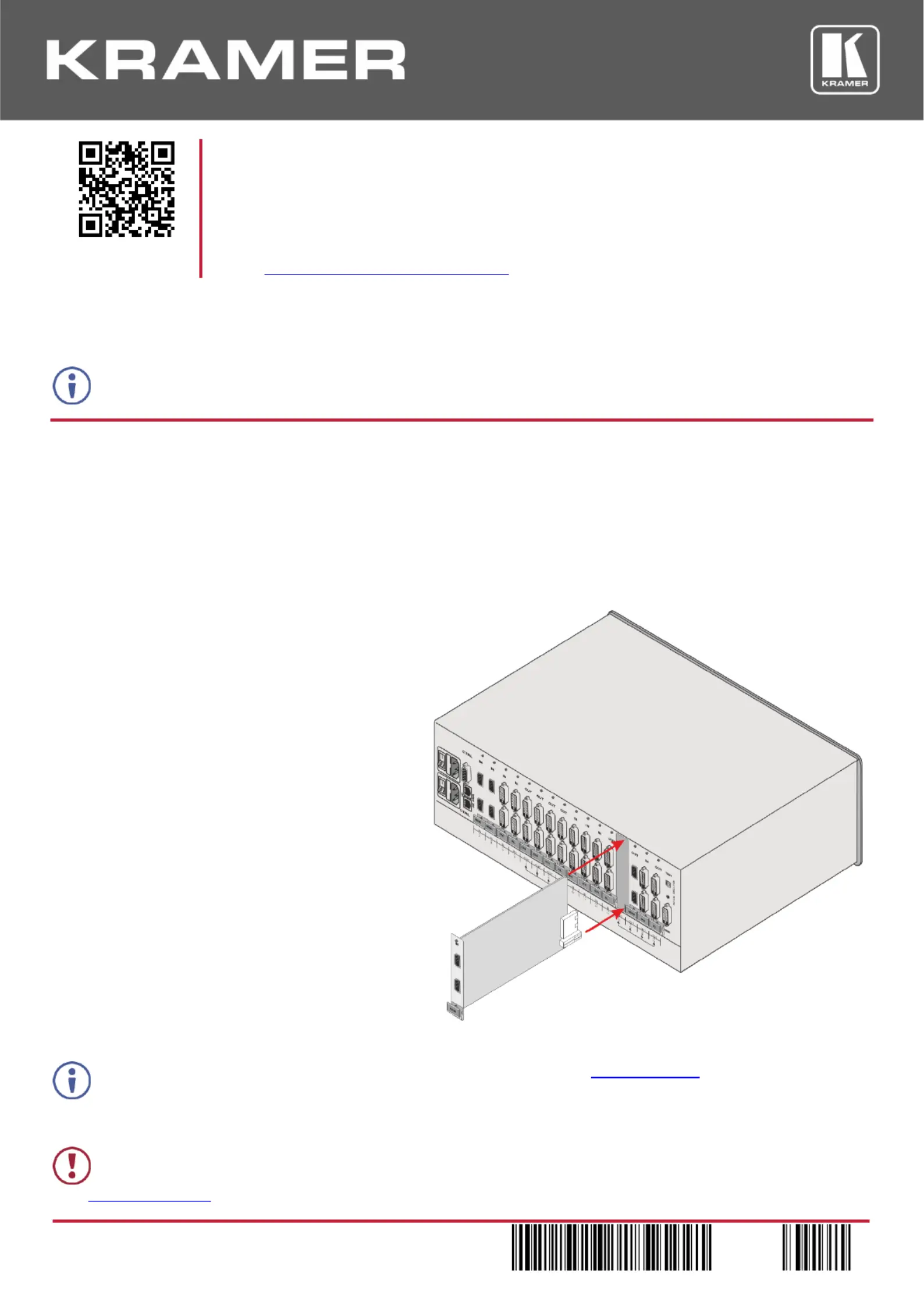

The attached card mounts in one of the slots on the rear of the chassis. Slots are numbered from left to right.

(The process for inserting cards is the same for all cards and the figures are for illustration purposes only.)

Input and output cards m be mounted in any slotay .

To install an I/O card:

1. Power o the machine and all devices connected to it.

2. Using a Phillips screwdriver, loosen the screws at the top and bottom of the blanking plate.

3. Remove the blanking plate from the slot and store it for possible future use.

4. Remove the new card from its shipping box and anti-ESD bag.

5. Holding the card by the lower handle, align the card with the plastic guide rails.

6. Slide the card into the chassis until the front of the card contacts the connector inside the chassis.

7. Press the card rmly into the slot until the

connector plate is ush with the rear panel of

the chassis and the connector is fully seated.

8. Using a Phillips screwdriver, tighten the

retaining screws at the top and bottom of the

card to secure it to the chassis.

9. Power on the machine and follow the

procedure in the user manual to congure

the new card.

10. Power on the peripheral devices.

VS- HDMI Card 34

For optimum range and performance use the recommended Kramer cables available at www.kramerav.com.

Using third-party cables may cause damage!

Safety Instructions

Caution: There are no operator serviceable parts inside the unit.

Warning: Use only the power cord that is supplied with the unit.

Warning: Do not open the unit. High voltages can cause electrical shock! Servicing by qualied personnel only.

Warning: Disconnect the power and unplug the unit from the wall before installing.

See for updated safety information www.kramerav.com

Produkt Specifikationer

Mærke:	Kramer
Kategori:	Ikke kategoriseret
Model:	DTAXRC2-OUT2-F34
Bredde:	250 mm
Dybde:	130 mm
Højde:	20 mm
Vægt:	300 g
Produktfarve:	Sort
Pakkevægt:	500 g
Pakkedybde:	165 mm
Pakkebredde:	293 mm
Pakkehøjde:	59 mm
Opbevaringstemperatur (T-T):	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Strømforbrug (typisk):	21.5 W
Driftstemperatur (T-T):	0 - 40 °C
Certificering:	CE, RoHs, WEEE
RS-232-porte:	2
Antal RJ-45-porte:	1
