TECHNICAL DATA

Hardware

Power supply 2 power supply modules (100–240 V, 50–60 Hz)

Power consumption Max. 300 W each active power supply module

Environment Temperature range 0–40 °C; humidity 10–85 %, non-condensing

Housing Robust metal housing 1 HU, with mounting brackets for 19“ mounting;

Network connections on the front side

Fans 4

Dimensions (mm) 440 x 44 x 364 (W x H x D)

Interfaces

ETH 8x 10 / 100 / 1000 Mbps Gigabit Ethernet ports

SFP+ 2x SFP+ ports

USB 3x USB 2.0 ports

Console 1x RJ45 configuration interface

Declaration of Conformity

Hereby, LANCOM Systems GmbH | Adenauerstrasse 20/B2 | D-52146 Wuerselen, declares that this device is in

compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, and Regulation (EC) No. 1907/2006. The full text of

the EU Declaration of Conformity is available at the following Internet address: www.lancom-systems.com/doc

Package contents

Documentation Quick Reference Guide (DE/EN), Quick Install Guide (DE/EN), Service & Support Guide (DE/EN)

Accessories 2x IEC power cable 230 V; 2x 19“ mounting brackets

MOUNTING AND CONNECTING THE DEVICE

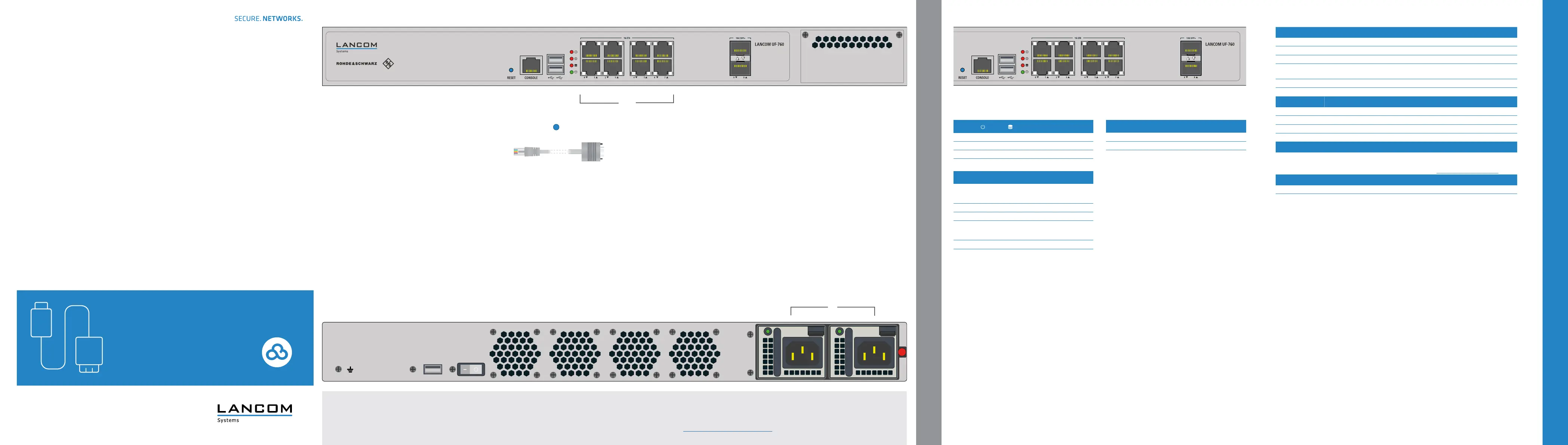

LANCOM R&S®UF-760

Quick Reference Guide

Cloud-ready

LANCOM, LANCOM Systems, LCOS, LANcommunity and Hyper Integration are registered trademarks. All other names or descriptions used may be trademarks or registered trademarks of their owners. This document

contains statements relating to future products and their attributes. LANCOM Systems reserves the right to change these without notice. No liability for technical errors and / or omissions. 112125/12/21

Please observe the following when setting up the device

A The mains plug of the device must be freely accessible.

A Do not rest any objects on top of the device and do not stack multiple devices.

A Keep the device’s ventilation slots clear of obstruction.

A Mount the device into a 19” unit in a server rack using the separately available rack mount.

Before initial startup, please make sure to take notice of the information regarding the intended use under www.lancom-systems.com/safety!

Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times.

a LEDs Power / HDD

HDD off No HDD read / write access

HDD red HDD read / write access

POWER off Device switched off

POWER green Device ready and accessible

c LEDs 10G SFP+

Off no link detected

Green, permanently Link detected, no port activity

Green, blinking Link detected, port activity

c LEDs 1G ETH

LEDs left - Link activity

Off no link detected

Green, permanently Link detected, no port activity

Green, blinking Link detected, port activity

LEDs right - Link speed

Off Link speed 10 Mbps

Green, permanently LinkSpeed 1000 Mbps

Orange, permanently Link speed 100 Mbps

Slot for extension modules

Slot for RJ45, SFP or (Q)SFP+ extension modules

Ground connection (rear side)

Grounding screw for connecting a grounding cable

USB 2.0 interface (rear side)

Interfaces for reinstallation of the device software.

Not necessary for initial commissioning.

Power switch (rear side)

Start up the device via the power switch after you have

established the power supply.

Power supply modules (rear side)

Supply power to the device via both power connectors. Please

use the supplied IEC power cables.

Button for deactivating the acoustic alarm in case of

power supply problems (rear side)

RESET button

Press the reset button to restart the device.

RESET

Serial configuration interface RJ45 (CONSOLE)

Maintenance interface for expert configuration.

Not necessary for initial commissioning.

USB 2.0 interfaces

Interfaces for reinstallation of the device software.

Not necessary for initial commissioning.

TP Ethernet interfaces ETH0 - ETH7

Connect the ETH0 - ETH7 TP Ethernet interfaces to additional

network components using suitable Ethernet cables.

SFP+ interfaces 8 - 9

Connect the SFP+ interfaces 8 and 9 to other network components

using suitable SFP(+) modules.

ba c e

h i k
