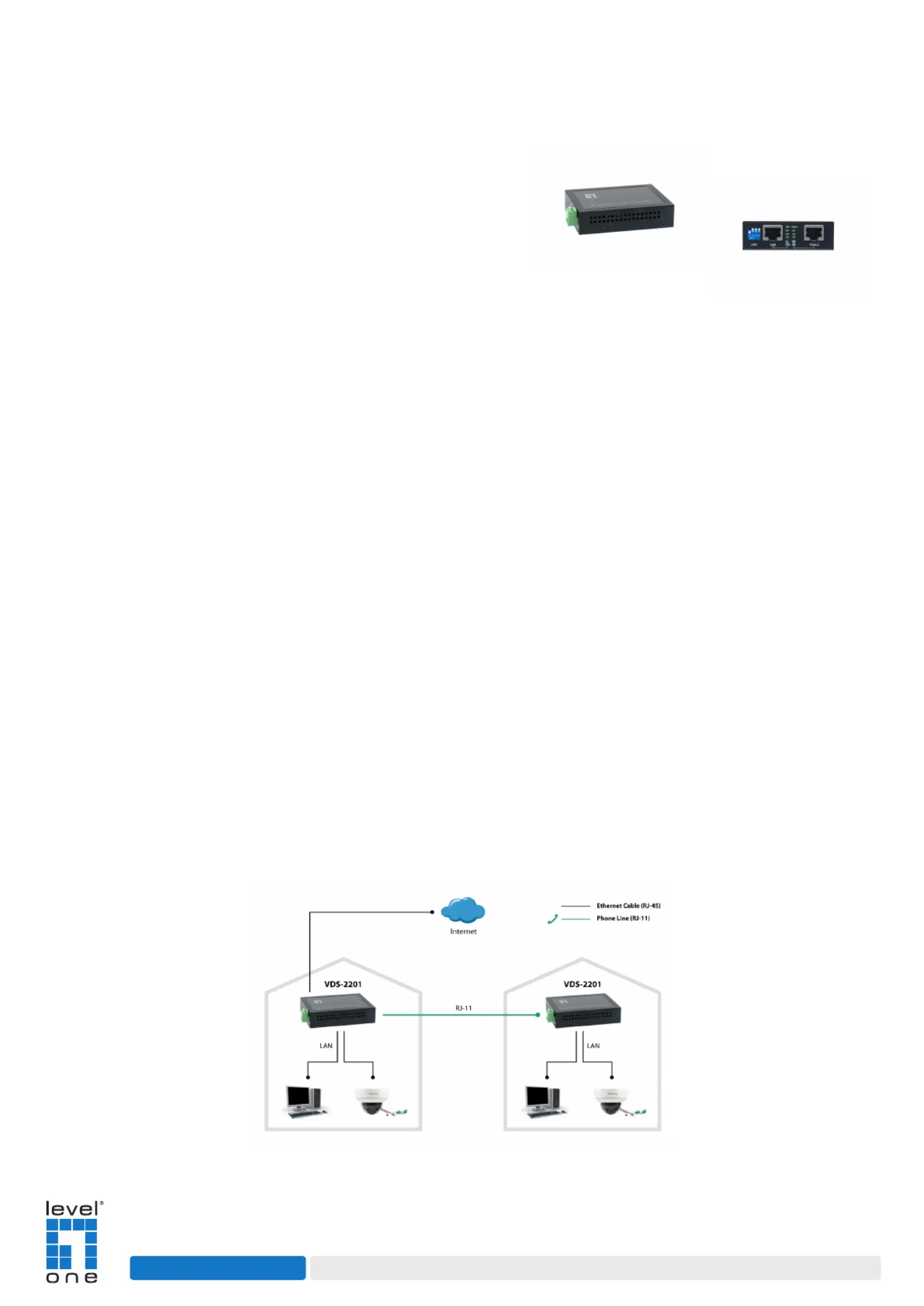

Industrial Ultra-Speed VDSL2 Extender

Introduction

LevelOne is an Industrial Ultra-Speed VDSL2 Extender that supports VDS-2201 VDSL2 profile 35b/30a/17a with a

remarkable aggregated bandwidth of over 300Mbps. It delivers fiber optic-like speeds on existing copper

infrastructure, enabling a good alternative in the place where fiber is not economical to deploy. The

VDS-2201 is equipped with a Gigabit Ethernet port (RJ45 connector) and one VDSL2 port (RJ45 connector) in

the metal enclosure for easy installation in hardened environment. The symmetric configuration can be a

applied as a long-reach Ethernet connection up to 3,000 s, while an Asymmetric configuration can be used feet

for other services like video streaming or IP surveillance services which require high traffic flow in a uni-

direction configuration.

Features

◼ Ultra-Speed Ethernet extension over UTP, CAT 5e/6/7, or Coaxial cables

◼ Easy DIP switch configuration to best perform in various cable infrastructure

◼ Cost effective bridge function to connect two Ethernet networks or devices

◼ IEEE 802.1Q VLAN tag transparent

◼ Support a wide operating temperature range

◼ Plug-and-play installation in harsh environments

Application

w w w . l e v e l 1 . c o m

VDS-2201

Specifications

VDSL2 Interface

◼ RJ45 connector

◼ DMT Encoding

◼ On-board surge protection

LAN Interface

◼ 1 x RJ45 connector

◼ 10/100/1000 Base-T; Auto-Negotiation, Auto- -MDI/MDI X.

◼ Complying with IEEE 802.3/802.3u/802.3z

4-position DIP Switch

◼ Selectable Master(CO) or Remote(RT) mode

◼ Selectable Symmetric or Asymmetric mode

◼ Selectable G.INP or Interleave mode

◼ Selectable SNR High and SNR Low

LED

◼ Syste powerm

◼ CO/R modeT

◼ VDSL2 link status

◼ Etherne status t link

Power Supply

◼ 12~24 VDC over terminal block

◼ Power Consumption: 4.5 Watts (Max)

Power Wiring

◼ 2-PIN Terminal Block

◼ Wire range: 0.2 mm² to 2.5 mm²

◼ Solid wire (AWG):12-28

◼ Stranded wire (AWG): 12-30

◼ Torque:5 lb-In / 0.5 Nm / 0.56 Nm

◼ Wire strip length: 7-8 mm

◼ Max wire length: 3m (9.84 ft)

Environment

◼ Operating Temperature: -2 ~60 5°C

◼ Storage Temperature: -4 ~ +70°C 0

◼ Humidity: 0~95%HR (non-condensing)

Physical Characteristics

◼ ◼ Dimension (W x H x D): 94.5 x 23.0 x 72.5 mm

Weight 220g ：

◼ Installation (Optional): Wall Mounting or DIN-rail

Front Panel

Performance

UTP, 26AWG

Symmetric, SNR Low, G.INP

Distance

(Feet)

Upstream Line Rate

(Mbps)

Downstream Line Rate

(Mbps)

500

146

162

1,000

116

112

2,000

3,000

UTP, 26AWG

Asymmetric, SNR Low, Interleave

Distance

(Feet)

Upstream Line Rate

(Mbps)

Downstream Line Rate

(Mbps)

500

284

1,000

171

2,000

3,000

NOTE: The above performance data is for reference only, the

actual data rate may vary depending the quality the cables on of

and environmental factors.

Regulatory

Compliance

◼ CE & UKCA Class A

◼ FCC Part 15 Class A

◼ EN62368

NOTE: Features and specifications are subject change without prior notice. to

w w w . l e v e l 1 . c o m
