SPECIFICATIONS
All features and specifications are subjectto change without notice.
* Trademarks of DolbyLaboratories.
DTS is a registered trademark of Digital Theater Systems, Inc.
Leviton Tech Support #2 1-800-824-3005
w w w. l e v i t o n . c o m
OWNER’S GUIDE
AEH50-BL
AEH50-WH

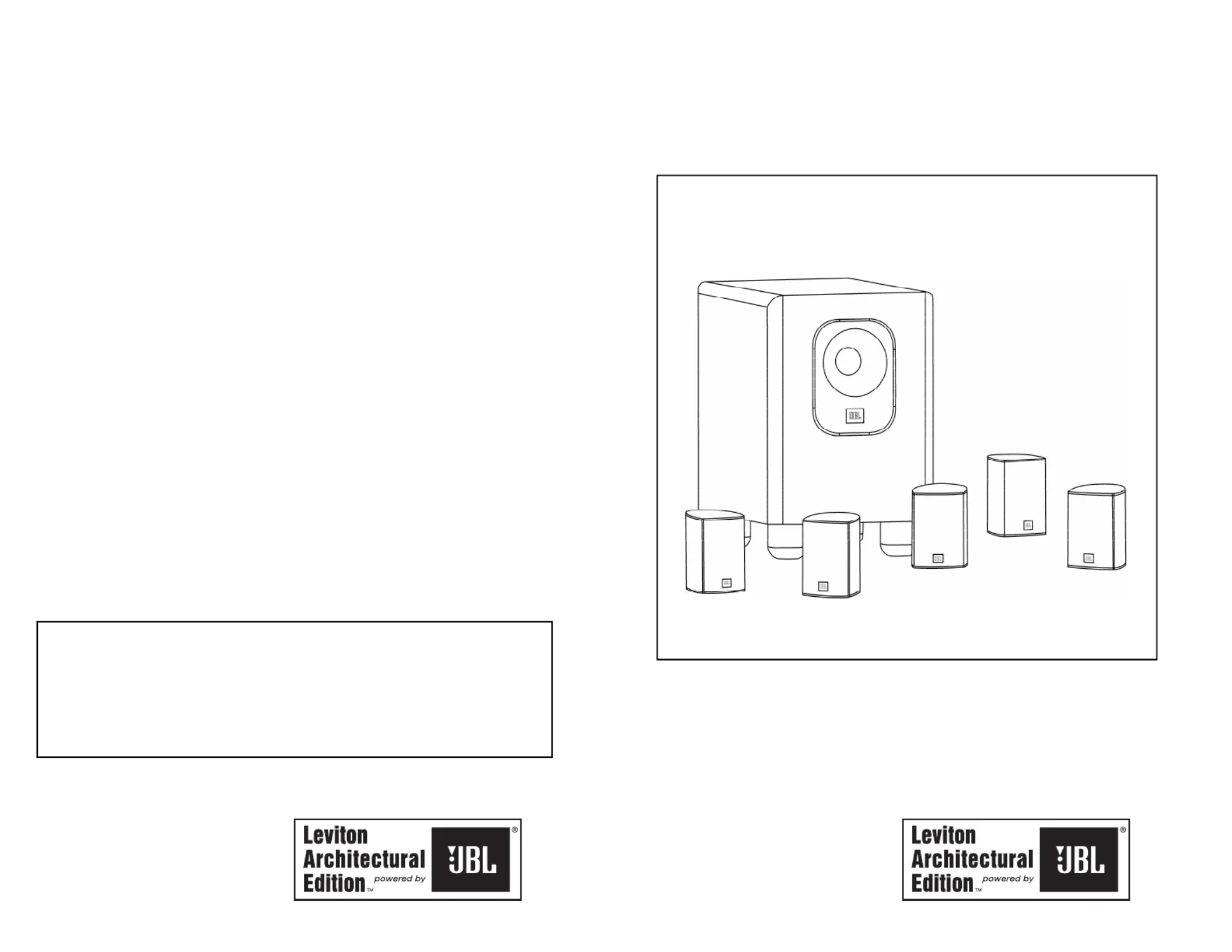

AEH50 Complete Five-Piece Surround-Sound Home Cinema Speaker System
with 100 Watt Powered Subwoofer
JBL is a registered trademark of JBL, Incorporated.
Speaker complement
Features
Specifications
Enclosure type: Bass-reflex
Recommended Amplifier Power Range: 10- 100 Watts
Amplifier 100
Woofer: 8“ (200)
Weight: 28 lbs (12.7kg)
Watts RMS
Frequency Response (+/- 3dB): 35 Hz-150 Hz
Crossover Frequency (+/- 3dB): 5000Hz, 6dB/octave
Frequenc y Response (+/- 3dB): 150 Hz- 20 kHz
Speaker Sensitivity (2.83V/1m): 86 dB
Impedance : Nominal 8 Ohms
000-AEH50-BL – Leviton IS Part number: DI-000-AEH50-02A Vendor part number: 406-000-05421-E
003-AEH50-WH- Leviton IS Part number: DI-000-AEH50-02A Vendor part number: 406-000-05421-E
000-AESS5-BL Leviton IS Part number: DI-000-AESS5-02A Vendor part number: 406-000-05430-E
003-AESS5-WH Leviton IS Part number: DI-000-AESS5-02A Vendor part number: 406-000-05430-E
• Five 2-way magnetically-shielded satellite speakers with high-output
2.5 in (63.5 mm) woofer and precision .5 in (12.7 mm) tweeter
• One 8 in (200 mm) 100 Watt powered subwoofer with LFE input, adjustable
level control, and built-in crossover network for use with speaker-level outputs.
• Five-channel system is expandable to 6.1 and 7.1 surround-sound operation
with optional additional AESS5 satellite speaker(s)
• Includes architectural-grade adjustable mounting brackets
• Includes subwoofer input RCA cable
Satellites
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by
Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Levitonʼs
only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned
prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance
Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for
labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment,
overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance
with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a
particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty,
including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect,
special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or
profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this
warranty, whether based on contract, tort or otherwise.
Midrange Driver(s): 2-1/2” magnetcally shielded
High-Frequency Transducer: 1/2” magnetcally shielded
Dimension (H x W x D):
Dimension (H x W x D, icluding feet):
5“ x 3-1/2“ x 3-1/2“ (127mm x 88mm x 88mm)
16-1/4“ x 11“ x 13-3/4“ (413mm x 279mm x 349mm)
Weight per Speaker: 1.25 lbs. (
Subwoofer
32
READ FIRST!
Important Safety Precautions!
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near
water.
6. Clean only with a dry cloth.
7. Do not block any ventilation
openings. Install in accordance with
the manufacturer’s instructions.
8. Do not install near any heat
sources such as radiators, heat
registers, stoves or other apparatus
(including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has two blades with
one wider than the other. A ground-
ing-type plug has two blades and a
third grounding prong. The wide
blade or the third prong are
provided for your safety. If the
provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles and
the point where they exit from the
apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand,
tripod, bracket or table specified by
the manufacturer or sold with the
apparatus. When a cart is
used, use caution when
moving the cart/appara-
tus combination to avoid
injury from tip-over.
13. Unplug this apparatus during light-
ning storms or when unused for long
periods of time.
14. Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is dam-
aged, liquid has been spilled or
objects have fallen into the appara-
tus, the apparatus has been exposed
to rain or moisture, does not operate
normally, or has been dropped.
15. Do not use attachments not
recommended by the product
manufacturer, as they may cause
hazards.
16. This product should be operated
only from the type of power source
indicated on the marking label. If you
are not sure of the type of power
supply to your home, consult your
product dealer or local power
company. For products intended
to operate from battery power, or
other sources, refer to the operating
instructions.
1 7 . If an outside antenna or cable
system is connected to the product,
be sure the antenna or cable system
is grounded so as to provide some
protection against voltage surges
and built-up static charges. Article
810 of the National Electrical Code,
ANSI/NFPA 70, provides information
with regard to proper grounding of
the mast and supporting structure,
grounding of the lead-in wire to
an antenna discharge unit, size of
grounding conductors, location of
antenna-discharge unit, connection
to grounding electrodes, and require-
ments for the grounding electrode.
See Figure A.
18. An outside antenna system should
not be located in the vicinity of over-
head power lines or other electric
light or power circuits, or where it
can fall into such power lines or cir-
cuits. When installing an outside
antenna system, extreme care should
be taken to keep from touching such
power lines or circuits, as contact
with them might be fatal.
19. Do not overload wall outlets,
extension cords, or integral conven-
ience receptacles, as this can result
in a risk of fire or electric shock.
20. Never push objects of any kind
into this product through openings, as
they may touch dangerous voltage
points or short-out parts that could
result in a fire or electric shock.
Never spill liquid of any kind on the
product.
21. Do not attempt to service this
product yourself, as opening or
removing covers may expose you to
dangerous voltage or other hazards.
Refer all servicing to qualified
service personnel.
22. When replacement parts are
required, be sure the service tech-
nician has used replacement parts
specified by the manufacturer or that
have the same characteristics as the
original part. Unauthorized substitu-
tions may result in fire, electric shock
or other hazards.
23. Upon completion of any service or
repairs to this product, ask the serv-
ice technician to perform safety
checks to determine that the product
is in proper operating condition.
24. The product should be mounted
to a wall or ceiling only as recom-
mended by the manufacturer.
Figure A.
Example of Antenna Grounding as per
National ElectricalCode ANSI/NFPA 70
3 Important Safety Precautions
4 Introduction
4 Unpacking the System
4 Planning Your System
5 Home Theater
6 Placement
7 Wall-Mounting the Satellites
7 Satellite Speaker Connections
8 Dolby* Digital or DTS®
8 Dolby Pro Logic* (Non-Digital) Line Level
9 Dolby Pro Logic (Non-Digital) Speaker Level
10 Operation
11 Troubleshooting
12 Specifications
TABLE OF CONTENTS
PN
OWNER’S GUIDE
Robin Marshall
Harman Consumer International
Chateau-du-Loir, France 10/03
Declaration of Conformity
We, Harman Consumer International
2, route de Tours
72500 Chateau-du-Loir
France
declare in own responsibility that the product described
in this owner’s manual is in compliance with technical
standards:
EN 50081-1:1992
EN 50082-1:1997

Produkt Specifikationer

Mærke: Leviton
Kategori: Højttaler
Model: AEH50
