Side 1/248
MS510 and MS610 Series
User's Guide
Important: Click here before using this guide.
September 2014 www.lexmark.com
Machine type(s):
4514
Model(s):
630, 635, 646
Contents
Safety information.......................................................................................4
Overview.....................................................................................................6
Using this guide.........................................................................................................................................6
Finding information about the printer......................................................................................................6
Selecting a location for the printer...............................................................8
Additional printer setup.............................................................................10
Installing internal options........................................................................................................................10
Installing hardware options.....................................................................................................................24
Setting up the printer software...............................................................................................................26
Networking..............................................................................................................................................27
Using MS510dn and MS610dn....................................................................31

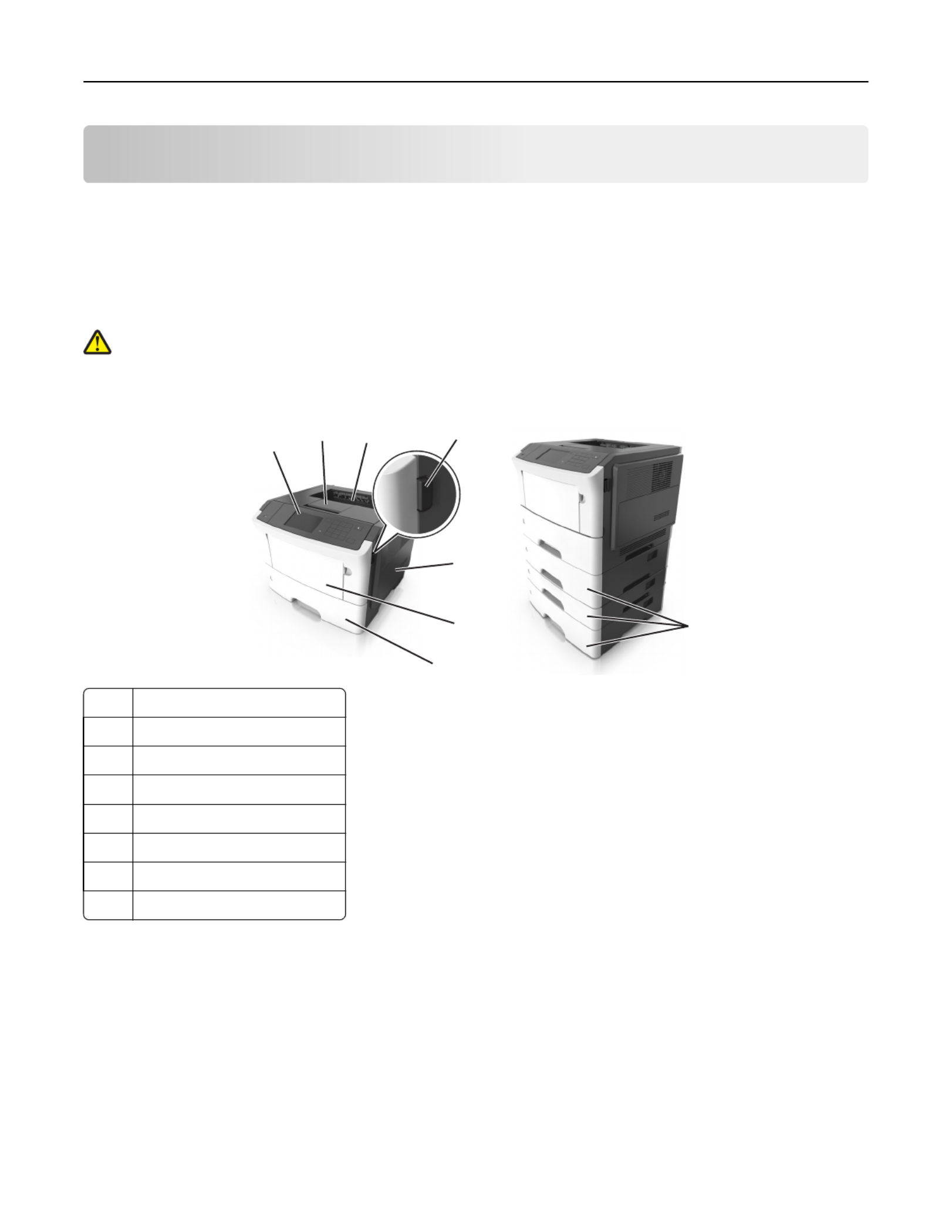

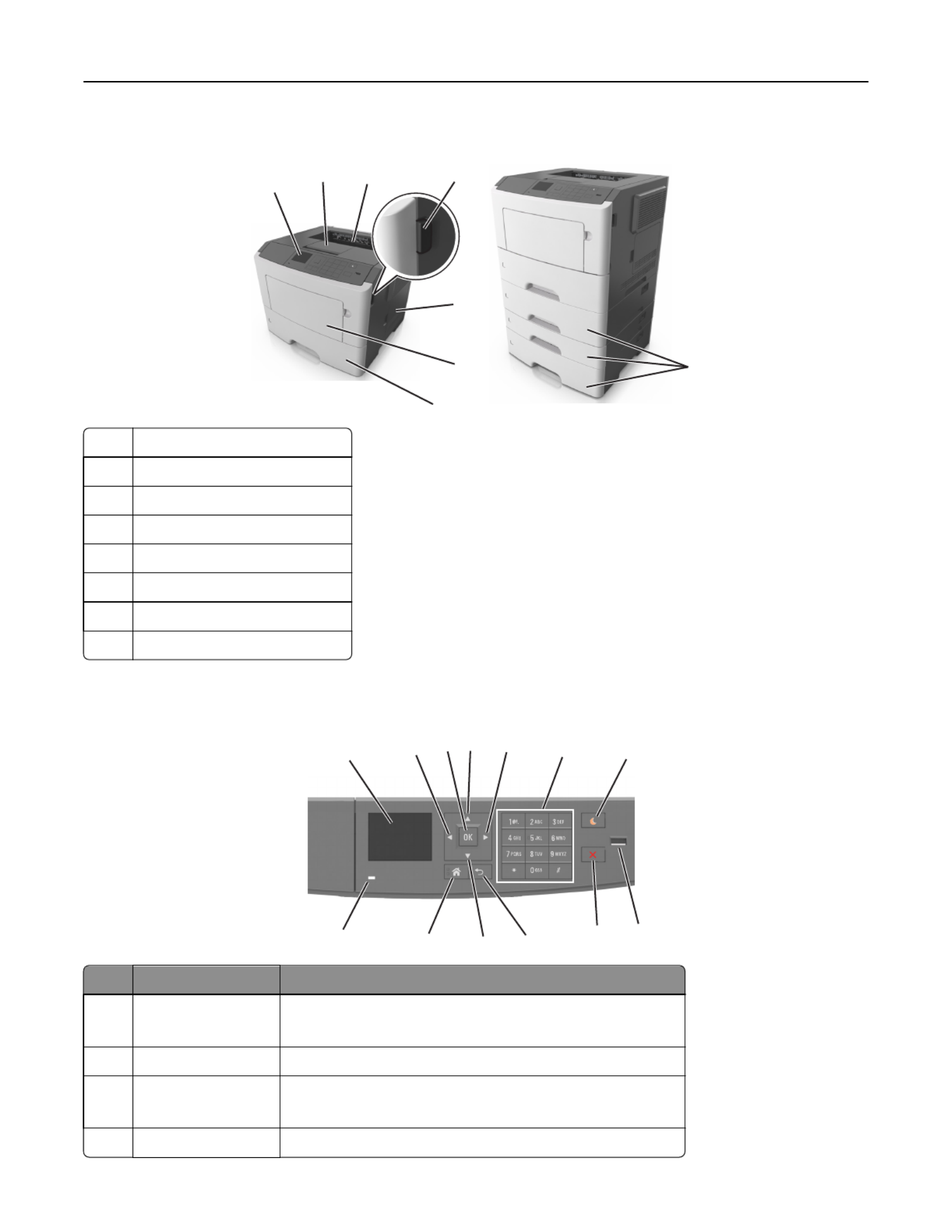

Learning about the printer......................................................................................................................31
Loading paper and specialty media.........................................................................................................36
Printing....................................................................................................................................................47
Managing the printer..............................................................................................................................52
Using MS610de..........................................................................................62
Learning about the printer......................................................................................................................62
Setting up and using the home screen applications................................................................................70
Loading paper and specialty media.........................................................................................................74
Printing....................................................................................................................................................85
Managing the printer..............................................................................................................................91
Paper and specialty media guide..............................................................104
Using specialty media............................................................................................................................104
Paper guidelines....................................................................................................................................106
Supported paper sizes, types, and weights...........................................................................................109
Understanding the printer menus............................................................112
Menus list..............................................................................................................................................112
Paper menu...........................................................................................................................................113
Reports menu........................................................................................................................................121
Contents 2
Network/Ports menu.............................................................................................................................122
Security menu.......................................................................................................................................133
Settings menu........................................................................................................................................136
Help menu.............................................................................................................................................157
Saving money and the environment.........................................................158
Saving paper and toner.........................................................................................................................158
Recycling................................................................................................................................................159
Maintaining the printer............................................................................160
Cleaning the printer..............................................................................................................................160
Ordering parts and supplies..................................................................................................................160
Estimated number of remaining pages.................................................................................................163
Storing supplies.....................................................................................................................................163
Replacing supplies.................................................................................................................................163
Moving the printer................................................................................................................................167
Clearing jams............................................................................................169
Avoiding jams........................................................................................................................................169
Understanding jam messages and locations.........................................................................................170
[x]‑page jam, open front door. [20y.xx]................................................................................................172
[x]‑page jam, open rear door. [20y.xx]..................................................................................................175
[x]‑page jam, clear standard bin. [20y.xx].............................................................................................176
[x]‑page jam, remove tray 1 to clear duplex. [23y.xx]...........................................................................177
[x]‑page jam, open tray [x]. [24y.xx].....................................................................................................178
[x]‑page jam, clear manual feeder. [25y.xx]..........................................................................................179
Troubleshooting.......................................................................................181
Understanding the printer messages....................................................................................................181
Solving printer problems.......................................................................................................................193
Solving print problems..........................................................................................................................199
Solving home screen application problems...........................................................................................224
Embedded Web Server does not open.................................................................................................224
Contacting customer support................................................................................................................226
Notices.....................................................................................................227
Index........................................................................................................241
Contents 3
Safety information
Connect the power cord directly to an appropriately rated and properly grounded electrical outlet that is near the
product and easily accessible.
CAUTION—POTENTIAL INJURY: Do not use this product with extension cords, multioutlet power strips,
multioutlet extenders, or other types of surge or UPS devices. The power rating capacity of these types of
accessories can be easily overloaded by a laser printer and may result in poor printer performance, property
damage, or potential fire.
Do not place or use this product near water or wet locations.
CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.
This product uses a printing process that heats the print media, and the heat may cause the media to release emissions.
You must understand the section in your operating instructions that discusses the guidelines for selecting print media
to avoid the possibility of harmful emissions.
CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a
danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a
lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local
regulations.
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or
printer damage:
•Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.
•Disconnect all cords and cables from the printer before moving it.
•If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the
right side of the tray toward the front of the tray until it clicks into place.
•Use the handholds located on both sides of the printer to lift it.
•Make sure your fingers are not under the printer when you set it down.
•Before setting up the printer, make sure there is adequate clearance around it.
Use only the power cord provided with this product or the manufacturer's authorized replacement.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.

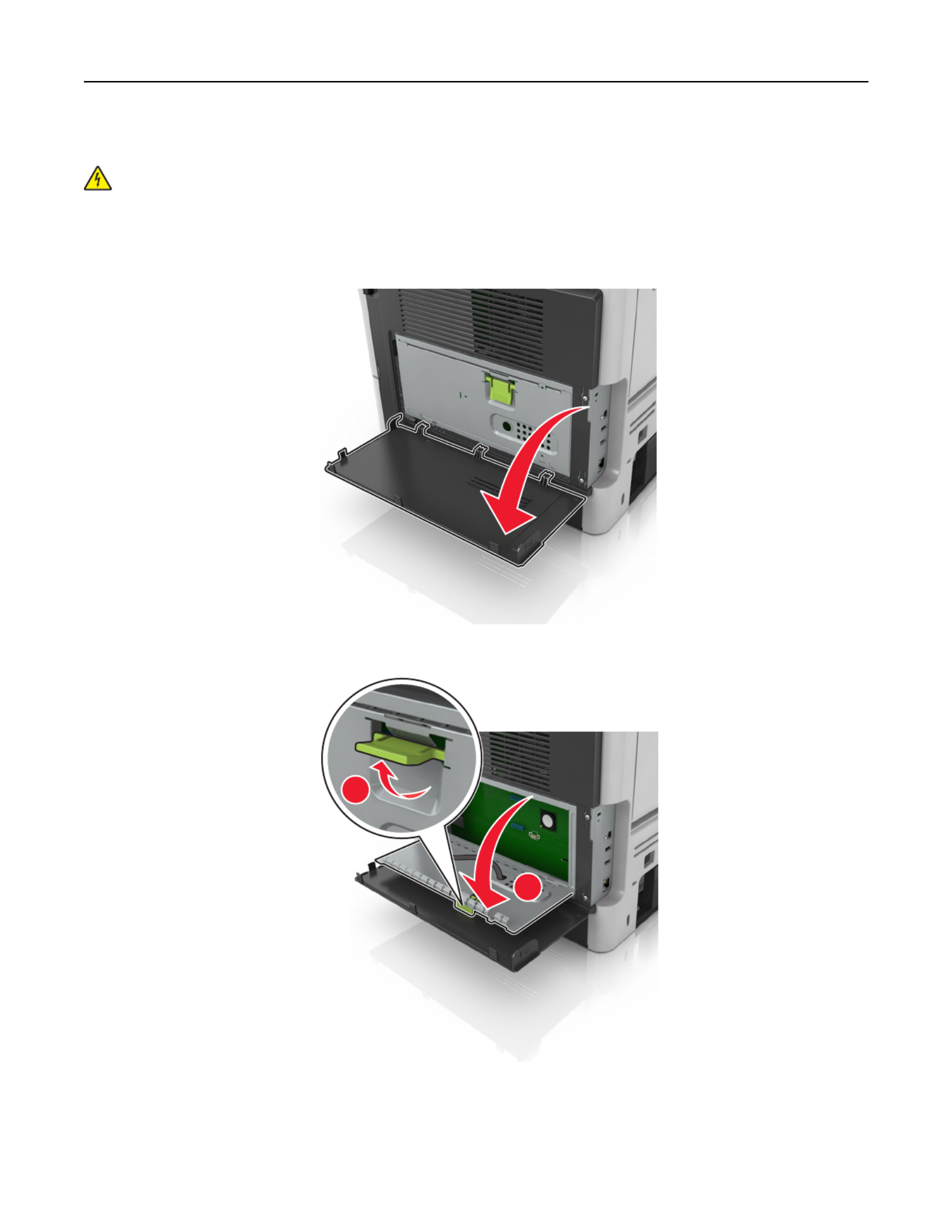

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system
connections) are properly installed in their marked plug-in ports.
This product is designed, tested, and approved to meet strict global safety standards with the use of specific
manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not
responsible for the use of other replacement parts.
Safety information 4
Overview
Using this guide
This User’s Guide provides general and specific information on using the printer models that are listed on the cover
page.
The following chapters contain information applicable to all printer models:
•Safety information
•Selecting a location for the printer
•Additional printer setup
•Paper and specialty media guide
•Understanding printer menus
•Saving money and the environment
•Maintaining the printer
•Clearing jams
•Troubleshooting
To find instructions for your printer:
•Use the table of contents.
•Use the Search function or the Find toolbar of your application to search for page content.
Finding information about the printer
What are you looking for? Find it here
Initial setup instructions:
•Connecting the printer
•Installing the printer software
Setup documentation—The setup documentation came
with the printer and is also available at
http://support.lexmark.com.
Additional setup and instructions for using the printer:
•Selecting and storing paper and specialty media
•Loading paper
•Configuring printer settings
•Viewing and printing documents and photos
•Setting up and using the printer software
•Configuring the printer on a network
•Caring for and maintaining the printer
•Troubleshooting and solving problems
User's Guide and Quick Reference Guide—The guides are
available at http://support.lexmark.com.
Note: These guides are also available in other
languages.
Information on setting up and configuring the accessibility
features of your printer
Lexmark Accessibility Guide—This guide is available at
http://support.lexmark.com.
Overview 6
What are you looking for? Find it here
Help using the printer software Windows or Mac Help—Open a printer software program
or application, and then click Help.
Click
?
to view context‑sensitive information.
Notes:
•Help is automatically installed with the printer
software.
•The printer software is located in the printer
program folder or on the desktop, depending on
your operating system.
The latest supplemental information, updates, and customer
support:
•Documentation
•Driver downloads
•Live chat support
•E‑mail support
•Voice support
Lexmark support Web site—
http://support.lexmark.com
Note: Select your country or region, and then select
your product to view the appropriate support site.
Support telephone numbers and hours of operation for
your country or region can be found on the support Web
site or on the printed warranty that came with your
printer.
Record the following information (located on the store
receipt and at the back of the printer), and have it ready
when you contact customer support so that they may
serve you faster:
•Machine Type number
•Serial number
•Date purchased
•Store where purchased
Warranty information Warranty information varies by country or region:
•In the U.S.—See the Statement of Limited Warranty
included with this printer, or go to
http://support.lexmark.com.
•In other countries and regions—See the printed
warranty that came with this printer.
Overview 7

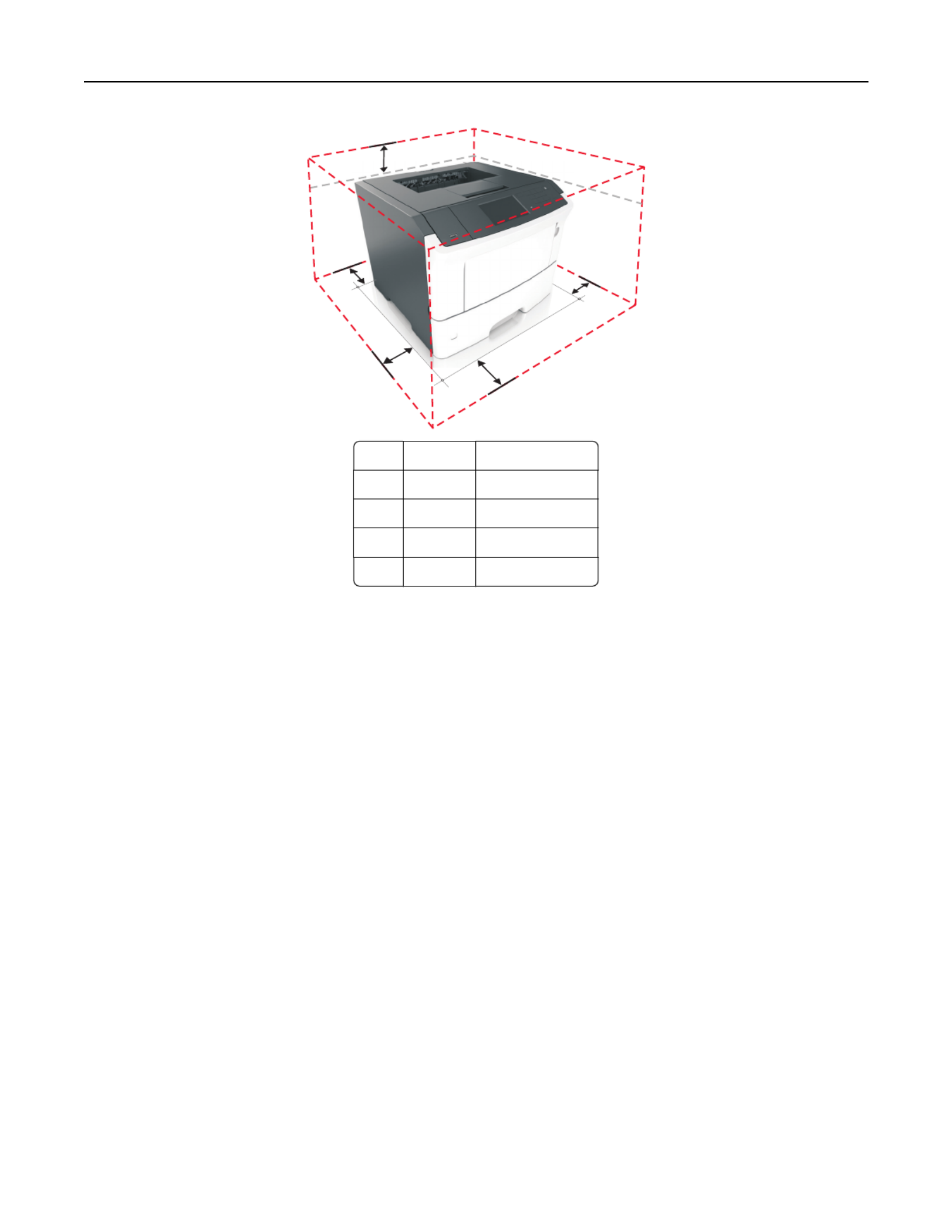

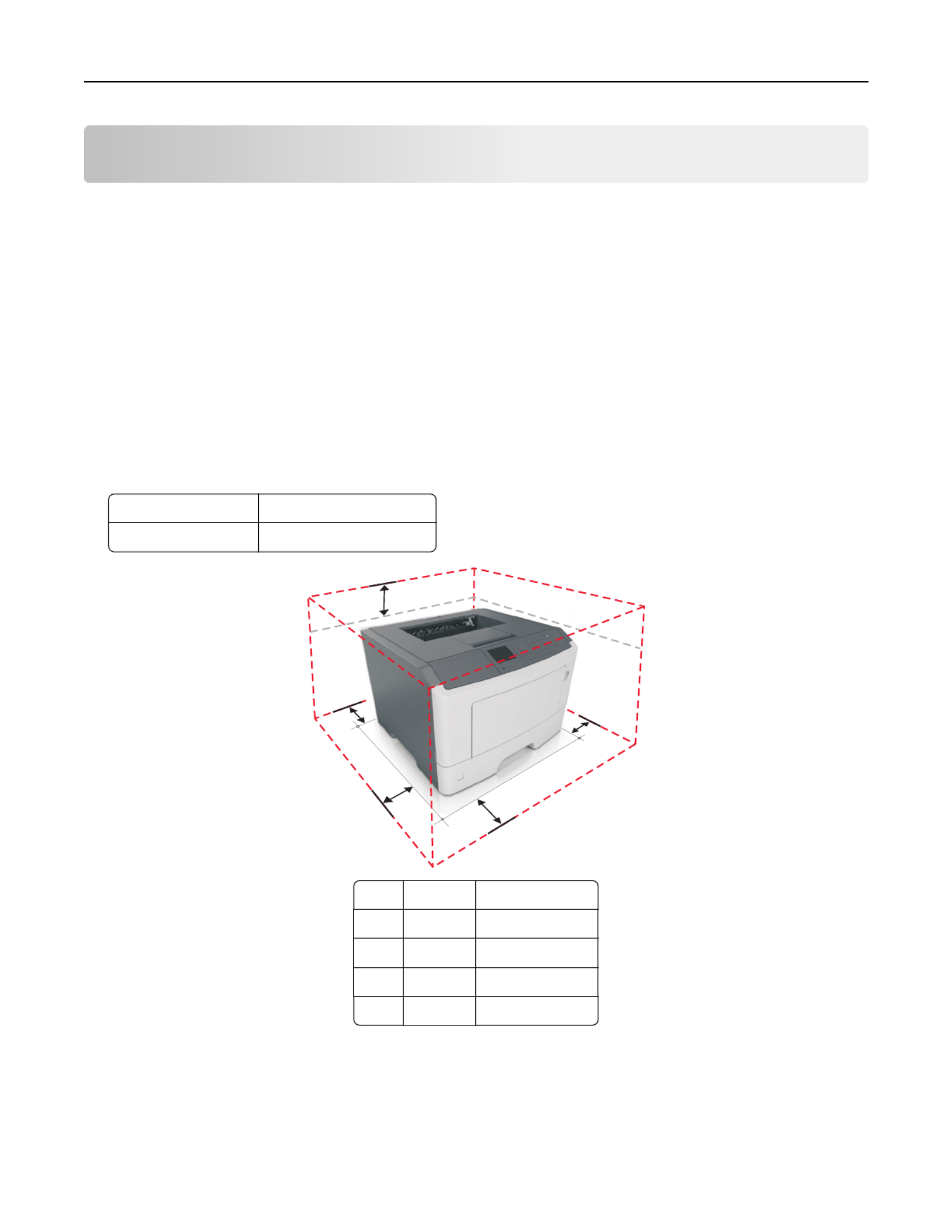

Selecting a location for the printer
When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any
options, then leave enough room for them also. It is important to:
•Set up the printer near a properly grounded and easily accessible electrical outlet.
•Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee
156 standard.
•Provide a flat, sturdy, and stable surface.
•Keep the printer:
–Clean, dry, and free of dust.
–Away from stray staples and paper clips.
–Away from the direct airflow of air conditioners, heaters, or ventilators.
–Free from direct sunlight and humidity extremes.
•Observe the recommended temperatures and avoid fluctuations.
Ambient temperature 15.6 to 32.2°C (60 to 90°F)
Storage temperature 1 to 35°C (34 to 95°F)
5
1
2
3
4
1
1Right side 110 mm (4.33 in.)
2Front 305 mm (12 in.)
3Left side 65 mm (2.56 in.)
4Rear 100 mm (3.94 in.)
5Top 305 mm (12 in.)
Selecting a location for the printer 8
1
2
3
4
5
1
1Right side 110 mm (4.33 in.)
2Front 305 mm (12 in.)
3Left side 65 mm (2.56 in.)
4Rear 100 mm (3.94 in.)
5Top 305 mm (12 in.)
Selecting a location for the printer 9
Additional printer setup

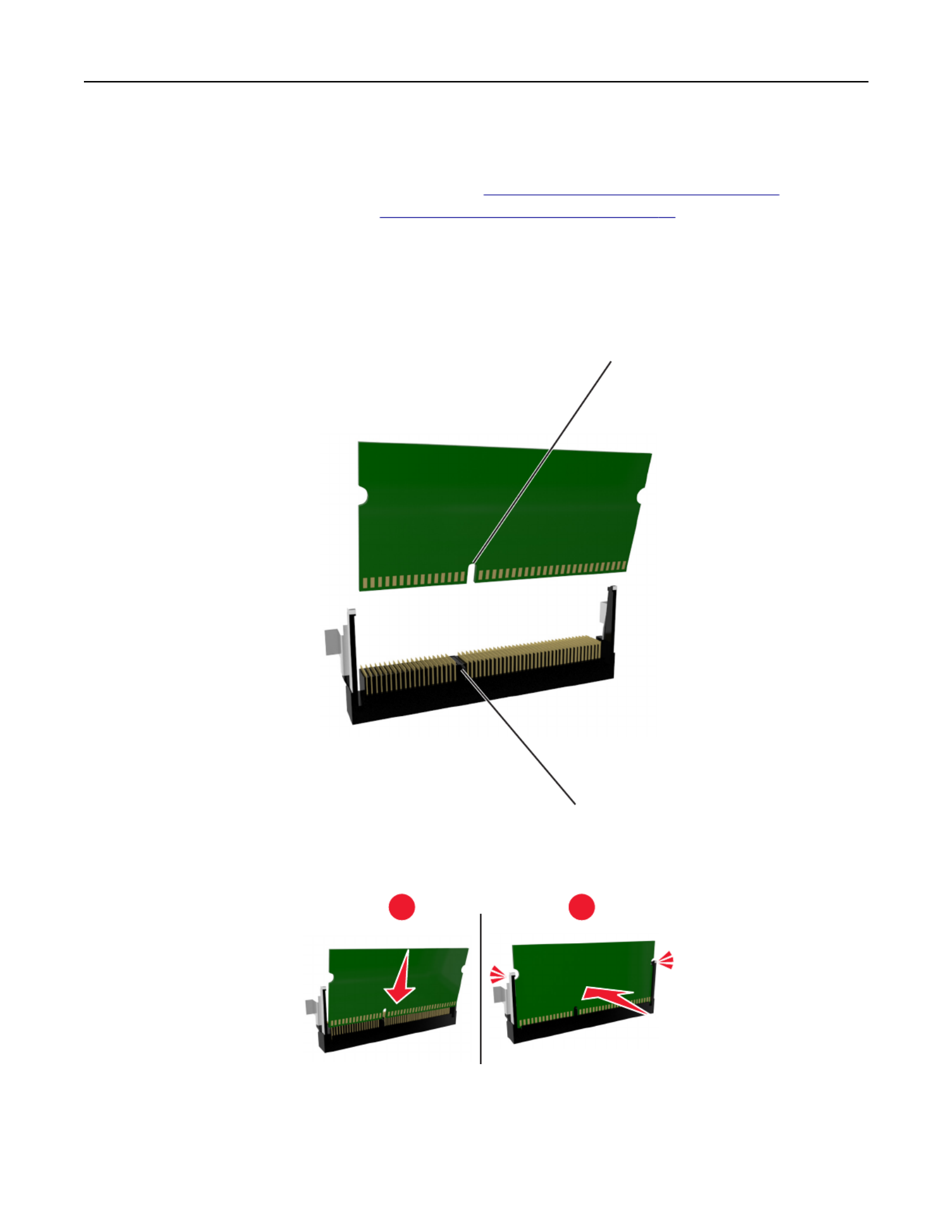

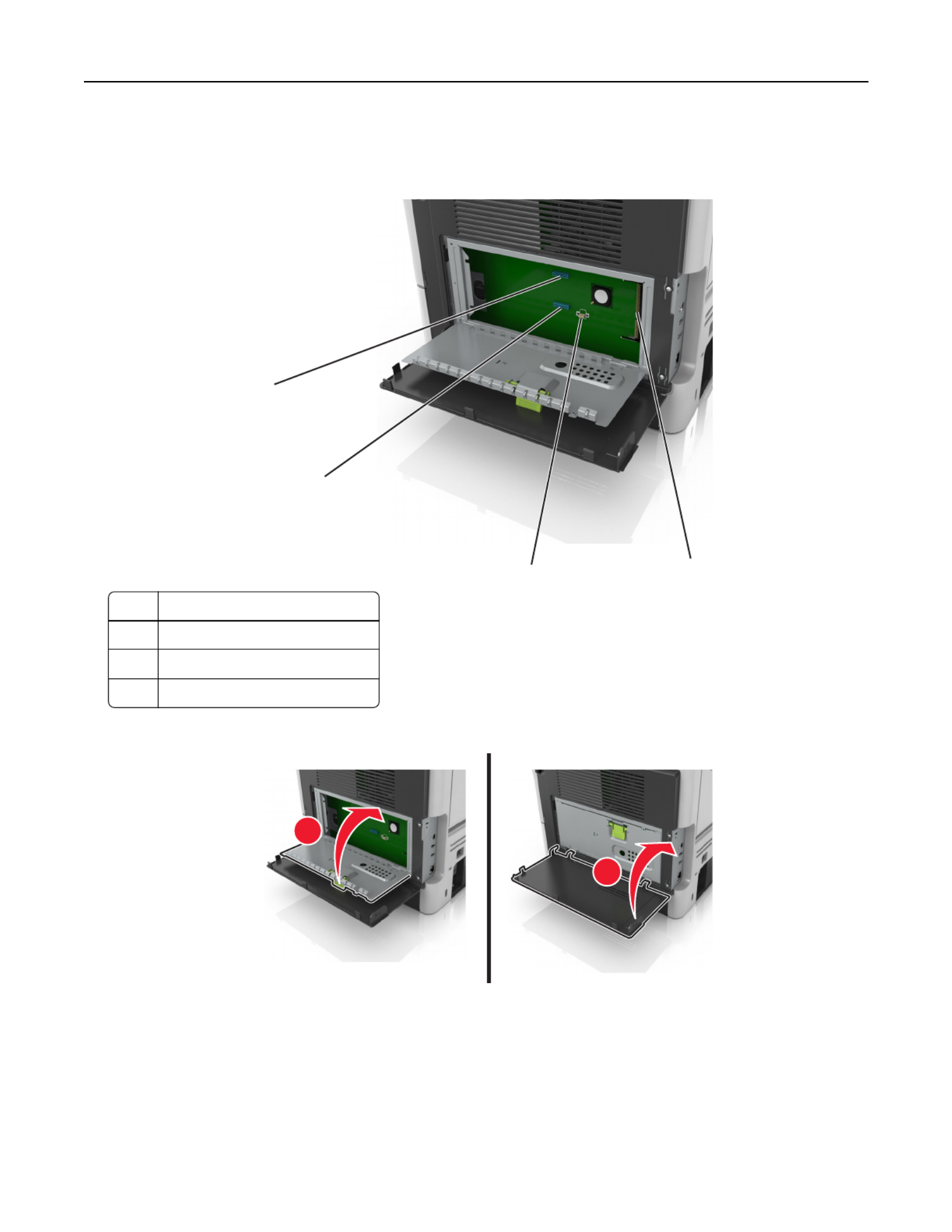

Installing internal options
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.
Available internal options
•DDR3 DIMM
•Flash memory
–Fonts
–Firmware
•Forms Barcode
•Prescribe
•IPDS
•PrintCryption
•Hard disk*
•Internal Solutions Ports (ISP)*
–Parallel 1284‑B interface
–MarkNet N8130 10/100 fiber interface
–RS‑232‑C serial interface
* This internal option is available only in the MS610de printer model.
Accessing the controller board
Access the controller board to install internal options.
For MS510dn and MS610dn, see “Accessing the controller board” on page 35.
For MS610de, see “Accessing the controller board” on page 68.
Installing an optional card
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Additional printer setup 10
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.
1Access the controller board.
For the MS510dn and MS610dn printer models, see “Accessing the controller board” on page 35.
For the MS610de printer model, see “Accessing the controller board” on page 68.
2Unpack the optional card.
Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

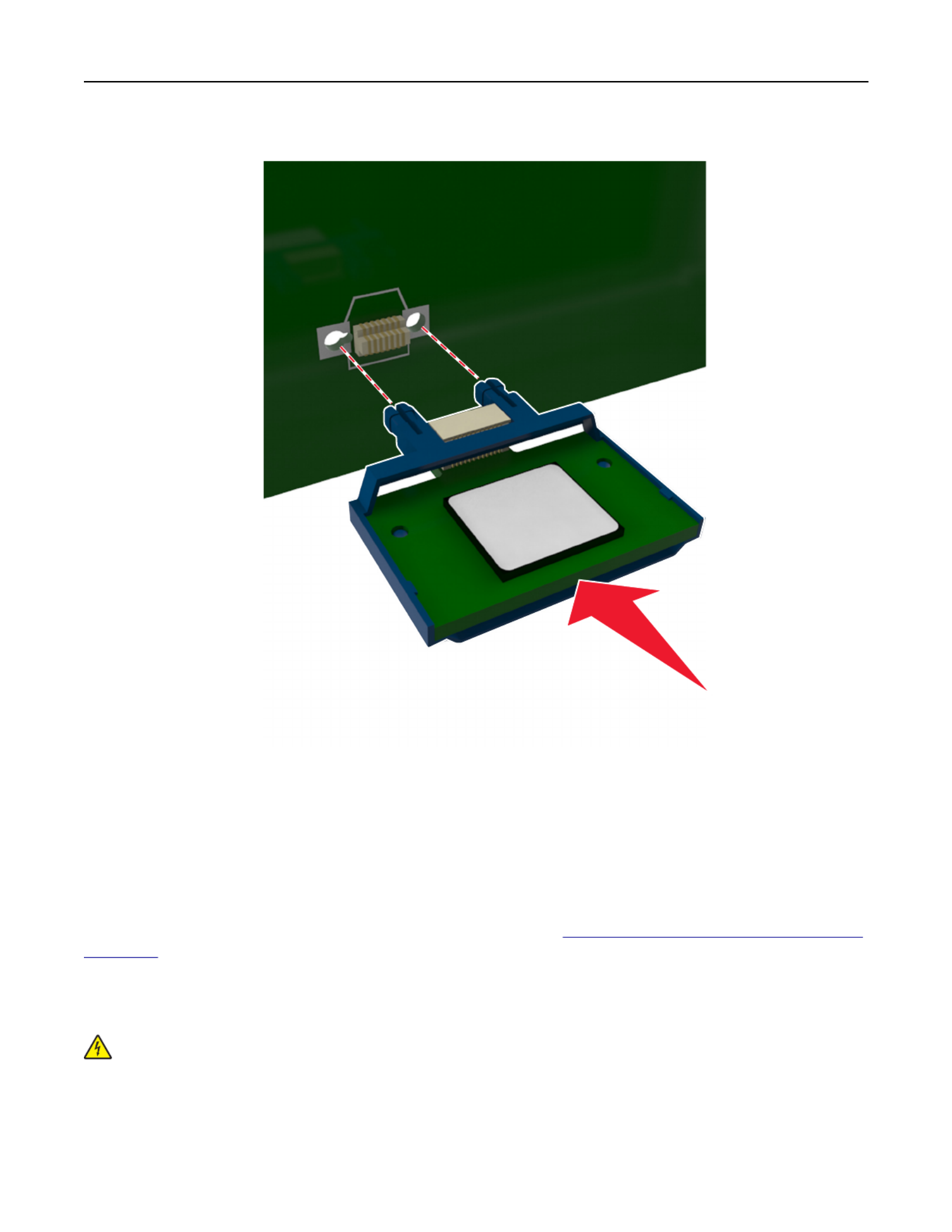

3Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.
2
1
Additional printer setup 11
4Push the card firmly into place.
Warning—Potential Damage: Improper installation of the card may cause damage to the card and the
controller board.
Note: The entire length of the connector on the card must touch and be flushed against the controller board.
5For the MS510dn and MS610dn printer models, close the controller board access door.
For the MS610de printer model, close the controller board shield, and then close the access door.
Note: When the printer software and any hardware options are installed, add the options manually in the print
driver to make them available for print jobs. For more information, see “Adding available options in the print driver”
on page 26.
Installing a memory card
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any controller board electronic components or connectors.
Additional printer setup 12
An optional memory card can be purchased separately and attached to the controller board.
1Access the controller board.
For the MS510dn and MS610dn printer models, see “Accessing the controller board” on page 35.
For the MS610de printer model, see “Accessing the controller board” on page 68.
2Unpack the memory card.
Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may
cause damage.

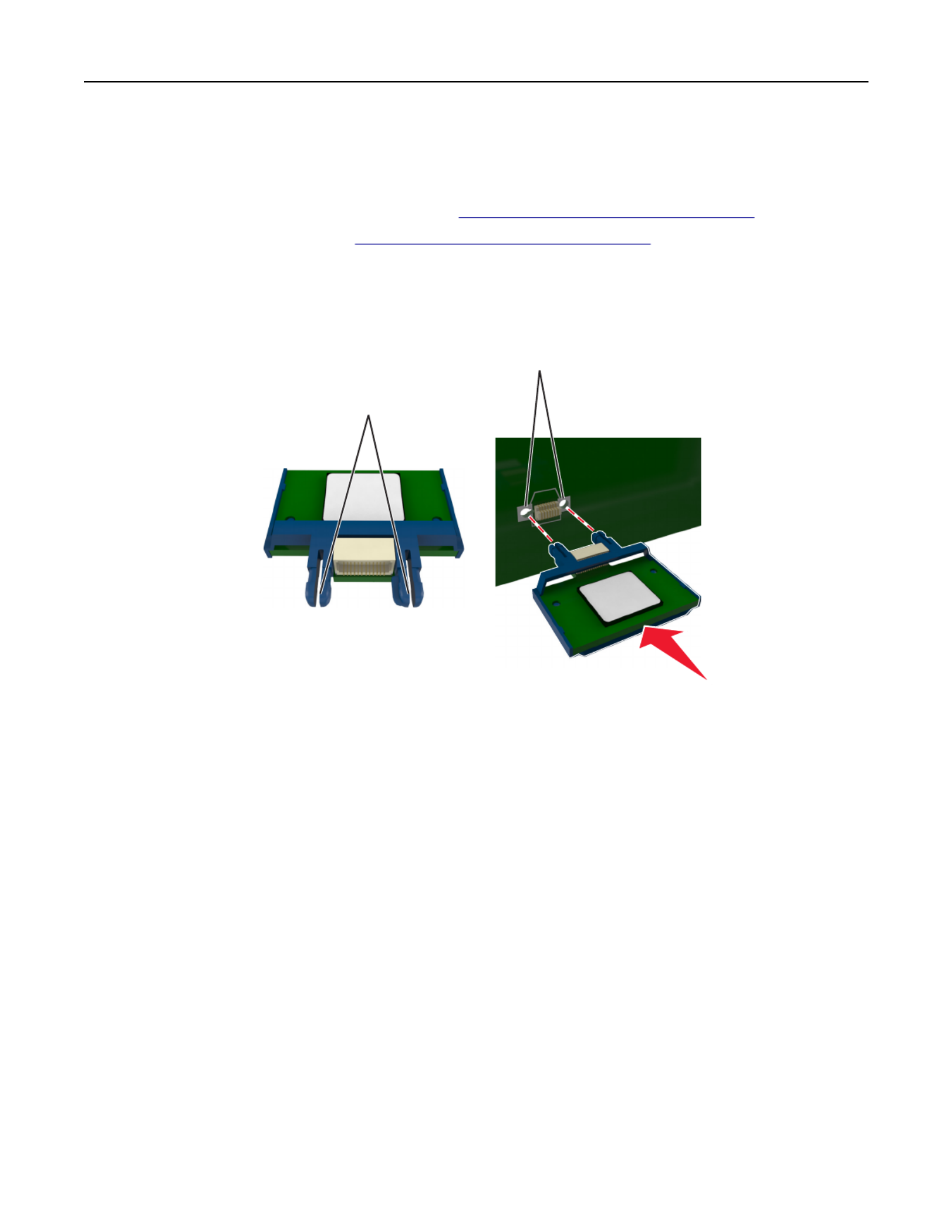

3Align the notch (1) on the memory card with the ridge (2) on the connector.
1
2
4Push the memory card straight into the connector and forward into the controller board wall until it clicks into
place.
1 2
5For the MS510dn and MS610dn printer models, close the controller board access door.
For the MS610de printer model, close the controller board shield, and then close the access door.
Additional printer setup 13
Note: When the printer software and any hardware options are installed, you may need to manually add the options
in the printer driver to make them available for print jobs. For more information, see “Adding available options in
the print driver” on page 26.
Installing an Internal Solutions Port
The controller board supports one optional Lexmark TM Internal Solutions Port (ISP). This option is supported only in
MS610de printer model.
Note: This task requires a flat‑head screwdriver.
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.

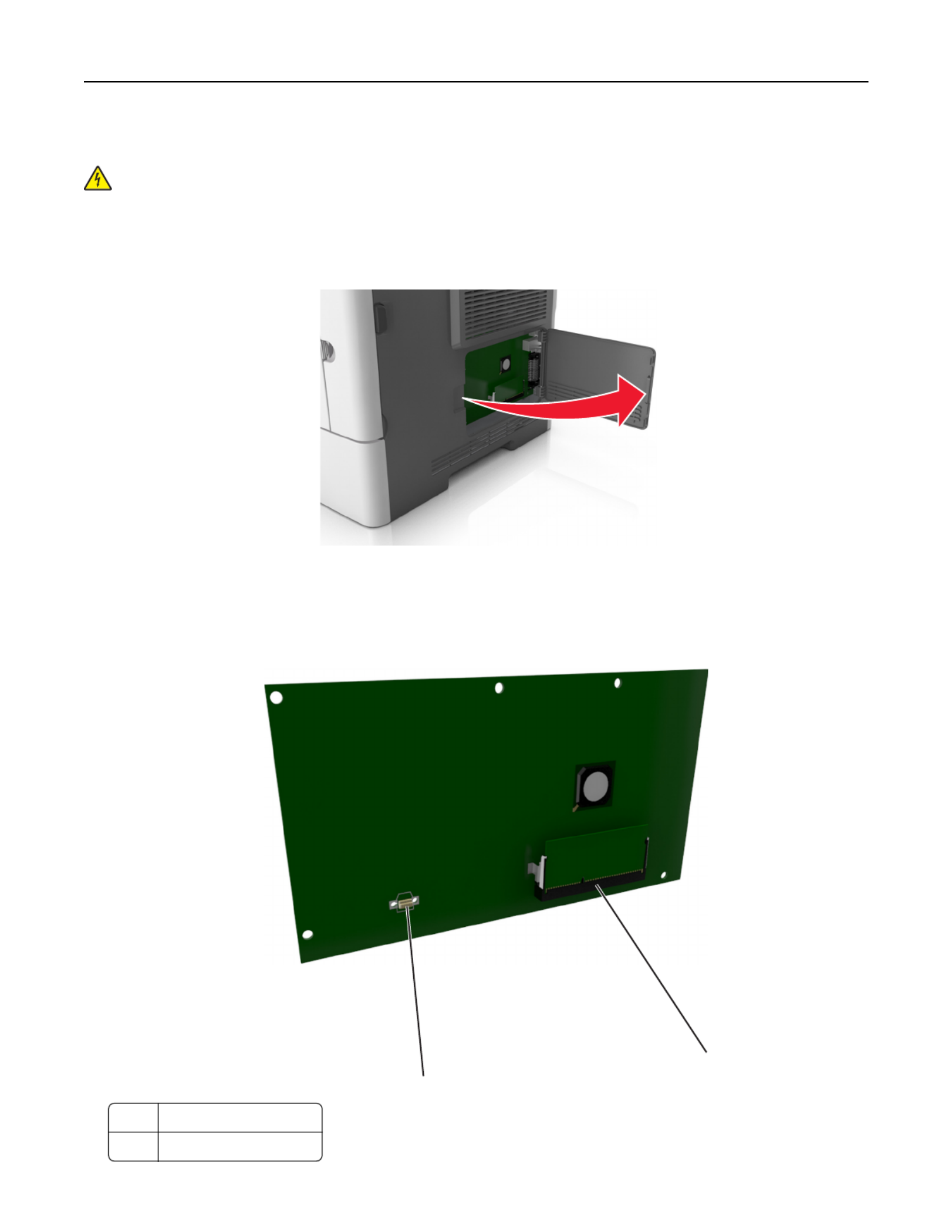

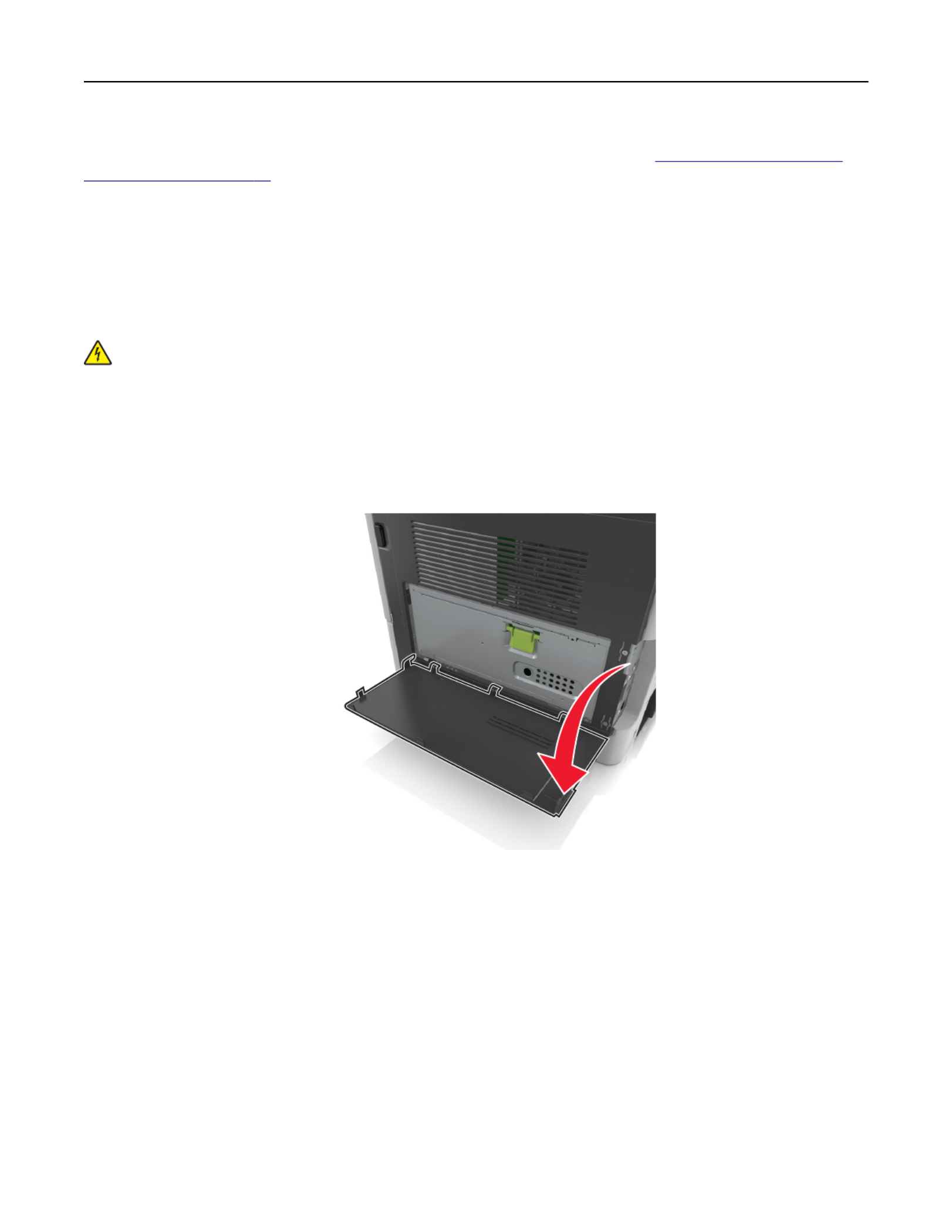

1Open the controller board access door.
Additional printer setup 14

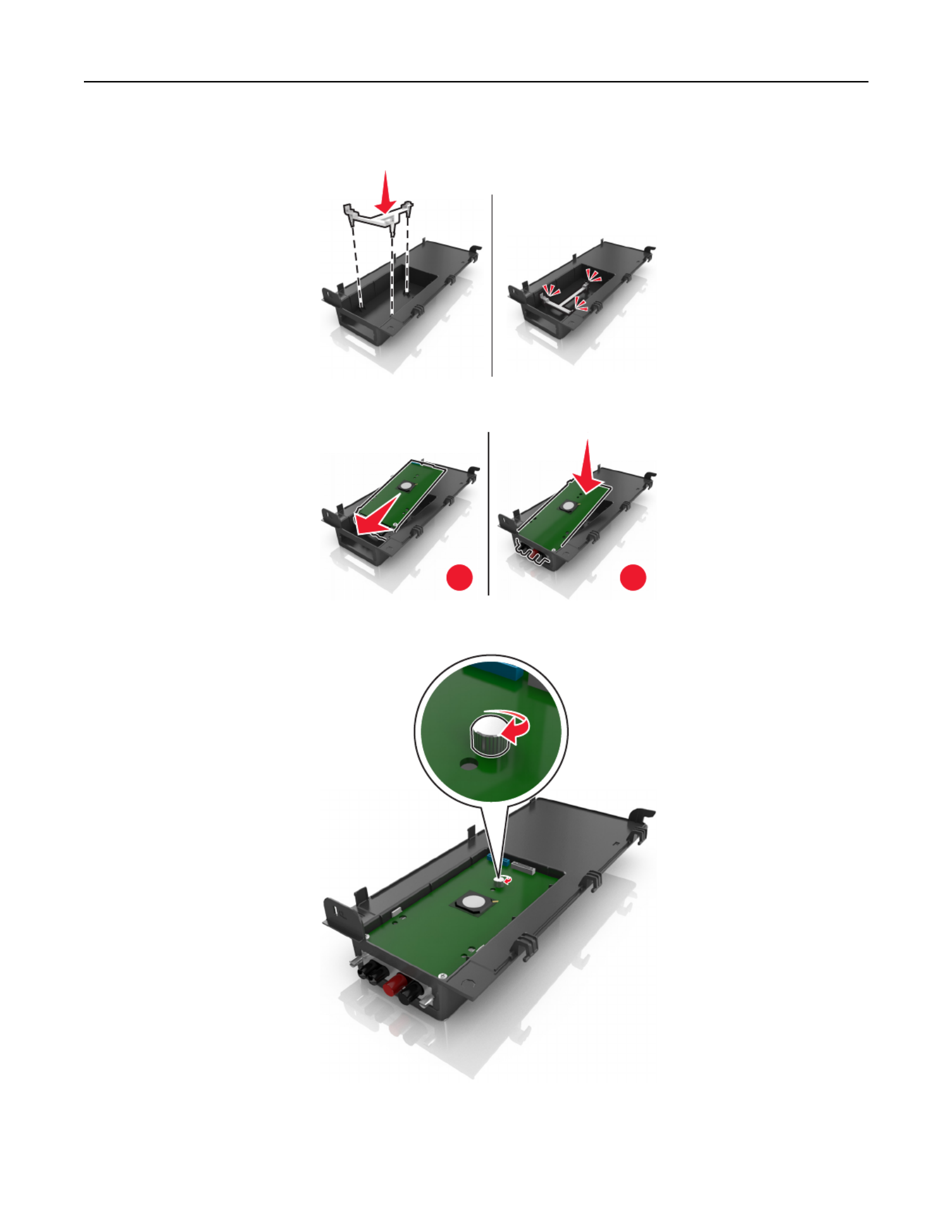

4Place the plastic bracket inside the ISP exterior cover until it clicks into place.
5Slide and push the ISP solution into the plastic bracket.
1 2
6Secure the ISP solution to the plastic bracket using the long screw.
Additional printer setup 16

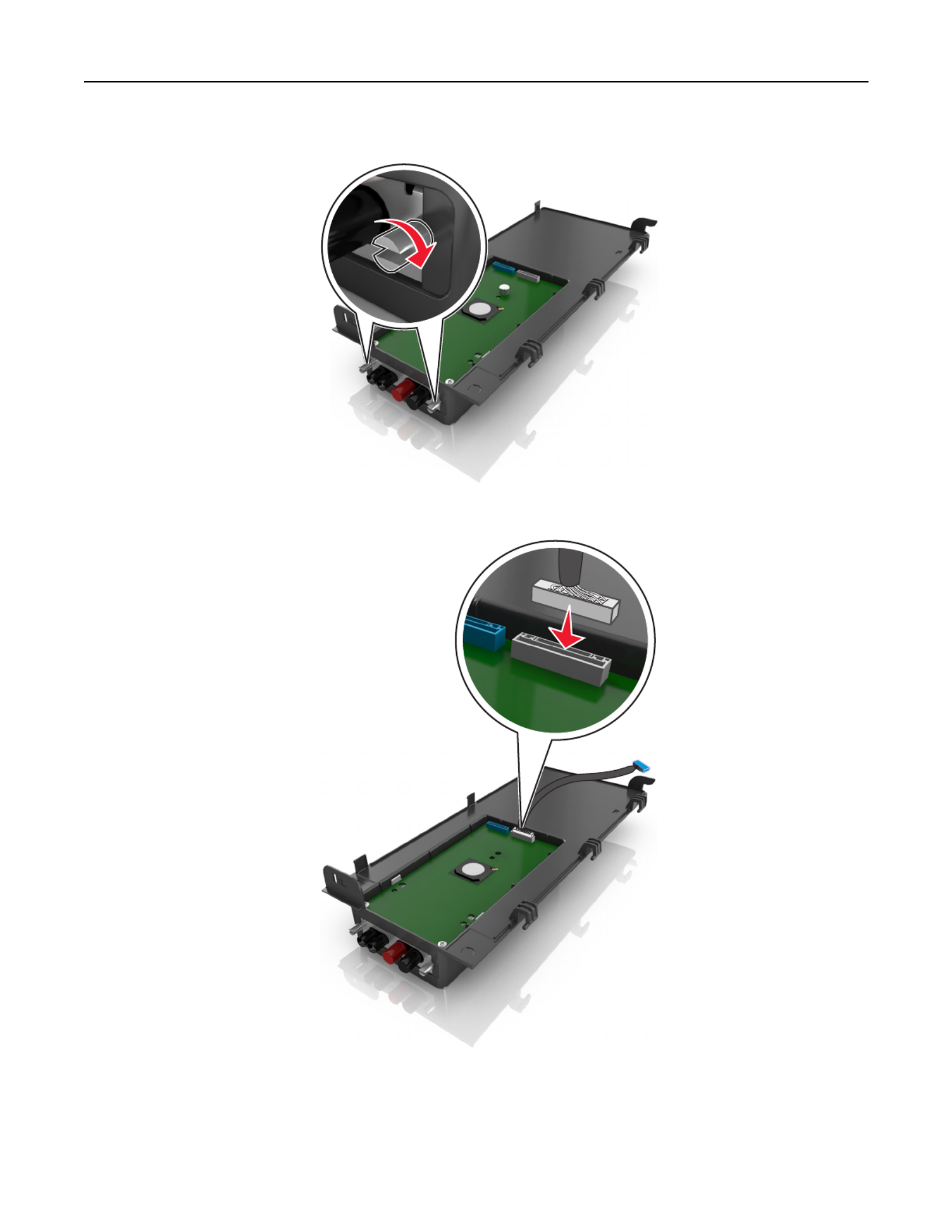

7Tighten the two screws on the end of the ISP solution.
8Attach the white plug of the ISP solution interface cable into the white receptacle on the ISP.
Additional printer setup 17
11 Run the ISP cable through the controller board shield.
12 Open the shield using the green handle.

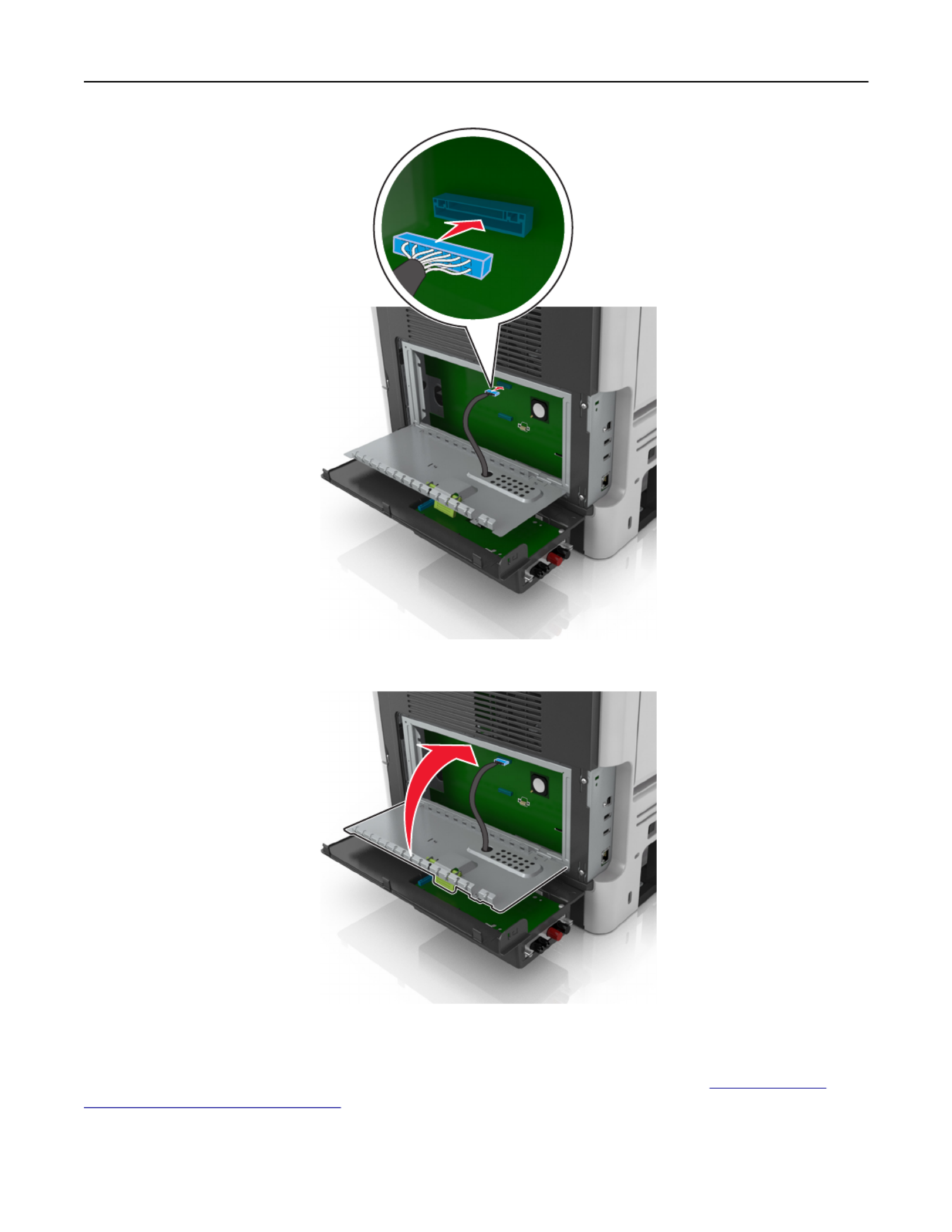

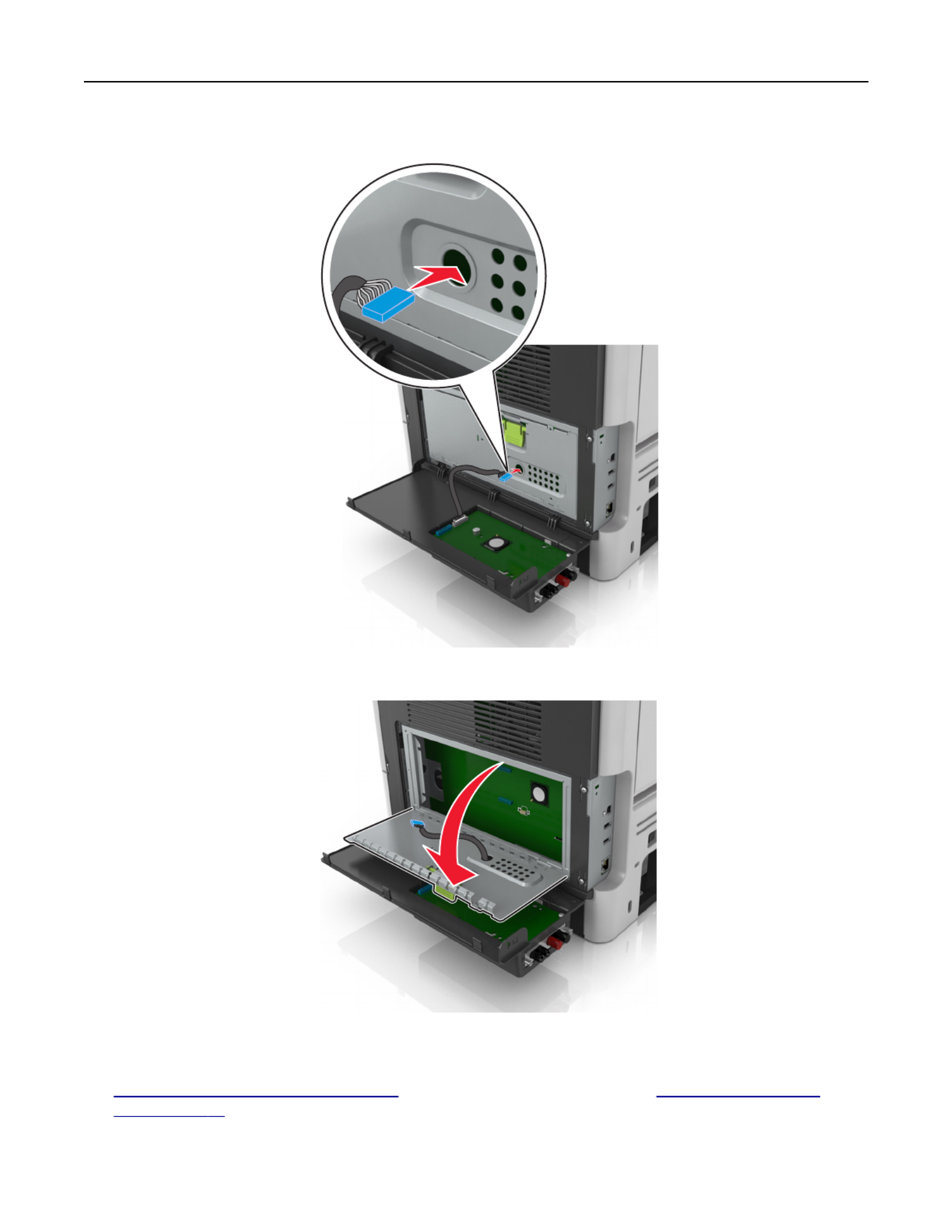

13 Attach the blue plug of the ISP solution interface cable into the blue receptacle on the controller board.
Note: If you have installed a printer hard disk, then you need to remove it. For more information, see
“Removing a printer hard disk” on page 23. To reinstall the printer hard disk, see “Installing a printer hard
disk” on page 21.
Additional printer setup 19

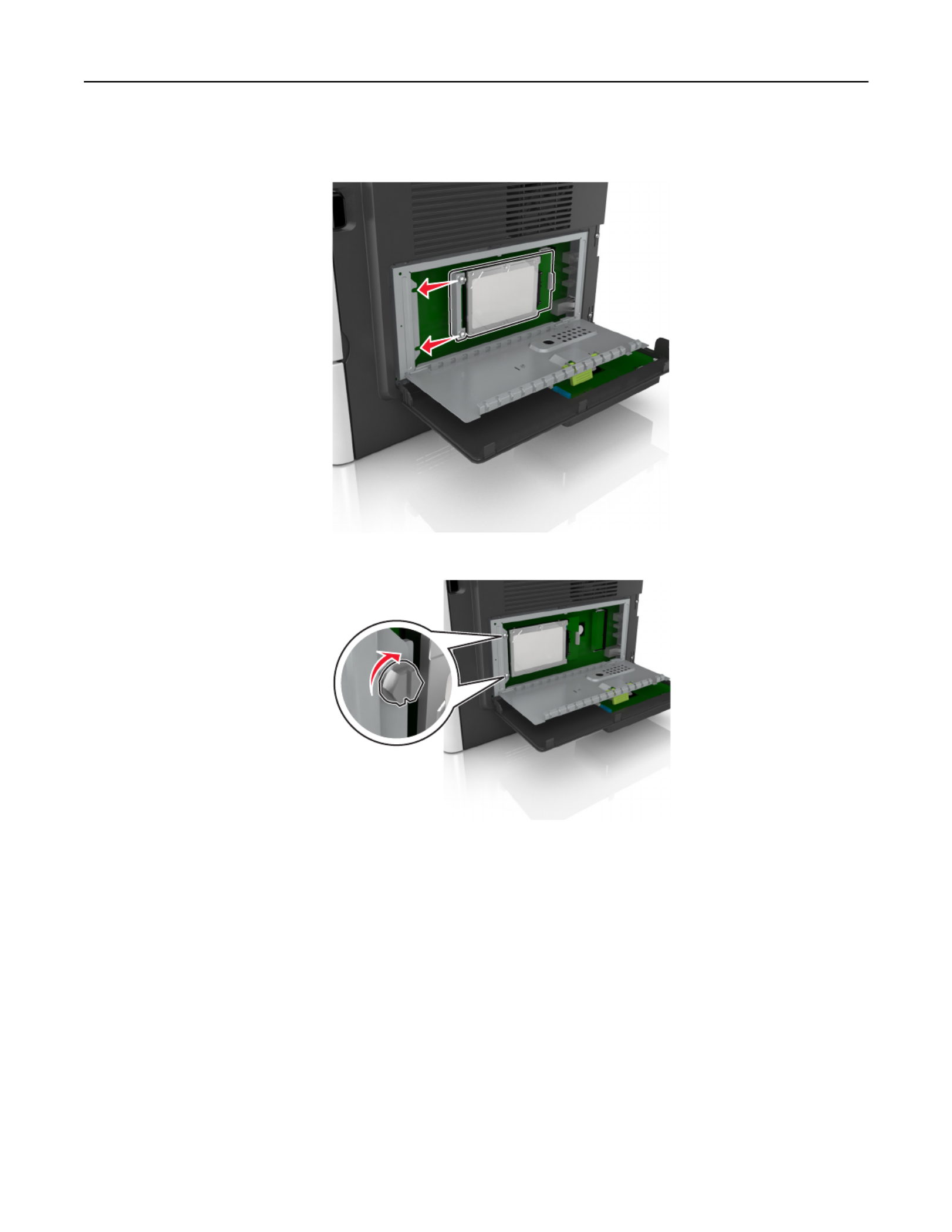

14 Close the shield.
15 Close the ISP exterior cover.
Note: When the printer software and any hardware options are installed, it may be necessary to manually add the
options in the printer driver to make them available for print jobs. For more information, see “Adding available
options in the print driver” on page 26.
Additional printer setup 20
bAlign the screws on the printer hard disk to the slots on the controller board bracket, and then slide the printer
hard disk onto the brackets.
cTighten the two screws.

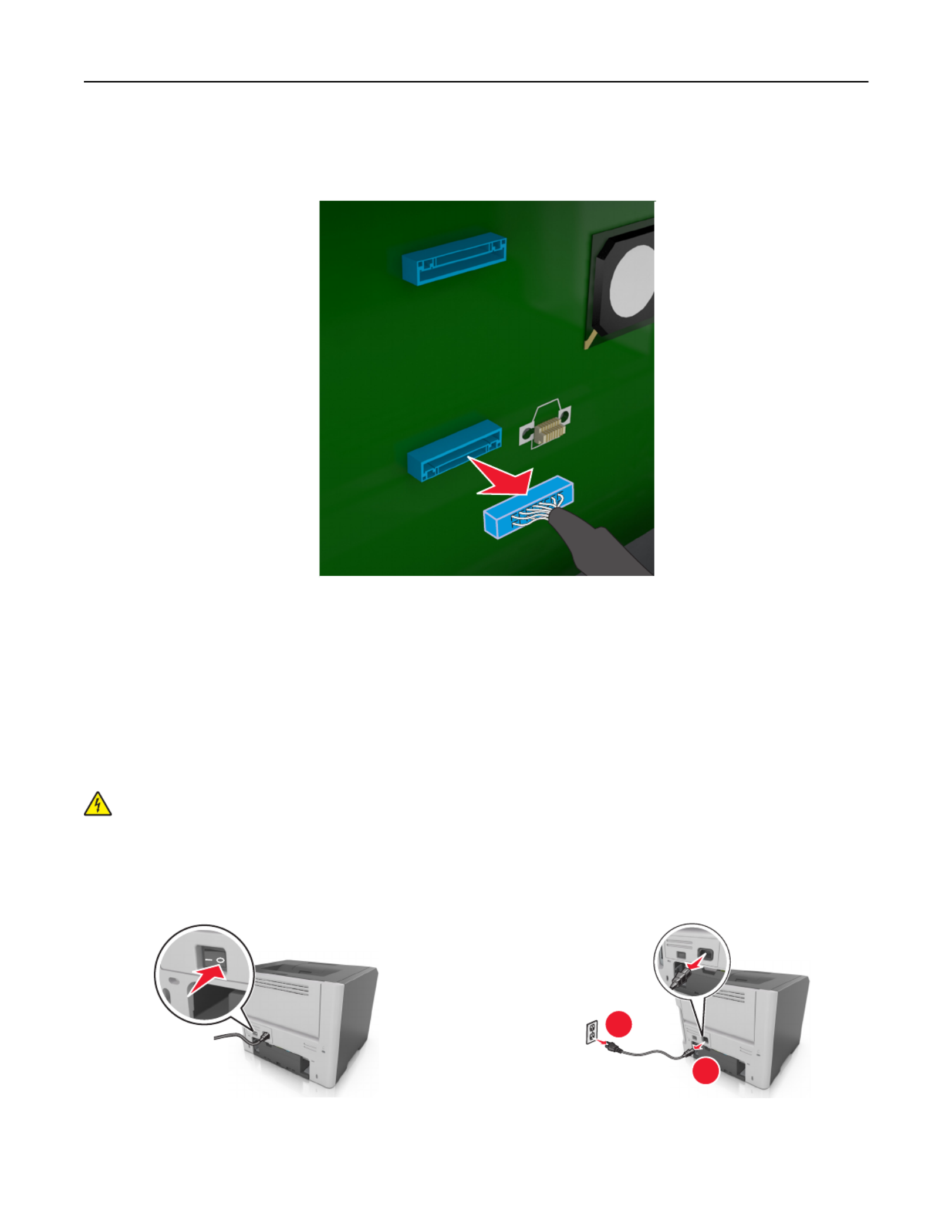

dInsert the plug of the printer hard disk interface cable into the receptacle of the controller board.
Note: The plug and the receptacle are color‑coded blue.
Additional printer setup 22
3Unplug the printer hard disk interface cable from the receptacle in the controller board , leaving the cable attached
to the printer hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the
latch before pulling the cable out.
4Hold the printer hard disk by the edges, and then remove it from the printer.
5Close the controller board shield, and then close the access door.
Installing hardware options
Installing optional trays
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
1Turn off the printer using the power switch, and then unplug the power cord from the electrical outlet.
2
1
2Unpack the tray, and then remove all packing materials.
Additional printer setup 24
•Security Method—There are three basic options for Security Method:
–WEP key
If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key
currently in use on the network by selecting the default WEP transmit key.
or
–WPA or WPA2 preshared key or passphrase
WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set
for the same type on the router and on the printer, or the printer will not be able to communicate on the
network.
–802.1X–RADIUS
If you are installing the printer on an 802.1X network, then you may need the following:
•Authentication type
•Inner authentication type
•802.1X user name and password
•Certificates
–No security
If your wireless network does not use any type of security, then you will not have any security information.
Note: Using an unsecured wireless network is not recommended.
Notes:
–If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility
of the computer network adapter, and then look for the network name. If you cannot find the SSID or the
security information for your network, then see the documentation that came with the access point, or contact
your system support person.
–To find the WPA/WPA2 preshared key/passphrase for the wireless network, see the documentation that came
with the access point, see the Web page associated with the access point, or consult your system support
person.
Connecting the printer using the Wireless Setup Wizard
Before you begin, make sure that:
•A wireless network adapter is installed in the printer and is working properly. For more information, see the
instruction sheet that came with the wireless network adapter.
•The Ethernet cable is disconnected from the printer.
•Active NIC is set to Auto. To set this to Auto, navigate to either of the following:
– > Settings > > Network/Ports > > Active NIC > > Auto >
– > > Network/Ports Active NIC > Auto
Note: Make sure to turn off the printer, then wait for at least five seconds, and then turn the printer back on.
Additional printer setup 28
1Depending on your printer model, navigate to either of the following:
• > Settings > > Network/Ports > > Network [x] > > Network [x] Setup > > Wireless >
> Wireless Connection Setup >
• > > > > > Network/Ports Network [x] Network [x] Setup Wireless Wireless Connection Setup
2Select a wireless connection setup.
Use To
Search for networks Show available wireless connections.
Note: This menu item shows all broadcast secured or unsecured SSIDs.
Enter a network name Manually type the SSID.
Note: Make sure to type the correct SSID.
Wi‑Fi Protected Setup Connect the printer to a wireless network using Wi‑Fi Protected Setup.
3Follow the instructions on the printer display.
Connecting the printer to a wireless network using the Wi‑
‑
‑
‑‑Fi Protected Setup
Before connecting the printer to a wireless network, make sure that:
•The access point (wireless router) is Wi‑ ‑Fi Protected Setup (WPS) certified or WPS compatible. For more
information, see the documentation that came with your access point.
•A wireless network adapter is installed in your printer and is working properly. For more information, see the
instruction sheet that came with the wireless network adapter.
Using the Push Button Configuration Method
1Depending on your printer model, navigate to either of the following:
• > Settings > > Networks/Ports > > Network [x] > > Network [x] Setup > > Wireless >
> Wi‑
‑
‑
‑‑Fi Protected Setup > > Start Push Button Method >
• > > > > > > Network/Ports Network [x] Network [x] Setup Wireless Wi‑
‑
‑
‑‑Fi Protected Setup Start Push
Button Method
2Follow the instructions on the printer display.
Using the Personal Identification Number (PIN) Method
1Depending on your printer model, navigate to either of the following:
• > Settings > > Networks/Ports > > Network [x] > > Network [x] Setup > > Wireless >
> Wi‑
‑
‑
‑‑Fi Protected Setup > > Start PIN Method >
• > > > > Network/Ports Network [x] Network [x] Setup Wireless > Wi‑
‑
‑
‑‑Fi Protected Setup > Start PIN Method
2Copy the eight‑digit WPS PIN.
3Open a Web browser, and then type the IP address of your access point in the address field.
Additional printer setup 29
Notes:
•The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
•If you are accessing a proxy server, then temporarily disable it to load the Web page correctly.
4Access the WPS settings. For more information, see the documentation that came with your access point.
5Enter the eight‑digit PIN, and then save the setting.
Connecting the printer to a wireless network using the Embedded Web Server
Before you begin, make sure that:
•Your printer is connected temporarily to an Ethernet network.
•A wireless network adapter is installed in your printer and working properly. For more information, see the
instruction sheet that came with your wireless network adapter.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Network/Ports > Wireless.
3Modify the settings to match the settings of your access point (wireless router).
Note: Make sure to enter the correct SSID.
4Click Submit.
5Turn off the printer, and then disconnect the Ethernet cable. Then wait for at least five seconds, and then turn the
printer back on.
6To verify if your printer is connected to the network, print a network setup page. Then in the Network Card [x]
section, see if the status is “Connected”.
For more information, see the “Verifying printer setup” section of the User’s Guide.
Verifying printer setup
When all hardware and software options are installed and the printer is turned on, verify that the printer is set up
correctly by printing the following:
•Menu settings page—Use this page to verify that all printer options are installed correctly. A list of installed options
appears toward the bottom of the page. If an option you installed is not listed, then it is not installed correctly.
Remove the option, and then install it again. For more information, see “Printing a menu settings page” on
page 55 for non‑ ‑touch screen printer models, or “Printing a menu settings page” on page 95 for touch‑screen
printer models.
•Network setup page—If your printer has Ethernet or wireless capability and is attached to a network, then print a
network setup page to verify the network connection. This page also provides important information that aids
network printing configuration. For more information, see “Printing a network setup page” on page 55 for
non‑touch screen printer models, or “Printing a network setup page” on page 95 for touch‑screen printer models.
Additional printer setup 30

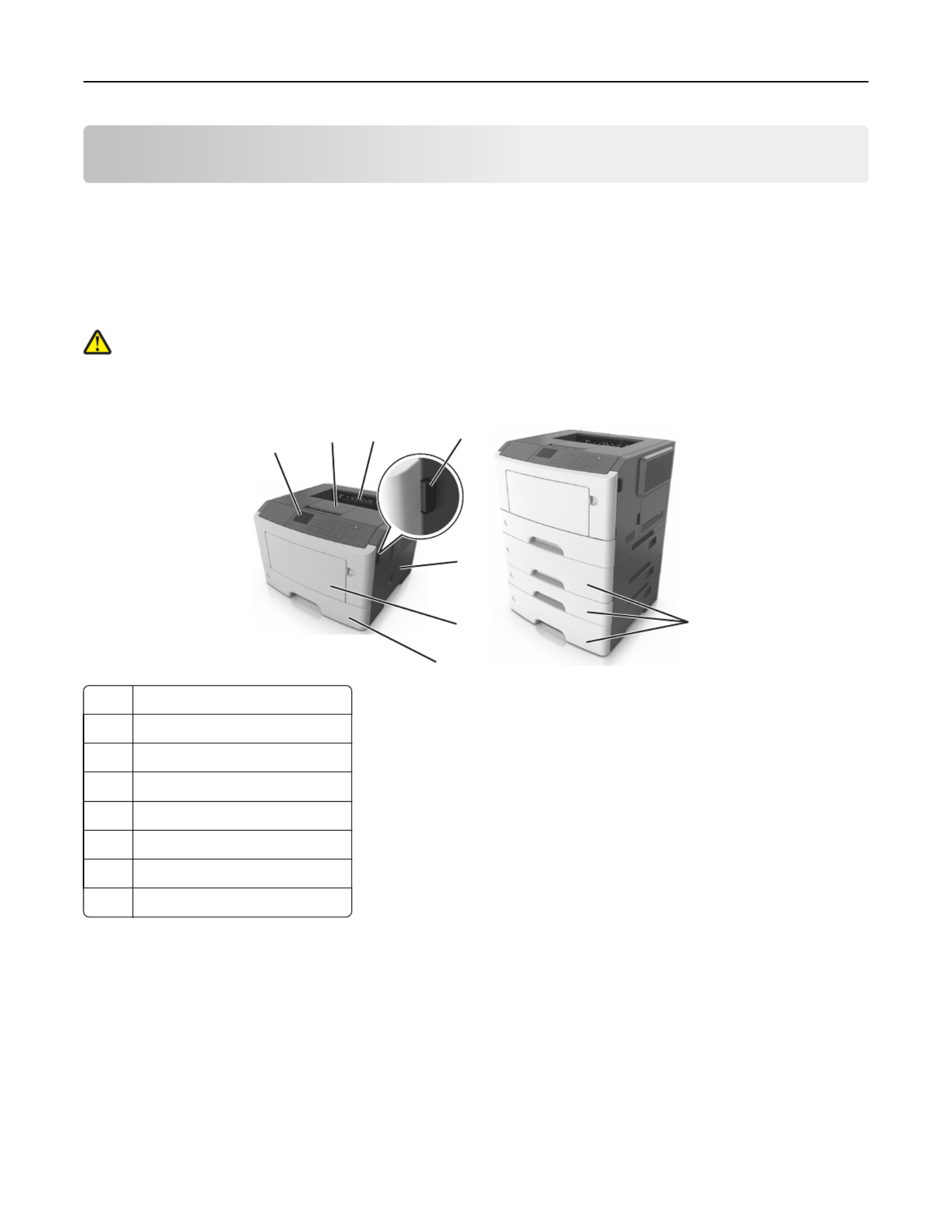

Using MS510dn and MS610dn
Learning about the printer
Printer configurations
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
MS510dn printer model
1
2 3
8
5
6
7
4
1Printer control panel
2Paper stop
3Standard bin
4Front door release button
5Controller board access door
6100‑sheet multipurpose feeder
7Standard 250‑sheet tray
8Optional 250‑ or 550‑sheet trays
Using MS510dn and MS610dn 31
MS610dn printer model
1
23
5
6
7
8
4
1Printer control panel
2Paper stop
3Standard bin
4Front door release button
5Controller board access door
6100‑sheet multipurpose feeder
7Standard 550‑sheet tray
8Optional 250‑ ‑ or 550 sheet trays

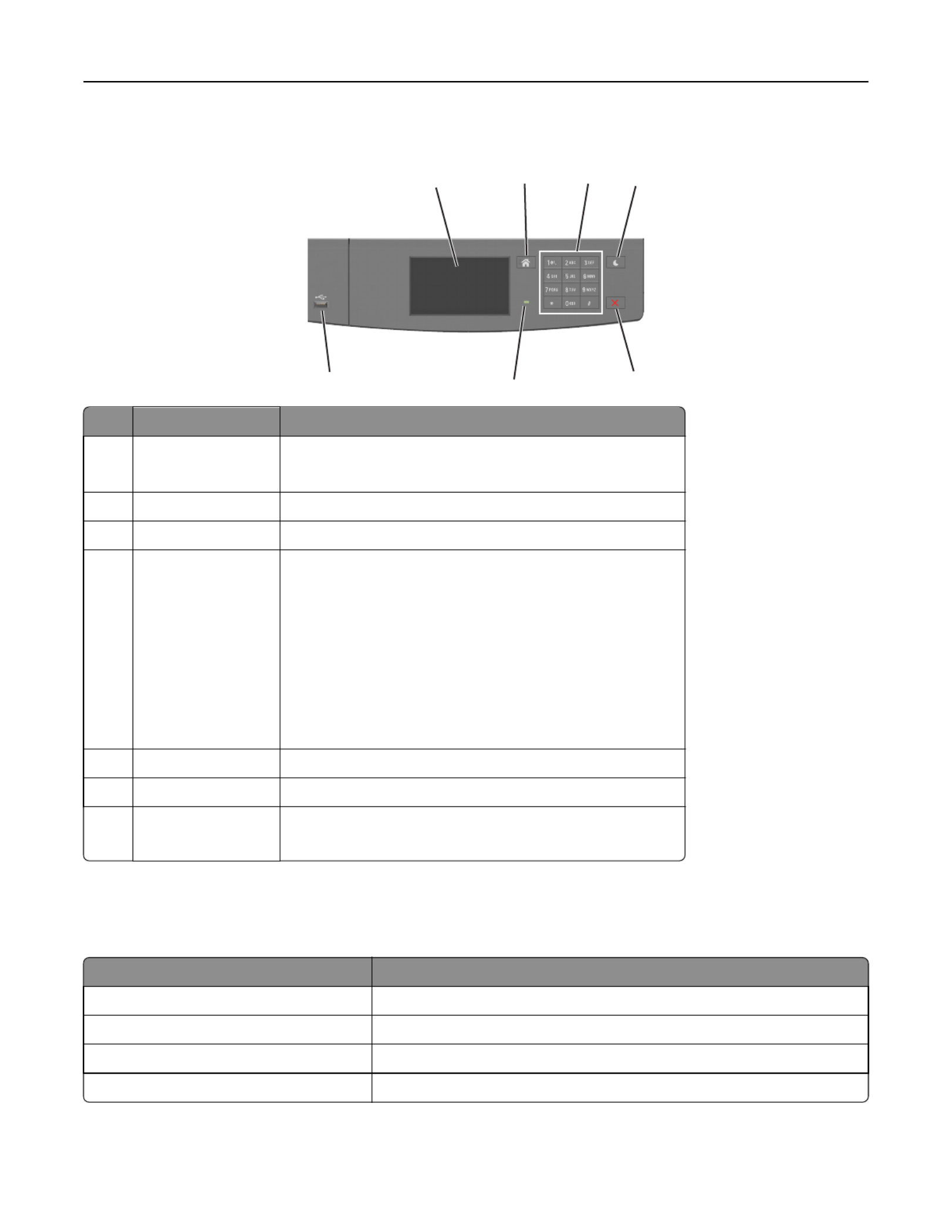

Using the printer control panel
123 4 567
8
9
10
11
12
13
Use the To
1Display View the printer status and messages.
Set up and operate the printer.
2Left arrow button Scroll to the left.
3Select button Select menu options.
Save settings.
4Up arrow button Scroll up.
Using MS510dn and MS610dn 32
Use the To
5Right arrow button Scroll to the right.
6Keypad Enter numbers, letters, or symbols.
7Sleep button Enable Sleep mode or Hibernate mode.
The following actions wake the printer from Sleep mode:
•Pressing any hard button
•Opening a tray or the front door
•Sending a print job from the computer
•Performing a power‑on reset using the main power switch
•Attaching a device in the USB port
8USB port Connect a flash drive to the printer.
Notes:
•Only the front USB port supports flash drives.
•This feature is available only in select printer models.
9Stop or cancel button Stop all printer activities.
10 Back button Return to the previous screen.
11 Down arrow button Scroll down.
12 Home button Go to the home screen.
13 Indicator light Check the status of the printer.
Understanding the colors of the Sleep button and indicator lights
The colors of the Sleep button and indicator lights on the printer control panel signify a certain printer status or condition.
Indicator light Printer status
Off The printer is off or in Hibernate mode.
Blinking green The printer is warming up, processing data, or printing.
Solid green The printer is on, but idle.
Blinking red The printer requires user intervention.
Sleep button light Printer status
Off The printer is off, idle or in Ready state.
Solid amber The printer is in Sleep mode.
Blinking amber The printer is entering or waking from Hibernate mode.
Blinking amber for 0.1 second, then goes
completely off for 1.9 seconds in a slow,
pulsing pattern
The printer is in Hibernate mode.
Using MS510dn and MS610dn 33

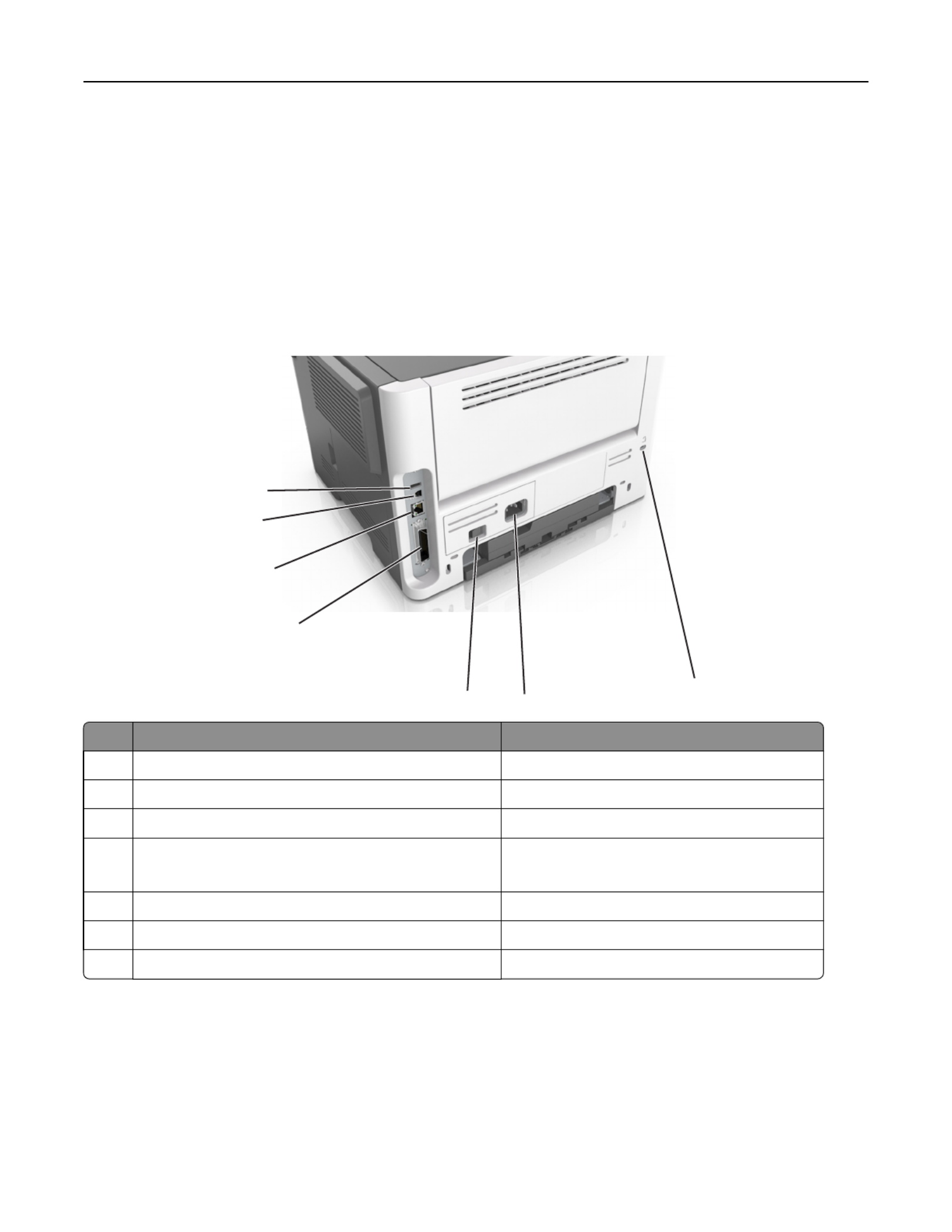

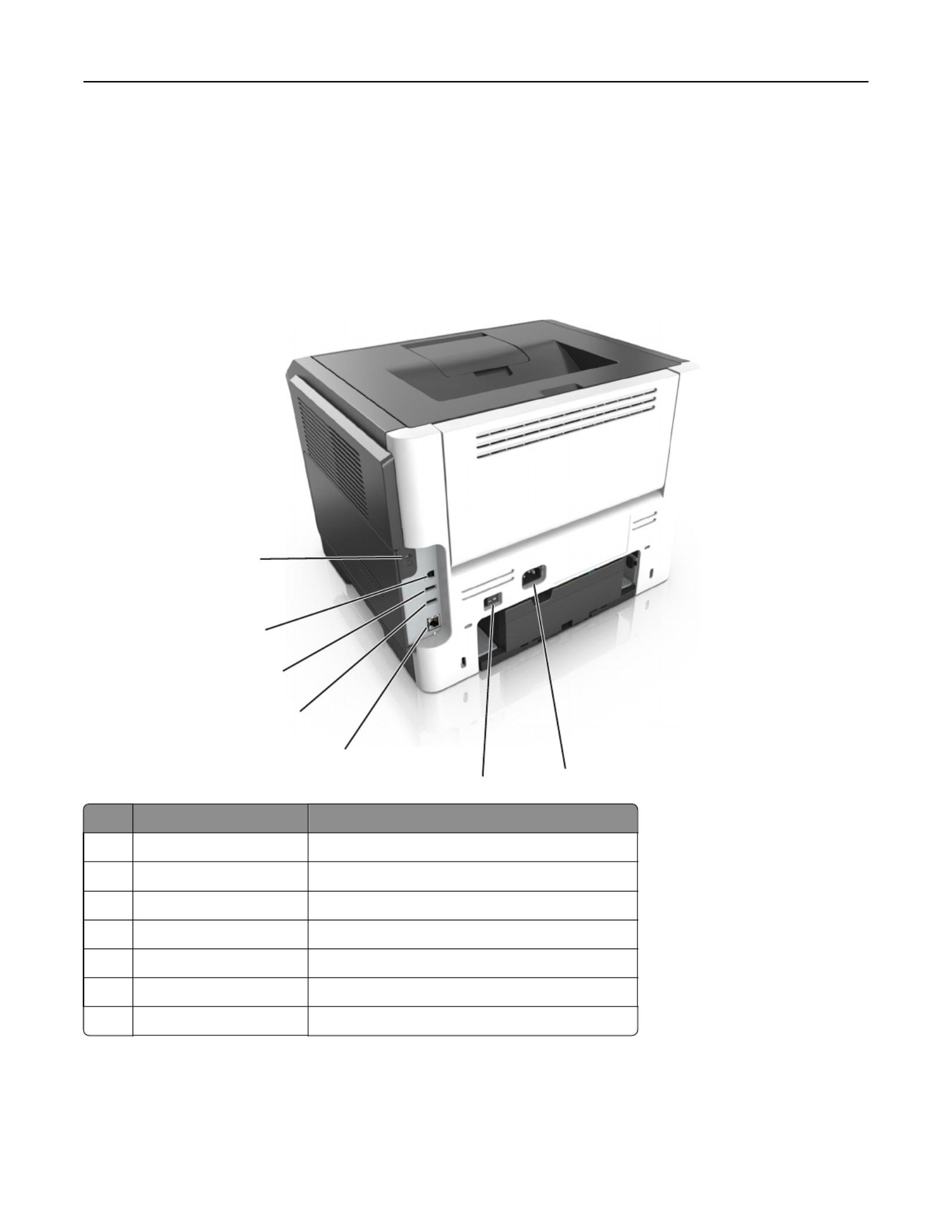

Attaching cables
Connect the printer to the computer using a USB or parallel cable, or to the network using an Ethernet cable.
Make sure to match the following:
•The USB symbol on the cable with the USB symbol on the printer
•The appropriate parallel cable with the parallel port
•The appropriate Ethernet cable with the Ethernet port
Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown
while actively printing. Loss of data or a malfunction can occur.
1
2
3
4
56
7
Use the To
1USB port Attach an optional wireless network adapter.
2USB printer port Connect the printer to a computer.
3Ethernet port Connect the printer to an Ethernet network.
4Parallel port
Note: This port is available only in select printer models.
Connect the printer to a computer.
5Power switch Turn on or turn off the printer.
6Printer power cord socket Connect the printer to an electrical outlet.
7Security slot Attach a lock that will secure the printer in place.
Using MS510dn and MS610dn 34
Accessing the controller board
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
1Open the controller board access door.
2Use the following illustration to locate the appropriate connector.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or
connectors.
2
1
1Memory card connector
2Option card connector
Using MS510dn and MS610dn 35

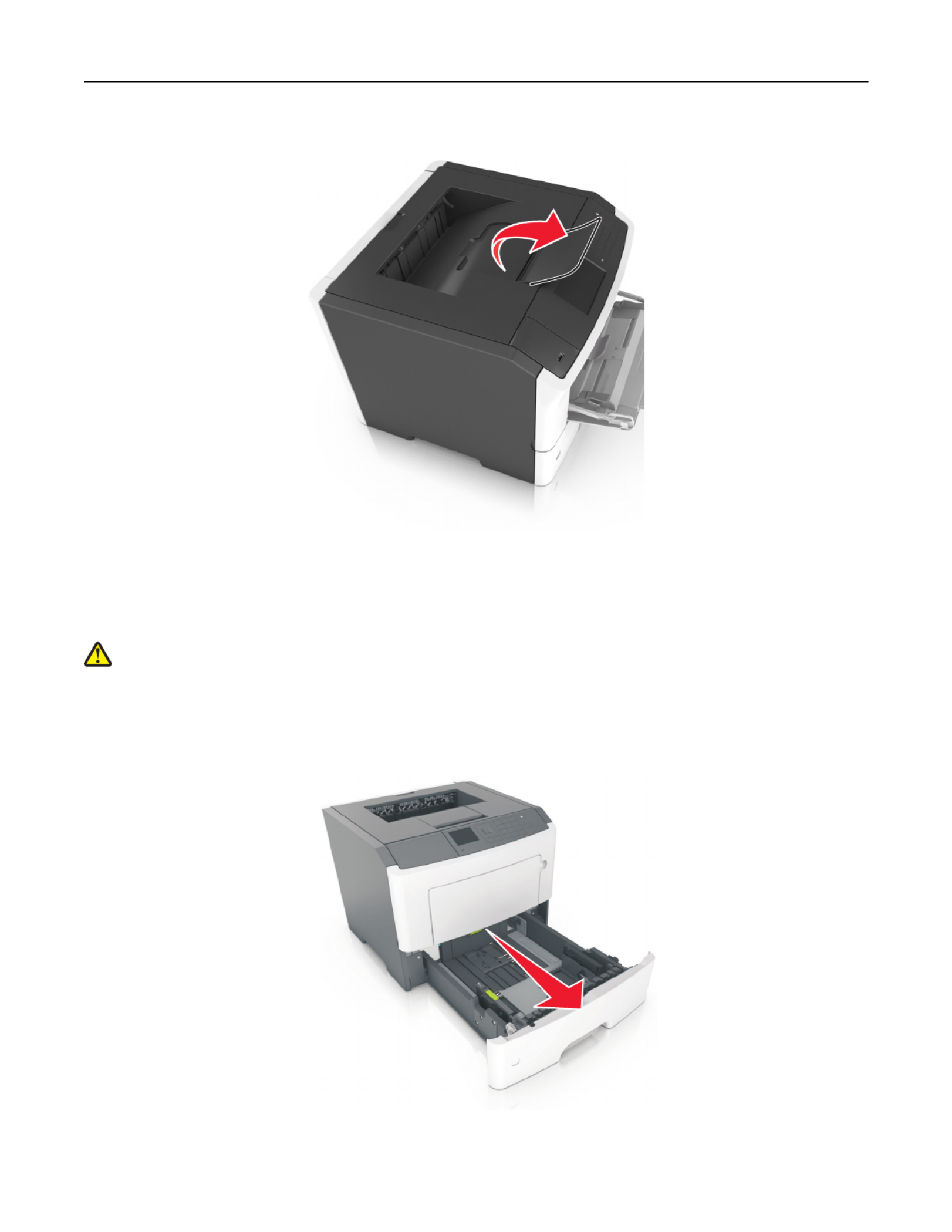

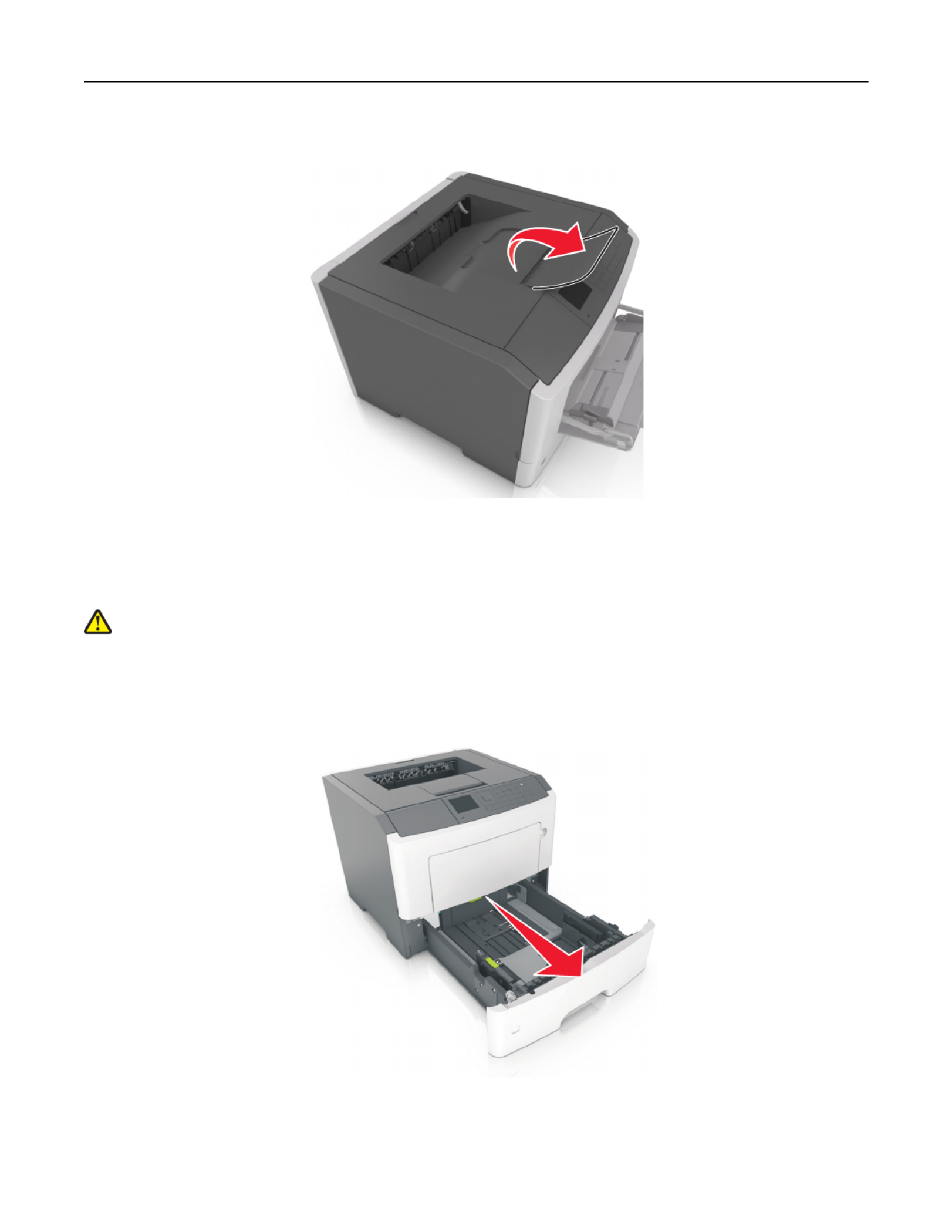

To open the paper stop, pull it so that it flips forward.
Note: Close the paper stop when moving the printer to another location.
Loading trays
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
1Pull out the tray completely.
Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause
a jam.
A
4
LTR
EXEC
B5
A5
A6
1
Using MS510dn and MS610dn 37

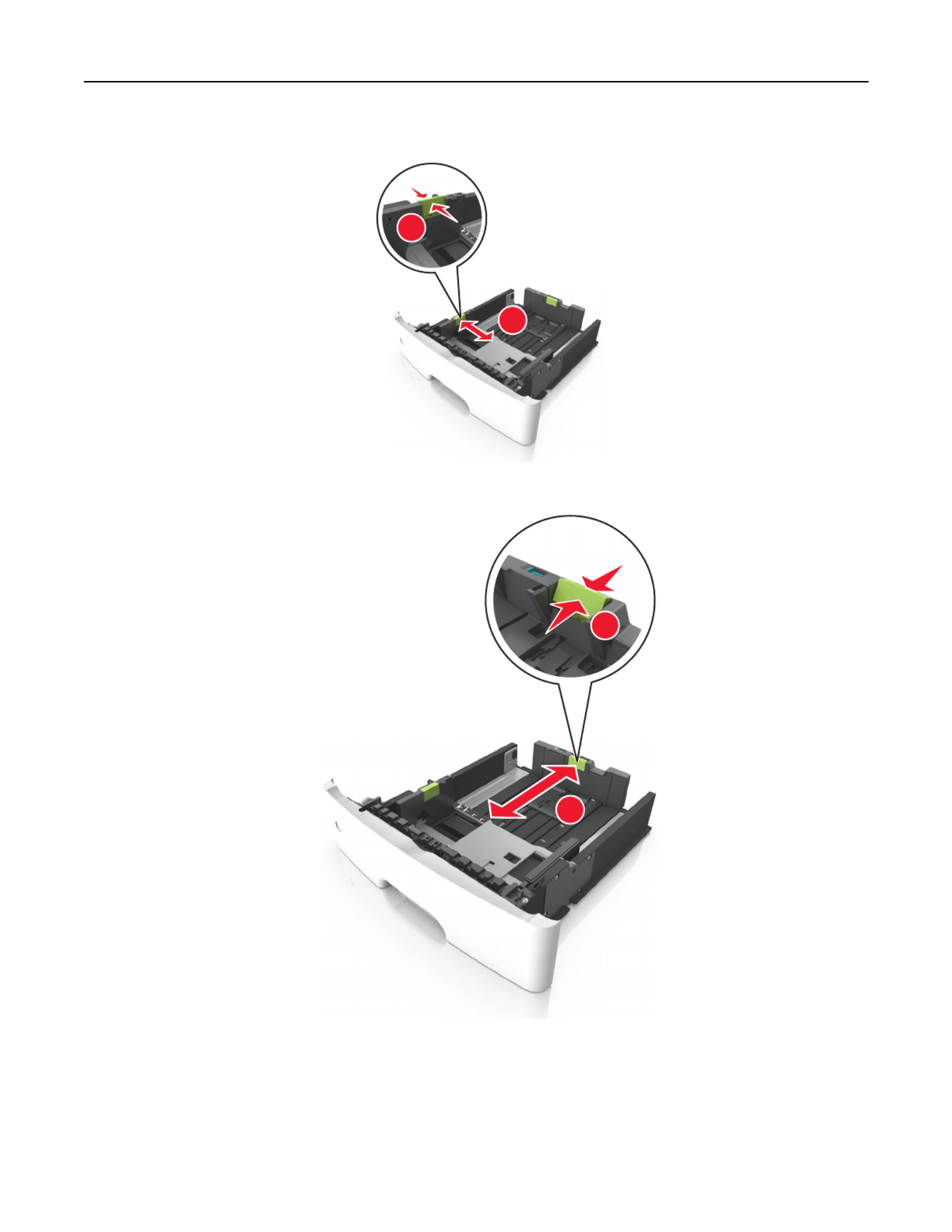

2Squeeze and then slide the width guide tab to the correct position for the size of the paper you are loading.
A4
LTR
EX
EC
B5
A
5
2
1
LT
R
LG
L
EX
EC
A
4B
5A
5
3Squeeze and then slide the length guide tab to the correct position for the size of the paper you are loading.
A
4
LTR
E
XE C
B5
A5
LTR
LG LA4
EX E
C
B
5A5 A6
2
1
Notes:
•For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to
accommodate their length.
Using MS510dn and MS610dn 38
•When loading legal‑size paper, the length guide extends beyond the base leaving the paper exposed to dust.
To protect the paper from dust, you can purchase a dust cover separately. For more information, contact
customer support.
•If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide tab
toward the center of the tray to the A6‑size position.

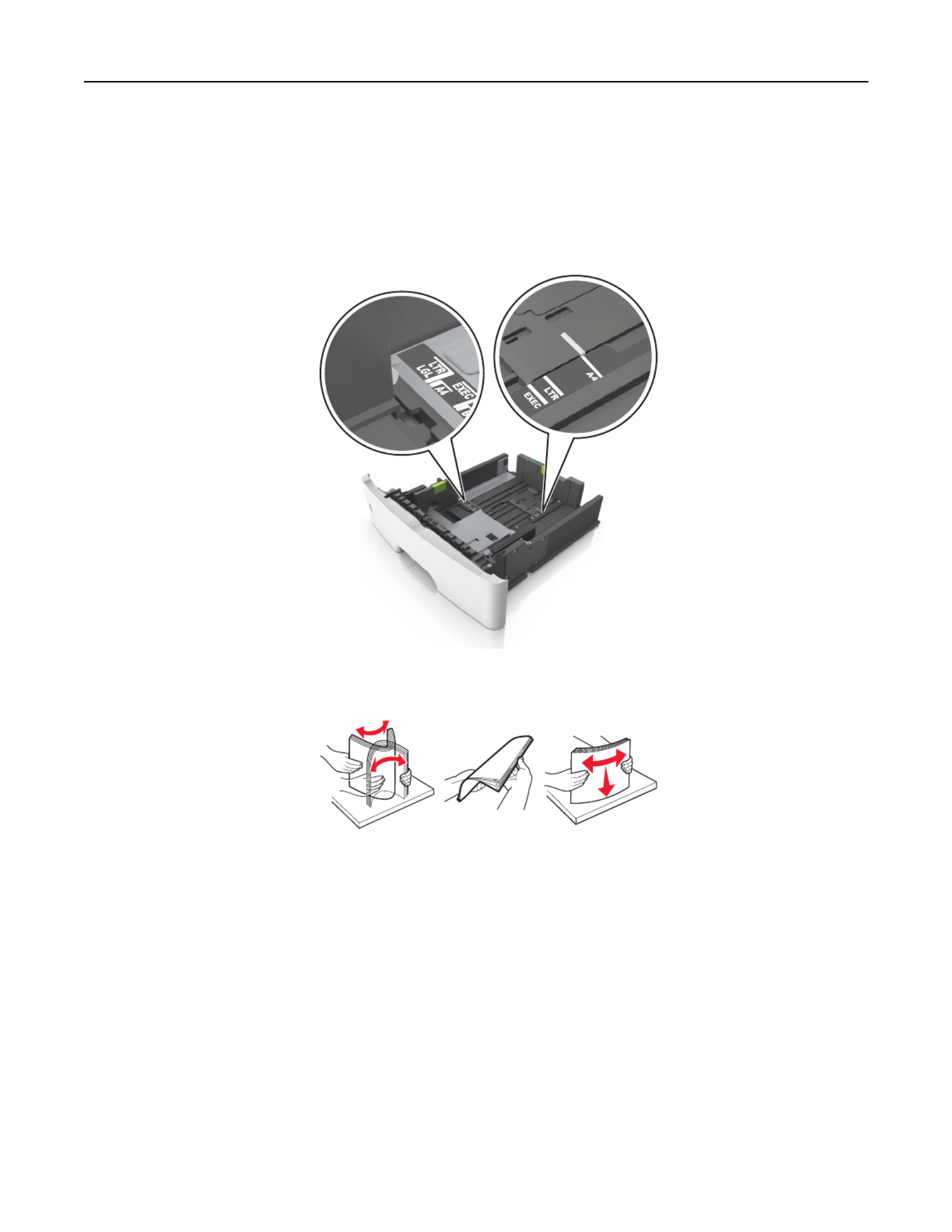

•Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.
A4
LTR
EXE
C
B5
A5
LT
RLG
L
A4
EX EC
B5 A5 A6
4Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the
edges on a level surface.
Using MS510dn and MS610dn 39

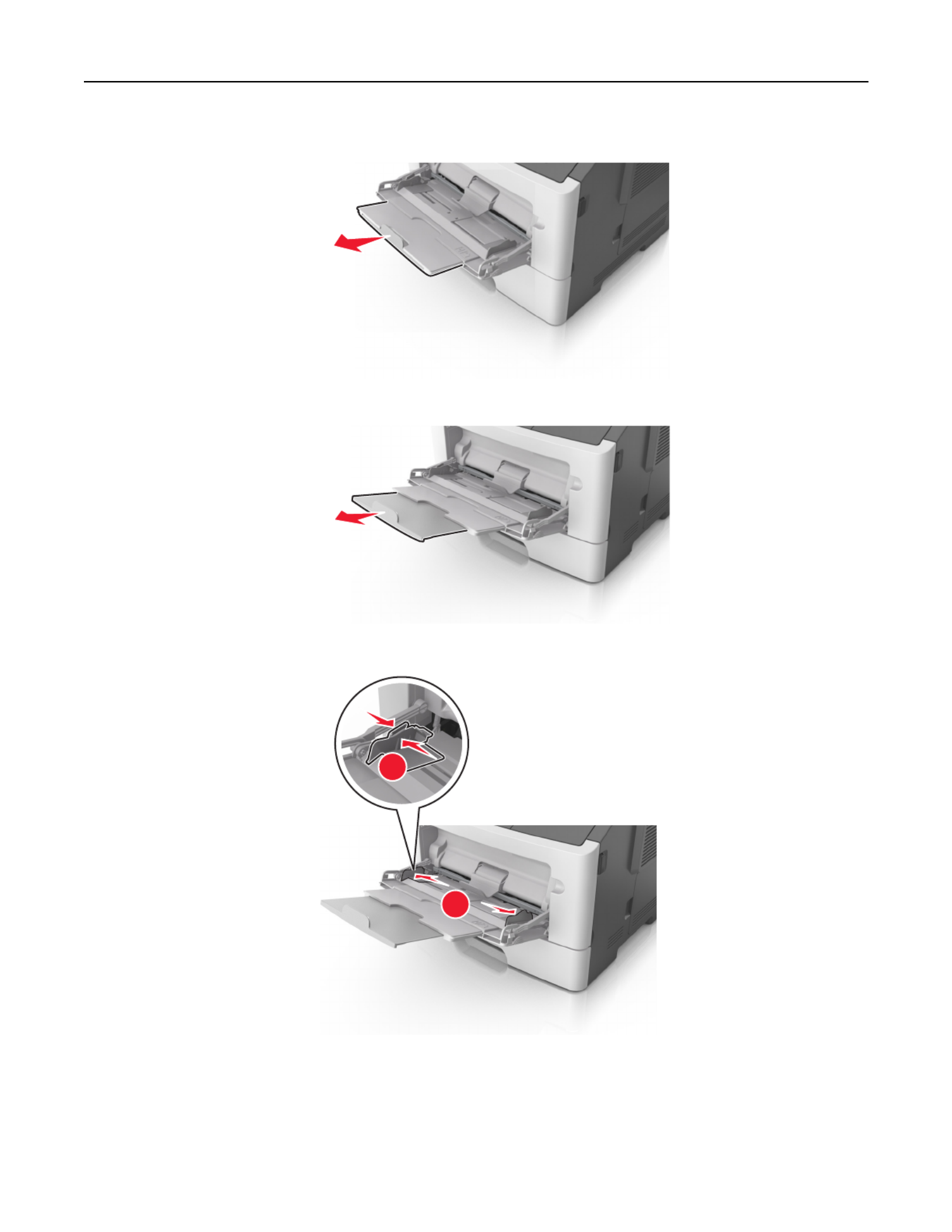

aPull the multipurpose feeder extender.
bPull the extender gently so that the multipurpose feeder is fully extended and open.
2Squeeze the tab on the left width guide, and then move the guides for the paper you are loading.
2
1
Using MS510dn and MS610dn 42

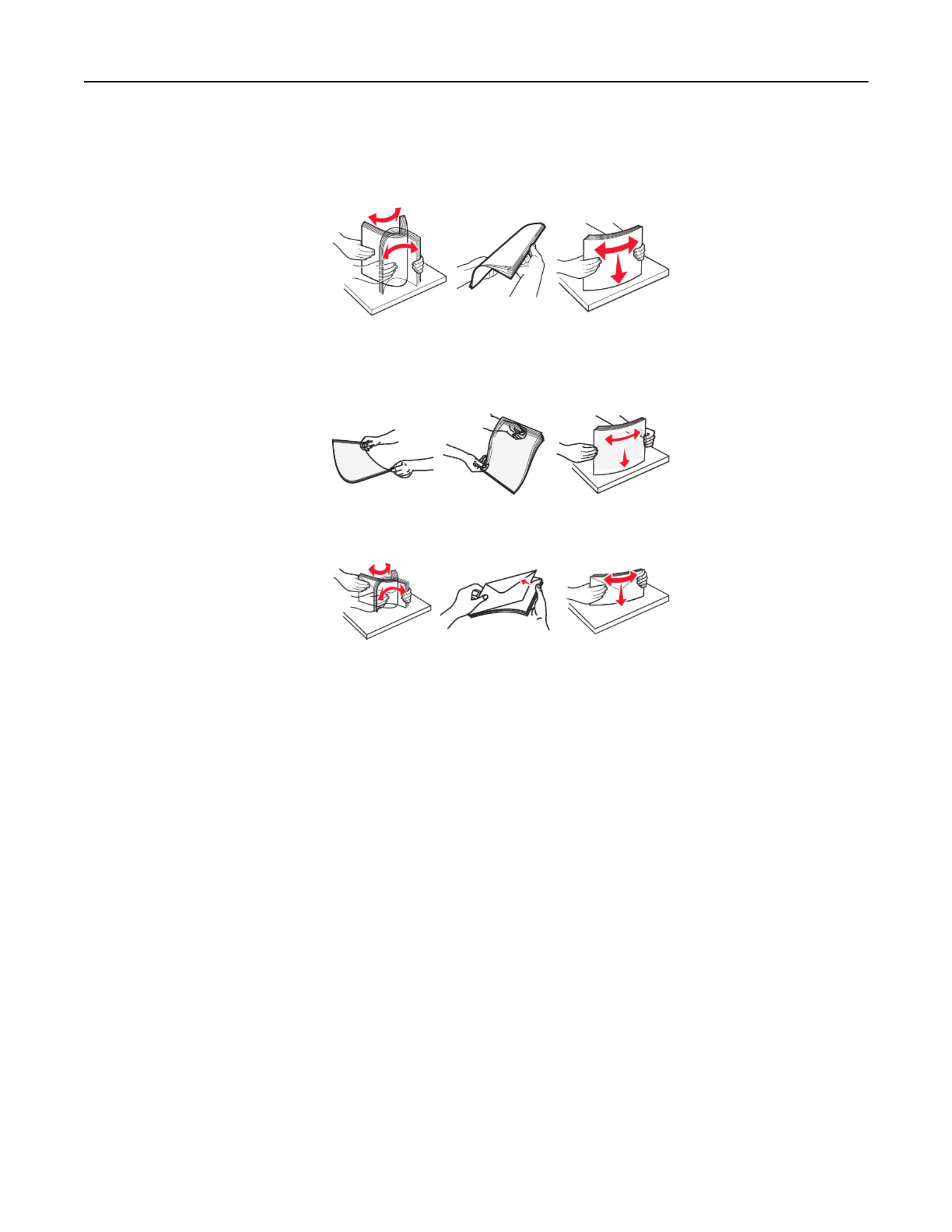

3Prepare the paper or specialty media for loading.
•Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
•Hold transparencies by the edges. Flex the stack of transparencies back and forth to loosen them, and then fan
them. Straighten the edges on a level surface.
Note: Avoid touching the printable side of the transparencies. Be careful not to scratch them.
•Flex the stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level
surface.

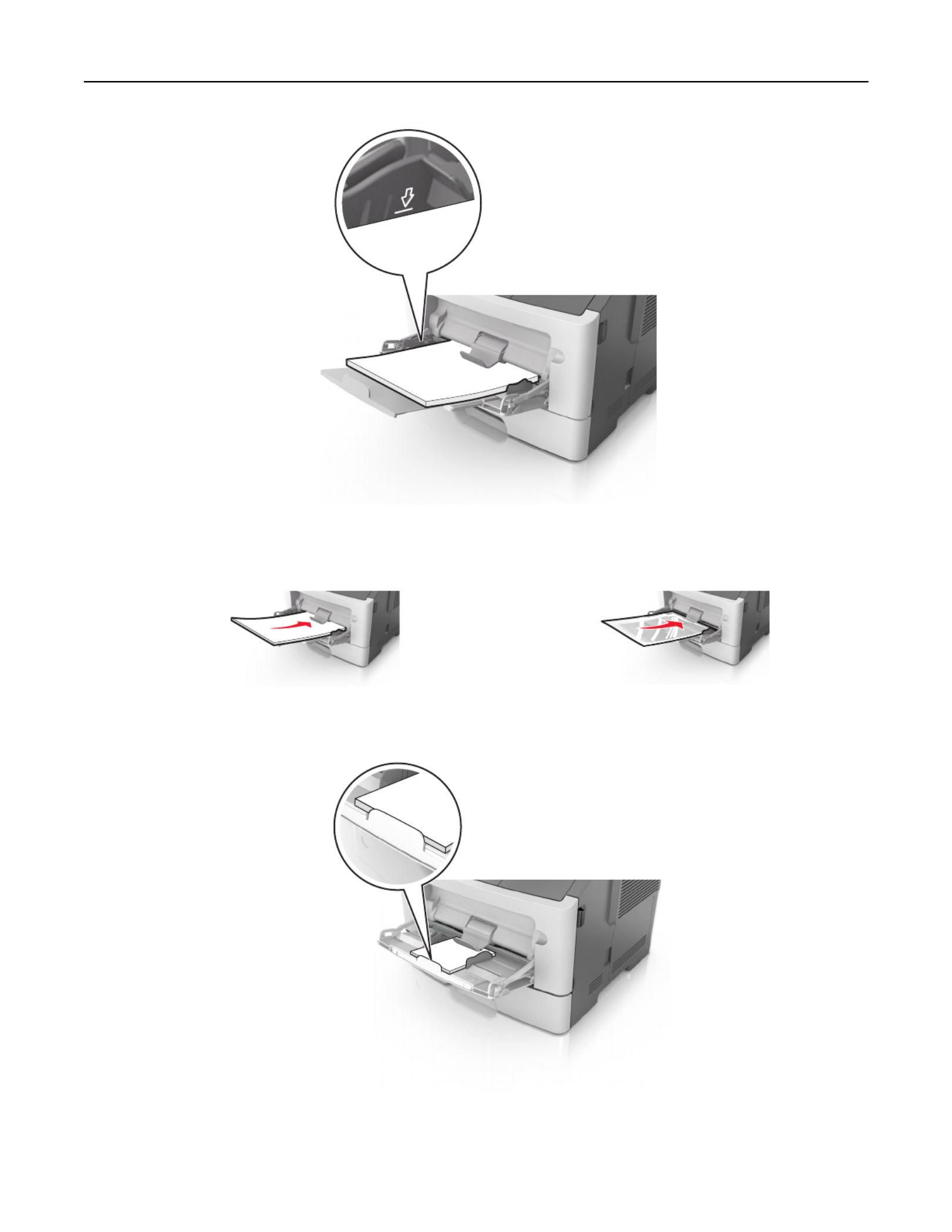

4Load the paper or specialty media.
Notes:
•Do not force paper or specialty media into the multipurpose feeder.
•Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper
guides. Overfilling may cause paper jams.
Using MS510dn and MS610dn 43

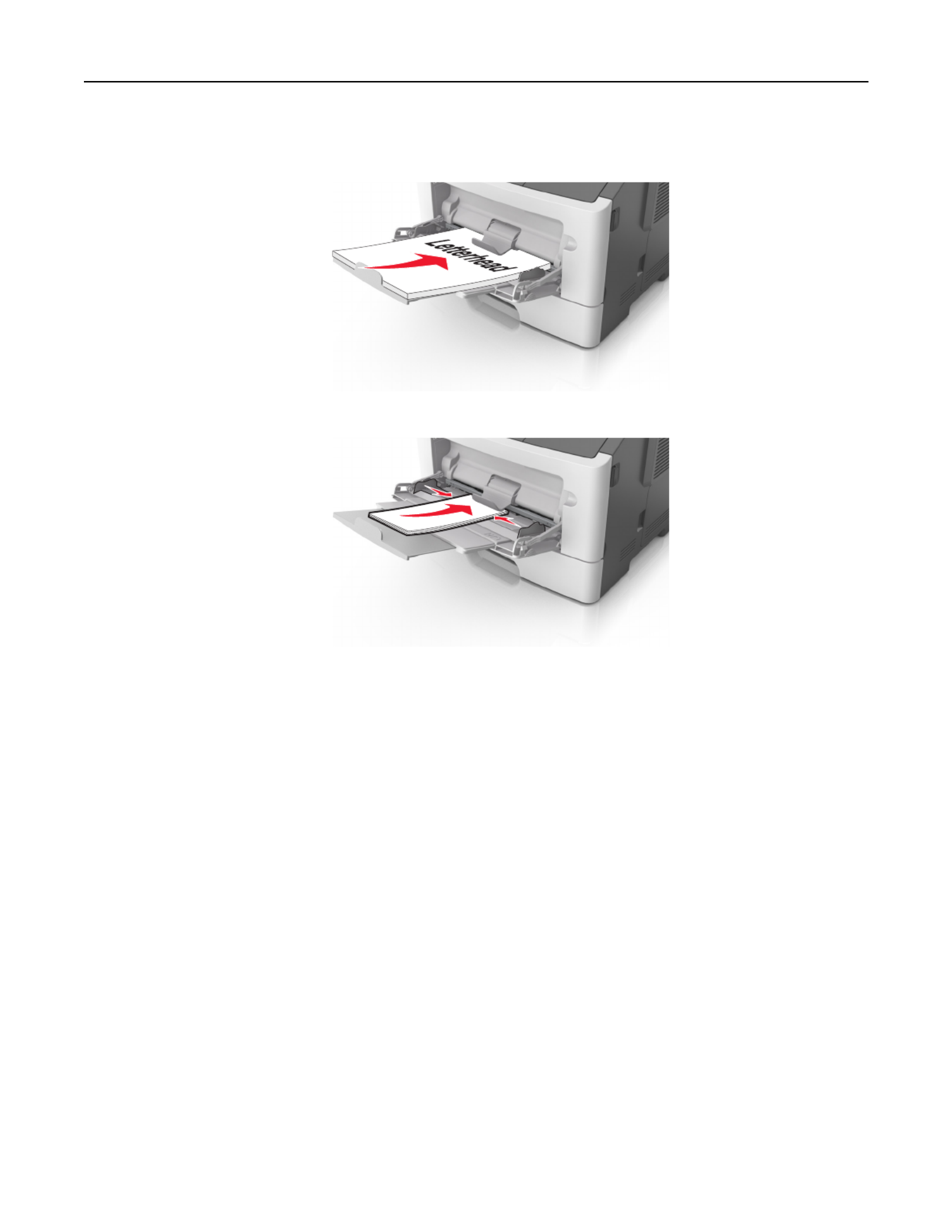

•Load letterhead faceup with the top edge entering the printer first. For two‑sided (duplex) printing, load
letterhead facedown with the bottom edge entering the printer first.
•Load envelopes with the flap on the left side facedown.
Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or
self‑stick adhesives. These envelopes may severely damage the printer.
5From the printer control panel, set the paper size and paper type in the Paper menu to match the paper or specialty
media loaded in the multipurpose feeder.
Linking and unlinking trays
Linking and unlinking trays
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer control panel in the TCP/IP section under the Network/Ports
menu. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu.
3Change the paper size and type settings for the trays you are linking.
•To link trays, make sure the paper size and type for the tray match that of the other tray.
•To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.
4Click Submit.
Using MS510dn and MS610dn 45
Note: You can also change the paper size and type settings using the printer control panel. For more information,
see “Setting the paper size and type” on page 36.
Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer.
The temperature of the fuser varies according to the specified paper type. Printing issues may occur if settings are
not properly configured.
Creating a custom name for a paper type
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Names.
3Select a custom name, and then type a new custom paper type name.
4Click Submit.
5Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.
Using the printer control panel
1From the printer control panel, navigate to:
> Settings > > > > Paper Menu Custom Names
2Select a custom name, and then type a new custom paper type name.
3Press .
4Press Custom Types, and then verify if the new custom paper type name has replaced the custom name.
Assigning a custom paper type
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Types.
3Select a custom paper type name, and then select a paper type.
Note: Paper is the factory default paper type for all user‑defined custom names.
4Click Submit.
Using MS510dn and MS610dn 46

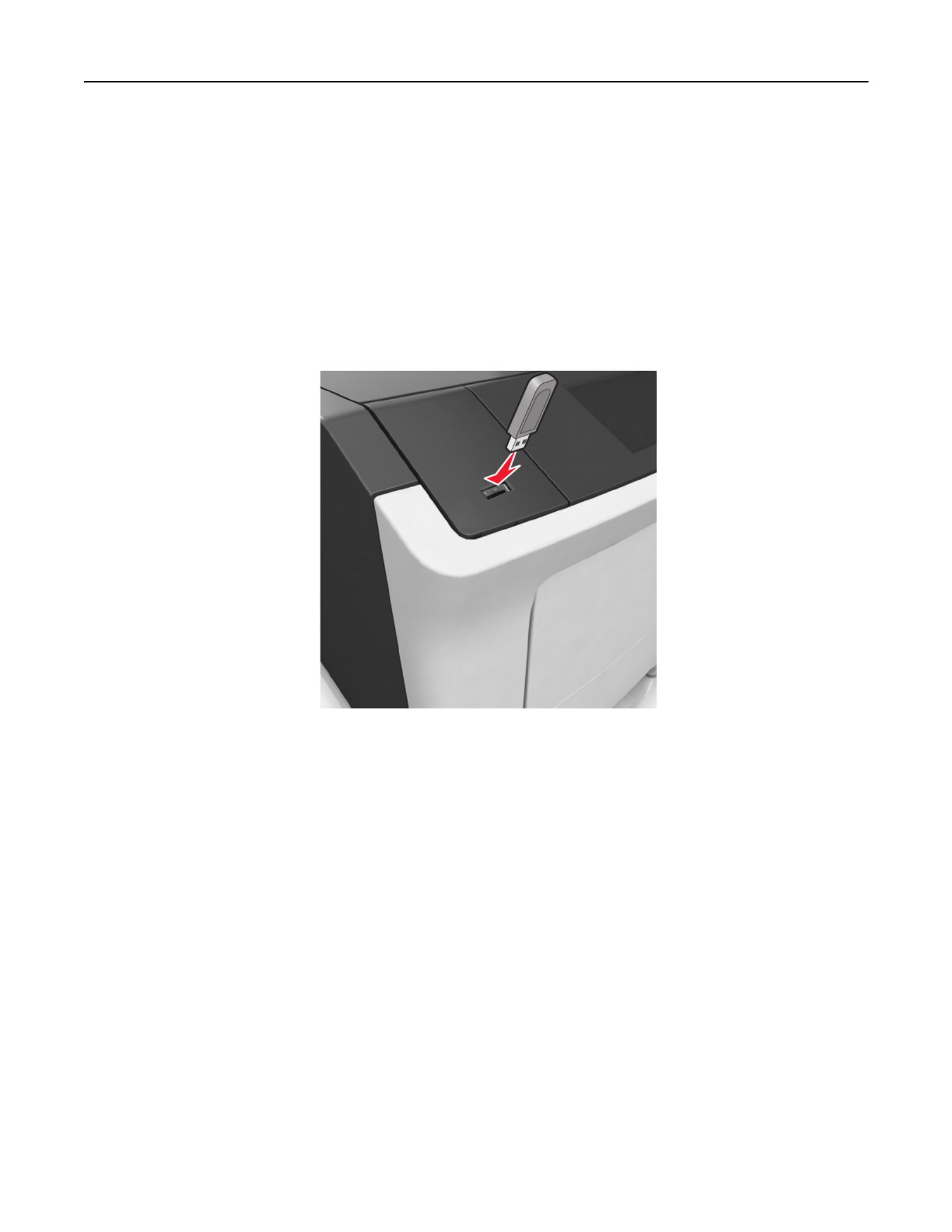

•If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the
printer ignores the flash drive.
•If you insert the flash drive while the printer is processing other print jobs, then Busy appears. After these
print jobs are processed, you may need to view the held jobs list to print documents from the flash drive.

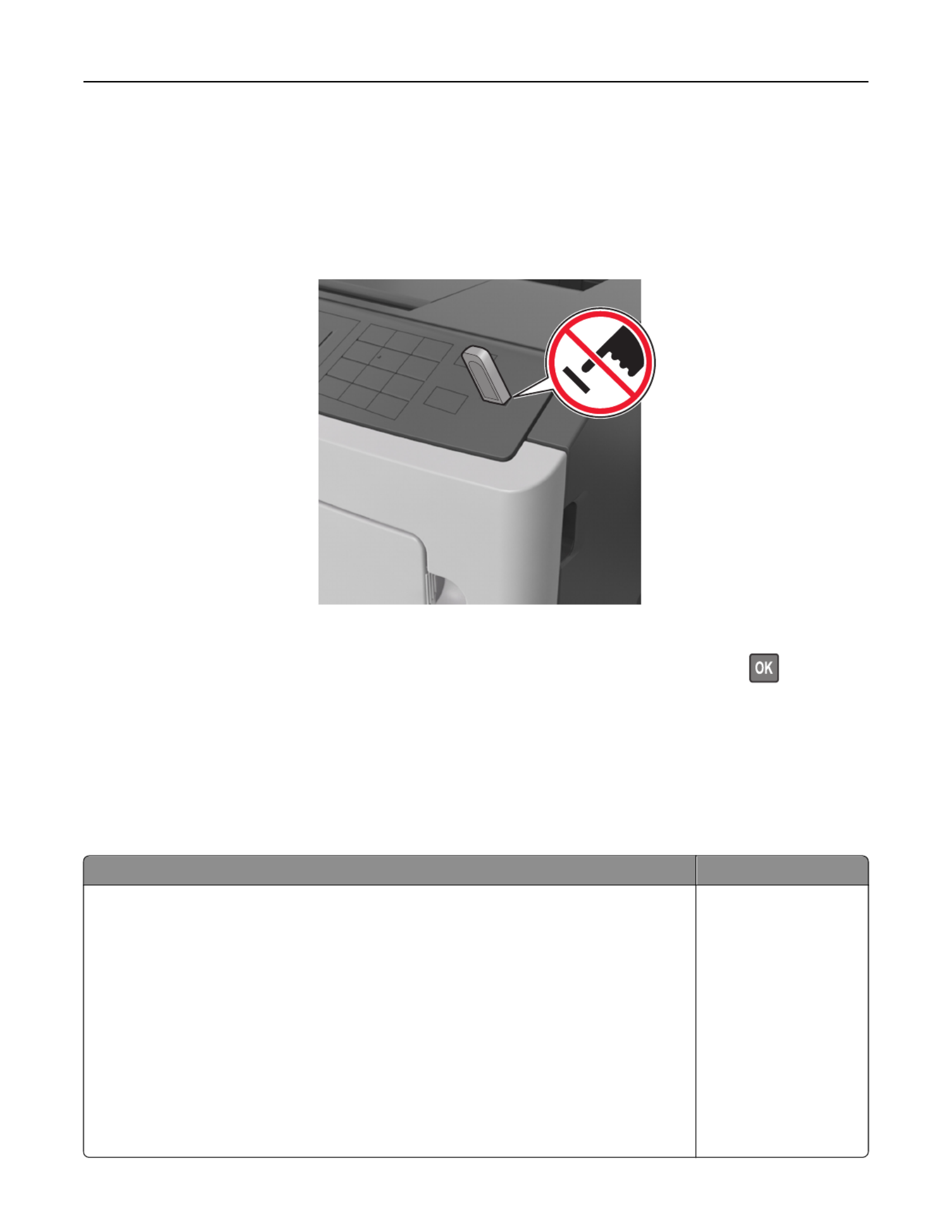

Warning—Potential Damage: Do not touch the printer or the flash drive in the area shown while actively
printing, reading, or writing from the memory device. Loss of data can occur.
2From the printer control panel, select the document you want to print.
3Press the left or right arrow button to specify the number of copies for printing, and then press .
Notes:
•Do not remove the flash drive from the USB port until the document has finished printing.
•If you leave the flash drive in the printer after leaving the initial USB menu screen, then access held jobs
from the printer control panel to print files from the flash drive.
Supported flash drives and file types
Flash drive File type
•Lexar JumpDrive 2.0 Pro (256MB, 512MB, or 1GB sizes)
•SanDisk Cruzer Mini (256MB, 512MB, or 1GB sizes)
Notes:
•Hi‑speed USB flash drives must support the full‑speed standard. Low-speed USB devices
are not supported.
•USB flash drives must support the File Allocation Table (FAT) system. Devices formatted
with New Technology File System (NTFS) or any other file system are not supported.
Documents:
•.pdf
•.xps
Images:
•.dcx
•.JPEG or .jpg
•.pcx
•.TIFF or .tif
Using MS510dn and MS610dn 49
Printing from a mobile device
To download a compatible mobile printing application, visit www.lexmark.com/mobile.
Note: Mobile printing applications may also be available from your mobile device manufacturer.
Printing confidential and other held jobs
Storing print jobs in the printer
1From the printer control panel, navigate to:
> Security > Confidential Print
2Select a print job type.
Use To
Confidential Job Expiration Hold print jobs in the computer until you enter the PIN from the printer control
panel.
Note: The PIN is set from the computer. It must be four digits, using the
numbers 0–9.
Max Invalid PIN Limit the number of times an invalid PIN can be entered.
Note: When the limit is reached, the print jobs for that user name and PIN
are deleted.
Repeat Job Expiration Print and store print jobs in the printer memory.
Reserve Job Expiration Store print jobs for printing at a later time.
Note: The print jobs are held until deleted from the Held Jobs menu.
Verify Job Expiration Print one copy of a print job and hold the remaining copies. It lets you examine
if the first copy is satisfactory.
Note: The print job is automatically deleted from the printer memory once
all copies are printed.
Notes:
•Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to
process additional held jobs.
•You can set the printer to store print jobs in the printer memory until you start the print job from the printer
control panel.
•All print jobs that can be initiated by the user at the printer are called held jobs.
3Press .
Using MS510dn and MS610dn 50
Printing confidential and other held jobs
Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve
jobs are held in the printer until you choose to delete them.
For Windows users
1With a document open, click File > Print.
2Click Properties, , Preferences Options, or Setup.
3Click Print and Hold.
4Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four‑digit PIN.
5Click OK or Print.
6From the printer control panel, release the print job.
•For confidential print jobs, navigate to:
Held jobs > select your user name > Confidential Jobs > enter the PIN > select the print job > specify the number
of copies > Print
•For other print jobs, navigate to:
Held jobs > select your user name > select the print job > specify the number of copies > Print
For Macintosh users
1With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2From the print options or Copies & Pages pop‑up menu, choose Job Routing.
3Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four‑digit PIN.
4Click OK or Print.
5From the printer control panel, release the print job:
•For confidential print jobs, navigate to:
Held jobs > select your user name > Confidential Jobs > enter the PIN > select the print job > specify the number
of copies > Print
•For other print jobs, navigate to:
Held jobs > select your user name > select the print job > specify the number of copies > Print
Printing information pages
Printing a font sample list
1From the printer control panel, navigate to:
> Settings > > Reports > > Print Fonts
2Press the up or down arrow button to select the font setting.
Using MS510dn and MS610dn 51
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Check the virtual display that appears at the top left corner of the screen.
The virtual display works as an actual display would work on a printer control panel.
Configuring supply notifications from the Embedded Web Server
You can determine how you would like to be notified when supplies run nearly low, low, very low, or reach their
end‑of‑life by setting the selectable alerts.
Notes:
•Selectable alerts can be set on the toner cartridge, imaging unit, and maintenance kit.
•All selectable alerts can be set for nearly low, low, and very low supply conditions. Not all selectable alerts can
be set for the end‑ ‑of life supply condition. E‑mail selectable alert is available for all supply conditions.
•The percentage of estimated remaining supply that prompts the alert can be set on some supplies for some
supply conditions.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Print Settings > Supply Notifications.
3From the drop‑down menu for each supply, select one of the following notification options:
Notification Description
Off The normal printer behavior for all supplies occurs.
E‑mail Only The printer generates an e-mail when the supply condition is reached. The status of the
supply will appear on the menus page and status page.
Warning The printer displays the warning message and generates an email about the status of the
supply. The printer does not stop when the supply condition is reached.
Continuable Stop1The printer stops processing jobs when the supply condition is reached, and the user needs
to press a button to continue printing.
Non Continuable Stop1,2 The printer stops when the supply condition is reached. The supply must be replaced to
continue printing.
1 The printer generates an e-mail about the status of the supply when supply notification is enabled.
2 The printer stops when some supplies become empty to prevent damage.
4Click Submit.
Modifying confidential print settings
Note: This feature is available only in network printers or printers connected to print servers.
1Open a Web browser, and then type the printer IP address in the address field.
Using MS510dn and MS610dn 53
Checking the status of parts and supplies from the Embedded Web Server
Note: Make sure the computer and printer are connected to the same network.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Device Status > More Details.
Saving energy
Using Eco‑
‑
‑
‑‑mode
Use Eco‑Mode to quickly select one or more ways to reduce your printer's environmental impact.
1From the printer control panel, navigate to:
> Settings > > > Settings General Settings > > Eco‑
‑
‑
‑‑Mode > > select the setting you want
Use To
Off Use the factory default settings for all settings associated with Eco‑Mode. This setting supports the
performance specifications for your printer.
Energy Reduce energy use, especially when the printer is idle.
•Printer engine motors do not start until a job is ready to print. You may notice a short delay before
the first page is printed.
•The printer enters Sleep mode after one minute of inactivity.
Energy/Paper Use all the settings associated with Energy and Paper modes.
Plain Paper •Enable the automatic two‑sided (duplex) feature.
•Turn off print log features.
2Press .
Reducing printer noise
Use Quiet mode to reduce the printer noise.
1From the printer control panel, navigate to:
> Settings > > > Settings General Settings > > Quiet Mode >
2Select a setting you want.
Using MS510dn and MS610dn 56
Use To
On Reduce printer noise.
Notes:
•Print jobs will process at a reduced speed.
•Printer engine motors do not start until a document
is ready to print. There is a short delay before the
first page is printed.
Off Use factory default settings.
Note: This setting supports the performance
specifications of the printer.
3Press .
Adjusting Sleep mode
1From the control panel, navigate to:
> Settings > > > > Settings General Settings > > Timeouts > > Sleep Mode >
2In the Sleep Mode field, select the number of minutes the printer is idle before it enters Sleep mode.
3Apply the changes.
Using Hibernate mode
Hibernate is an ultra‑ ‑low power saving mode.
Notes:
•Three days is the default amount of time before the printer enters Hibernate mode.
•Make sure to wake the printer from Hibernate mode before sending a print job. A hard reset or a long press of
the Sleep button wakes the printer from Hibernate mode.
•If the printer is in Hibernate mode, then the Embedded Web Server is disabled.
1From the control panel, navigate to:
> Settings > > > > Settings General Settings >
2Select Press Sleep Button or Press and Hold Sleep Button, and then press .
3Press Hibernate > .
Using MS510dn and MS610dn 57
Setting Hibernate Timeout
Hibernate Timeout lets you set the amount of time the printer waits after a print job is processed before it goes into a
reduced power state.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > > General Settings Timeouts.
3From the Hibernate Timeout menu, select the number of hours, days, weeks, or months you want for the printer
to wait before it goes into a reduced power state.
4Click Submit.
Using the printer control panel
1From the printer control panel, navigate to:
> Settings > > > > Settings General Settings > > Timeouts > > Hibernate Timeout >
2Select the amount of time the printer waits after a print job is processed before it enters Hibernate mode.
3Press .
Using Schedule Power Modes
Schedule Power Modes lets you schedule when the printer goes into a reduced power state or into the Ready state.
Note: This feature is available only in network printers or printers connected to print servers.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > > General Settings Schedule Power Modes.
3From the Action menu, select the power mode.
4From the Time menu, select the time.
5From the Day(s) menu, select the day or days.
6Click Add.
Using MS510dn and MS610dn 58
Adjusting the brightness of the printer display
To save energy, or if you have trouble reading the display, adjust its brightness settings.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > General Settings.
3In the Screen Brightness field, enter the brightness percentage you want for the display.
4Click Submit.
Restoring factory default settings
If you want to keep a list of the current menu settings for reference, then print a menu settings page before restoring
the factory default settings. For more information, see “Printing a menu settings page” on page 55.
If you want a more comprehensive method of restoring the printer factory default settings, then perform the Wipe All
Settings option. For more information, see “Erasing non‑volatile memory” on page 61.
Warning—Potential Damage: Restoring factory defaults returns most printer settings to the original factory default
settings. Exceptions include the display language, custom sizes and messages, and network/port menu settings. All
downloads stored in the RAM are deleted. Downloads stored in the flash memory or in printer hard disk are not
affected.
From the printer control panel, navigate to:
> Settings > Settings > > General Settings > > Factory Defaults > > Restore Now >
Using MS510dn and MS610dn 59
Erasing non‑
‑
‑
‑‑volatile memory
Erase individual settings, device and network settings, security settings, and embedded solutions by following these
steps:
1Turn off the printer.
2Hold down 2 6 and on the keypad while turning the printer on. Release the buttons only when the screen with the
progress bar appears.
The printer performs a power-on sequence, and then the Configuration menu appears. When the printer is fully
turned on, a list of functions appears on the printer display.
3Press the up or down arrow button until Wipe All Settings appears.
The printer will restart several times during this process.
Note: Wipe All Settings securely removes device settings, solutions, jobs, and passwords from the printer
memory.
4Navigate to:
Back > Exit Config Menu
The printer will perform a power‑on reset, and then return to normal operating mode.
Finding printer security information
In high-security environments, it may be necessary to take additional steps to make sure that confidential data stored
in the printer cannot be accessed by unauthorized persons. For more information, visit the
Lexmark security Web page.
You can also see the Embedded Web Server — Security: Administrator’s Guide for additional information:
1Go to www.lexmark.com, and then navigate to Support & Downloads > select your printer.
2Click the Manuals tab, and then select Embedded Web Server — Security: Administrator’s Guide.
Using MS510dn and MS610dn 61
Using MS610de
Learning about the printer
Printer configurations
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
Basic and configured models
123
5
6
7
8
4
1 Printer control panel
2 Paper stop
3 Standard bin
4 Front door release button
5 Controller board access door
6 100‑sheet multipurpose feeder
7 Standard 550‑sheet tray
8 Optional 250‑ or 550‑sheet tray
Using MS610de 62
Using the printer control panel
12 3 4
5
6
7
Use the To
1 Display •View the printer status and messages.
•Set up and operate the printer.
2 Home button Go to the home screen.
3 Keypad Enter numbers, letters, or symbols.
4 Sleep button Enable Sleep mode or Hibernate mode.
The following actions wake the printer from Sleep mode:
•Touching the screen
•Pressing any hard button
•Opening a tray or the front door
•Sending a print job from the computer
•Performing a power‑on reset using the main power switch
•Attaching a device to the USB port
5 Stop or cancel button Stop all printer activity.
6 Indicator light Check the status of the printer.
7 USB port Connect a flash drive to the printer.
Note: Only the front USB port supports flash drives.
Understanding the colors of the Sleep button and indicator lights
The colors of the Sleep button and indicator lights on the printer control panel signify a certain printer status or condition.
Indicator light Printer status
Off The printer is off or in Hibernate mode.
Blinking green The printer is warming up, processing data, or printing.
Solid green The printer is on, but idle.
Blinking red The printer requires user intervention.
Using MS610de 63
Sleep button light Printer status
Off The printer is off, idle or in Ready state.
Solid amber The printer is in Sleep mode.
Blinking amber The printer is entering or waking from Hibernate mode.
Blinking amber for 0.1 second, then goes
completely off for 1.9 seconds in a slow,
pulsing pattern
The printer is in Hibernate mode.

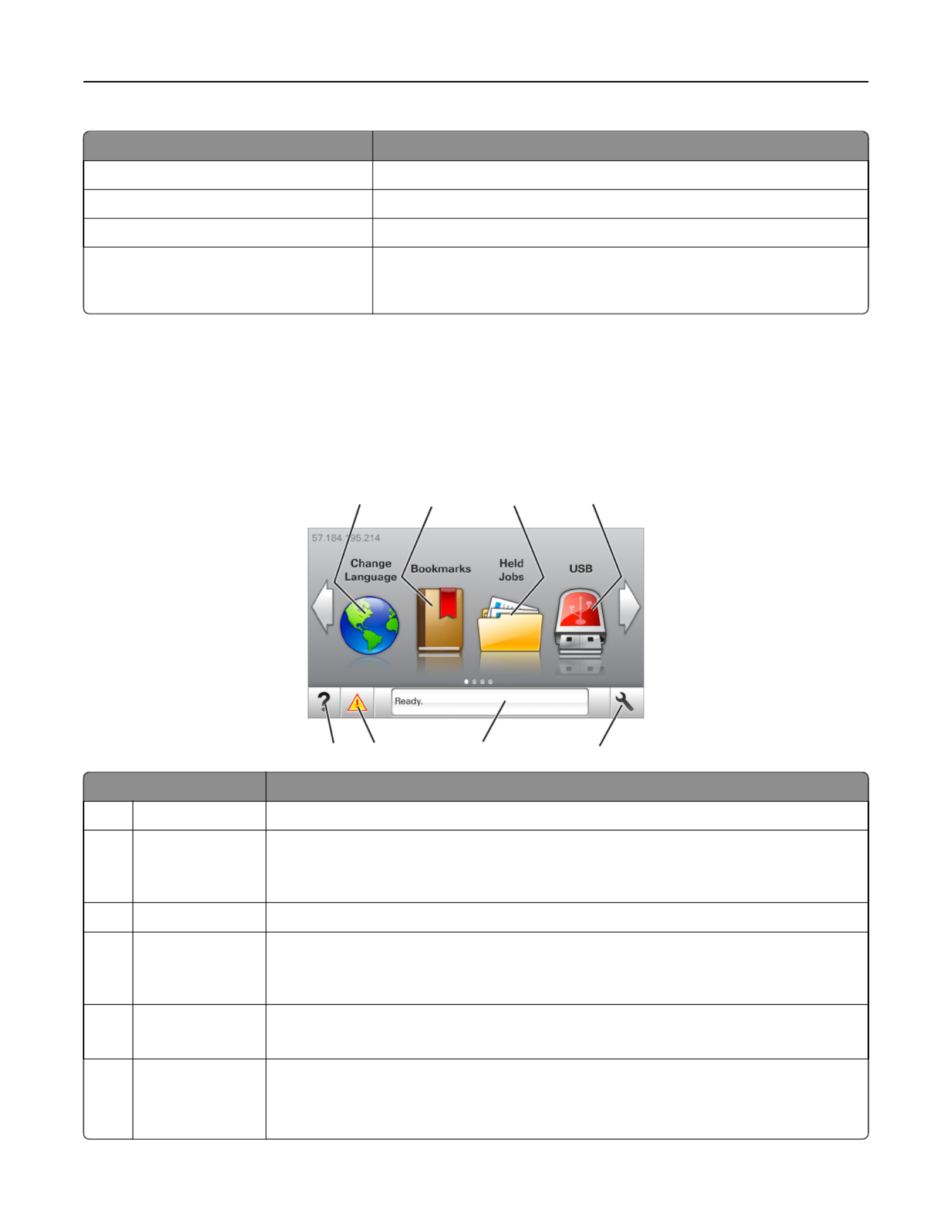

Understanding the home screen
When the printer is turned on, the display shows a basic screen, referred to as the home screen. Use the home screen
buttons and icons to initiate an action.
Note: Your home screen may vary depending on your home screen customization settings, administrative setup, and
active embedded solutions.
12 3 4
5
6
7
8
Touch To
1 Change Language Change the primary language of the printer.
2 Bookmarks Create, organize, and save a set of bookmarks (URLs) into a tree view of folders and file links.
Note: The tree view does not include bookmarks created within Forms and Favorites, and
the ones in the tree are not usable in Forms and Favorites.
3 Held Jobs Display all current held jobs.
4 USB View, select, or print photos and documents from a flash drive.
Note: This icon appears only when you return to the home screen while a memory card or
flash drive is connected to the printer.
5 Menus Access printer menus.
Note: These menus are available only when the printer is in ready state.
6 Status message bar •Show the current printer status such as Ready or Busy.
•Show printer conditions such as Imaging unit low or Cartridge Low.
•Show intervention messages and the instructions on how to clear them.
Using MS610de 64
Make sure to match the following:
•The USB symbol on the cable with the USB symbol on the printer
•The appropriate parallel cable with the parallel port
Note: The parallel port is available only when an Internal Solutions Port is installed.
•The appropriate Ethernet cable with the Ethernet port
Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown
while actively printing. Loss of data or a malfunction can occur.
1
2
3
4
5
67
Use the To
1Security slot Attach a lock that will secure the controller board.
2USB printer port Connect the printer to a computer.
3USB port Connect a flash drive to the printer.
4USB port Attach an optional wireless network adapter.
5Ethernet port Connect the printer to an Ethernet network.
6Power switch Turn on or off the printer.
7Printer power cord socket Connect the printer to an electrical outlet.
Using MS610de 67
Accessing the controller board
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
1Open the controller board access door.
2Open the controller board shield using the green handle.
2
1
3Use the following illustration to locate the appropriate connector.
Using MS610de 68
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or
connectors.
1
2
3
4
1Memory card connector
2Option card connector
3Printer hard disk connector
4Internal Solutions Port connector
4Close the controller board shield, and then close the controller board access door.
1
2
Using MS610de 69
Setting up and using the home screen applications
Notes:
•Your home screen may vary depending on your home screen customization settings, administrative setup, and
active embedded applications. Some applications are supported only in some printer models.
•There may be additional solutions and applications available for purchase. For more information, go to
http://support.lexmark.com or contact the place where you purchased the printer.
Finding the IP address of the computer
For Windows users
1In the Run dialog box, type cmd to open the command prompt.
2Type ipconfig, and then look for the IP address.
For Macintosh users
1From System Preferences in the Apple menu, select Network.
2Select your connection type, and then click Advanced > TCP/IP.
3Look for the IP address.
Finding the IP address of the printer
Note: Make sure your printer is connected to a network or to a print server.
You can find the printer IP address:
•From the top left corner of the printer home screen.
•From the TCP/IP section in the Network/Ports menu.
•By printing a network setup page or menu settings page, and then finding the TCP/IP section.
Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
Accessing the Embedded Web Server
The Embedded Web Server is the printer Web page that lets you view and remotely configure printer settings even
when you are not physically near the printer.
1Obtain the printer IP address:
•From the printer control panel home screen
•From the TCP/IP section in the Network/Ports menu
•By printing a network setup page or menu settings page, and then finding the TCP/IP section
Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
2Open a Web browser, and then type the printer IP address in the address field.
3Press Enter.
Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly.
Using MS610de 70
Customizing the home screen
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Do one or more of the following:
•Show or hide the icons of basic printer functions.
aClick Settings > > General Settings Home screen customization.
bSelect the check boxes to specify which icons appear on the home screen.
Note: If you clear a check box beside an icon, then the icon does not appear on the home screen.
cClick Submit.
•Customize the icon for an application. For more information, see “Finding information about the home screen
applications” on page 71 or see the documentation that came with the application.
Activating the home screen applications
Finding information about the home screen applications
Your printer comes with preinstalled home screen applications. Before you can use these applications, you must first
activate and set up these applications using the Embedded Web Server. For more information on accessing the
Embedded Web Server, see “Accessing the Embedded Web Server” on page 70.
For more information on configuring and using the home screen applications, do the following:
1Go to http://support.lexmark.com.
2Click Software Solutions, and then select either of the following:
•Scan to Network—This lets you find information about the Scan to Network application.
•Other Applications—This lets you find information about the other applications.
3Click the Manuals tab, and then select the document for the home screen application.
Using Background and Idle Screen
Icon Description
The application lets you customize the background and idle screen of your printer home screen.
1From the home screen, navigate to:
Change Background > select background to use
2Touch .
Using MS610de 71
Setting up Forms and Favorites
Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To
check for updates of this User’s Guide, go to http://support.lexmark.com.
Use To
Streamline work processes by letting you quickly find and print frequently used online forms directly
from the printer home screen.
Note: The printer must have permission to access the network folder, FTP site, or Web site where the
bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and
firewall settings to allow the printer at least a read access. For help, see the documentation that
came with your operating system.
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Click Settings > Apps > > Apps Management Forms and Favorites.
3Click Add, and then customize the settings.
Notes:
•See the mouse-over help beside each field for a description of the setting.
•To make sure the location settings of the bookmark are correct, type the correct IP address of the host
computer where the bookmark is located. For more information on obtaining the IP address of the host
computer, see “Finding the IP address of the computer” on page 70.
•Make sure the printer has access rights to the folder where the bookmark is located.
4Click Apply.
To use the application, touch Forms and Favorites on the printer home screen, and then navigate through form
categories, or search for forms based on a form number, name, or description.
Understanding Eco‑
‑
‑
‑‑Settings
Icon Description
The application lets you easily manage energy consumption, noise, toner, and paper usage settings to
help reduce the environmental impact of your printer.
Using MS610de 72
Setting up Remote Operator Panel
This application enables you to interact with the printer control panel even when you are not physically near the network
printer. From your computer, you can view the printer status, release held print jobs, create bookmarks, and do other
print-related tasks.
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Click Settings > Remote Operator Panel Settings.
3Select the Enable check box, and then customize the settings.
4Click Submit.
To use the application, click Remote Operator Panel > Launch VNC Applet.
Exporting and importing a configuration
You can export configuration settings into a text file, and then import the file to apply the settings to other printers.
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Click Settings > Apps > Apps Management.
3From the list of installed applications, click the name of the application you want to configure.
4Click Configure, and then do one of the following:
•To export a configuration to a file, click Export, and then follow the instructions on the computer screen to save
the configuration file.
Notes:
–When saving the configuration file, you can type a unique file name or use the default name.
–If a "JVM Out of Memory” error occurs, then repeat the export process until the configuration file is
saved.
•To import a configuration from a file, click Import, and then browse to the saved configuration file that was
exported from a previously configured printer.
Notes:
–Before importing the configuration file, you can choose to preview it first or load it directly.
–If a timeout occurs and a blank screen appears, then refresh the Web browser, and then click Apply.
Using MS610de 73
Loading paper and specialty media
The selection and handling of paper and specialty media can affect how reliably documents print. For more information,
see “Avoiding jams” on page 169 and “Storing paper” on page 108.
Setting the paper size and type
From the home screen navigate to:
> > Paper Menu Paper Size/Type > select a tray > select the paper size or type >
Configuring Universal paper settings
The Universal paper size is a user‑defined setting that lets you print on paper sizes that are not preset in the printer
menus.
Notes:
•The smallest Universal paper size is 6 x 127 mm (3 x 5 inches), and is supported only from the multipurpose
feeder.
•The largest Universal paper size is 216 x 355.6 mm (8.5 x 14 inches), and is supported from all paper sources.
1From the printer control panel, navigate to:
> > > Paper Menu Universal Setup Units of Measure > select a unit of measure >
2Touch Portrait Width or Portrait Height.
3Select the width or height, and then touch .
Using the standard bin and paper stop
The standard bin holds up to 150 sheets of 75‑g/m 2 (20‑lb) paper. It collects prints facedown. The standard bin includes
a paper stop that keeps paper from sliding out the front of the bin as it stacks.
Using MS610de 74
To open the paper stop, pull it so that it flips forward.
Note: When moving the printer to another location, make sure the paper stop is closed.
Loading trays
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
1Pull out the tray completely.
Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause
a jam.
A4
LT
R
EXEC
B5
A5
A6
1
Using MS610de 75
2Squeeze and then slide the width guide tab to the correct position for the size of the paper you are loading.
A4
LTR
EX
EC
B5
A
5
2
1
LT
R
LG
L
EX
EC
A
4B
5A
5
3Squeeze and then slide the length guide tab to the correct position for the size of the paper you are loading.
A
4
LTR
E
XE C
B5
A5
LTR
LG LA4
EX E
C
B
5A5 A6
2
1
Notes:
•For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to
accommodate their length.
Using MS610de 76
•When loading legal‑size paper, the length guide extends beyond the base leaving the paper exposed to dust.
To protect the paper from dust, you can purchase a dust cover separately. For more information, contact
customer support.
•If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide tab
toward the center of the tray to the A6‑size position.
•Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.
A
4
LTR
EX E
C
B5
A5
LT
RLG
L
A4
EX EC
B5 A5 A6
4Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the
edges on a level surface.
Using MS610de 77

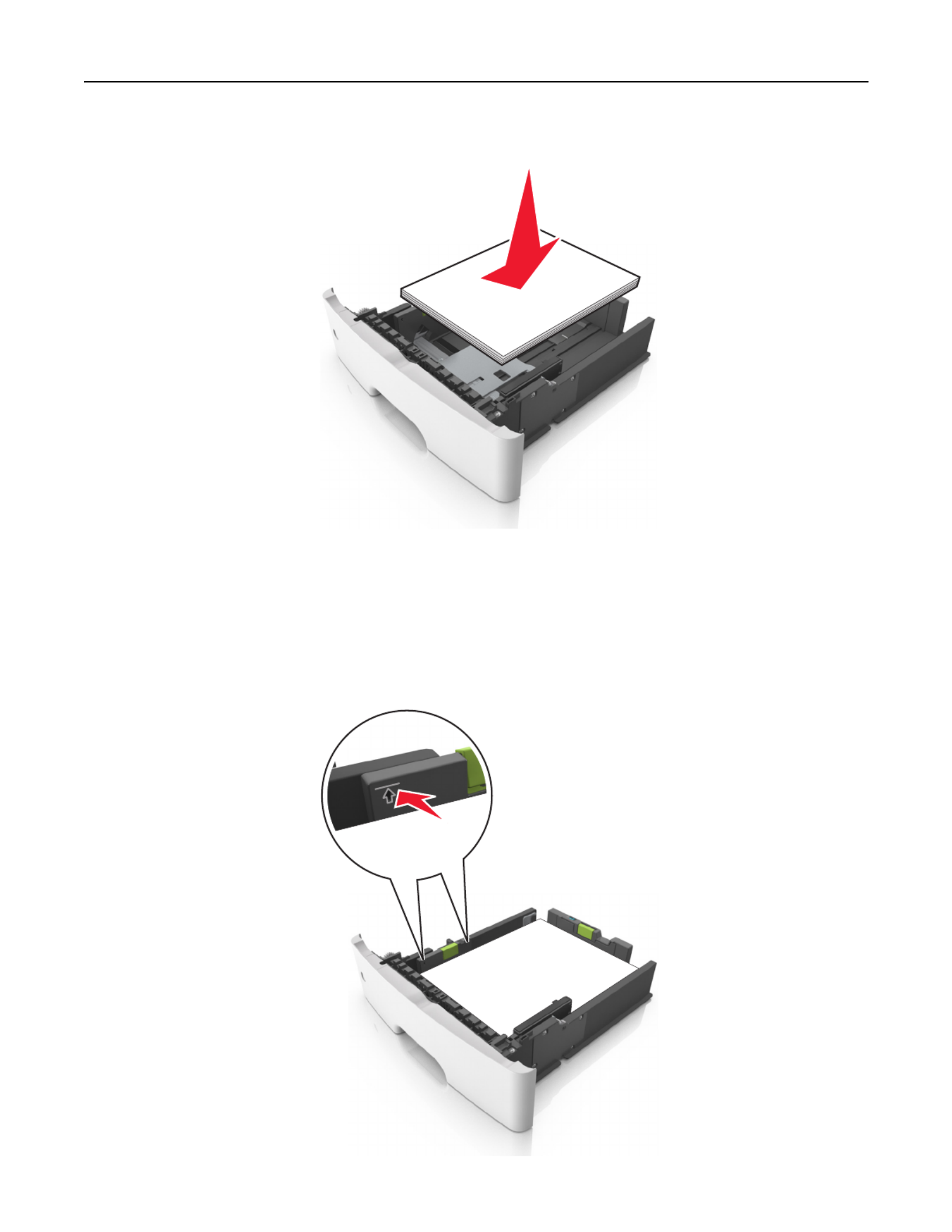

5Load the paper stack.
Notes:
•Load with the printable side facedown when using recycled or preprinted paper.
•Load prepunched paper with the holes on the top edge toward the front of the tray.
•Load letterhead facedown, with the top edge of the sheet toward the front of the tray. For two‑sided
printing, load letterhead faceup with the bottom edge of the sheet toward the front of the tray.
•Make sure the paper is below the maximum paper fill indicator located on the side of the width guide.
A
4
LT
R
E
XE
C
B5
A
5
LT
R
LG
LA4
EXEC
B5 A5 A6
Using MS610de 78

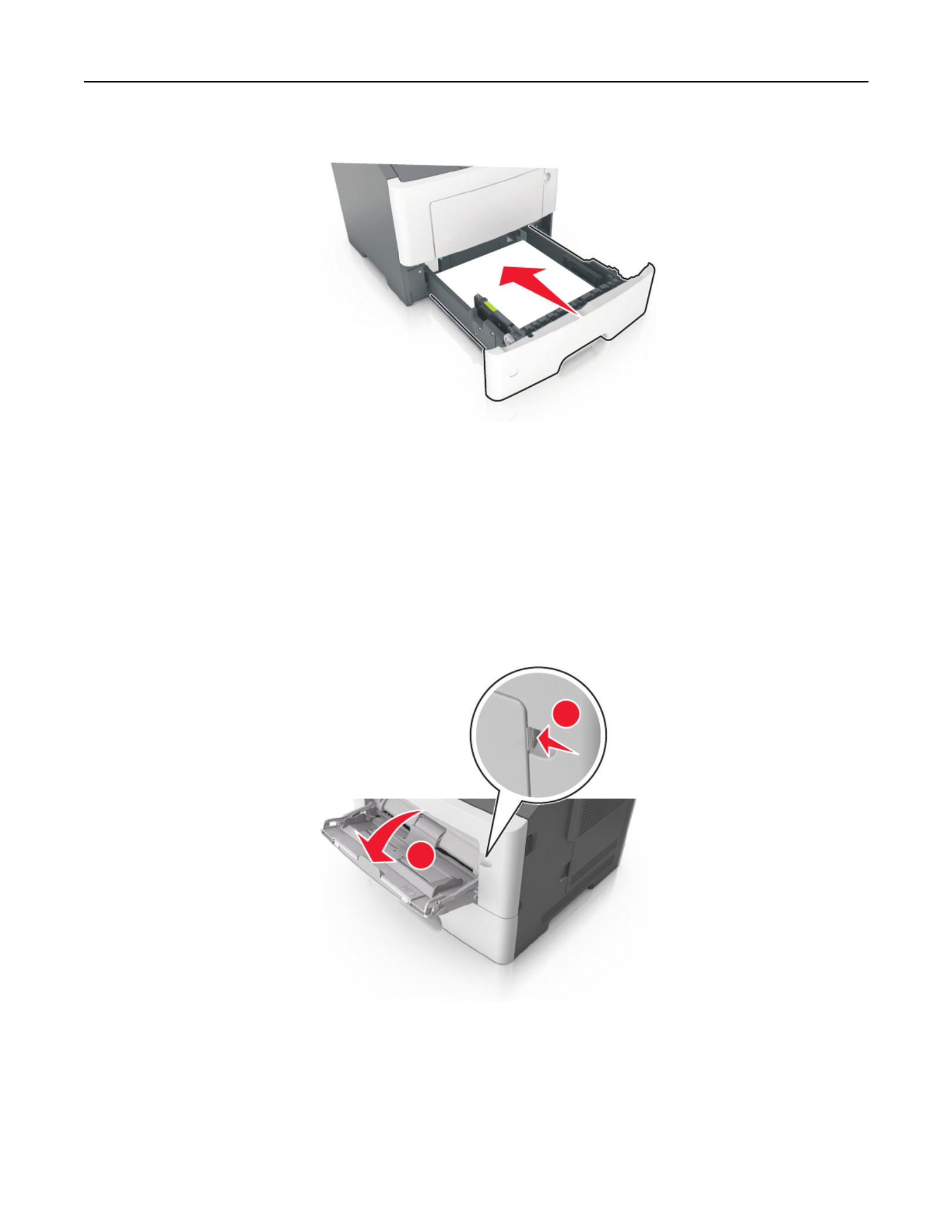

6Insert the tray.
1
7From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in
the tray.
Note: Set the correct paper size and paper type to avoid paper jams and print quality problems.
Loading the multipurpose feeder
Use the multipurpose feeder when printing on different paper sizes and types or specialty media, such as card stock,
transparencies, paper labels, and envelopes. You can also use it for single‑page print jobs on letterhead.
1Open the multipurpose feeder.
1
2
Using MS610de 79
3Prepare the paper or specialty media for loading.
•Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
•Hold transparencies by the edges. Flex the stack of transparencies back and forth to loosen them, and then fan
them. Straighten the edges on a level surface.
Note: Avoid touching the printable side of the transparencies. Be careful not to scratch them.
•Flex the stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level
surface.
4Load the paper or specialty media.
Notes:
•Do not force paper or specialty media into the multipurpose feeder.
•Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper
guides. Overfilling may cause paper jams.
Using MS610de 81
•Load paper, transparencies, and card stock with the recommended printable side faceup and the top edge
entering the printer first. For more information on loading transparencies, see the packaging that the
transparencies came in.
Note: When loading A6‑size paper, make sure the multipurpose feeder extender rests lightly against the
edge of the paper so that the last few sheets of paper remain in place.
Using MS610de 82
•Load letterhead faceup with the top edge entering the printer first. For two‑sided (duplex) printing, load
letterhead facedown with the bottom edge entering the printer first.
•Load envelopes with the flap on the left side facedown.
Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or
self‑stick adhesives. These envelopes may severely damage the printer.
5From the printer control panel, set the paper size and paper type in the Paper menu to match the paper or specialty
media loaded in the multipurpose feeder.
Linking and unlinking trays
Linking and unlinking trays
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu.
3Change the paper size and type settings for the trays you are linking.
•To link trays, make sure the paper size and type for the tray match that of the other tray.
•To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.
4Click Submit.
Using MS610de 83
Note: You can also change the paper size and type settings using the printer control panel. For more information,
see “Setting the paper size and type” on page 74.
Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer.
The temperature of the fuser varies according to the specified paper type. Printing issues may occur if settings are
not properly configured.
Creating a custom name for a paper type
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Names.
3Select a custom name, and then type a custom paper type name.
4Click Submit.
5Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.
Using the printer control panel
1From the home screen, navigate to:
> > Paper Menu Custom Names
2Select a custom name, and then type a custom paper type name.
3Touch .
4Touch Custom Types, and then verify that the new custom paper type name has replaced the custom name.
Assigning a custom paper type
Using the Embedded Web Server
Assign a custom paper type name to a tray when linking or unlinking trays.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Types.
Using MS610de 84
3Select a custom paper type name, and then select a paper type
Note: Paper is the factory default paper type for all user‑defined custom names.
4Click Submit.
Using the printer control panel
1From the home screen, navigate to:
> > Paper Menu Custom Types
2Select a custom paper type name, and then select a paper type
Note: Paper is the factory default paper type for all user‑defined custom names.
3Touch .
Printing
Printing forms
Use Forms and Favorites to quickly and easily access frequently used forms or other information that is regularly printed.
Before you can use this application, first set it up on the printer. For more information, see “Setting up Forms and
Favorites” on page 72.
1From the home screen, navigate to:
Forms and Favorites > select the form from the list > enter the number of copies > adjust other settings
2Apply the changes.
Printing a document
Printing a document
1From the Paper menu on the printer control panel, set the paper type and size to match the paper loaded.
2Send the print job:
For Windows users
aWith a document open, click File > Print.
bClick Properties, , Preferences Options, or Setup.
cAdjust the settings, if necessary.
dClick OK > Print.
For Macintosh users
aCustomize the settings in the Page Setup dialog:
1With a document open, choose File > Page Setup.
2Choose a paper size or create a custom size to match the paper loaded.
3Click OK.
Using MS610de 85
Printing from a flash drive or mobile device
Printing from a flash drive
Notes:
•Before printing an encrypted PDF file, you will be prompted to type the file password from the printer control
panel.
•You cannot print files for which you do not have printing permissions.
1Insert a flash drive into the USB port.
Notes:
•A flash drive icon appears on the printer home screen when a flash drive is inserted.
•If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the
printer ignores the flash drive.
•If you insert the flash drive while the printer is processing other print jobs, then Busy appears. After these
print jobs are processed, you may need to view the held jobs list to print documents from the flash drive.
Warning—Potential Damage: Do not touch the printer or the flash drive in the area shown while actively
printing, reading, or writing from the memory device. Loss of data can occur.
Using MS610de 87
Printing confidential and other held jobs
Storing print jobs in the printer
1From the home screen, navigate to:
> Security > Confidential Print > select a print job type
Use To
Max Invalid PIN Limit the number of times an invalid PIN can be entered.
Note: When the limit is reached, the print jobs for that user name and PIN
are deleted.
Confidential Job Expiration Hold print jobs in the computer until you enter the PIN from the printer control
panel.
Note: The PIN is set from the computer. It must be four digits, using the
numbers 0–9.
Repeat Job Expiration Print and store print jobs in the printer memory.
Verify Job Expiration Print one copy of a print job and hold the remaining copies. It lets you examine
if the first copy is satisfactory or not. The print job is automatically deleted
from the printer memory when all copies are printed.
Reserve Job Expiration Store print jobs for printing at a later time.
Note: The print jobs are held until deleted from the Held Jobs menu.
Notes:
•Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to
process additional held jobs.
•You can set the printer to store print jobs in the printer memory until you start the print job from the printer
control panel.
•All print jobs that can be initiated by the user at the printer are called held jobs.
2Touch .
Printing confidential and other held jobs
Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve
jobs are held in the printer until you delete them.
For Windows users
1With a document open, click File > Print.
2Click Properties, , Preferences Options, or Setup.
3Click Print and Hold.
4Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four‑digit PIN.
5Click OK or Print.
Using MS610de 89
6From the printer home screen, release the print job.
•For confidential print jobs, navigate to:
Held jobs > select your user name > Confidential Jobs > enter the PIN > Print
•For other print jobs, navigate to:
Held jobs > select your user name > select the print job > specify the number of copies > Print
For Macintosh users
1With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2From the print options or Copies & Pages pop‑up menu, choose Job Routing.
3Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four‑digit PIN.
4Click OK or Print.
5From the printer home screen, release the print job.
•For confidential print jobs, navigate to:
Held jobs > select your user name > Confidential Jobs > enter the PIN > Print
•For other print jobs, navigate to:
Held jobs > select your user name > select the print job > specify the number of copies > Print
Printing information pages
Printing a font sample list
1From the home screen, navigate to:
> > Reports Print Fonts
2Touch PCL Fonts or PostScript Fonts.
Printing a directory list
A directory list shows the resources stored in a flash memory or on the printer hard disk.
From the home screen, navigate to:
> Reports > Print Directory
Using MS610de 90
Canceling a print job
Canceling a print job from the printer control panel
1From the printer control panel, touch Cancel Job or press on the keypad.
2Touch the print job you want to cancel, and then touch Delete Selected Jobs.
Note: If you press on the keypad, then touch Resume to return to the home screen.
Canceling a print job from the computer
For Windows users
1Open the printers folder, and then select your printer.
2From the print queue, select the print job you want to cancel, and then delete it.
For Macintosh users
1From System Preferences in the Apple menu, navigate to your printer.
2From the print queue, select the print job you want to cancel, and then delete it.
Managing the printer
Setting up serial printing (Windows only)
After installing the serial or communication (COM) port, configure the printer and the computer.
Note: Serial printing reduces print speed.
1Set the parameters in the printer.
aFrom the control panel, navigate to the menu for the port settings.
bLocate the menu for the serial port settings, and then adjust the settings, if necessary.
cSave the settings.
2From your computer, open the printers folder, and then select your printer.
3Open the printer properties, and then select the COM port from the list.
4Set the COM port parameters in Device Manager.
Use the Run dialog box to open the command prompt, and then type devmgmt.msc.
Using MS610de 91
Changing port settings after installing a new network ISP
Notes:
•If the printer has a static IP address, then you do not need to make any changes.
•If the computers are configured to use the network name, instead of an IP address, then you do not need to
make any changes.
•If you are adding a wireless ISP to a printer previously configured for an Ethernet connection, then make sure
the printer is disconnected from the Ethernet network.
For Windows users
1Open the printers folder.
2From the shortcut menu of the printer with the new ISP, open the printer properties.
3Configure the port from the list.
4Update the IP address.
5Apply the changes.
For Macintosh users
1From System Preferences in the Apple menu, navigate to the list of printers, and then select + > IP.
2Type the IP address in the address field.
3Apply the changes.
Finding advanced networking and administrator information
This chapter covers basic administrative support tasks using the Embedded Web Server. For more advanced system
support tasks, see the Networking Guide on the Software and Documentation CD or the Embedded Web Server —
Security: Administrator's Guide on the Lexmark support Web site at http://support.lexmark.com.
Checking the virtual display
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Check the virtual display that appears at the top left corner of the screen.
The virtual display works as an actual display would work on a printer control panel.
Configuring supply notifications from the Embedded Web Server
You can determine how you would like to be notified when supplies run nearly low, low, very low, or reach their
end‑of‑life by setting the selectable alerts.
Using MS610de 92
3Modify the settings:
•Set a maximum number of PIN entry attempts. When a user exceeds that number, all of the jobs for that user
are deleted.
•Set an expiration time for confidential print jobs. When a user has not printed the jobs within that time, all of
the jobs for that user are deleted.
4Click Submit to save the modified settings.
Copying printer settings to other printers
Note: This feature is available only in network printers.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Copy Printer Settings.
3To change the language, select a language from the drop‑down menu, and then click Click here to submit language.
4Click Printer Settings.
5Type the IP addresses of the source and target printers.
Note: If you want to add or remove target printers, then click Add Target IP or Remove Target IP.
6Click Copy Printer Settings.
Creating a printer control panel PIN
The Panel PIN Protect menu lets you restrict access to the menus from the printer control panel. To restrict access to
the menus, create a Personal Identification Number (PIN), and then assign the PIN to each menu.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Security > Panel PIN Protect.
3From the Create User PIN or Create Admin PIN section, enter your PIN.
Note: Your can enter up to 16 digits for your PIN.
4Click Modify.
Using MS610de 94
5From any menu in the Administrative Menus, Management, or Function Access sections, select User PIN
Protected, Admin PIN Protected, or Admin PIN and User PIN Protected.
Note: Using Admin PIN, you can still access a menu assigned with User PIN.
6Click Submit.
If you try to access a PIN‑protected menu from the printer control panel, then the printer will require you to enter the
PIN.
Note: After you enter the last digit of the PIN, make sure to press from the printer control panel for more than
three seconds.
Printing a menu settings page
From the home screen, navigate to:
> Reports > Menu Settings Page
Printing a network setup page
If the printer is attached to a network, then print a network setup page to verify the network connection. This page
also provides important information that aids network printing configuration.
1From the home screen, navigate to:
> > Reports Network Setup Page
2Check the first section of the network setup page, and confirm that the status is Connected.
If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning.
Consult a system support person for a solution, and then print another network setup page.
Checking the status of parts and supplies
A message appears on the printer display when a replacement supply item is needed or when maintenance is required.
Checking the status of parts and supplies on the printer control panel
From the home screen, touch Status/Supplies > View Supplies.
Checking the status of parts and supplies from the Embedded Web Server
Note: Make sure the computer and the printer are connected to the same network.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the home screen. The IP address appears as four sets of numbers separated
by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Device Status > More Details.
Using MS610de 95
Use To
On Reduce printer noise.
Notes:
•Print jobs are processed at a reduced speed.
•Printer engine motors do not start until a document
is ready to print. There will be a short delay before
the first page is printed.
Off Use factory default settings.
Note: This setting supports the performance
specifications of the printer.
3Click Submit.
Adjusting Sleep mode
1From the home screen, navigate to:
> > > > Settings General Settings Timeouts Sleep Mode
2In the Sleep Mode field, select the number of minutes the printer is idle before it enters Sleep mode.
3Apply the changes.
Using Hibernate mode
Hibernate is an ultra‑ ‑low power saving mode.
Notes:
•Three days is the default amount of time before the printer enters Hibernate mode.
•Make sure to wake the printer from Hibernate mode before sending a print job. A hard reset or a long press of
the Sleep button wakes the printer from Hibernate mode.
•If the printer is in Hibernate mode, then the Embedded Web Server is disabled.
1From the home screen, navigate to:
> > Settings General Settings
2Touch Press Sleep Button or Press and Hold Sleep Button.
3Touch Hibernate > .
Setting Hibernate Timeout
Hibernate Timeout lets you set the amount of time the printer waits after a print job is processed before it goes into a
reduced power state.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Using MS610de 97
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Select Settings > General Settings.
3In the Screen Brightness field, enter the brightness percentage you want for the display.
4Apply the changes.
Using the control panel
1From the home screen, navigate to:
> > Settings General Settings
2In the Screen Brightness field, enter the brightness percentage you want for the display.
3Apply the changes.
Restoring factory default settings
If you want to keep a list of the current menu settings for reference, then print a menu settings page before restoring
the factory default settings. For more information, see “Printing a menu settings page” on page 95.
If you want a more comprehensive method of restoring the printer factory default settings, then perform the Wipe All
Settings option. For more information, see “Erasing non‑volatile memory” on page 101.
Warning—Potential Damage: Restoring factory defaults returns most printer settings to the original factory default
settings. Exceptions include the display language, custom sizes and messages, and network/port menu settings. All
downloads stored in the RAM are deleted. Downloads stored in the flash memory or in a printer hard disk are not
affected.
From the home screen, navigate to:
> Settings > General Settings > Factory Defaults > Restore Now >
Using MS610de 99
Erasing printer hard disk memory
Notes:
•Some printer models may not have a printer hard disk installed.
•Configuring Erase Temporary Data Files in the printer menus lets you remove residual confidential material left
by print jobs by securely overwriting files that have been marked for deletion.
Using the printer control panel
1Turn off the printer.
2Hold down 2 6 and while turning the printer on. Release the buttons only when the screen with the progress bar
appears.
The printer performs a power-on sequence, and then the Configuration menu appears. When the printer is fully
turned on, the touch screen displays a list of functions.
3Touch Wipe Disk, and then touch one of the following:
•Wipe disk (fast)—This lets you overwrite the disk with all zeroes in a single pass.
•Wipe disk (secure)—This lets you overwrite the disk with random bit patterns several times, followed by a
verification pass. A secure overwrite is compliant with the DoD 5220.22‑M standard for securely erasing data
from a hard disk. Highly confidential information should be wiped using this method.
4Touch Yes to proceed with disk wiping.
Notes:
•A status bar will indicate the progress of the disk wiping task.
•Disk wiping can take from several minutes to more than an hour, during which the printer will be unavailable
for other user tasks.
5Touch Back > Exit Config Menu.
The printer will perform a power‑on reset, and then return to normal operating mode.
Configuring printer hard disk encryption
Enable hard disk encryption to prevent loss of sensitive data in the event the printer or its hard disk is stolen.
Note: Some printer models may not have a printer hard disk installed.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Security > Disk Encryption.
Note: Disk Encryption appears in the Security Menu only when a formatted, non‑defective printer hard disk is
installed.
3From the Disk encryption menu, select Enable.
Using MS610de 102
Paper and specialty media guide
Using specialty media
Tips on using card stock
Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content, thickness,
and texture, can significantly impact print quality. Print samples on the card stock being considered for use before
buying large quantities.
When printing on card stock:
•Make sure the Paper Type is Card Stock.
•Select the appropriate Paper Texture setting.
•Be aware that preprinting, perforation, and creasing may significantly affect the print quality and cause jams or
other paper handling problems.
•Check with the manufacturer or vendor to ensure that the card stock can withstand temperatures up to 240°C
(464°F) without releasing hazardous emissions.
•Do not use preprinted card stock manufactured with chemicals that may contaminate the printer. Preprinting
introduces semi‑liquid and volatile components into the printer.
•Use grain short card stock when possible.
Tips on using envelopes
Print samples on the envelopes being considered for use before buying large quantities.
•Use envelopes designed specifically for laser printers. Check with the manufacturer or vendor to ensure that the
envelopes can withstand temperatures up to 230°C (446°F) without sealing, wrinkling, curling excessively, or
releasing hazardous emissions.
•For best performance, use envelopes made from 90‑g/m 2 (24‑lb bond) paper or 25% cotton. All‑cotton envelopes
must not exceed 70‑g/m 2 (20‑lb bond) weight.
•Use only new envelopes from undamaged packages.
•To optimize performance and minimize jams, do not use envelopes that:
–Have excessive curl or twist
–Are stuck together or damaged in any way
–Have windows, holes, perforations, cutouts, or embossing
–Have metal clasps, string ties, or folding bars
–Have an interlocking design
–Have postage stamps attached
–Have any exposed adhesive when the flap is in the sealed or closed position
–Have bent corners
–Have rough, cockle, or laid finishes
•Adjust the width guides to fit the width of the envelopes.
Paper and specialty media guide 104
Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.
Tips on using labels
Print samples on the labels being considered for use before buying large quantities.
Note: Use only paper label sheets. Vinyl, pharmacy, and two‑sided labels are not supported.
For more information on label printing, characteristics, and design, see the Card Stock & Label Guide available at
http://support.lexmark.com.
When printing on labels:
•Use labels designed specifically for laser printers. Check with the manufacturer or vendor to verify that:
–The labels can withstand temperatures up to 240°C (464°F) without sealing, excessive curling, wrinkling, or
releasing hazardous emissions.
–Label adhesives, face sheet (printable stock), and topcoats can withstand up to 172‑ ‑kPa (25 psi) pressure without
delaminating, oozing around the edges, or releasing hazardous fumes.
•Do not use labels with slick backing material.
•Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets
also contaminate the printer and the cartridge with adhesive, and could void the printer and toner cartridge
warranties.
•Do not use labels with exposed adhesive.
•Do not print within 1 mm (0.04 inch) of the edge of the label, of the perforations, or between die‑cuts of the label.
•Make sure the adhesive backing does not reach to the edge of the sheet. Zone coating of the adhesive should be
at least 1 mm (0.04 inch) away from edges. Adhesive material contaminates the printer and could void the warranty.
•If zone coating of the adhesive is not possible, then remove a 2‑ ‑mm (0.08 inch) strip on the leading and driver edge,
and then use a non‑oozing adhesive.
•Portrait orientation is recommended, especially when printing bar codes.
Tips on using letterhead
•Use letterhead designed specifically for laser printers.
•Print samples on the letterhead being considered for use before buying large quantities.
•Before loading letterhead, flex, fan, and straighten the stack to prevent sheets from sticking together.
•Page orientation is important when printing on letterhead. For information on how to load letterhead, see:
–“Loading trays” on page 37
–“Loading the multipurpose feeder” on page 41
Tips on using transparencies
•Print a test page on the transparencies being considered for use before buying large quantities.
•Feed transparencies from the standard tray, or the multipurpose feeder.
•Use transparencies designed specifically for laser printers. Transparencies must be able to withstand temperatures
up to 185°C (365°F) without melting, discoloring, offsetting, or releasing hazardous emissions.
Note: If the transparency weight is set to Heavy and the transparency texture is set to Rough in the Paper menu,
then transparencies can be printed at a temperature up to 195°C (383°F).
Paper and specialty media guide 105
Fiber content
Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the
paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing
fibers such as cotton can negatively affect paper handling.
Unacceptable paper
The following paper types are not recommended for use with the printer:
•Chemically‑treated papers used to make copies without carbon paper, also known as carbonless papers, carbonless
copy paper (CCP), or no carbon required (NCR) paper
•Preprinted papers with chemicals that may contaminate the printer
•Preprinted papers that can be affected by the temperature in the printer fuser
•Preprinted papers that require a registration (the precise print location on the page) greater or lesser than +/‑2.5 mm
(+/‑0.10 inch), such as optical character recognition (OCR) forms
In some cases, registration can be adjusted with a software application to successfully print on these forms:
•Coated papers (erasable bond), synthetic papers, thermal papers
•Rough‑edged, rough or heavily textured surface papers, or curled papers
•Recycled papers that fail EN12281:2002 (European)
•Paper weighing less than 60 g/m 2 (16 lb)
•Multiple‑part forms or documents
Selecting paper
Using the appropriate paper prevents jams and helps ensure trouble‑free printing.
To help avoid paper jams and poor print quality:
•Always use new, undamaged paper.
•Before loading paper, know the recommended printable side of the paper. This information is usually indicated on
the paper package.
•Do not use paper that has been cut or trimmed by hand.
•Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.
•Do not use coated papers unless they are specifically designed for electrophotographic printing.
Selecting preprinted forms and letterhead
Use these guidelines when selecting preprinted forms and letterhead:
•Use grain long for 60 to 90 g/m2 (16 to 24 lb) weight paper.
•Use only forms and letterhead printed using an offset lithographic or engraved printing process.
•Avoid papers with rough or heavily textured surfaces.
Use papers printed with heat‑resistant inks designed for use in xerographic copiers. The ink must be able to withstand
temperatures up to 230°C (446°F) without melting or releasing hazardous emissions. Use inks that are not affected by
the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements; latex inks might not.
When in doubt, contact the paper supplier.
Paper and specialty media guide 107

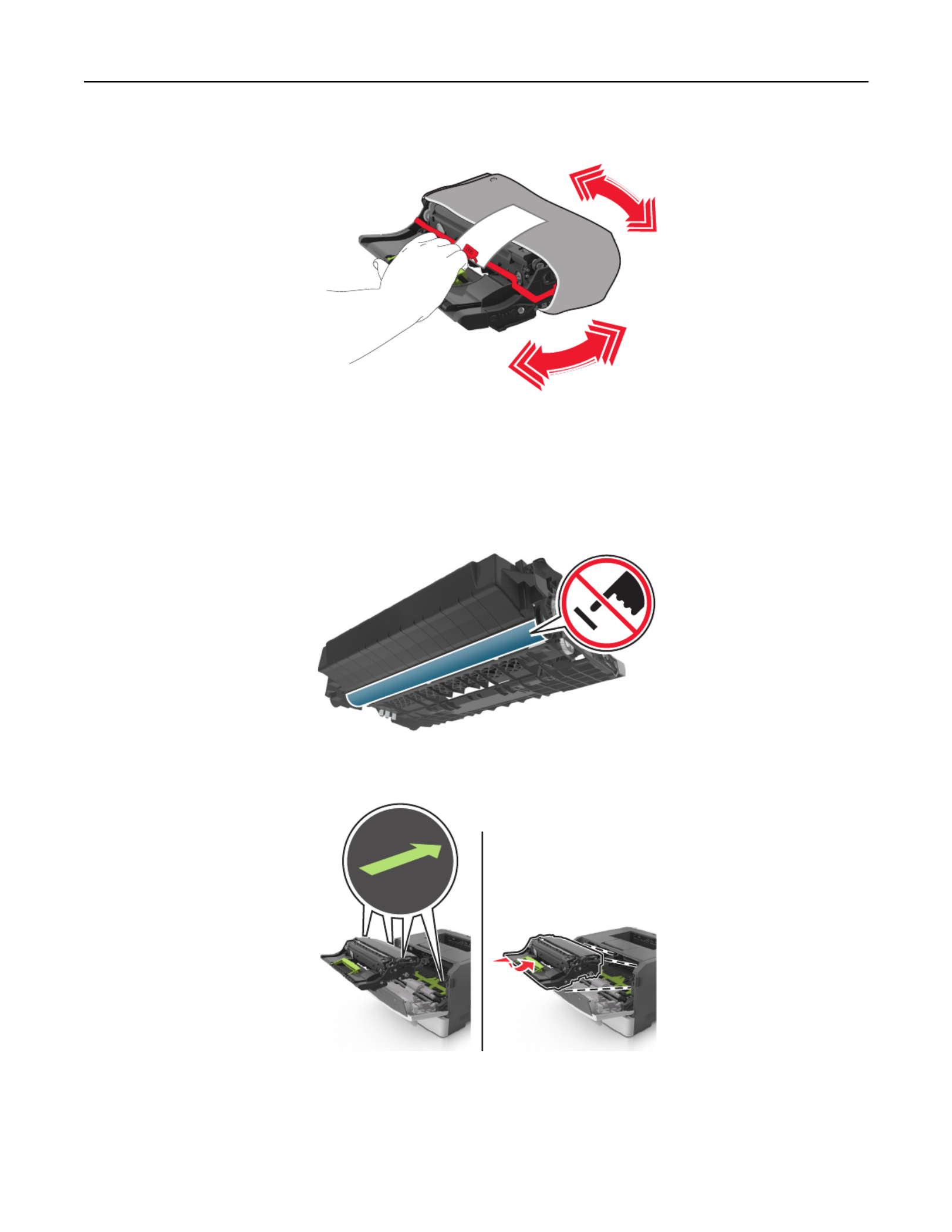

4Unpack the new imaging unit, and then shake it.
5Remove all packing materials from the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of
future print jobs.
6Insert the imaging unit into the printer by aligning the arrows on the side rails of the imaging unit with the arrows
on the side rails inside the printer.
Maintaining the printer 166
Produkt Specifikationer
| Mærke: | Lexmark |
| Kategori: | Printer |
| Model: | MS510dn |
Har du brug for hjælp?
Hvis du har brug for hjælp til Lexmark MS510dn stil et spørgsmål nedenfor, og andre brugere vil svare dig
Printer Lexmark Manualer
25 Juli 2025
25 Juli 2025
25 Juli 2025
25 Juli 2025
24 Juli 2025
16 Juli 2025
13 Januar 2025
11 Januar 2025
13 Oktober 2024
11 Oktober 2024
Printer Manualer
- Pantum
- Digitus
- Raspberry Pi
- Citizen
- Lenovo
- Testo
- Sharp
- Microboards
- Huawei
- Elite Screens
- HiTi
- DTRONIC
- Orient Technologies
- Kyocera
- Nilox
Nyeste Printer Manualer
30 Juli 2025
30 Juli 2025
30 Juli 2025
30 Juli 2025
30 Juli 2025
30 Juli 2025
30 Juli 2025
30 Juli 2025
29 Juli 2025
29 Juli 2025
