OWNER'S MANUAL

Color Video Camera

Please read this manual carefully before operating

your set and retain it for future reference.

P/NO : MFL63745133(A)

MODEL

L5323 Series

L5323-BP

L5323-BN

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A ground-

ing type plug has two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for replacement of the obso-

lete outlet.

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-

over.

13. Unplug this apparatus during lightning storms or when unused for long

periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

Accessories

Installation sticker

Camera mounting bracket

M3 Fixing screws

Specication

Item L5323-BP L5323-BN

Signal System PAL NTSC

Total/Effective Pixels 1028 X 596 / 976 X 582 1028 X 508 / 976 X 494

Image Device 6 mm CCD

DSP XDI-II

Lens 2.8 mm to 10 mm Vari-focal lens

Digital Zoom X10

Synchronization System Internal / Line Lock

Scanning Frequency (H/V) 15.625 kHz / 50 Hz 15.734 kHz / 59.94 Hz

Horizontal Resolution 650 TV Lines

S/N Ratio 50 dB

Minimum

Illumination

(30 IRE)

Color mode 0.0003 lx (Sens-up Auto, F1.2)

B/W mode 0.000 03 lx (Sens-up Auto, F1.2)

Control Method Key Button / RS-485

Video Output Signal 1 Vp-p Composite (75 Ω)

Day & Night DAY / NIGHT / AUTO

BACKLIGHT OFF / WDR(ACE) / BLC / HSBLC

3D-DNR OFF / LOW / MIDDLE / HIGH

Item L5323-BP L5323-BN

Auto Gain Control OFF / LOW / MIDDLE / HIGH

Electronic Shutter Speed 1/50 to 1/120 000 1/60 to 1/120 000

Sens-Up OFF / AUTO

White Balance ATW / AUTO / AWC PUSH / MANUALb

Motion Detection REGIONAL MD / SMART MD / TAMPERING MD

Privacy

Zone

Masking

RECTANGLE 8 AREAS

CIRCLE 2 AREAS

POLYGON 2 AREAS

Stabilizer( EIS) On / Off

User Color Mode NATURAL / COOL / WARM / VIVID

Power Source DC 12 V / AC 24 V

Power Consumption 2.8 W

Operation Temp. -10 ºC to 50 ºC

Storage Temp. -20 ºC to 60 ºC

Operation Humidity 0 % RH to 80 % RH

Storage Humidity 0 % RH to 85 % RH

Weight 450 g

Dimension (Ø x H) 148 mm x 96 mm

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equi-

lateral triangle is intended to alert the user to the presence

of uninsulated dangerous voltage within the product’s

enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the product.

FCC WARNING: This equipment may generate or use radio frequency energy.

Changes or modifications to this equipment may cause harmful interference

unless the modifications are expressly approved in the instruction manual. The

user could lose the authority to operate this equipment if an unauthorized

change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful inter-

ference in which case the user will be required to correct the interference at his

own expense.

• A suitable conduit entries, knock-outs or glands shall be provided in the

cable entries of this product in the end user.

• Caution: Danger of explosion if battery is incorrectly replaced. Replaced

only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

• Holes in metal, through which insulated wires pass, shall have smooth well

rounded surfaces or shall be provided with brushings.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du

Canada.

Warning: Do not install this equipment in a confined space such as a bookcase

or similar unit.

Warning: Wiring methods shall be in accordance with the National Electric

Code, ANSI/NFPA 70.

Warning: This is a class A product. In a domestic environment this product

may cause radio interference in which case the user may be required to take

adequate measures.

Warning: To reduce a risk of fire or electric shock, do not expose this product to

rain or moisture.

Caution: This installation should be made by a qualified service person and

should conform to all local codes.

Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to

qualified personnel only.

Caution: The apparatus shall not be exposed to water (dripping or splashing)

and no objects filled with liquids, such as vases, shall be placed on the appara-

tus.

To disconnect power from mains, pull out the mains cord plug. When install-

ing the product, ensure that the plug is easily accessible.

LG Electronics hereby declares that this/these product(s) is/are in

compliance with the essential requirements and other relevant pro-

visions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC.

European representative :

LG Electronics Service Europe B.V.

Veluwezoom 15, 1327 AE Almere,

The Netherlands (Tel : +31-(0)36-547-8888)

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to

a product it means the product is covered by the European

Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of

separately from the municipal waste stream via designated

collection facilities appointed by the government or the local

authorities.

3. The correct disposal of your old appliance will help prevent

potential negative consequences for the environment and

human health.

4. For more detailed information about disposal of your old

appliance, please contact your city office, waste disposal

service or the shop where you purchased the product.

EEE Compliance with Directive. (for Turkey only)

L5323-BP.CARGSLS_AFN74012433_MFL63745133(A).indd 1 7/28/10 11:13 AM

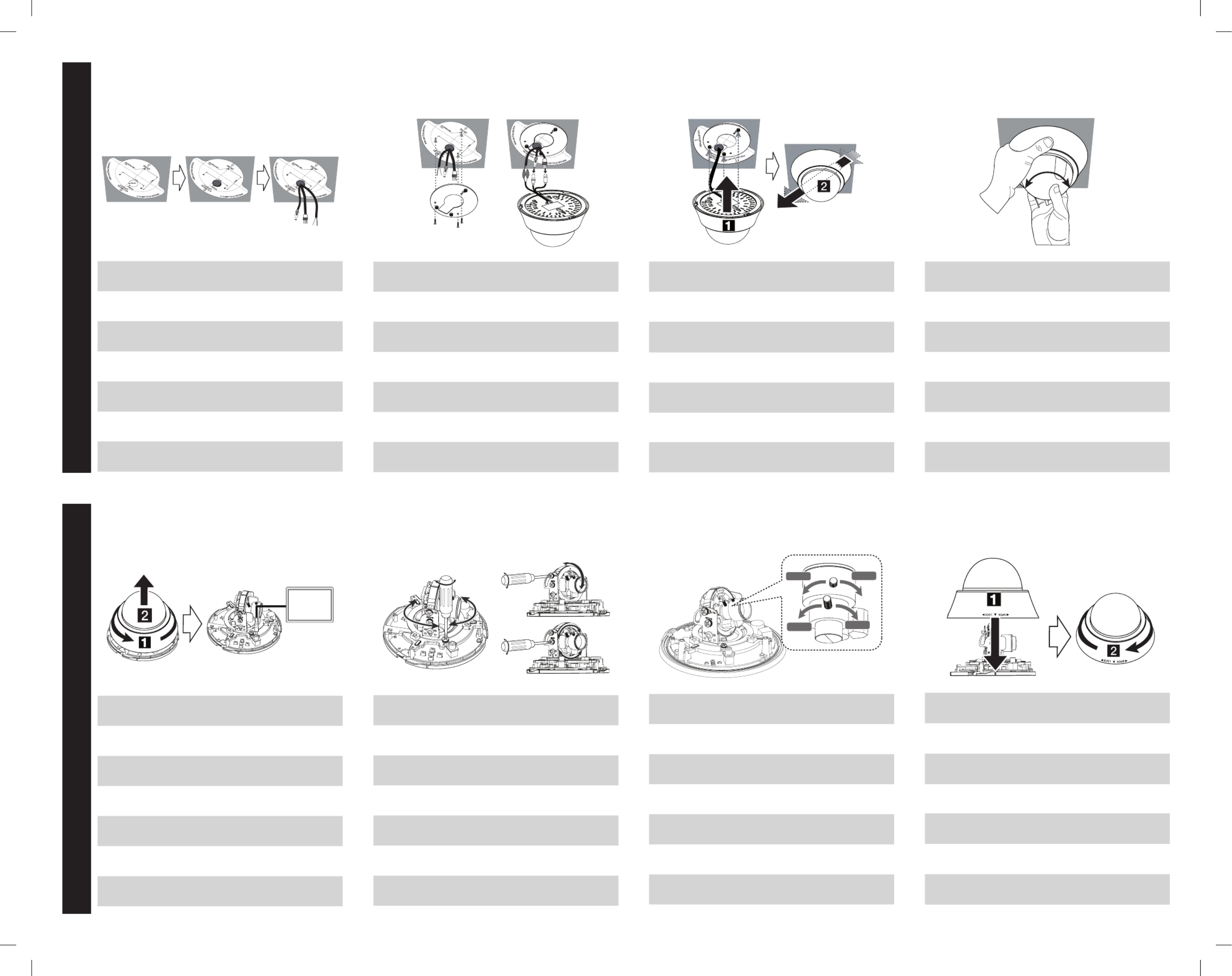

Using the installation sticker as a guide,

make a hole through the ceiling.

<FRANÇAIS>

En vous servant de la vignette d’installation comme

guide, percez un trou dans le plafond.

Utilizzando l’adesivo di installazione come guida, fare

un foro nel soffitto.

<ČEŠTINA>

S použitím instalační nálepky jako šablony vyvrtejte

otvor do stropu.

Używając szablonu instalacyjnego wykonać otwór w

suficie.

<ESPAÑOL>

Use la pegatina de instalación como guía, haga un

agujero en el techo.

Gebruik de installatiesticker als patroon om een gat

door het plafond te boren.

<PORTUGUÊS>

Usando a etiqueta de instalação como guia, faça um

furo através do teto.

Install the camera mounting bracket to

the ceiling. Connect the cables to the

cable jacks of the camera body.

<FRANÇAIS>

Fixez le support de montage de la caméra au plafond.

Raccordez les câbles aux prises correspondantes du

corps de la caméra.

Installare la staffa per il montaggio della videocamera

al soffitto. Collegare i cavi alle prese sul corpo della

videocamera.

<ČEŠTINA>

Instalujte mechanismus pro uchycení kamery na strop.

Zapojte kabely do konektorů těla kamery.

Zainstalować na suficie wspornik montażowy kamery.

Podłączyć kable do gniazd znajdujących się w

obudowie kamery.

<ESPAÑOL>

Instale el soporte de montaje de la cámara en el

techo. Conecte los cables a los conectores de cable del

cuerpo de la cámara.

Monteer de camerabeugel aan het plafond. Bevestig

de kabels in de kabelingangen van het camerahuis.

<PORTUGUÊS>

Instale o suporte de montagem no teto. Conecte os

cabos nas entradas de cabos no corpo da câmera.

Assemble the camera and mounting

bracket by following step (attaching) a

and (pushing the camera to the arrow b

direction to fix it firmly).

<FRANÇAIS>

Assemblez la caméra et le support de montage en

suivant l’étape (fixation) et (poussez la caméra a b

dans le sens de la flèche pour la fixer fermement).

Montare la videocamera e la mensola di montaggio segu-

endo le fasi (attacco) e (indirizzando la videocam-a b

era in direzione della freccia per fissarla saldamente).

<ČEŠTINA>

Namontujte kameru a montážní držák podle kroku a

(připevnění) a (kameru pevně zajistěte zatlačením b

ve směru šipky).

Zmontować kamerę oraz wspornik montażowy przez

wykonanie kroku (mocowanie) oraz (przyciśnięcie a b

kamery w kierunku strzałki w celu jej zamocowania).

<ESPAÑOL>

Monte la cámara y monte el soporte siguiendo el paso

(montaje) y

(empuje la cámara en la dirección

de la flecha para fijar ésta firmemente).

Monteer de camera en bevestigingssteun met de volgen-

de stap

(vastmaken) en

(de camera in de richting

van de pijl duwen om deze stevig vast te zetten).

<PORTUGUÊS>

Monte a câmera e o suporte de montagem conforme

os passos a seguir

(em anexo) e

(empurrando a

câmera na direção da seta para fixá-la firmemente).

Adjust the camera view point as

illustrated below.

<FRANÇAIS>

Réglez le point de visualisation de la caméra comme

illustré ci-dessous.

Regolare il punto di vista della videocamera come illus-

trato di seguito.

<ČEŠTINA>

Nastavte zorný bod kamery způsobem znázorněným

na níže uvedeném obrázku.

Ustaw punkt widoku kamery, tak jak to pokazano

poniżej.

<ESPAÑOL>

Ajuste el punto de visión de la cámara según se ilustra

a continuación.

Pas de gezichtshoek van de camera aan zoals

hieronder afgebeeld.

<PORTUGUÊS>

Ajustar o ponto de visão da camera conforme ilustrado

abaixo.

aRemove the Dome cover. Connect a

portable monitor to the video jack.

<FRANÇAIS>

Déposez le capot de dôme. Raccordez un moniteur

portable à la prise vidéo.

Rimuovere la copertura della cupola. Collegare un

monitor portatile alla presa video.

<ČEŠTINA>

Odstraňte kopulový kryt. Zapojte přenosný monitor ke

konektoru videa.

Zdejmij pokrywę kopuły. Podłącz monitor przenośny

do złącza video (video jack).

<ESPAÑOL>

Retire la tapa del Domo. Conecte un monitor portátil al

conector de video.

Verwijder de bolafsluiting. Sluit een draagbare monitor

op de video-uitgang aan.

<PORTUGUÊS>

Remover a tampa do domo. Conectar o monitor por-

tátil na tomada de vídeo.

bAdjust the Pan/Tilt position and

azimuth angle of the camera.

<FRANÇAIS>

Réglez l’assiette/inclinaison et l’ange d’azimut de la

caméra.

Regolare la posizione di inclinazione/ripresa e l’angolo

azimutale della videocamera.

<ČEŠTINA>

Nastavte panoramatickou pozici/náklon kamery a úhel

azimutu.

Ustaw panoramę/pochylenie oraz kąt obrotu kamery.

<ESPAÑOL>

Ajuste la posición panorámica/inclinación y el ángulo

de azimut de la cámara.

Pas de panorama/schuine positie en azimuthoek van

de camera aan.

<PORTUGUÊS>

Ajustar a posição de girar e incliner e o ângulo azimuth

da câmera.

cAdjust the zoom and focus.

NEAR

WIDE

TELE

FAR

<FRANÇAIS>

Réglez le zoom et la mise au point.

Regolare lo zoom e la messa a fuoco.

<ČEŠTINA>

Nastavte přiblížení/oddálení a zaostření.

Ustaw przybliżenie oraz ostrość.

<ESPAÑOL>

Ajuste el zoom y el enfoque.

Stel de zoomstand en de scherpstelling van de camera

in.

<PORTUGUÊS>

Ajustar o foco e o zoom.

Align the mark of the dome cover and V

guide groove of the camera assembly for

proper camera orientation.

<FRANÇAIS> Alignez la marque du capot de dôme et la rainure V

guide de l’ensemble avec la caméra pour obtenir une

orientation correcte de la caméra.

<ITALIANO> Allineare la marcatura della copertura della cupola e V

la scanalatura guida dell’unità videocamera per un cor-

retto orientamento della videocamera.

<ČEŠTINA>

Vyrovnejte značku v kopulovém krytu s vodicí drážkou v V

těle kamery, aby byla zajištěna správná orientace kamery.

Dla prawidłowej orientacji kamery zrównaj oznaczenie

V pokrywy kopuły oraz wyżłobienie w zespole kamery.

<ESPAÑOL> Alinee la marca de la tapa del domo y la ranura guía V

del montaje de la cámara para una orientación cor-

recta de la cámara.

Lijn de markering van de bolafsluiting en de gelei-V

degroef van de camera-assemblage uit voor een juiste

camerarichting.

<PORTUGUÊS> Alinhar a marca da tampa do domo e guiar a ranhu-V

ra de montagem da câmera para a devida orientação

da câmera.

Installation GuideCamera Adjustment

L5323-BP.CARGSLS_AFN74012433_MFL63745133(A).indd 2 7/28/10 11:13 AM

Produkt Specifikationer

Mærke:	LG
Kategori:	Ikke kategoriseret
Model:	L5323

Har du brug for hjælp?

Hvis du har brug for hjælp til LG L5323 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret LG Manualer

21 Juli 2025

20 Juli 2025

20 Juli 2025

20 Juli 2025

19 Juli 2025

17 Juli 2025

15 Juli 2025

8 Juli 2025

8 Juli 2025

6 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Advantech MIC-3811 Manual

30 Juli 2025

Intermatic EI230W Manual

30 Juli 2025

Rockboard LED Light V2 Manual

30 Juli 2025

Advantech USB-5817 Manual

30 Juli 2025

Electro Harmonix 9DC-100 Manual

30 Juli 2025

Advantech UTC-515H Manual

30 Juli 2025

Extron MGP 641 xi 5K Manual

30 Juli 2025

Festo EMME-AS-80-M-LS-AMB Manual

30 Juli 2025

Tiptop Audio Octogain Manual

30 Juli 2025

Artec SE-ADL Manual

30 Juli 2025
