Installation Guide

Dome Bracket Adaptor

Model: LFL1300

Introduction

This product is designed for installation of LG Dome

camera into the Wall Mount assembly (LBK1000W),

Pendant Mount assembly (LBK1000P) or Parapet Mount

assembly (LBK1000R) on the ceiling or wall.

The installable LG Dome Camera

LND3’s, LCV5’s, LCD5’s, LNV5’s, LND5’s, LND7’s, LNV7’s

and L9322 models

Refer to the owner’s manual of LG Dome Camera for

the compatibility of this product.

Actual set may be dier from the picture described

in this manual.

Installation Precautions

Make sure that the installation place can endure at

least 4 times of the total weight of the Dome Bracket

Adaptor, Camera, and Wall/Ceiling/Parapet Mount

Adaptor.

The Dome Bracket Adaptor can be also connected

to 1.5” NPT screw-thread pipe as well as to the Wall/

Ceiling/Parapet Mount assembly.

Specifications

Dimensions (Ø x H): 141 mm x 50 mm

Net Weight: 0.18 kg

Material: Aluminum

Operating Temperature: -50 °C to 60 °C

Operating Humidity: 0 to 100 %

WARNING:

This product contains chemicals known to the State

of California to cause cancer and birth defects or

reproductive harm. Wash hands after handling.

Getting Started

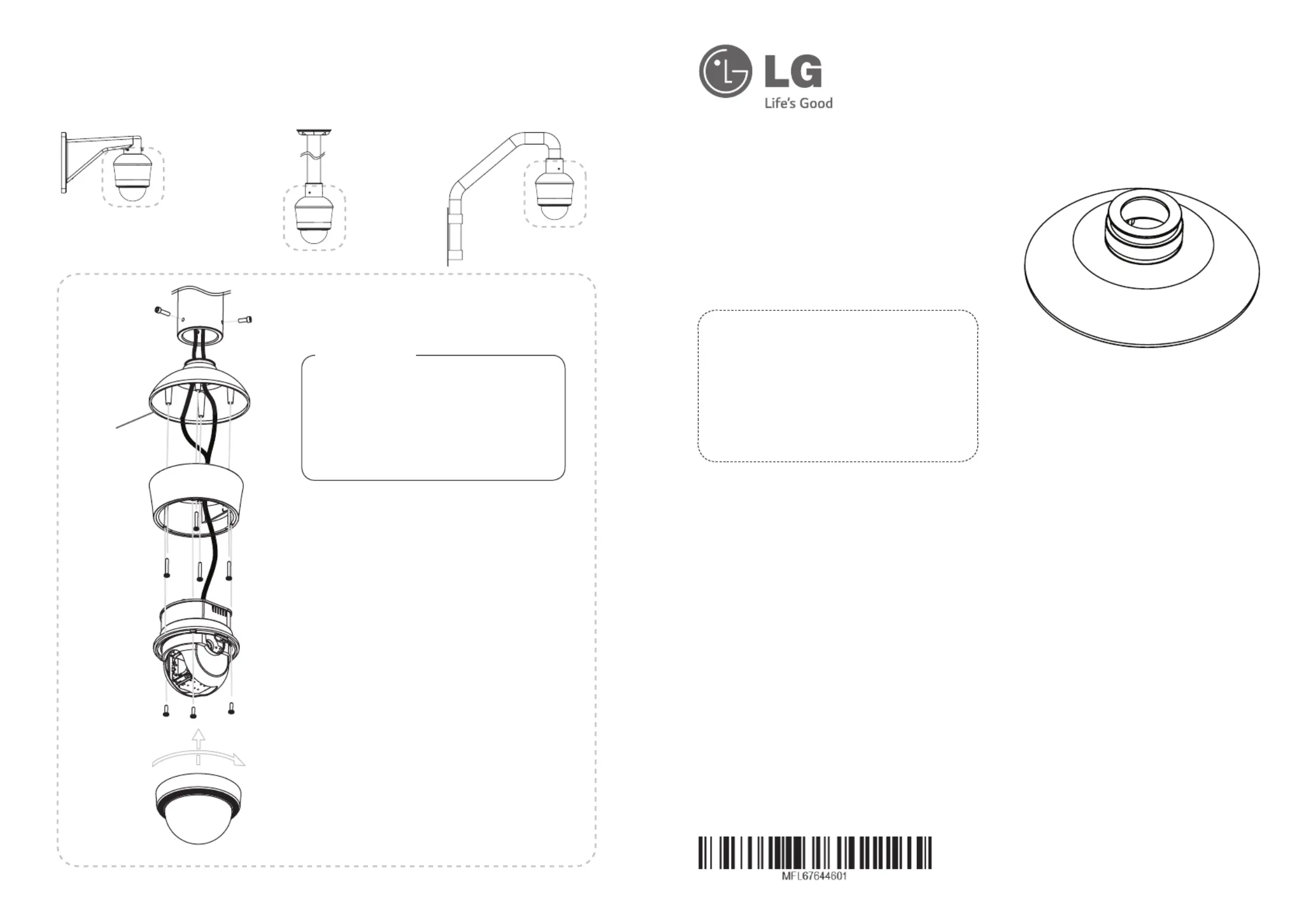

Installation with L9322

model

Note:

This Bracket Adaptor supports only L9322 model produced later than August 2012.

Dome Bracket

Adaptor

(LFL1300)

Insert the Dome Bracket Adaptor to 1.5” NPT screw-

thread (female) pipe or to the Wall/Ceiling/Parapet

Mount Adaptor (LBK1000W/LBK1000P/LBK1000R)

and tighten the three pipe screws.

Make sure you x the three pipe screws. If not

secured tightly, the Dome Bracket Adaptor

may loosen from the Pipe or Adaptor, causing

physical damage or malfunction.

(Make sure you check the connection between

two components before proceeding with the

next step.)

Warning

Assemble the housing of the Dome Camera to the

Dome Bracket Adaptor and tighten four screws.

Turn the Dome Cover clockwise to secure it to the

camera.

Assemble the camera and the housing and tighten

four screws. (Align the “FRONT” marks of the camera

mounting bracket and the camera assembly for

proper camera orientation.)

Accessories

Installation manual

Screw accessory

Screw Machine(M4 x L10.0 mm) (4 ea)

Installation with LCV5's, LNV5's and LNV7's models

Dome Bracket Adaptor

(LFL1300)

Insert the Dome Bracket

Adaptor to 1.5” NPT screw-

thread (female) pipe

or to the Wall/Ceiling/

Parapet Mount Adaptor

(LBK1000W/LBK1000P/

LBK1000R) and tighten the

three pipe screws.

Assemble the housing of

the Dome Camera to the

Dome Bracket Adaptor

and tighten four screws.

Assemble the Dome

Cover and the camera and

tighten three screws.

Assemble the camera

and the housing.

(Align the “FRONT”

marks of the housing

and the camera

assembly for proper

camera orientation.)

Make sure you x the three pipe

screws. If not secured tightly, the Dome

Bracket Adaptor may loosen from

the Pipe or Adaptor, causing physical

damage or malfunction.

(Make sure you check the connection

between two components before

proceeding with the next step.)

Warning

Installation with LCD5's, LND3's,

LND5's

and

LND7's models

Note:

LCD5’s, LND3’s,

LND5’s

and

LND7’s models are designed for installation in an indoor surveillance system.

Dome Bracket

Adaptor

(LFL1300)

Insert the Dome Bracket Adaptor to 1.5” NPT screw-

thread (female) pipe or to the Wall/Ceiling/Parapet

Mount Adaptor (LBK1000W/LBK1000P/LBK1000R)

and tighten the three pipe screws.

Make sure you x the three pipe screws. If not

secured tightly, the Dome Bracket Adaptor

may loosen from the Pipe or Adaptor, causing

physical damage or malfunction.

(Make sure you check the connection between

two components before proceeding with the

next step.)

Warning

Assemble the camera mounting bracket to the Dome

Bracket Adaptor and tighten four screws.

Turn the Dome Cover clockwise to secure it to the

camera.

Turn the camera clockwise to secure it to the camera

mounting bracket. (Align the “FRONT” marks of the

camera mounting bracket and the camera assembly

for proper camera orientation.)
