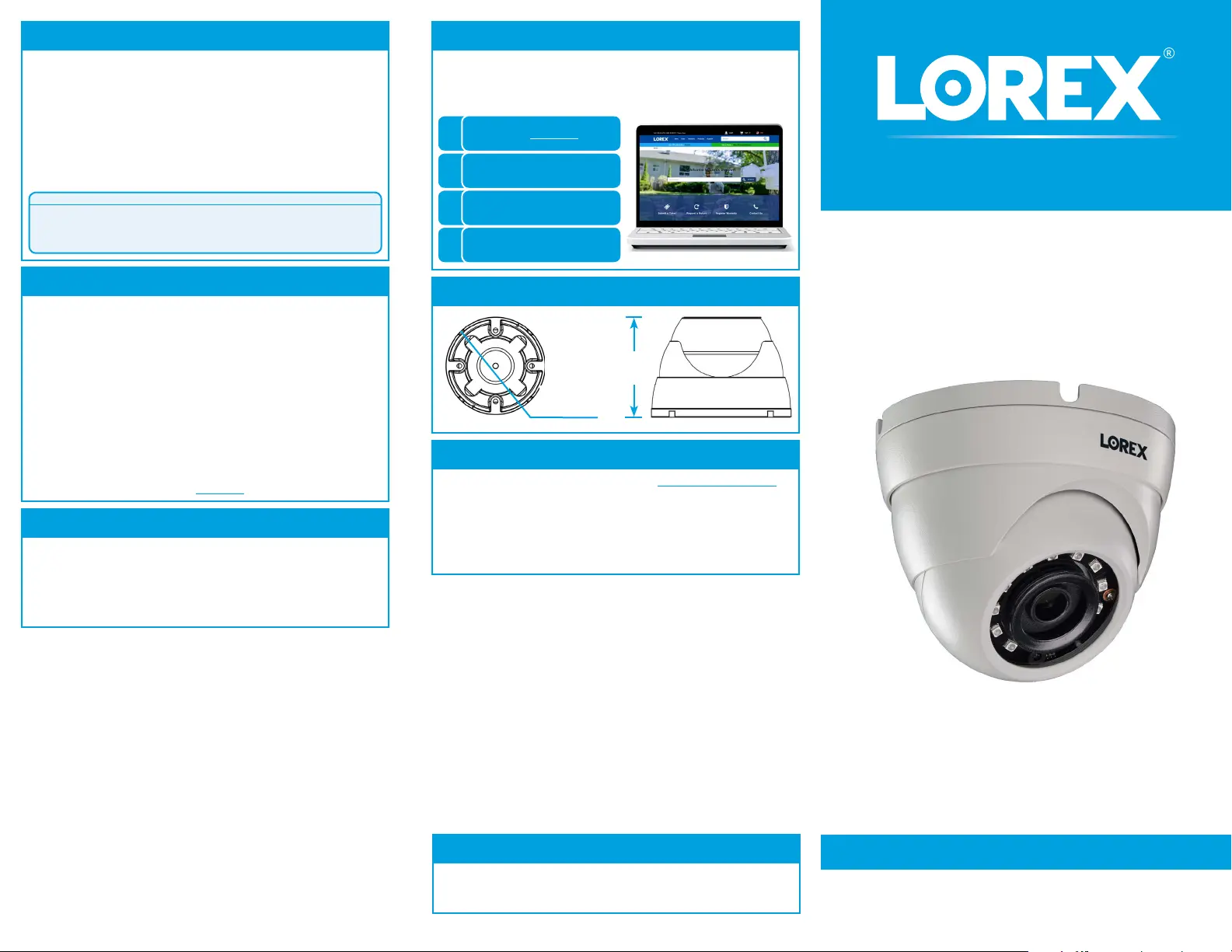

C581CD_QSG_EN_R2

5MP HD Dome Security Camera

• 5MP HD Dome Security Camera

• Mounting Kit*

• BNC / Power Extension Cable*

• Power Adapter**

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s speciﬁcations.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of

intense light.

• Use only the supplied regulated power supply provided with the

product. Use of a non-regulated, non-conforming power supply can

damage the product and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

any harsh, chemical-based cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall

and ﬂoor-to-ﬂoor installations are sold separately (CMR type). These

and other cables are available at lorex.com.

• Point the camera where there is the least amount of obstructions

(i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered

location is recommended.

* Per camera in multi-camera packs.

** A multi-camera power adapter that provides power to multiple

cameras or individual power adapters may be provided depending on

product conﬁguration.

As our products are subject to continuous improvement, Lorex reserves the right

to modify product design, speciﬁcations and prices, without notice and without

Quick Start Guide

English Version 2.0

C581CD SERIES

Package Contents

ATTENTION:

A REGULATED UL / CSA APPROVED power supply is REQUIRED for use

with this camera (included). Use of a non-regulated, non-conforming

power supply can damage this product and voids the warranty.

Safety Precautions

Installation Tips

www.lorex.com

3.7” /

94mm

Dimensions

3.9” /

98mm

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

Resources

• For a full list of compatible recorders, visit lorex.com/compatibility

• Not intended for submersion in water. Installation in a sheltered

location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the

camera changes between Day/Night viewing modes, an audible

clicking noise may be heard from the camera. This clicking is normal,

and indicates that the camera ﬁlter is working.

Disclaimers

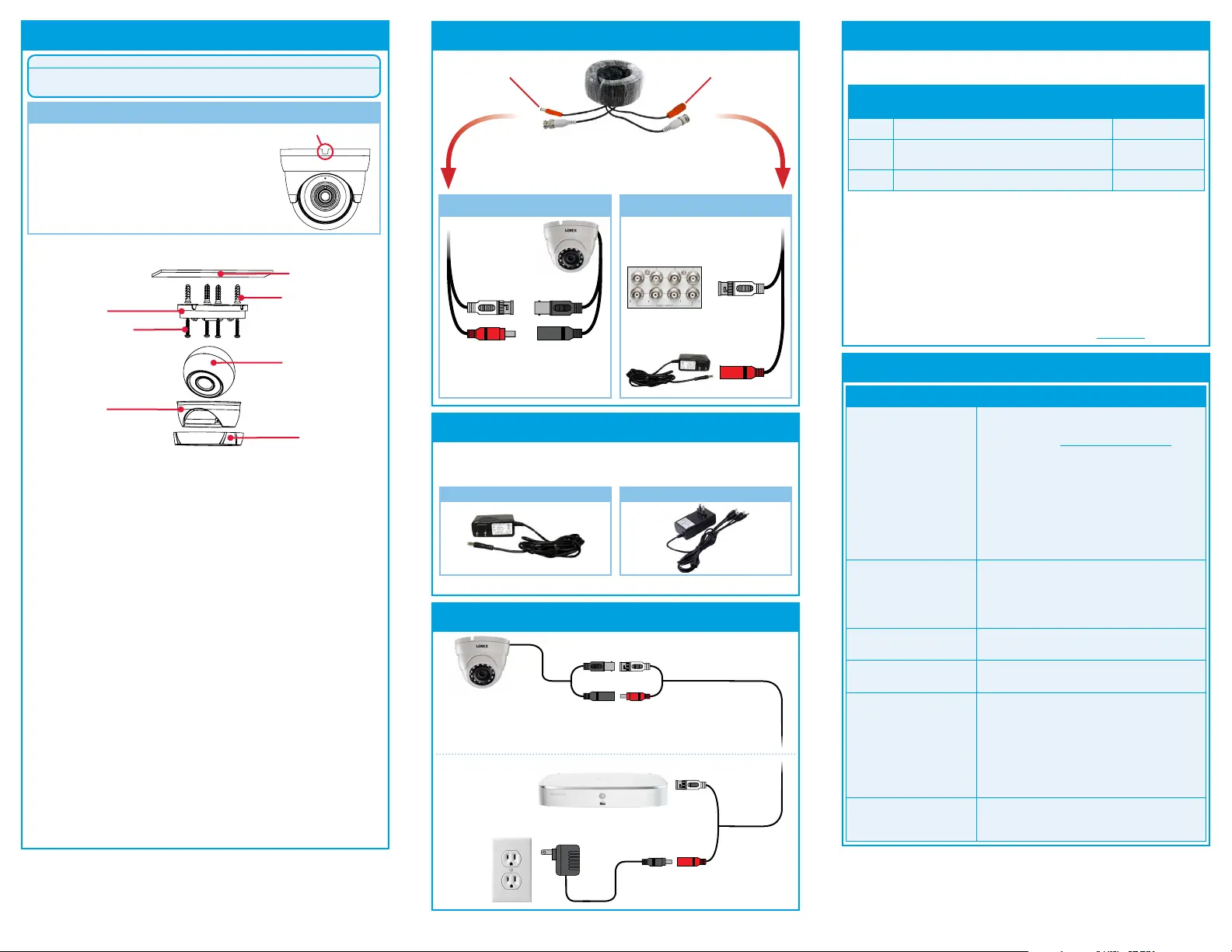

Connecting the Cameras

Individual Power Adapter* Multi-Camera Power Adapter*

Connecting the Cameras

* Images for representation only

Mounting Surface

Camera Base

Ball Camera

Adjustment Ring

Dome Cover

Drywall Anchors (×4)

Mounting Screws (×4)

To install your camera:

Installing the Camera

Extend the cable run for your camera depending on the cable type used.

Additional extension cables sold separately. See table below:

Connect the male power head

and the BNC connector to the

camera.

Connect the BNC connector

to a video input on your DVR.

Connecting the Camera

Cable Notch

C581CD_QSG_EN_R2

Power Adapter Types

A multi-camera power adapter that provides power to multiple cameras

or individual power adapters may be provided, depending on product

conﬁguration.

Problem Solution

No picture / signal • The cameras are only compatible with certain

Lorex HD DVRs. For the full list of compatible

recorders, visit lorex.com/compatibility

• Ensure your TV or monitor is on the correct

input channel. Common terms for input

channels: INPUT, AV CHANNEL, LINE1, LINE2,

AUX.

• Ensure your DVR is properly connected to

your TV or monitor.

• Ensure connections are properly connected.

• Ensure the camera power supply is plugged

in.

Picture is too bright • Ensure your camera isn’t pointed directly at a

source of light (e.g., sun or spot light).

• Check the brightness settings of the DVR

and monitor.

• Move your camera to a different location.

Picture is too dark • Check the brightness and contrast settings

of the DVR and monitor.

Night vision is not

working

• The night vision activates when light levels

drop. The area may have too much light.

Picture is not clear • Check the camera lens for dirt, dust,

spiderwebs. Clean the lens with a soft, clean

cloth.

• Make sure that the cable run is within the

limitations speciﬁed in the section ‘Cable

Extension Options’.

• Remove the vinyl ﬁlm from the camera lens

when your installation is complete.

Bright spot in video when

viewing camera at night

• Night vision reﬂects when pointing a camera

through a window. Move the camera to a

different location.

Troubleshooting

ATTENTION:

Test your camera prior to selecting a permanent mounting location by

temporarily connecting the camera and cable to your DVR.

Before Installing the Camera

• Decide whether to run the cables through the

wall / ceiling (drilling required) or along the wall

/ ceiling.

• If you run the cables along the wall / ceiling,

you must run the cable through the cable

notch on the base. This will keep the camera

base ﬂush to the surface when mounted.

Connect the female power

head to the included power

adapter.

Camera

DVR

Male Power Female Power

Setup Diagram

BNC Video

12V DC Power

Camera

Extension Cable

Power Adapter

HD DVR

Cable Extension Options

Option Cable Type

Max Cable Run

Distance

BNC cable included with the camera 60ft (18m)

‘RG59’ or ‘Coax’ or ‘Coaxial BNC’ Siamese (Video

and Power)

200ft (61m)

‘RG59’ or ‘Coax’ or ‘Coaxial BNC’ (Video Only)

800ft (242m)

NOTES:

1. The extension cable must be a single stretch of cable between the

DVR and camera. You cannot connect multiple extension cables to

each other.

2. For cable runs above 200ft (61m), you must connect the power

adapter directly to the camera, rather than at the end of the

extension cable.

3. Indicators that your cable run may be too long:

• Video is permanently black & white (even during day time).

• Video is unclear, soft, or distorted.

4. For more information on extension cables, visit lorex.com.

1. Rotate the camera base counterclockwise to separate it

from the ball camera, adjustment ring, and dome cover.

2. Use the included mounting template to mark and drill holes

for the included mounting screws.

3. Feed the cable through the camera base. If you are running

the cables against a wall or ceiling, make sure to pass the

cable through the cable notch as shown above.

4. Connect the cables as shown in the section ‘Connecting the

Camera’.

5. Mount the camera base to the mounting surface using the

included screws and optional drywall anchors.

6. Place the adjustment ring over the dome cover, then place

both over the ball camera. Twist the adjustment ring

clockwise halfway onto the camera base. Do not tighten all

the way.

7. Move the ball camera to the desired position. While holding

the ball camera ﬁrmly in place, twist the adjustment ring

the rest of the way to secure it to the camera base. Holding

the camera prevents it from moving while securing the

adjustment ring.

8. Remove the vinyl ﬁlm from the camera lens when your

installation is complete.
