Side 1/2
• Point the camera where there is the least amount of obstructions
(i.e., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is
recommended.
Installation Tips
Disclaimers

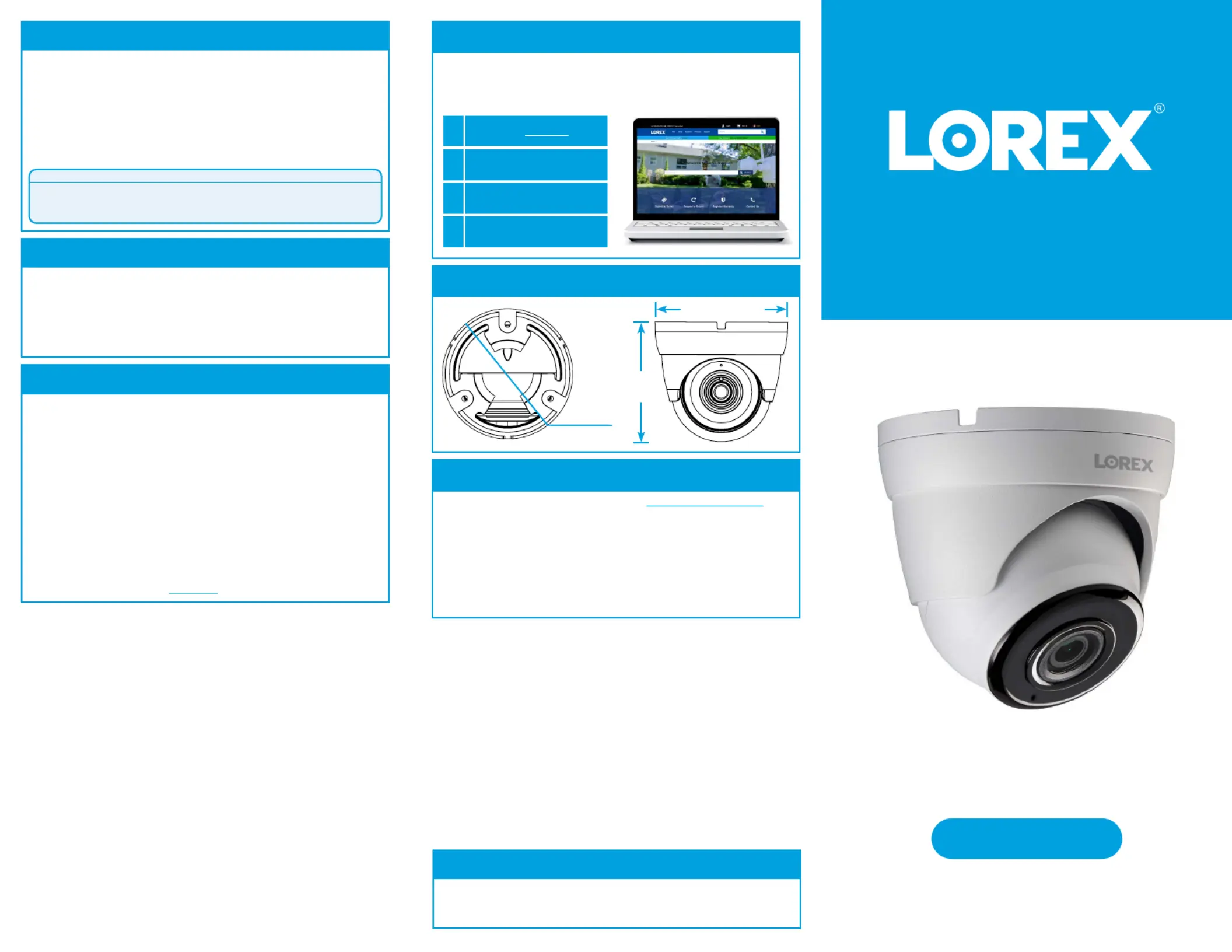

Dimensions
C831CD_QSG_EN_R1
4K Ultra HD Dome Security Camera
• 4K Ultra HD Dome Security Camera
• Mounting Kit*
• BNC / Power Extension Cable*
• Power Adapter**
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera’s specications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense
light.
• Use only the supplied regulated power supply provided with the product.
Use of a non-regulated, non-conforming power supply can damage the
product and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any
harsh, chemical-based cleaners.
• The supplied cable is rated for surface and in-wall mounting only. Cables
for oor-to-oor installations are sold separately (CMR type). These and
other cables are available at . lorex.com
Copyright © 2019 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to
modify product design, specications and prices, without notice and without incurring
any obligation. E&OE. All rights reserved.
C831CD SERIES
Package Contents
ATTENTION:
A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with this
camera (included). Use of a non-regulated, non-conforming power supply can
damage this product and voids the warranty.
Safety Precautions
lorex.com
• For a full list of compatible recorders, visit .lorex.com/compatibility
• Not intended for submersion in water. Installation in a sheltered location
recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera
changes between Day/Night viewing modes, an audible clicking noise
may be heard from the camera. This clicking is normal, and indicates that
the camera lter is working.
• For the smoothest possible 4K video streaming experience, connect your
DVR to a Gigabit router (use available 1000Mbps / 1Gbps Ethernet port).
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
Click on the Downloads tab
4
Visit lorex.com
Search for the model
number of your product
Click on your product
in the search results
3
2
1
* Per camera in multi-camera packs.
** A multi-camera power adapter that provides power to multiple cameras or individual
power adapters may be provided depending on product conguration.
3.9” / 100mm
3.5” /
90mm
3.9” /
100mm
QUICK START GUIDE
English version 1.0
To install your camera:
1. Rotate the camera base counterclockwise to separate it from the ball
camera, adjustment ring, and dome cover.
2. Use the included mounting template to mark and drill holes for the
included mounting screws.
3. Feed the cable through the camera base. If you are running the cables
against a wall or ceiling, make sure to pass the cable through the
cable notch as shown above.
4. Connect the cables as shown in the section ‘Connecting the
Camera’.
5. Mount the camera base to the mounting surface using the included
screws and drywall anchors (optional).
6. Place the adjustment ring over the dome cover, then place both over
the ball camera. Twist the adjustment ring clockwise halfway onto the
camera base. Do not tighten all the way.
7. Move the ball camera to the desired position. While holding the ball
camera rmly in place, twist the adjustment ring the rest of the way
to secure it to the camera base. Holding the camera prevents it from
moving while securing the adjustment ring.
8. Remove the vinyl lm from the camera lens when your installation is
complete.
ATTENTION:
Test your camera prior to selecting a permanent mounting location by
temporarily connecting the camera and cable to your DVR.
Before Installing the Camera
• Decide whether to run the cables through the
wall / ceiling (drilling required) or along the wall
/ ceiling.
• If you run the cables along the wall / ceiling, you
must run the cable through the on cable notch
the base. This will keep the camera base ush to
the surface when mounted.
Cable Notch
Mounting
surface
Camera base
Ball camera
Adjustment ring
Dome cover
Drywall anchors (×3)
Mounting
screws (×3)

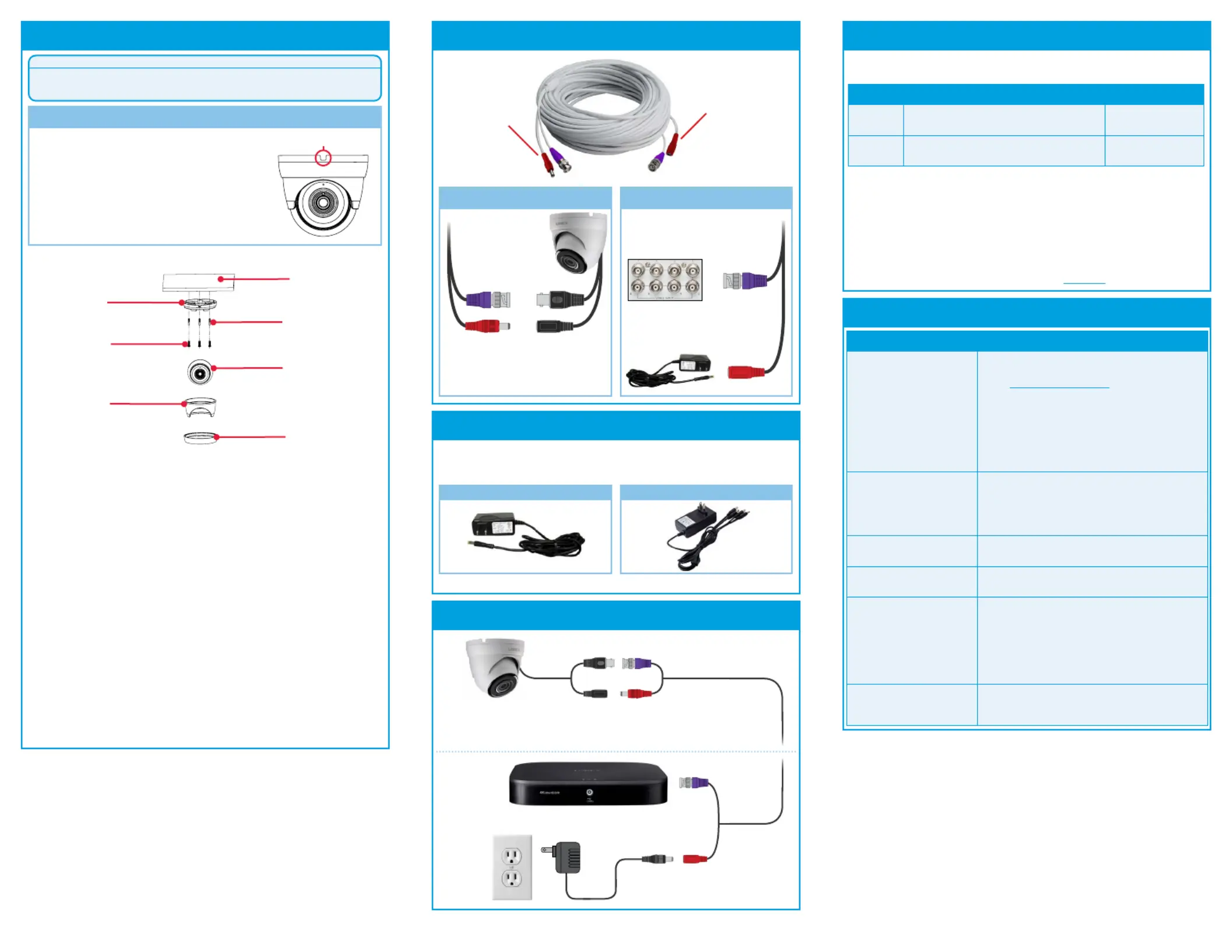

Installing the Camera
Individual Power Adapter* Multi-Camera Power Adapter*
* Images for representation only.
Connect the male power head
and the BNC connector to the
camera.
Connect the BNC connector
to a video input on your DVR.
Connecting the Camera
Power Adapter Types
A multi-camera power adapter that provides power to multiple cameras
or individual power adapters may be provided, depending on product
conguration.
Connect the female power
head to the included power
adapter.
Camera
DVR
Male Power
Female Power
Setup Diagram
BNC Video
12V DC Power
Camera
Extension Cable
Power Adapter
HD DVR
C831CD_QSG_EN_R1
Extend the cable run for your camera depending on the cable type used.
Additional extension cables sold separately. See table below:
Cable Extension Options
Option Model Number Cable Length
1
CB120URB 120ft (37m)
2
CB250URB 250ft (76m)
NOTES:
1. The extension cable must be a single stretch of cable between the DVR and
camera. You cannot connect multiple extension cables to each other.
2. For longer cable runs, it is recommended to connect the power adapter directly to
the camera, rather than at the end of the extension cable.
3. Indicators that your cable run may be too long:
• Camera loses video when switching to night vision.
• Video is permanently black & white (even during day time).
• Video is unclear, soft, or distorted.
4. For more information on extension cables, visit .lorex.com
Problem Solution
No picture / signal • The cameras are only compatible with certain Lorex
HD DVRs. For the full list of compatible recorders,
visit .lorex.com/compatibility
• Ensure your TV or monitor is on the correct input
channel. Common terms for input channels: INPUT,
AV CHANNEL, LINE1, LINE2, AUX.
• Ensure your DVR is properly connected to your TV
or monitor.
• Ensure connections are properly connected.
• Ensure the camera power supply is plugged in.
Picture is too bright • Ensure your camera isn’t pointed directly at a
source of light (e.g., sun or spot light).
• Check the brightness settings of the DVR and
monitor.
• Move your camera to a different location.
Picture is too dark • Check the brightness and contrast settings of the
DVR and monitor.
Night vision is not working • Night vision activates when light levels drop. The
area may have too much light.
Picture is not clear • Check the camera lens for dirt, dust, spiderwebs.
Clean the lens with a soft, clean cloth.
• Make sure that the cable run is within the
limitations specied in the section ‘Cable Extension
Options’.
• Remove the vinyl lm from the camera lens when
your installation is complete.
Bright spot in video when
viewing camera at night
• Night vision reects when pointing a camera
through a window. Move the camera to a different
location.
Troubleshooting
