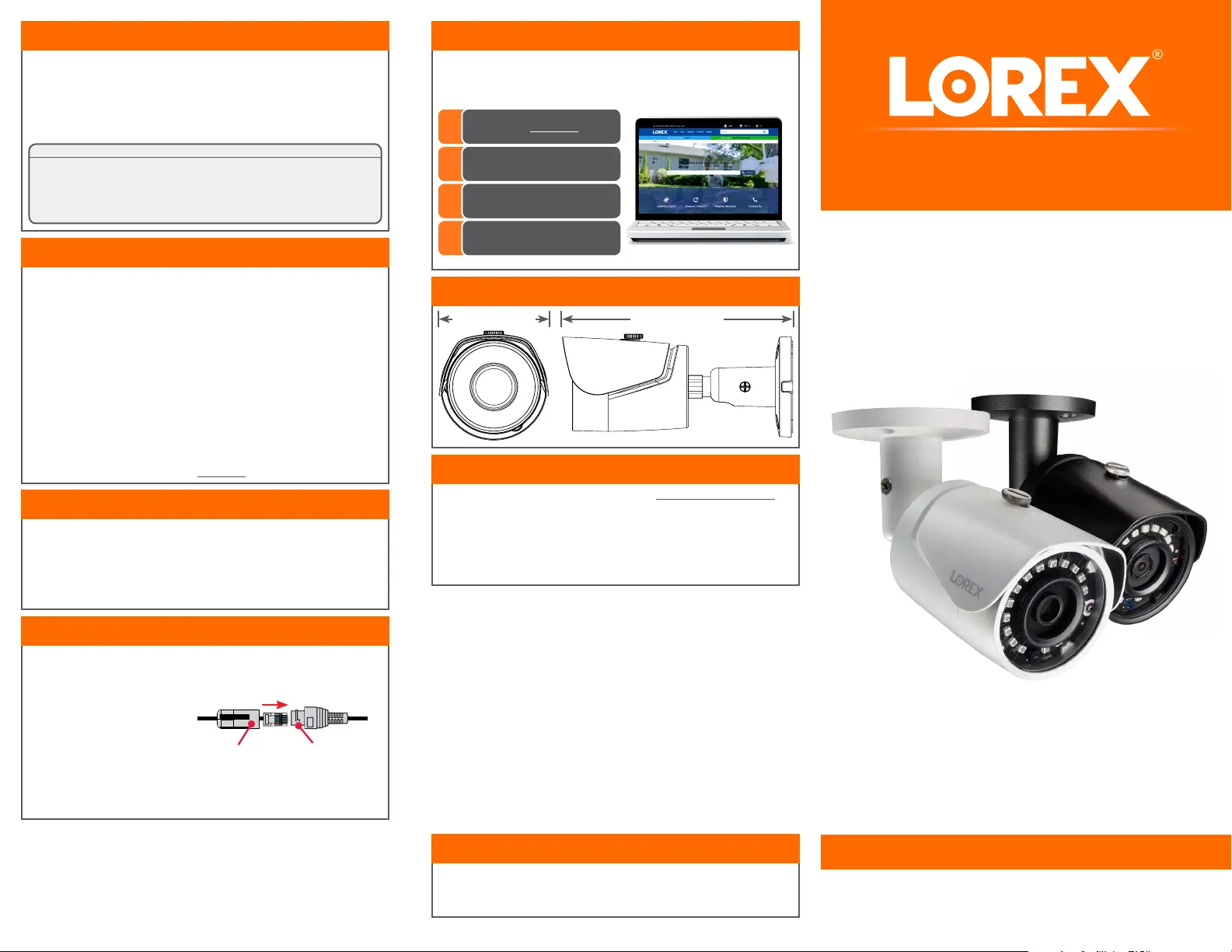

5MP HD Bullet IP Camera

E581CB_QSG_EN_R2

Quick Start Guide

English Version 2.0

As our products are subject to continuous improvement, Lorex reserves the right

to modify product design, speciﬁcations and prices, without notice and without

• For a full list of compatible recorders, visit lorex.com/compatibility.

• Not intended for submersion in water. Installation in a sheltered

location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the

camera changes between Day/Night viewing modes, an audible clicking

noise may be heard from the camera. This clicking is normal, and

indicates that the camera ﬁlter is working.

Disclaimers

Dimensions

6.3” / 160mm

2.5” / 62mm

E581CB SERIES

• 5MP HD Bullet IP Camera

• Mounting Kit*

• Ethernet Extension Cable with Pre-attached RJ45

Cable Gland*

* Per camera in multi-camera packs.

Package Contents

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE

switch. If using a DC power adapter (not included) with the camera, a

REGULATED power supply is REQUIRED for use with this camera. Use of

a non-regulated, non-conforming power supply can damage this product

and voids the warranty.

• Use the camera only with compatible Lorex NVRs.

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s speciﬁcations.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of

intense light.

• Use only a regulated power supply with the product (optional). Use of a

non-regulated, non-conforming power supply can damage the product

and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

any harsh, chemical-based cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall

and ﬂoor-to-ﬂoor installations are sold separately (CMR type). These

and other cables are available at lorex.com.

Safety Precautions

• Point the camera where there is the least amount of obstructions

(i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered

location is recommended.

Installation Tips

www.lorex.com

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

Resources

The pre-attached RJ45 cable gland covers the camera’s Ethernet

connector and the RJ45 plug to provide weather-resistance and

protection from dust, dirt and other environmental contaminants.

To use the RJ45 cable gland:

RJ45 Cable

Gland Barrel

Camera Ethernet

Connector

NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with

silicone and/or electrical tape for additional sealing if it will be exposed

to precipitation regularly.

Twist the RJ45 cable gland

barrel securely onto the

camera Ethernet connector.

Using the RJ45 Cable Gland (Optional)

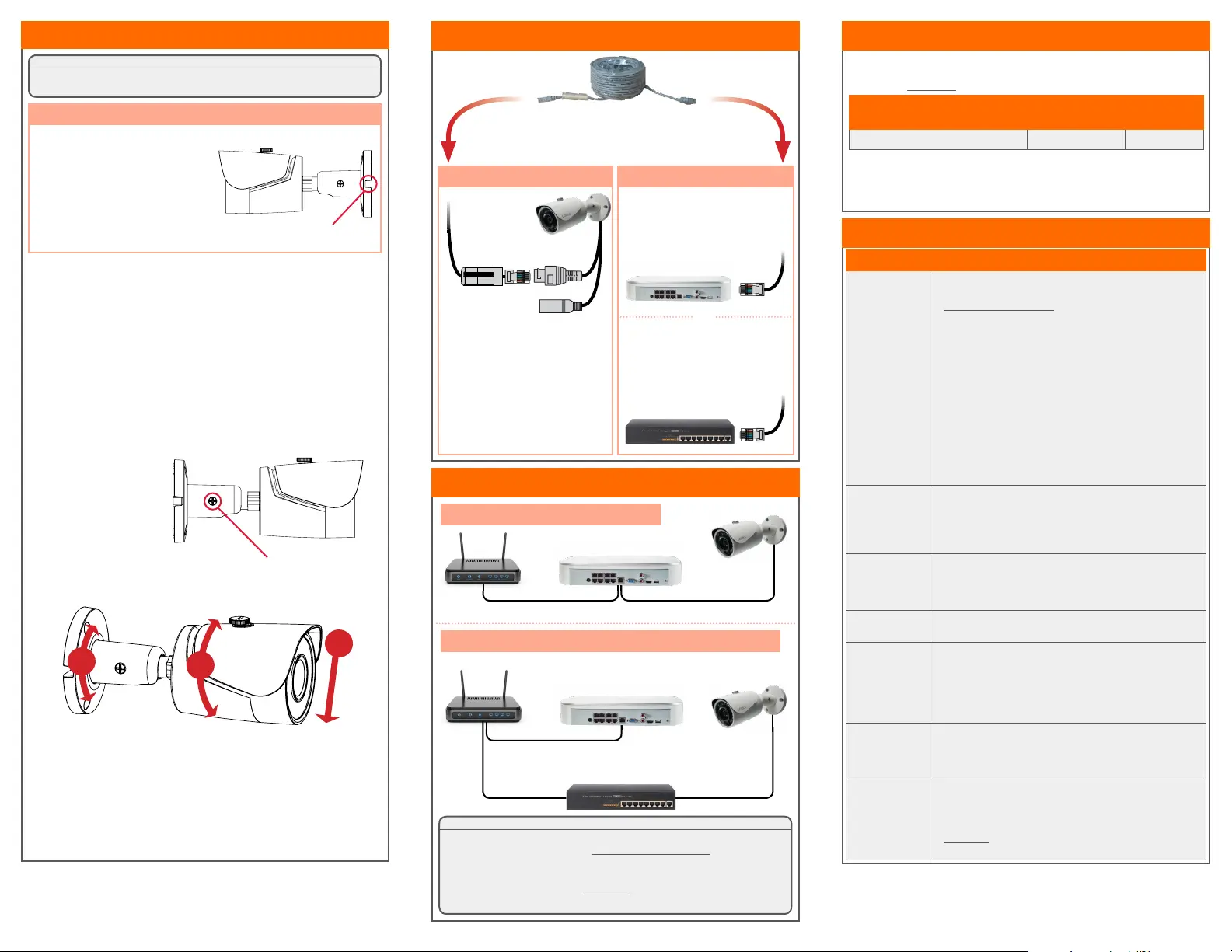

Connecting the CamerasSetup Diagram

CameraNVR

Scenario 1: Connect Cameras to NVR

Scenario 2: Connect Cameras to Local Area Network (LAN)

Router

Camera

NVR

Router

PoE Switch

ATTENTION:

• This camera is only compatible with select NVRs. For a list of

compatible recorders, visit lorex.com/compatibility.

• You must connect the camera to a supporting H.265 NVR to take

advantage of H.265 compression. For instructions on enabling

H.265 compression, visit lorex.com, and search for “How do I

enable H.265 compression?”.

E581CB_QSG_EN_R2

ATTENTION:

Test your camera prior to selecting a permanent mounting location by

temporarily connecting the camera and cable to your NVR.

Before Installing the Camera

• Decide whether to run the cables

through the wall / ceiling (drilling

required) or along the wall / ceiling.

• If you run the cables along the

wall / ceiling, you must run the

cable through the cable notch on

the base. This will keep the camera

base ﬂush to the surface when mounted.

Cable Notch

To install your camera:

Adjustment Screw

A. Rotate the camera base 360°

B. Twist the camera around the stand 360°

C. Tilt the camera on the stand up to 90°

• You can use a RJ45 coupler or switch (not included) to connect male

ends of Ethernet cable together.

• To extend the cable run beyond 300ft (91m), a switch will be required

(sold separately).

Extend the Ethernet cable run for your camera up to 300ft (91m).

See table below. It is recommended to use UL CMR approved cables

available at lorex.com.

Cable Extension Options

Cable Type

Max Cable Run

Distance

Max # of

Extensions

CAT5e (or higher) Ethernet cable 300ft (91m) 3

Problem Solution

No picture /

signal

• Ensure the camera is connected to a compatible NVR.

For full camera compatibility, visit

lorex.com/compatibility.

• The camera may take up to 1 minute to power up after

being connected to the NVR. Wait two minutes before

following the steps below.

• Ensure the camera is connected to your NVR or to your

local network.

• If you are not using PoE, you must connect the camera

to a 12V DC power adapter (not included).

• If the camera is connected to the LAN, you must search

your network for cameras using the NVR. See the NVR’s

instruction manual.

• Ensure your NVR is properly connected to a TV/monitor.

• There may be an issue with your extension cable run.

Connect the camera to the NVR using a different

Ethernet cable.

Picture is too

bright

• Ensure your camera isn’t pointed directly at a source of

light (e.g., sun or spot light).

• Slide the sunshade forward to block excess light.

• Move your camera to a different location.

• Check the brightness and contrast settings on the NVR.

Picture is too

dark

• If using during the day, the camera may not be getting

enough light. Slide the sunshade backwards to let in

more light.

• Check the brightness and contrast settings on the NVR.

Night vision is

not working

• The night vision activates when light levels drop. The

area may have too much light.

Picture is not

clear

• Check the camera lens for dirt, dust, spiderwebs. Clean

the lens with a soft, clean cloth.

• Make sure that the cable run is within the limitations

speciﬁed in the section ‘Cable Extension Options’.

• Remove the vinyl ﬁlm from the camera lens when your

installation is complete.

Bright spot

in video when

viewing camera

at night

• Night vision reﬂects when pointing a camera through a

window. Move the camera to a different location.

Picture is in

color in dark

conditions

• This camera comes with an image sensor that is extra

sensitive to light, meaning that the camera stays in

color mode at low-light conditions. For instructions on

how to make your camera switch to night mode, visit

lorex.com, and search for “How do I make my camera

switch to night mode?”.

Troubleshooting

Connect the Ethernet cable to

the camera.

Connect the other end of the

Ethernet cable to the NVR’s PoE

ports. The camera may take a

minute to power up after

being connected.

Connecting the Camera

Connect the other end of the

Ethernet cable to a router or

switch on your network. See

your NVR manual for details on

connecting the camera to your

NVR using a switch or router.

Camera

NVR

(Optional)

12V DC Power

Ethernet Cable

NOTE: A 12V DC power adapter

(model#: ACCPWR12V1, not

included) is only required if

connecting the camera’s Ethernet

cable to a router or switch that

does not support PoE.

Installing the Camera

4. Use a Philips head

screwdriver (not

included) to loosen

the adjustment

screw.

5. Adjust the camera position as needed:

6. Tighten the adjustment screw to secure the position.

7. Remove the vinyl ﬁlm from the camera lens when your

installation is complete.

1. Use the included mounting template to mark holes for the

screws. Drill holes for the mounting screws.

NOTE: Insert the included drywall anchors if you are

installing the camera in drywall.

2. Connect cables as shown in the section “Connecting the

Camera”.

3. Feed the cable through the mounting surface or cable

notch and mount the camera stand to the surface using

the provided screws.
