Side 1/2

Resources

Dimensions

Disclaimers

Package Contents

Safety Precautions

Installation Tips

Using the RJ45 Cable Gland (Optional)

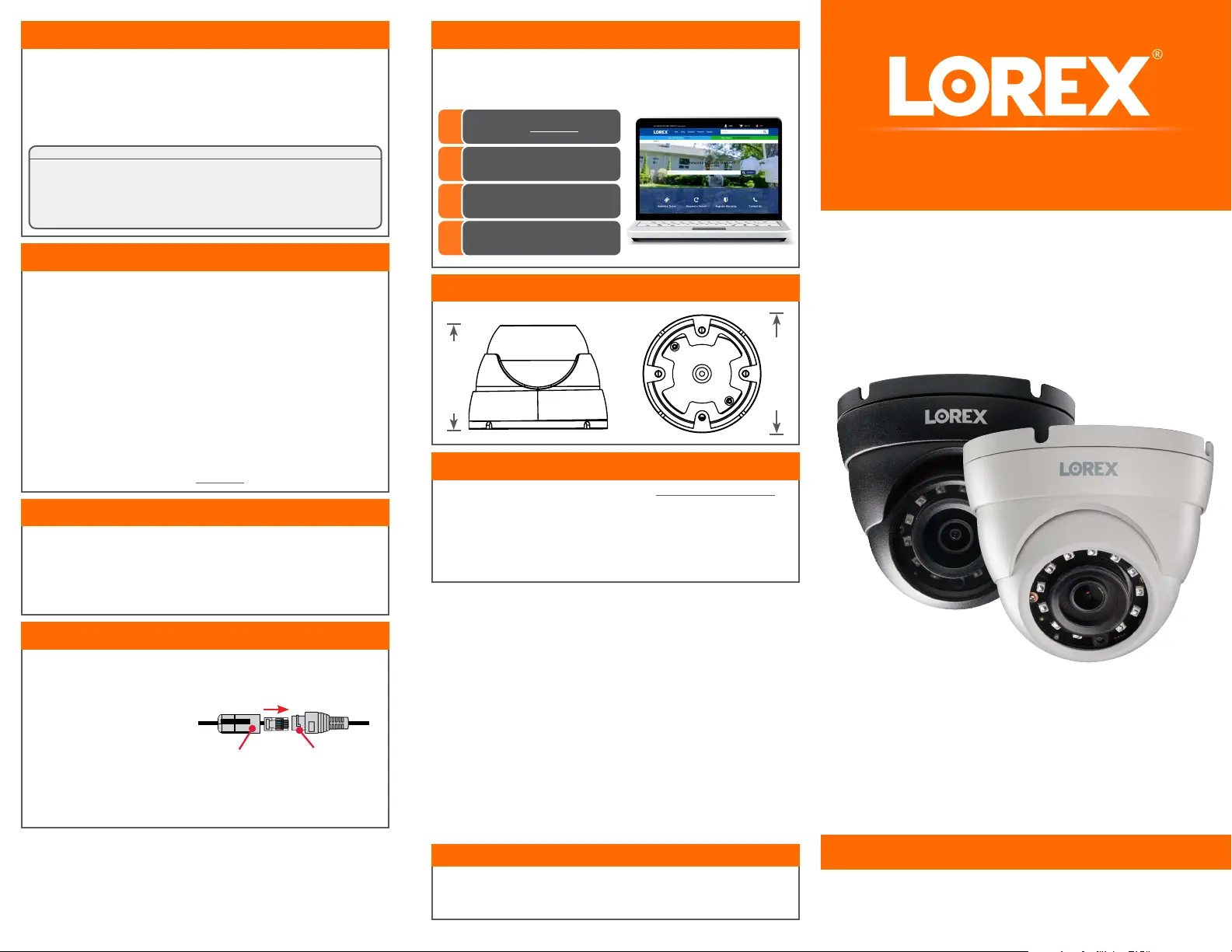

E581CD_QSG_EN_R1

• 5MP HD Dome IP Camera

• Mounting Kit*

• Ethernet Extension Cable with Pre-attached RJ45

Cable Gland*

• Use the camera only with compatible Lorex NVRs.

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s speciﬁcations.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of

intense light.

• Use only a regulated power supply with the product (optional). Use of a

non-regulated, non-conforming power supply can damage the product

and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

harsh cleaners or aerosol cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall

and ﬂoor-to-ﬂoor installations are sold separately (CMR type). These

and other cables are available at lorex.com.

• Point the camera where there is the least amount of obstructions

(i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered

location is recommended.

* Per camera in multi-camera packs.

As our products are subject to continuous improvement, Lorex reserves the right

to modify product design, speciﬁcations and prices, without notice and without

Quick Start Guide

English Version 1.0

E581CD SERIES

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE

switch. If using a DC power adapter (not included) with the camera, a

REGULATED power supply is REQUIRED for use with this camera. Use of

a non-regulated, non-conforming power supply can damage this product

and voids the warranty.

2.8" / 70mm

www.lorex.com

• For a full list of compatible recorders, visit lorex.com/compatibility.

• Not intended for submersion in water. Installation in a sheltered

location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the

camera changes between Day/Night viewing modes, an audible clicking

noise may be heard from the camera. This clicking is normal, and

indicates that the camera ﬁlter is working.

5MP HD Dome IP Camera

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

The pre-attached RJ45 cable gland covers the camera’s Ethernet

connector and the RJ45 plug to provide weather-resistance and

protection from dust, dirt and other environmental contaminants.

To use the RJ45 cable gland:

RJ45 Cable

Gland Barrel

Camera Ethernet

Connector

NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with

silicone and/or electrical tape for additional sealing if it will be exposed

to precipitation regularly.

Twist the RJ45 cable gland

barrel securely onto the

camera Ethernet connector.

3.7" / 93mm

Connecting the Cameras

CameraNVR

Scenario 1: Connect Cameras to NVR

Scenario 2: Connect Cameras to Local Area Network (LAN)

Router

Camera

NVR

Router

PoE Switch

ATTENTION:

• This camera is only compatible with select NVRs. For a list of

compatible recorders, visit lorex.com/compatibility.

• You must connect the camera to a supporting H.265 NVR to take

advantage of H.265 compression. For instructions on enabling

H.265 compression, visit lorex.com, and search for “How do I

enable H.265 compression?”.

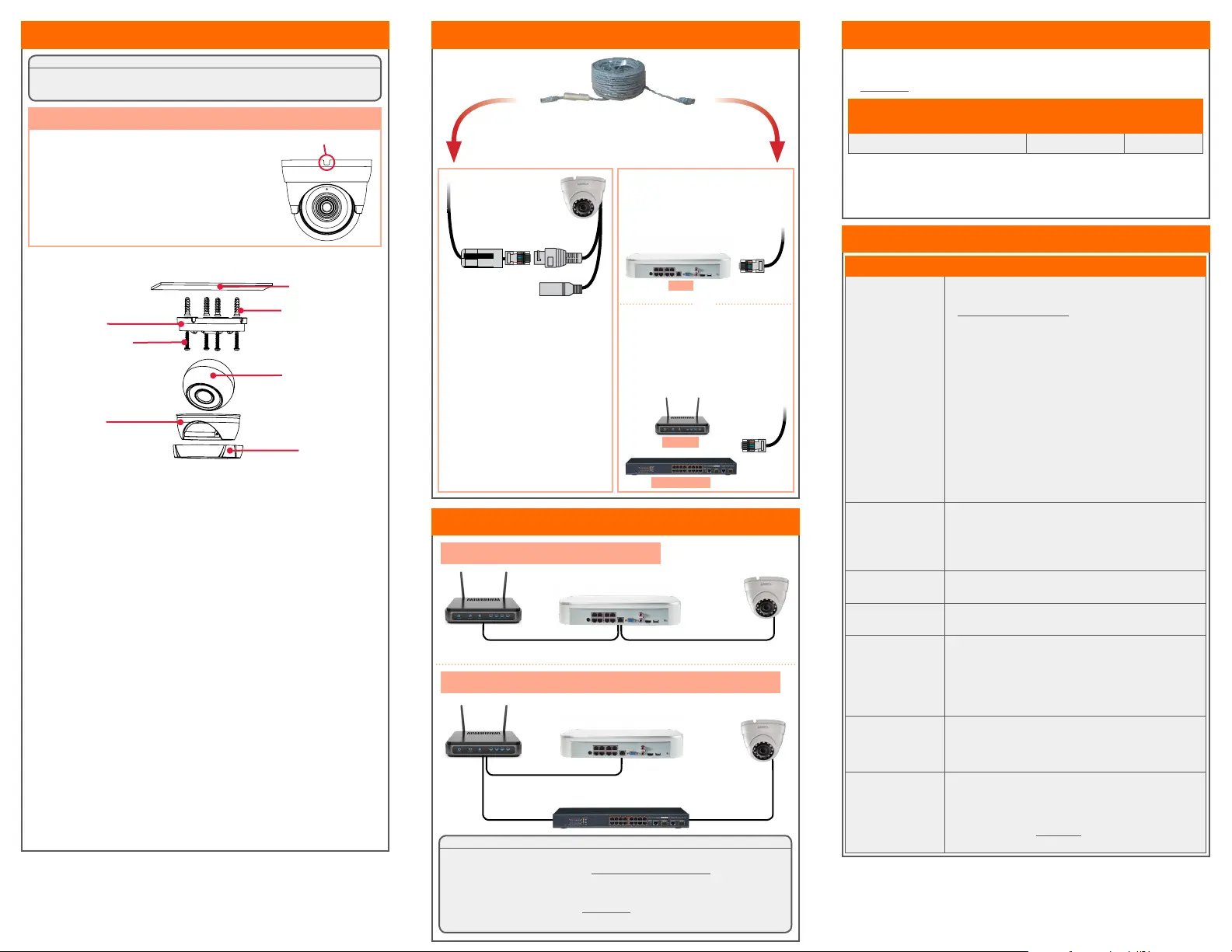

Installing the Camera Connecting the Camera

Setup Diagram

Troubleshooting

Cable Extension Options

To install your camera:

1. Rotate the camera base counterclockwise to separate it from the

ball camera, adjustment ring, and dome cover.

2. Use the included mounting template to mark and drill holes for the

included mounting screws.

3. Feed the cable through the camera base. If you are running the

cables against a wall or ceiling, make sure to pass the cable

through the cable notch as shown above.

4. Connect the cables as shown in the section ‘Connecting the

Camera’.

5. Mount the camera base to the mounting surface using the included

screws and drywall anchors (optional).

6. Place the adjustment ring over the dome cover, then place both

over the ball camera. Twist the adjustment ring clockwise halfway

onto the camera base. Do not tighten all the way.

7. Move the ball camera to the desired position. While holding the ball

camera ﬁrmly in place, twist the adjustment ring the rest of the

way to secure it to the camera base. Holding the camera prevents

it from moving while securing the adjustment ring.

8. Remove the vinyl ﬁlm from the camera lens when your installation

is complete.

Connect the Ethernet cable to

the camera.

Connect the other end of the

Ethernet cable to the NVR’s PoE

ports. The camera may take a

minute to power up after being

connected.

E581CD_QSG_EN_R1

Problem Solution

No picture / signal • Ensure the camera is connected to a compatible

NVR. For full camera compatibility, visit

lorex.com/compatibility.

• The camera may take up to 1 minute to power up

after being connected to the NVR. Wait two minutes

before following the steps below.

• Ensure the camera is connected to your NVR or to

your local network.

• If you are not using PoE, you must connect the

camera to a 12V DC power adapter (not included).

• If the camera is connected to the LAN, you must

search your network for cameras using the NVR. See

the NVR’s instruction manual.

• Ensure your NVR is properly connected to a TV/

monitor.

• There may be an issue with your extension cable run.

Connect the camera to the NVR using a different

Ethernet cable.

Picture is too

bright

• Ensure your camera isn’t pointed directly at a source

of light (e.g., sun or spot light).

• Move your camera to a different location.

• Check the brightness and contrast settings on the

NVR.

Picture is too dark • Check the brightness and contrast settings on the

NVR.

Night vision is not

working

• The night vision activates when light levels drop. The

area may have too much light.

Picture is not clear • Check the camera lens for dirt, dust, spiderwebs.

Clean the lens with a soft, clean cloth.

• Make sure that the cable run is within the limitations

speciﬁed in the section ‘Cable Extension Options’.

• Remove the vinyl ﬁlm from the camera lens when

your installation is complete.

Bright spot

in video when

viewing camera at

night

• Night vision reﬂects when pointing a camera through

a window. Move the camera to a different location.

Picture is in color

in dark conditions

• This camera comes with an image sensor that is

extra sensitive to light, meaning that the camera

stays in color mode at low-light conditions. For

instructions on how to make your camera switch to

night mode, visit lorex.com, and search for “How do I

make my camera switch to night mode?”

ATTENTION:

Test your camera prior to selecting a permanent mounting location by

temporarily connecting the camera and cable to your NVR.

Before Installing the Camera

• Decide whether to run the cables through the

wall / ceiling (drilling required) or along the wall

/ ceiling.

• If you run the cables along the wall / ceiling,

you must run the cable through the cable

notch on the base. This will keep the camera

base ﬂush to the surface when mounted.

Connect the other end of the

Ethernet cable to a router or

switch on your network. See

your NVR manual for details on

connecting the camera to your

NVR using a switch or router.

(Optional)

12V DC Power

Ethernet Cable

NOTE: A 12V DC power adapter

(model#: ACCPWR12V1, not

included) is only required

if connecting the camera’s

Ethernet cable to a router or

switch that does not support

PoE.

Cable Notch

• You can use a RJ45 coupler or switch (not included) to connect male

ends of Ethernet cable together.

• To extend the cable run beyond 300ft (91m), a switch will be required

(sold separately).

Extend the Ethernet cable run for your camera up to 300ft (91m). See

table below. It is recommended to use UL CMR approved cables available

at lorex.com.

Cable Type

Max Cable Run

Distance

Max # of

Extensions

CAT5e (or higher) Ethernet cable 300ft (91m) 3

Mounting Surface

Camera Base

Ball Camera

Adjustment Ring

Dome Cover

Drywall Anchors (×4)

Mounting Screws (×4)

NVR

Router

PoE Switch
