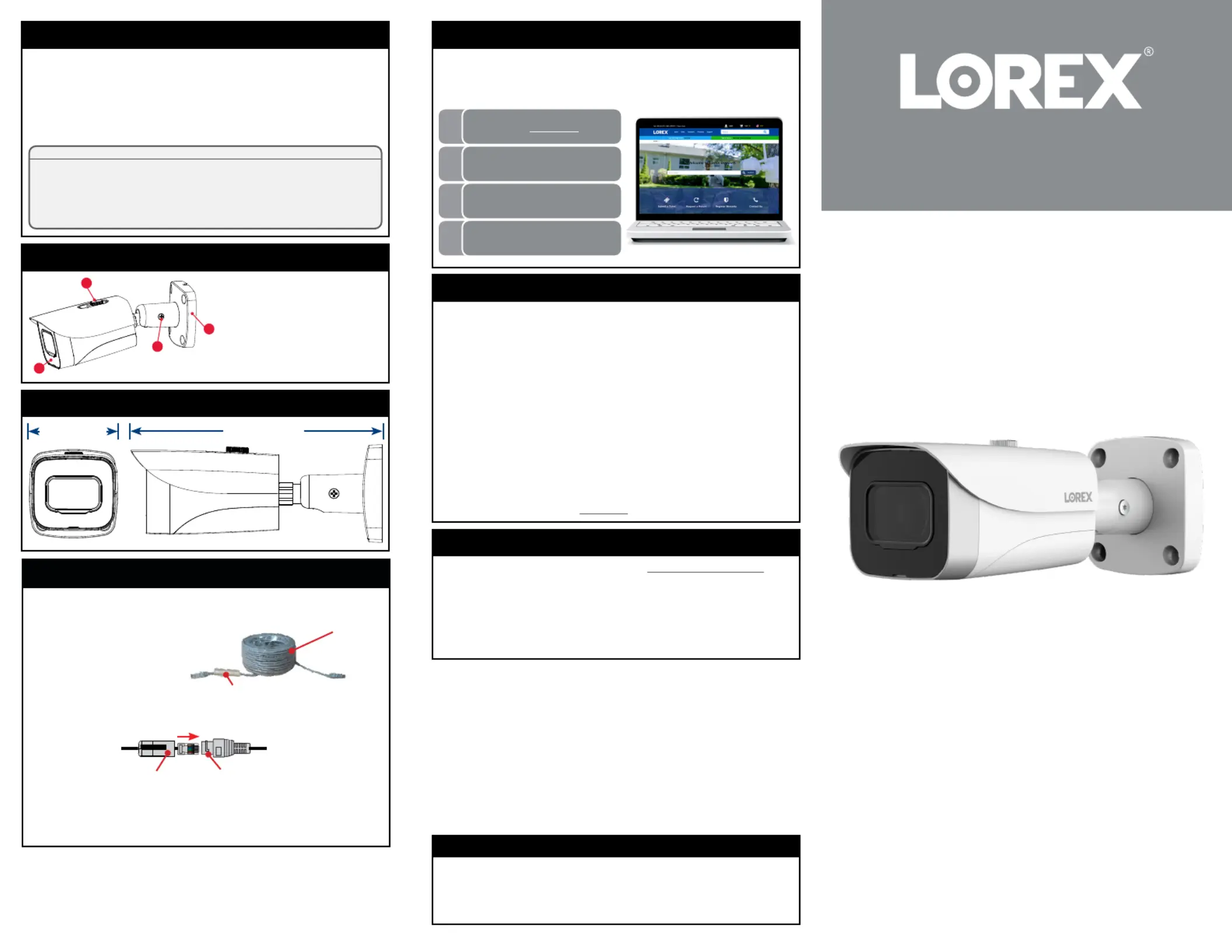

4K Ultra HD Bullet IP Camera
E841CA_QSG_EN_R2
Copyright © 2023 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves
the right to modify product design, specications and prices, without
notice and without incurring any obligation. E&OE. All rights reserved.
• For a full list of compatible recorders, visit .lorex.com/compatibility
• Not intended for submersion in water. Installation in a sheltered location
recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera
may be heard from the camera. This clicking is normal, and indicates that
the camera lter is working.
7.1” / 180mm
2.8”/ 70mm
lorex.com
Resources
Dimensions
Disclaimers
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
Click on the Downloads tab
4
Visit lorex.com
Search for the model
number of your product
Click on your product
in the search results
3
2
1
Package Contents
Safety Precautions
• 4K Ultra HD Bullet IP Camera
• Mounting Kit*
• Ethernet Extension Cable with Pre-attached RJ45 Cable
Gland*
• Use the camera only with compatible Lorex NVRs.
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera’s specications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense
light.
• Use only a regulated power supply with the product (optional). Use of a
non-regulated, non-conforming power supply can damage the product
and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners.
• The supplied cable is rated for surface mounting only. Cables for in-wall
and oor-to-oor installations are sold separately (CMR type). These and
other cables are available at .lorex.com
* Per camera in multi-camera packs.
ATTENTION:
It is recommended to connect the camera to the NVR or an external PoE
switch. If using a DC power adapter (not included) with the camera, a
REGULATED power supply is REQUIRED for use with this camera. Use of a
non-regulated, non-conforming power supply can damage this product and
voids the warranty.
B
A
C
D
A. Light Sensor and IR LEDs
B. Sun Shield Screw
C. Adjustment Screw
D. Camera Base
Camera Overview
Ethernet
Extension
Cable
RJ45 Cable Gland
Using the RJ45 Cable Gland (Optional)
The RJ45 cable gland is
pre-attached to the included
Ethernet extension cable.
The RJ45 cable gland covers the camera’s Ethernet connector and the
RJ45 plug to provide weather-resistance and protection from dust, dirt and
other environmental contaminants.
To use the RJ45 cable gland:
RJ45 Cable
Gland Barrel
Camera Ethernet
Connector
NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with
silicone and/or electrical tape for additional sealing if it will be exposed to
precipitation regularly.
Twist the RJ45 cable gland barrel securely onto the camera Ethernet
connector.
Aurora Series
Lorex A12
E841CA
Quick Start Guide
CameraNVR
Scenario 1: Connect Cameras to NVR
Scenario 2: Connect Cameras to Local Area Network (LAN)
Router
Camera
Router
PoE Switch
ATTENTION:
• This camera is compatible only with select NVRs supporting 4K
camera input. For a list of compatible recorders, visit
lorex.com/compatibility.
• You must connect the camera to a supporting H.265 NVR to take
advantage of H.265 compression. For instructions on enabling H.265
compression, visit lorex.com and search for “How do I enable H.265
compression?”.
NVR
E841CA_QSG_EN_R2

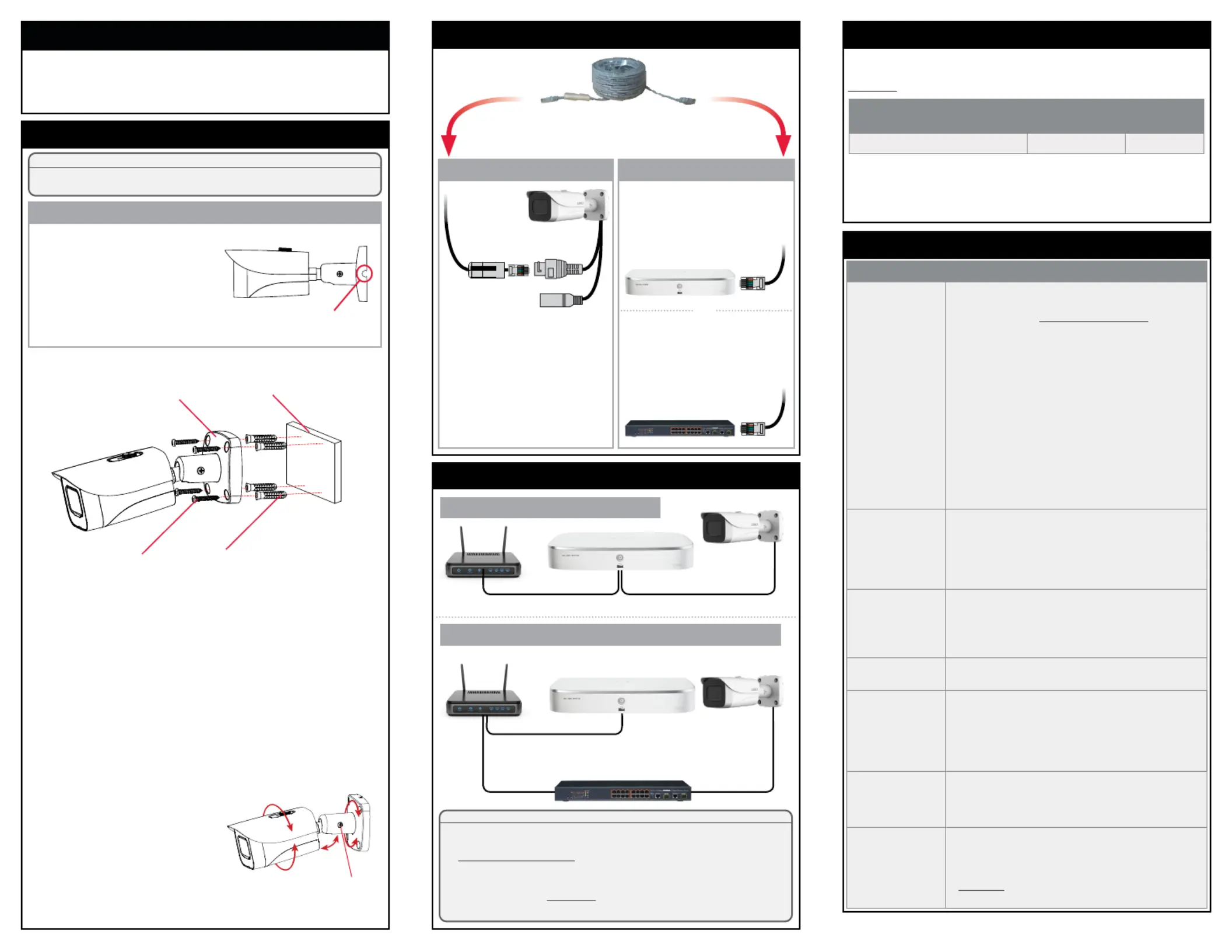

Before Installing the Camera
• Decide whether to run the cables
through the wall / ceiling (drilling
required) or along the wall / ceiling.
• If you run the cables along the
wall / ceiling, you must run the
cable through the cable notch on
the base. This will keep the camera
base ush to the surface when mounted.
Cable Notch
1. Use the included mounting template to mark holes for the
screws. Drill holes for the mounting screws.
NOTE: Insert the included drywall anchors if you are
installing the camera in drywall.
2. Connect cables as shown in the section “Connecting the
Camera”.
3. Feed the cable through the mounting surface or cable notch
and mount the camera stand to the surface using the
provided screws.
4. Use a Philips screwdriver (not included) to loosen the
adjustment screw.
Problem Solution
No picture / signal • Ensure the camera is connected to a compatible
NVR supporting 4K camera input. For full camera
compatibility, visit .lorex.com/compatibility
• The camera may take up to 1 minute to power up after
being connected to the NVR. Wait two minutes before
following the steps below.
• Ensure the camera is connected to your NVR or to your
local network.
• If you are not using PoE, you must connect the camera
to a 12V DC power adapter (not included).
• If the camera is connected to the LAN, you must
search your network for cameras using the NVR. See
the NVR’s instruction manual.
• Ensure your NVR is properly connected to a TV/
monitor.
• There may be an issue with your extension cable
run. Connect the camera to the NVR using a different
Ethernet cable.
Picture is too bright • Ensure your camera isn’t pointed directly at a source of
light (e.g., sun or spot light).
• Slide the sunshade forward to block excess light.
• Move your camera to a different location.
• Check the brightness and contrast settings on the
NVR.
Picture is too dark If using during the day, the camera may not be getting •
enough light. Slide the sunshade backwards to let in
more light.
• Check the brightness and contrast settings on the
NVR.
Night vision is not
working
• The night vision activates when light levels drop. The
area may have too much light.
Picture is not clear Check the camera lens for dirt, dust, spiderwebs. Clean •
the lens with a soft, clean cloth.
• Make sure that the cable run is within the limitations
specied in the section ‘Cable Extension Options’.
• Remove the vinyl lm from the camera lens when your
installation is complete.
Bright spot in video
when viewing
camera at night
• Night vision reects when pointing a camera through a
window. Move the camera to a different location.
Picture is in color in
dark conditions
• This camera comes with an image sensor that is extra
sensitive to light, meaning that the camera stays in
color mode at low-light conditions. For instructions on
how to make your camera switch to night mode, visit
lorex.com, and search for “How do I make my camera
switch to night mode?”.
Connect the Ethernet cable to the
camera.
Connect the other end of the
Ethernet cable to the NVR’s PoE
ports. The camera may take a
minute to power up after
being connected.
Connect the other end of the
Ethernet cable to a router or switch
on your network. See your NVR
manual for details on connecting
the camera to your NVR using a
switch or router.
Camera
NVR
OR
(Optional)
12V DC Power
Ethernet Cable
NOTE: A 12V DC power adapter
(model #: ACCPWR12V1, not
included) is only required if
connecting the camera’s Ethernet
cable to a router or switch that
does not support PoE.
Mounting screws
(4×)
Drywall anchors
(4×)
Mounting surface
Camera base
Adjustment
screw
Installing the Camera
ATTENTION:
Test your camera prior to selecting a permanent mounting location by temporarily
connecting the camera and cable to your NVR.
Troubleshooting
Cable Extension Options
• You can use a RJ45 coupler or switch (not included) to connect male
ends of Ethernet cable together.
• To extend the cable run beyond 300ft (91m), a switch will be required
(sold separately).
Extend the Ethernet cable run for your camera up to 300ft (91m). See table
below. It is recommended to use UL CMR approved cables available at
lorex.com.
Cable Type
Max Cable Run
Distance
Max # of
Extensions
CAT5e (or higher) Ethernet cable 300ft (91m) 3
Connecting the Camera
Setup Diagram
• Point the camera where there is the least amount of obstructions (i.e., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is
recommended.
Installation Tips
To install your camera:
5. Adjust the camera position as
needed.
6. Tighten the adjustment screw
to secure the position.
7. Remove the vinyl lm from
the camera lens when your
installation is complete.
