4K Ultra HD Bullet IP Camera

E841CA_QSG_EN_R2

As our products are subject to continuous improvement, Lorex reserves

the right to modify product design, specications and prices, without

• For a full list of compatible recorders, visit .lorex.com/compatibility

• Not intended for submersion in water. Installation in a sheltered location

recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera

changes between Day/Night viewing modes, an audible clicking noise

may be heard from the camera. This clicking is normal, and indicates that

the camera lter is working.

7.1” / 180mm

2.8”/ 70mm

lorex.com

Resources

Dimensions

Disclaimers

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

Package Contents

Safety Precautions

• 4K Ultra HD Bullet IP Camera

• Mounting Kit*

• Ethernet Extension Cable with Pre-attached RJ45 Cable

Gland*

• Use the camera only with compatible Lorex NVRs.

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s specications.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of intense

light.

• Use only a regulated power supply with the product (optional). Use of a

non-regulated, non-conforming power supply can damage the product

and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

harsh cleaners or aerosol cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall

and oor-to-oor installations are sold separately (CMR type). These and

other cables are available at .lorex.com

* Per camera in multi-camera packs.

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE

switch. If using a DC power adapter (not included) with the camera, a

REGULATED power supply is REQUIRED for use with this camera. Use of a

non-regulated, non-conforming power supply can damage this product and

voids the warranty.

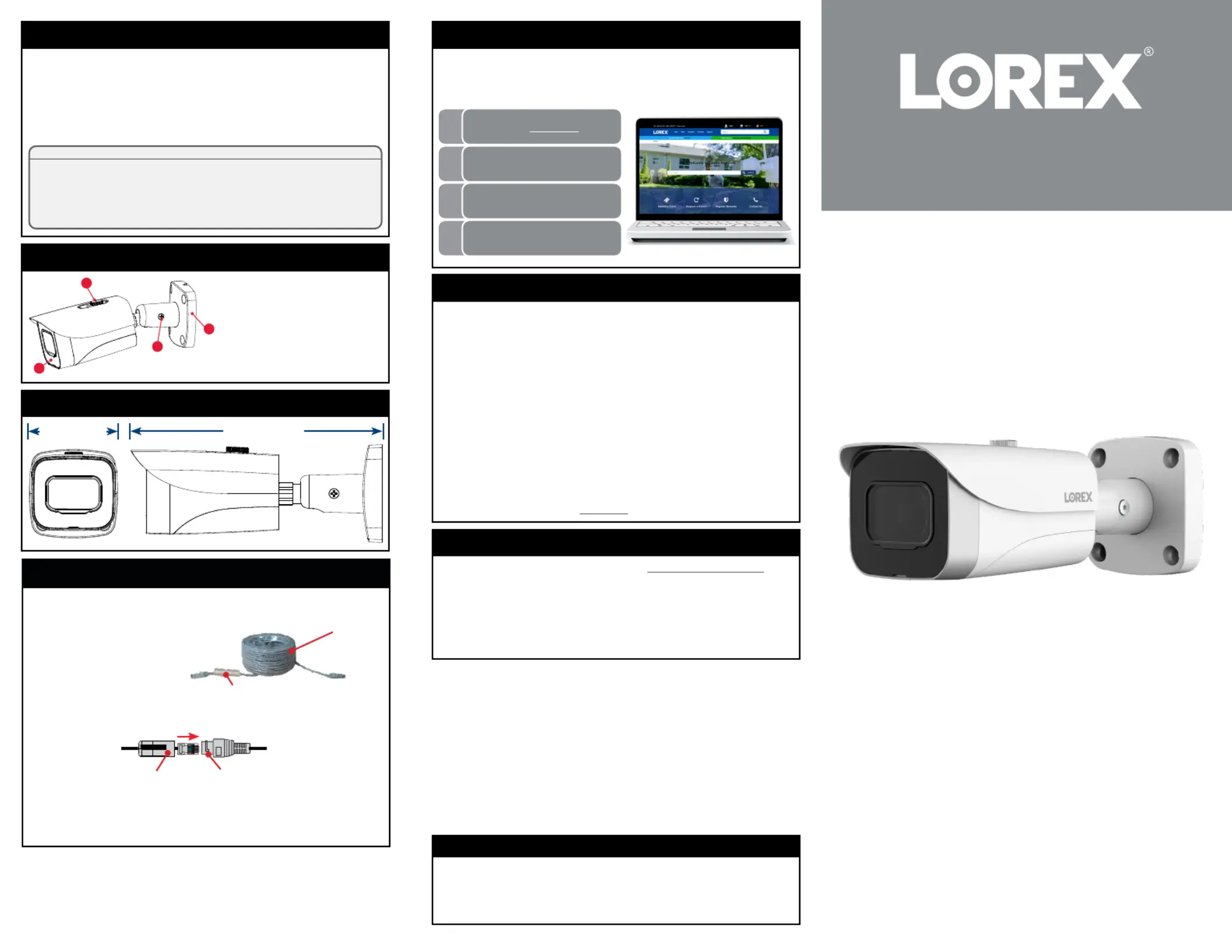

A. Light Sensor and IR LEDs

B. Sun Shield Screw

C. Adjustment Screw

D. Camera Base

Camera Overview

Ethernet

Extension

Cable

RJ45 Cable Gland

Using the RJ45 Cable Gland (Optional)

The RJ45 cable gland is

pre-attached to the included

Ethernet extension cable.

The RJ45 cable gland covers the camera’s Ethernet connector and the

RJ45 plug to provide weather-resistance and protection from dust, dirt and

other environmental contaminants.

To use the RJ45 cable gland:

RJ45 Cable

Gland Barrel

Camera Ethernet

Connector

NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with

silicone and/or electrical tape for additional sealing if it will be exposed to

precipitation regularly.

Twist the RJ45 cable gland barrel securely onto the camera Ethernet

connector.

Aurora Series

Lorex A12

E841CA

Quick Start Guide

CameraNVR

Scenario 1: Connect Cameras to NVR

Scenario 2: Connect Cameras to Local Area Network (LAN)

Router

Camera

Router

PoE Switch

ATTENTION:

• This camera is compatible only with select NVRs supporting 4K

camera input. For a list of compatible recorders, visit

lorex.com/compatibility.

• You must connect the camera to a supporting H.265 NVR to take

advantage of H.265 compression. For instructions on enabling H.265

compression, visit lorex.com and search for “How do I enable H.265

compression?”.

NVR

E841CA_QSG_EN_R2

Before Installing the Camera

• Decide whether to run the cables

through the wall / ceiling (drilling

required) or along the wall / ceiling.

• If you run the cables along the

wall / ceiling, you must run the

cable through the cable notch on

the base. This will keep the camera

base ush to the surface when mounted.

Cable Notch

1. Use the included mounting template to mark holes for the

screws. Drill holes for the mounting screws.

NOTE: Insert the included drywall anchors if you are

installing the camera in drywall.

2. Connect cables as shown in the section “Connecting the

Camera”.

3. Feed the cable through the mounting surface or cable notch

and mount the camera stand to the surface using the

provided screws.

4. Use a Philips screwdriver (not included) to loosen the

adjustment screw.

Problem Solution

No picture / signal • Ensure the camera is connected to a compatible

NVR supporting 4K camera input. For full camera

compatibility, visit .lorex.com/compatibility

• The camera may take up to 1 minute to power up after

being connected to the NVR. Wait two minutes before

following the steps below.

• Ensure the camera is connected to your NVR or to your

local network.

• If you are not using PoE, you must connect the camera

to a 12V DC power adapter (not included).

• If the camera is connected to the LAN, you must

search your network for cameras using the NVR. See

the NVR’s instruction manual.

• Ensure your NVR is properly connected to a TV/

monitor.

• There may be an issue with your extension cable

run. Connect the camera to the NVR using a different

Ethernet cable.

Picture is too bright • Ensure your camera isn’t pointed directly at a source of

light (e.g., sun or spot light).

• Slide the sunshade forward to block excess light.

• Move your camera to a different location.

• Check the brightness and contrast settings on the

NVR.

Picture is too dark If using during the day, the camera may not be getting •

enough light. Slide the sunshade backwards to let in

more light.

• Check the brightness and contrast settings on the

NVR.

Night vision is not

working

• The night vision activates when light levels drop. The

area may have too much light.

Picture is not clear Check the camera lens for dirt, dust, spiderwebs. Clean •

the lens with a soft, clean cloth.

• Make sure that the cable run is within the limitations

specied in the section ‘Cable Extension Options’.

• Remove the vinyl lm from the camera lens when your

installation is complete.

Bright spot in video

when viewing

camera at night

• Night vision reects when pointing a camera through a

window. Move the camera to a different location.

Picture is in color in

dark conditions

• This camera comes with an image sensor that is extra

sensitive to light, meaning that the camera stays in

color mode at low-light conditions. For instructions on

how to make your camera switch to night mode, visit

lorex.com, and search for “How do I make my camera

switch to night mode?”.

Connect the Ethernet cable to the

camera.

Connect the other end of the

Ethernet cable to the NVR’s PoE

ports. The camera may take a

minute to power up after

being connected.

Connect the other end of the

Ethernet cable to a router or switch

on your network. See your NVR

manual for details on connecting

the camera to your NVR using a

switch or router.

Camera

NVR

(Optional)

12V DC Power

Ethernet Cable

NOTE: A 12V DC power adapter

(model #: ACCPWR12V1, not

included) is only required if

connecting the camera’s Ethernet

cable to a router or switch that

does not support PoE.

Mounting screws

(4×)

Drywall anchors

(4×)

Mounting surface

Camera base

Adjustment

screw

Installing the Camera

ATTENTION:

Test your camera prior to selecting a permanent mounting location by temporarily

connecting the camera and cable to your NVR.

Troubleshooting

Cable Extension Options

• You can use a RJ45 coupler or switch (not included) to connect male

ends of Ethernet cable together.

• To extend the cable run beyond 300ft (91m), a switch will be required

(sold separately).

Extend the Ethernet cable run for your camera up to 300ft (91m). See table

below. It is recommended to use UL CMR approved cables available at

lorex.com.

Cable Type

Max Cable Run

Distance

Max # of

Extensions

CAT5e (or higher) Ethernet cable 300ft (91m) 3

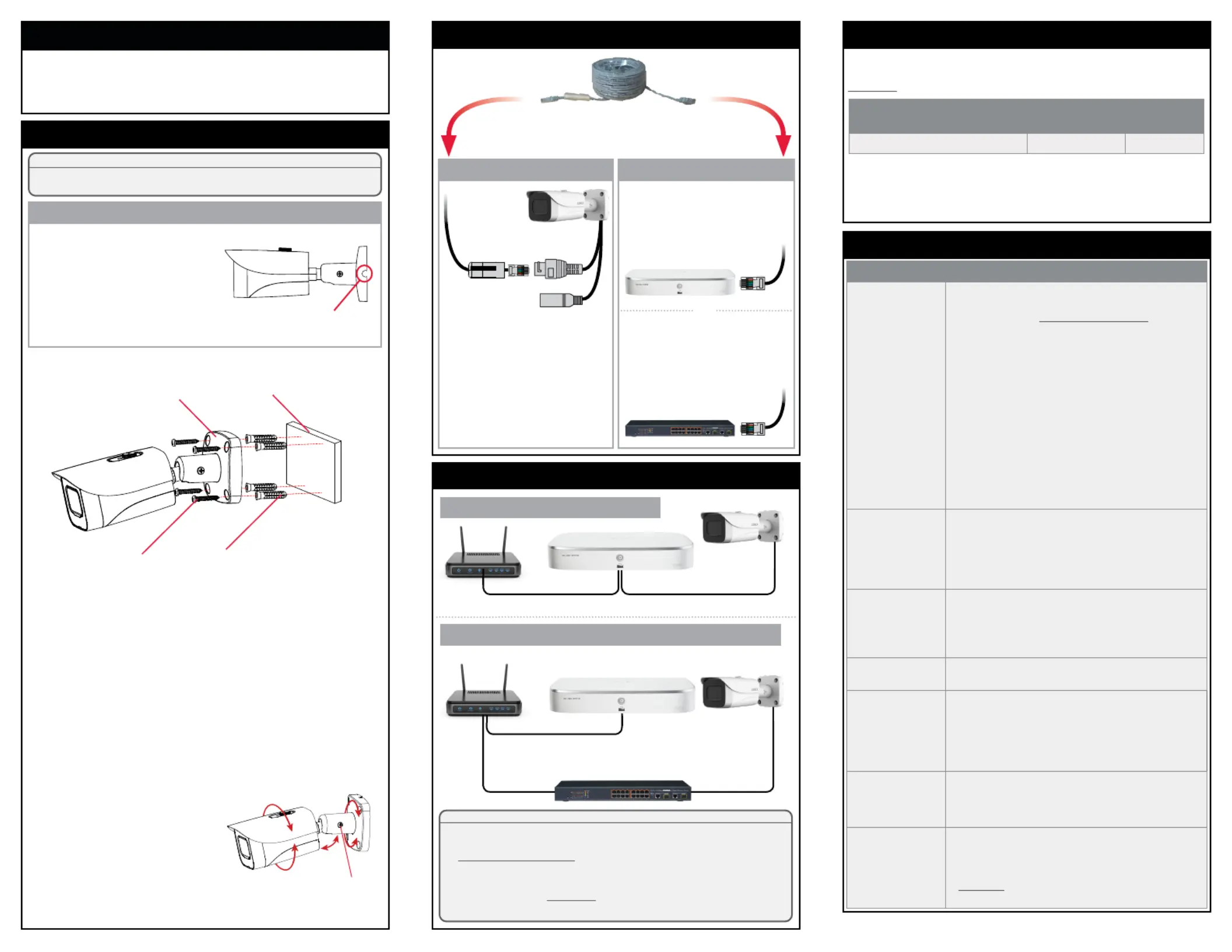

Connecting the Camera

Setup Diagram

• Point the camera where there is the least amount of obstructions (i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered location is

recommended.

Installation Tips

To install your camera:

5. Adjust the camera position as

needed.

6. Tighten the adjustment screw

to secure the position.

7. Remove the vinyl lm from

the camera lens when your

installation is complete.
