• You can use a RJ45 coupler or switch (not included) to connect male
ends of Ethernet cable together.
• To extend the cable run beyond 300ft (92m), a switch will be required
(sold separately).
Resources
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
Click on the tabDownloads
Visit lorex.com
Search for the model
number of your product
Click on your product
in the search results
3
2
1
Copyright © 2023 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the
right to modify product design, specications and prices, without notice and
without incurring any obligation. E&OE. All rights reserved.
E841CD_QSG_EN_R3
4K HD IP Dome Security Camera
• 4K HD IP Dome Security Camera
• Mounting Kit*
• Mounting Template*
• Ethernet Extension Cable with Pre-attached RJ45 Cable Gland*
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera’s specications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense
light.
• Use only the supplied regulated power supply provided with the product.
Use of a non-regulated, non-conforming power supply can damage the
product and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any
harsh, chemical-based cleaners.
• The supplied cable is rated for surface mounting only. Cables for in-wall
and oor-to-oor installations are sold separately (CMR type). These and
other cables are available at .lorex.com
* Per camera in multi-camera packs.
Package Contents
ATTENTION:
It is recommended to connect the camera to the NVR or an external PoE switch. If
using a DC power adapter (not included) with the camera, a REGULATED power supply
is REQUIRED for use with this camera. Use of a non-regulated, non-conforming power
supply can damage this product and voids the warranty.
Safety Precautions
Dimensions
lorex.com
Extend the cable run for your camera. Additional extension cables sold
separately. See table below:
Cable Extension Options
Cable Type
Max Cable Run
Distance
Max # of
Extensions
CAT5e (or higher) Ethernet cable 300ft (92m) 3
3.3”
83mm
3.3”/83mm
4”
101mm
Ethernet
Extension
Cable
RJ45 Cable Gland
Using the RJ45 Cable Gland (Optional)
The RJ45 cable gland is
pre-attached to the included
Ethernet extension cable.
The RJ45 cable gland covers the camera’s Ethernet connector and the
RJ45 plug to provide weather-resistance and protection from dust, dirt and
other environmental contaminants.
To use the RJ45 cable gland:
RJ45 Cable
Gland Barrel
Camera Ethernet
Connector
NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with
silicone and/or electrical tape for additional sealing if it will be exposed to
precipitation regularly.
Twist the RJ45 cable gland barrel securely onto the camera Ethernet
connector.
• For a full list of compatible recorders, visit .lorex.com/compatibility
• Not intended for submersion in water. Installation in a sheltered location
recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera
changes between Day/Night viewing modes, an audible clicking noise
may be heard from the camera. This clicking is normal, and indicates that
the camera lter is working.
Disclaimers
Aurora Series
Lorex A12
E841CD
Quick Start Guide

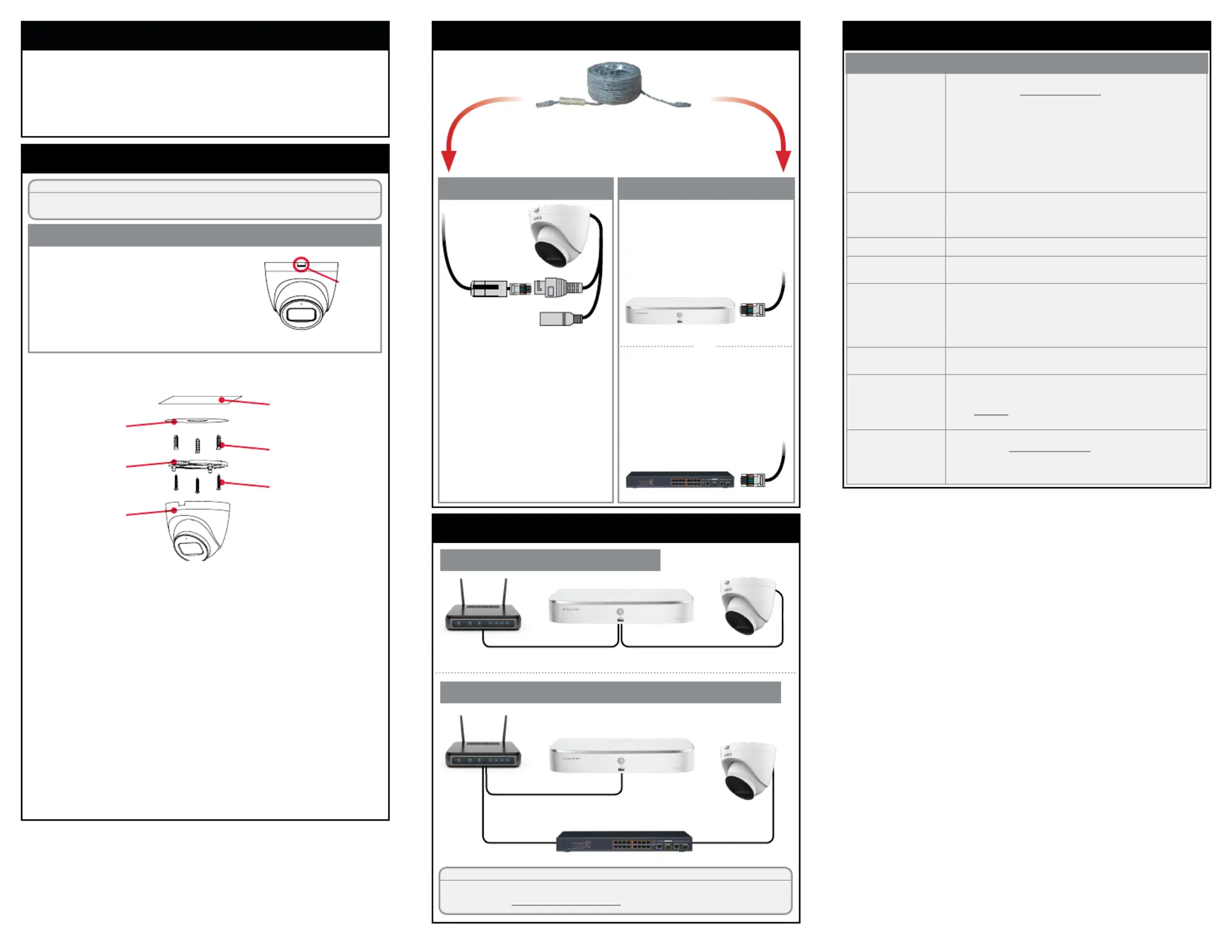

To install your camera:
Installing the Camera
ATTENTION:
Test your camera prior to selecting a permanent mounting location by temporarily
connecting the camera and cable to your NVR.
Before Installing the Camera
• Decide whether to run the cables through
the wall / ceiling (drilling required) or along
the wall / ceiling.
• If you run the cables along the wall / ceiling,
you must run the cable through the cable
notch on the base. This will keep the camera
base ush to the surface when mounted.
Cable
Notch
Mounting Surface
1. Use the included mounting template to mark holes for the
mounting screws and camera cable.
2. Drill holes for the mounting screws and camera cable.
3. Feed the camera cable through the camera base. If you are
running the cables against a wall or ceiling, make sure to pass
the cable through the cable notch as shown above.
4. Connect the cables as shown in the section ‘Connecting the
Camera’.
5. Mount the camera base to the mounting surface using the
included screws and optional drywall anchors.
6. Angle the dome camera as needed.
7. Remove the vinyl lm from the camera lens when your
installation is complete.
Mounting
Template
Camera Base
Dome Camera
Mounting Screws
(x3)
Drywall Anchors
(x3)
• Point the camera where there is the least amount of obstructions (i.e.,
tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is
recommended.
Installation Tips
Connect the Ethernet cable to the
camera.
Connect the other end of the
Ethernet cable to the NVR’s PoE
ports. The camera may take a
minute to power up after
being connected.
Connecting the Camera
E841CD_QSG_EN_R3
Problem Solution
No picture / signal • Ensure the camera is connected to a compatible NVR. For full camera
compatibility, visit . lorex.com/compatibility
• The camera may take up to 1 minute to power up after being connected
to the NVR. Wait two minutes before following the steps below.
• Ensure the camera is connected to your NVR or to your local network.
• If you are not using PoE, you must connect the camera to a 12V DC
power adapter (not included).
• If the camera is connected to the LAN, you must search your network for
cameras using the NVR. See the NVR’s instruction manual.
• Ensure your NVR is properly connected to a TV/monitor.
• There may be an issue with your extension cable run. Connect the
camera to the NVR using a different Ethernet cable.
Picture is too bright • Ensure your camera isn’t pointed directly at a source of light (e.g., sun
or spot light).
• Move your camera to a different location.
• Check the brightness and contrast settings on the NVR.
Picture is too dark • Check the brightness and contrast settings on the NVR.
Night vision is not
working
• The night vision activates when light levels drop. The area may have too
much light.
Picture is not clear • Check the camera lens for dirt, dust, spiderwebs. Clean the lens with a
soft, clean cloth.
• Make sure that the cable run is within the limitations specied in the
section ‘Cable Extension Options’.
• Remove the vinyl lm from the camera lens when your installation is
complete.
Bright spot in video when
viewing camera at night
• Night vision reects when pointing a camera through a window. Move
the camera to a different location.
Picture is in color in dark
conditions
• This camera comes with an image sensor that is extra sensitive to light,
meaning that the camera stays in color mode at low-light conditions.
For instructions on how to make your camera switch to night mode,
visit , and search for “How do I make my camera switch to lorex.com
night mode?”
No audio
• Audio is only supported on Lorex HD NVRs. For a list of compatible
recorders, visit .lorex.com/compatibility
• Ensure NVR volume is turned on / turned up.
• Ensure audio function on camera is turned on (see ‘Audio Settings’).
• Ensure audio is turned up on viewing device.
Troubleshooting
Connect the other end of the
Ethernet cable to a router or switch
on your network. See your NVR
manual for details on connecting
the camera to your NVR using a
switch or router.
Camera
NVR
Setup Diagram
CameraHD NVR
Scenario 1: Connect Cameras to NVR
Scenario 2: Connect Cameras to Local Area Network (LAN)
Router
Camera
HD NVR
Router
PoE Switch
OR
(Optional)
12V DC Power
ATTENTION:
This camera is only compatible with select NVRs. For a list of compatible
recorders, visit .lorex.com/compatibility
Ethernet Cable
NOTES:
• For weatherproong instructions,
see “Using the RJ45 Cable Gland
(Optional)”.
• A 12V DC power adapter
(model#: , not included) CVA4902
is only required if connecting
the camera’s Ethernet cable to
a router or switch that does not
support PoE.
