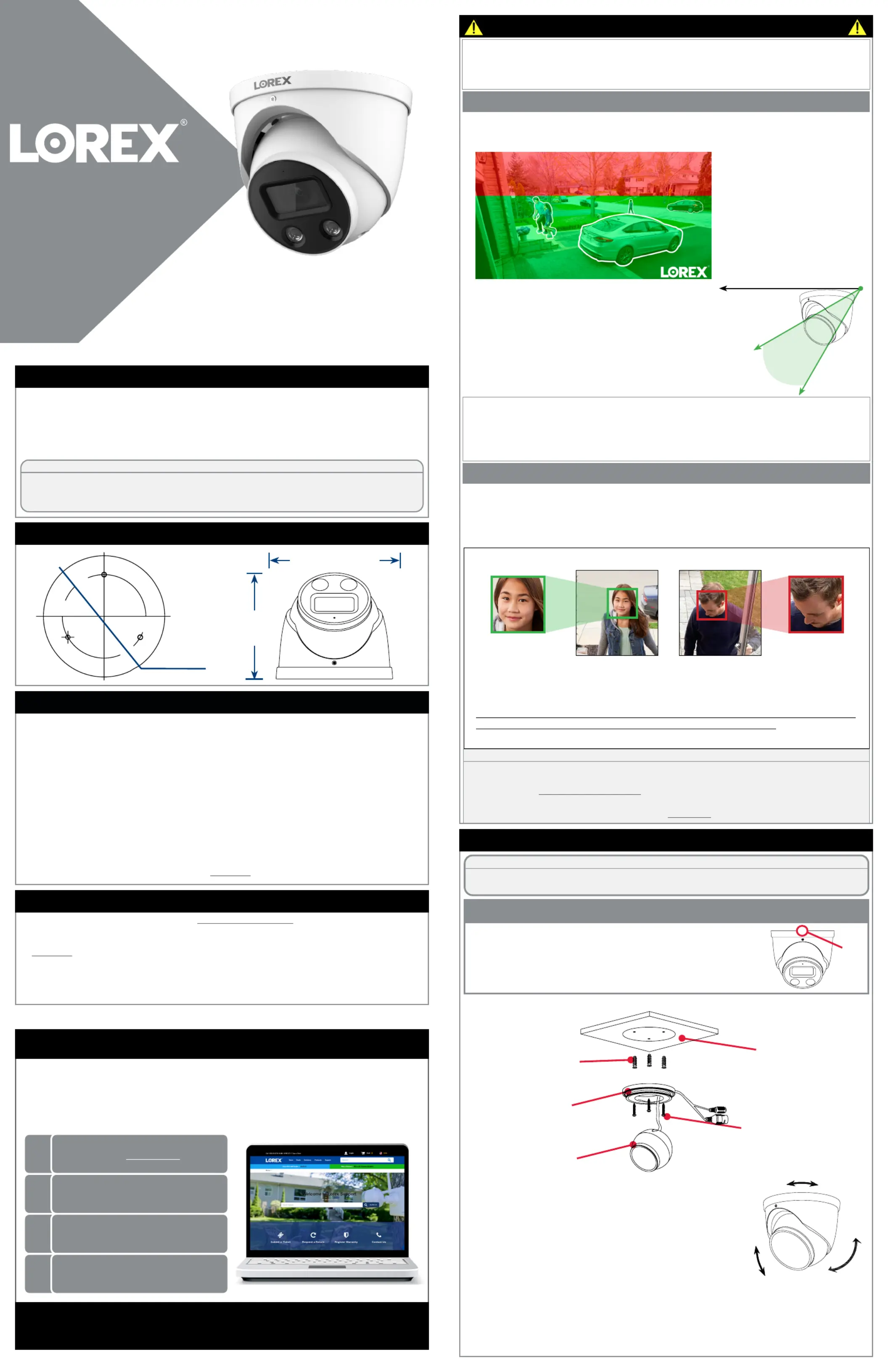

4K IP Smart Deterrence Dome

Security Camera

Quick Start Guide

lorex.com

E892DD_QSG_EN_R2

• 4K IP Smart Deterrence Dome Security Camera

• Mounting Kit*

• Ethernet Extension Cable with Pre-attached RJ45 Cable Gland*

* Per camera in multi-camera packs.

Package Contents

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE switch. If using a DC power adapter

(not included) with the camera, a REGULATED power supply is REQUIRED for use with this camera. Use of a

non-regulated, non-conforming power supply can damage this product and voids the warranty.

• Use the camera only with compatible Lorex NVRs.

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels noted in the camera’s

specications.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of intense light.

• Use only a regulated power supply with the product (optional). Use of a non-regulated, non-

conforming power supply can damage the product and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based

cleaners.

• Check the packaging of the included cable to verify cable grade based on model number. CBL605U:

The supplied cable is rated for surface and in-wall mounting. The supplied cable is rated CBL100C5:

for surface mounting only. Cables for in-wall and oor-to-oor installations are sold separately (CMR

type). These and other cables are available at .lorex.com

Safety Precautions

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the tabDownloads

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

As our products are subject to continuous improvement, Lorex reserves the right to modify product design,

Dimensions

• For a full list of compatible recorders, visit lorex.com/compatibility.

• To ensure that you are viewing camera video in full 4K resolution (4K monitor required), check the

video output resolution of your recorder. For full instructions, see your recorder’s documentation at

lorex.com.

• Not intended for submersion in water. Installation in a sheltered location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/

Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is

normal, and indicates that the camera lter is working.

Disclaimers

Additional Installation Tips:

• Point the camera where there is the least amount of obstructions (e.g., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

STEP 1: Important Installation Guidelines

1A. Optimizing Person and Vehicle Detection Accuracy:

• Angle the camera so that objects of interest appear in the bottom of the camera image. ⅔

• Choose a location where objects of interest will be no further than 50ft (~15m) from the

camera.

1B. Optimizing Face Detection Accuracy:

High Accuracy Face Detection Vs. Low Accuracy Face Detection

Optimal accuracy for objects within

50ft (~15m) and in the bottom of ⅔

the image.

Lower accuracy for objects further

away than 50ft (~15m) and/or in the

top of the image.⅓

• Angle the camera between 30~60° down from the

level position.

• Install the camera between 8-16ft (2.5-5m) off of

the ground.

STEP 2: Installing the Camera

Level position (i.e., ceiling)

Optimal

angle

range

NOTE: Accuracy of person and vehicle detection will

be inuenced by multiple factors, such as the object’s

distance from the camera, the size of the object, and the

height and angle of the camera. Night vision will also

impact the accuracy of detection.

The optimal installation location including height/angle for your camera will depend on the

type of detection settings that you want to enable. The optimal angle for person and vehicle

detection is different from the optimal angle for face detection. Based on your detection

preference choose between Step 1A or 1B.

• The camera should be installed about 10 feet above the ground so as to ensure that the

full proportion of the face is detected on the screen.

• Angle the camera approximately 15° down from the level position.

• To distinguish facial features the distance from the camera to the face should be

approximately 15 feet.

Accuracy of Face Detection will be inuenced by the distance and angle of the face from the

camera. For optimal Face Detection the camera must be positioned head on to capture a

person’s entire face looking straight ahead. Obscured and/or partially or fully covered faces

(i.e. a person’s head tilted down to look at their phone) will not be accurately detected.

During low light conditions the camera will impact color night vision by switching to black &

white to ensure accuracy and improve detection range of Face Detection. If you cannot meet

the above requirements for installation it may be best to use person detection instead.

IMPORTANT:

• You cannot enable both Face Detection and Person and Vehicle Detection at the same time.

• Face Detection is compatible with certain Lorex NVR’s only. For a list of compatible NVR’s

please visit lorex.com/compatibility.

• Face Detection is disabled by default. For more information on Face Detection setup and

conguration, refer to the NVR’s manual at lorex.com.

4.8”

122mm

4.8” / 122mm

4.4”

111mm

To install your camera:

ATTENTION:

Test your camera prior to selecting a permanent mounting location by temporarily connecting the

camera and cable to your NVR.

Before Installing the Camera

• Decide whether to run the cables through the wall / ceiling (drilling

required) or along the wall / ceiling.

• If you run the cables along the wall / ceiling, you must run the cable

through the on the base. This will keep the camera cable notch

base ush to the surface when mounted.

Cable

Notch

Mounting Surface

Camera Base

Dome Camera

1. Use the included mounting template to mark holes for the

mounting screws and camera cable.

2. Drill holes for the mounting screws and camera cable.

3. Feed the camera cable through the camera base. If you are

running the cables against a wall or ceiling, make sure to pass

the cable through the cable notch as shown above.

4. Connect the cables as shown in the section ‘Connecting the

Camera’.

5. Mount the camera base to the mounting surface using the

Drywall Anchors (x3)

Mounting Screws (x3)

included screws and optional drywall anchors.

6. Angle the dome camera as shown above.

7. Use the included Allen key to tighten the dome camera all the way.

8. Remove the vinyl lm from the camera lens when your installation is complete.

Halo Series

Lorex H10

92DD

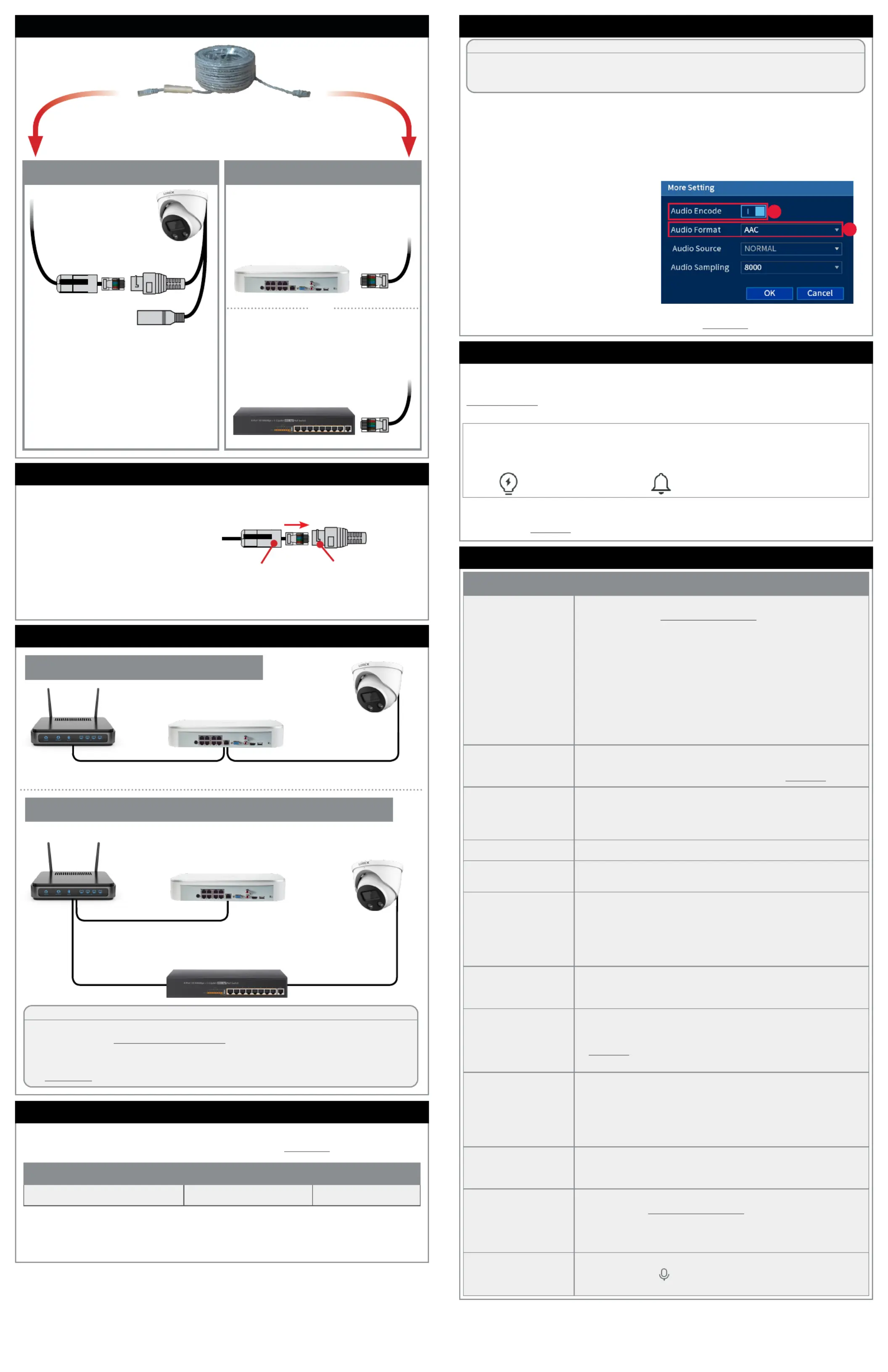

Setup Diagram

CameraNVR

Scenario 1: Connect Cameras to NVR

Scenario 2: Connect Cameras to Local Area Network (LAN)

Router

Camera

NVR

Router

PoE Switch

ATTENTION:

• This camera is only compatible with select NVRs. For a list of compatible

recorders, visit lorex.com/compatibility.

• You must connect the camera to a supporting H.265 NVR to take advantage of

H.265 compression. For instructions on enabling H.265 compression, visit

lorex.com, and search for “How do I enable H.265 compression?”.

E892DD_QSG_EN_R2

Problem Solution

No picture / signal • Ensure the camera is connected to a compatible NVR. For full

compatibility, visit .lorex.com/compatibility

• The camera may take up to 1 minute to power up after being

connected to the NVR. Wait two minutes before following the steps

below.

• Ensure the camera is connected to your NVR or to your local network.

• If you are not using PoE, you must connect the camera to a 12V DC

power adapter (not included).

• If the camera is connected to the LAN, you must search your network

for cameras using the NVR. See the NVR’s instruction manual.

• Ensure your NVR is properly connected to a monitor.

• There may be an issue with your extension cable run. Connect the

camera to the NVR using a different Ethernet cable.

Picture does not appear

to be 4K

• To ensure that you are viewing camera video in full 4K resolution (4K

monitor required), check the video output resolution of your NVR. For

full instructions, see your NVR’s documentation at .lorex.com

Picture is too bright • Ensure your camera isn’t pointed directly at a source of light (e.g., sun

or spot light).

• Move your camera to a different location.

• Check the brightness and contrast settings on the NVR.

Picture is too dark • Check the brightness and contrast settings on the NVR.

Night vision is not

working

• The night vision activates when light levels drop. The area may have

too much light.

Picture is not clear • Check the camera lens for dirt, dust, spiderwebs. Clean the lens with a

soft, clean cloth.

• Make sure that the cable run is within the limitations specied in the

section ‘Cable Extension Options’.

• Remove the vinyl lm from the camera lens when your installation is

complete.

Bright spot in video

when viewing camera

at night

• Night vision reects when pointing a camera through a window.

Move the camera to a different location.

Picture is in color in dark

conditions

• This camera's image sensor is extra sensitive to light, meaning

that the camera stays in color mode at low-light conditions. For

instructions on how to make your camera switch to night mode, visit

lorex.com, and search for “How do I make my camera switch to night

mode?”.

The camera warning

light is not switching on

automatically

• Ensure that you have enabled and congured white light deterrence

using a compatible NVR. See your NVR’s documentation for full

instructions.

• Ensure the active areas and schedule for white light deterrence are

set properly. The default schedule for the warning light is night times

(between 5PM and 7AM).

The camera siren

is not switching on

automatically

• The camera siren cannot switch on automatically. You can control

the camera siren manually using a compatible Lorex NVR or app.

Refer to your NVR’s documentation for full instructions.

No audio • Audio is only supported on Lorex NVRs. For a list of compatible

recorders, visit .lorex.com/compatibility

• Ensure NVR volume is turned on / turned up.

• Ensure audio function on camera is turned on (see ‘Audio Settings’).

• Ensure audio is turned up on viewing device.

Two-way talk not

working

• Use the Lorex app specied in your NVR documentation to activate

two-way talk. Tap

from the camera's live view, then speak into the

microphone on your mobile device. Tap again when nished speaking.

Troubleshooting

Connect the Ethernet cable to the

camera.

Connect the other end of the Ethernet

cable to the NVR’s PoE ports. The camera

may take a minute to power up after being

connected.

Connecting the Camera

Connect the other end of the Ethernet

cable to a router or switch on your

network. See your NVR manual for details

on connecting the camera to

your NVR using a switch or router.

Camera NVR

(Optional)

12V DC Power

Ethernet Cable

NOTE: A 12V DC power adapter

(model#: , not included) ACCPWR12V1

is only required if connecting the

camera’s Ethernet cable to a router or

switch that does not support PoE.

• You can use a RJ45 coupler or network switch (not included) to connect male ends of

Ethernet cable together.

• To extend the cable run beyond 300ft (91m), a switch will be required (sold separately).

Extend the Ethernet cable run for your camera up to 300ft (91m). See table below. It is

recommended to use UL CMR approved cables available at lorex.com.

Cable Extension Options

Cable Type Max Cable Run Distance Max # of Extensions

CAT5e (or higher) Ethernet cable 300ft (91m) 3

Using the RJ45 Cable Gland (Optional)

The pre-attached RJ45 cable gland covers the camera’s Ethernet connector and the RJ45

plug to provide weather-resistance and protection from dust, dirt and other environmental

contaminants.

To use the RJ45 cable gland:

RJ45 Cable

Gland Barrel

Camera Ethernet

Connector

NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with silicone and/or electrical tape for

additional sealing if it will be exposed to precipitation regularly.

Twist the RJ45 cable gland barrel

securely onto the camera Ethernet

connector.

Using Deterrence Features

Use your Lorex app to manually activate the camera's white light and siren features when

connected to a compatible Lorex recorder.

PREREQUISITE: Connect to your Lorex system using the app specied in your recorder

documentation.

To activate deterrence features manually:

1. Launch the app and tap your recorder to view connected channels.

2. Tap a connected deterrence camera to open it in single-channel view.

3. Tap

to activate the white light, or tap to activate the siren.

NOTE: You can also set schedules and active areas of the camera image where the white light will be

triggered automatically when motion is detected. For full instructions, refer to the app manual on your

product page at .lorex.com

Audio Settings

NOTE: These instructions are based on current NVR interface. For the most up-to-date

instructions, see your NVR’s instruction manual on . lorex.com

To enable audio recording and listen-in audio:

1. From Live View, right-click and click . Enter the system user name (default: Main Menu

admin) and password.

2. Click and select .Camera Recording

3. Under , select the channel where the audio-capable camera is connected.Channel

4. Under , click the button.Main Stream More Setting

5. In the window: More Setting

ATTENTION:

Audio recording and listen-in audio are disabled by default. Audio recording and/or use of listen-

in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for

use of its products that does not conform with local laws.

A. Audio EncodeEnable for audio

recording and listen-in audio.

NOTE: Listen-in audio requires

a monitor with speakers or

speakers connected to the NVR.

B. Select the format that will be

used to record audio.

ACC is recommended.

6. Click to save changes.OK

Produkt Specifikationer

Mærke:	Lorex
Kategori:	Overvågningskamera
Model:	E892DD

Har du brug for hjælp?

Hvis du har brug for hjælp til Lorex E892DD stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Overvågningskamera Lorex Manualer

Lorex LNB9383 Manual

9 August 2025

Lorex C831CD Manual

9 August 2025

Lorex Vantage LZC7091 Manual

9 August 2025

Lorex C861XC-E Manual

9 August 2025

Lorex Live Ping LNC204 Manual

9 August 2025

Lorex LNE9252 Manual

9 August 2025

Lorex E894ABB Manual

9 August 2025

Lorex U471AA-F Manual

8 August 2025

Lorex LNB9252 Manual

8 August 2025

Lorex E841CAB Manual

8 August 2025

Overvågningskamera Manualer

Nyeste Overvågningskamera Manualer

Burg Wächter SFC-244KSIA Manual

10 August 2025

Sony ILME-FR7K Manual

10 August 2025

Burg Wächter SFC-241KBIFS Manual

10 August 2025

Burg Wächter SFC-240KBIFI Manual

10 August 2025

Burg Wächter IPC868ER-VF18-B Manual

9 August 2025

Burg Wächter BWFC-541KNN Manual

9 August 2025

Burg Wächter SFC-851KBIA Manual

9 August 2025

Burg Wächter BWFC-260KEIF Manual

9 August 2025

Planet ICA-4480F Manual

9 August 2025

Planet ICA-M3580P Manual

9 August 2025
