Side 1/2

2.5” / 64mm

3.9”

99mm

0.7lbs / 0.3kg

Weight

• 4K Mini Fixed Eyeball Dome Camera

• Mounting Kit*

• BNC / Power Extension Cable*

• Power Adapter**

* Per camera in multi-camera packs.

** A multi-camera power adapter that provides power to multiple

cameras or individual power adapters may be provided depending on

product conﬁguration.

Package Contents

ATTENTION:

A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with

this camera (included). Use of Only the included power adapter can be used.

a non-regulated, non-conforming power supply can damage this product and

voids the warranty.

Changing the DVR to 4K Resolution

The output resolution of a Lorex HD DVR is set to 1080p as a default. To view 4K

resolution on a 4K monitor, the output resolution must be changed using the DVR

menu.

To change the output resolution through a Lorex HD DVR:

1. Right-click on the Live View to access the Quick Menu.

2. Click and then click the Setting icon (Main Menu

3. Click > .Setting Display

4. Click the Display tab.

5. In the drop-down menu, select .Resolution 3840 x 2160

6. Click to save and click Apply OK to exit.

Resources

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

LEV8532_QSG_EN_R2

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s speciﬁcations.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of

intense light.

• Use only the supplied regulated power supply provided with the

product. Use of a non-regulated, non-conforming power supply can

damage the product and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

any harsh, chemical-based cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall

and ﬂoor-to-ﬂoor installations are sold separately (CMR type). These

and other cables are available at .lorex.com

• Point the camera where there is the least amount of obstructions

(i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered

location is recommended.

As our products are subject to continuous improvement, Lorex reserves

the right to modify product design, speciﬁcations and prices, without

• For a full list of compatible recorders, visit lorex.com/compatibility.

• Not intended for submersion in water. Installation in a sheltered

location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the

camera changes between Day/Night viewing modes, an audible clicking

noise may be heard from the camera. This clicking is normal, and

indicates that the camera ﬁlter is working.

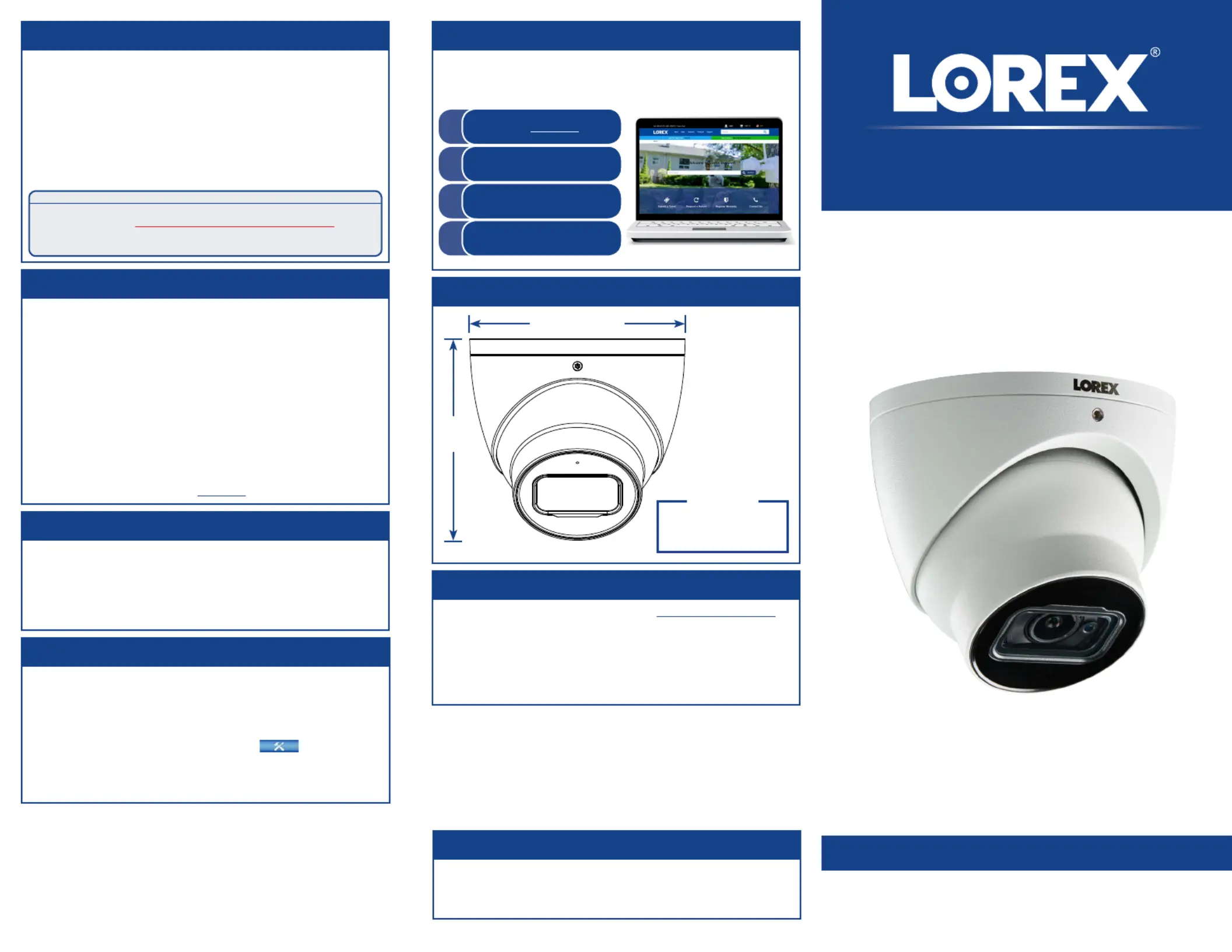

Quick Start Guide

English Version 2.0

Safety Precautions

Installation Tips

Dimensions

Disclaimers

www.lorex.com

4K Mini Fixed Eyeball

Dome Camera

LEV8532 SERIES

ATTENTION:

Test the camera prior to selecting a permanent mounting location by temporarily

connecting the camera(s) and cables to the DVR.

1. Use the included Allen key to loosen the adjustment screw on

the dome cover.

2. Rotate the camera base counter-clockwise to separate it from

the ball camera and dome cover.

3. Use the included mounting template to mark and drill holes for

the included mounting screws.

NOTE: Insert the included drywall anchors if installing into

drywall.

Mounting

surface

Mounting

screws (×4)

Drywall

anchors (×4)

Camera

base

Ball

camera

Dome

cover

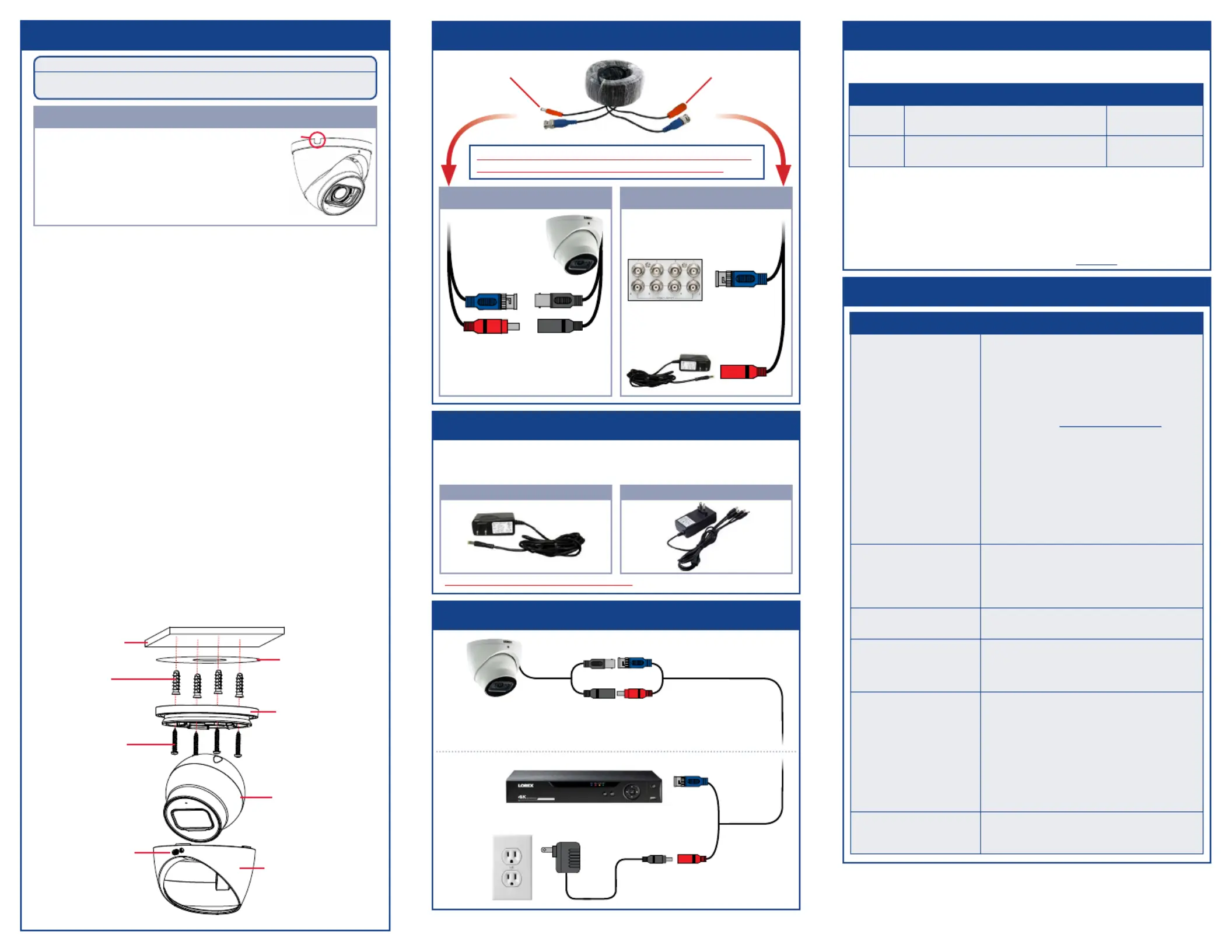

To install the camera:

Adjustment

screw

Mounting

template

Installing the Camera

Individual Power Adapter* Multi-Camera Power Adapter*

* Images for representation only.Only the included power adapter can be used.

Connect the male power head

and the BNC connector to the

camera.

Connect the BNC connector

to a video input on your DVR.

Connecting the Camera

Power Adapter Types

A multi-camera power adapter that provides power to multiple cameras

or individual power adapters may be provided, depending on product

conﬁguration.

Connect the female power

head to the included power

adapter.

Camera

DVR

Male Power Female Power

Setup Diagram

BNC Video

12V DC Power

Camera

Extension Cable

Power Adapter

HD DVR

This camera can only be used with 4K rated extension

cables. For details, see ‘Cable Extension Options’.

Problem Solution

No picture / signal • Only use the approved power supply and 4K

extension cables provided with camera.

• Ensure that you have set the DVR to 4K output

resolution. See ‘Changing DVR to 4K Resolution’

for details.

• The cameras are only compatible with certain

Lorex HD DVRs. For the full list of compatible

recorders, visit lorex.com/compatibility.

• Ensure your TV or monitor is on the correct

input channel. Common terms for input

channels: INPUT, AV CHANNEL, LINE1, LINE2,

AUX.

• Ensure your DVR is properly connected to your

TV or monitor.

• Ensure connections are properly connected.

• Ensure the camera power supply is plugged in.

• Ensure that you only use the included power

cable.

Picture is too bright • Ensure your camera isn’t pointed directly at a

source of light (e.g., sun or spot light).

• Check the brightness settings of the DVR and

monitor.

• Move your camera to a different location.

Picture is too dark • Check the brightness and contrast settings of

the DVR and monitor.

Night vision is not working • Only use the approved power supply and 4K

extension cables provided with camera.

• The night vision activates when light levels

drop. The area may have too much light.

Picture is not clear • Only use the approved power supply and 4K

extension cables provided with camera.

• Check the camera lens for dirt, dust,

spiderwebs. Clean the lens with a soft, clean

cloth.

• Make sure that the cable run is within the

limitations speciﬁed in the section ‘Cable

Extension Options’.

• Remove the vinyl ﬁlm from the camera lens

when your installation is complete.

Bright spot in video when

viewing camera at night

• Night vision reﬂects when pointing a camera

through a window. Move the camera to a

different location.

Troubleshooting

Extend the cable run for your camera depending on the cable type used. Additional

extension cables sold separately. See table below:

Cable Extension Options

Option Model Number Cable Length

CB120URB1A

120ft (37m)

CB250URB1A

250ft (76m)

Notes:

1. The extension cable must be a single stretch of cable between the DVR and

camera. You cannot connect multiple extension cables to each other.

2. Indicators that your cable run may be too long:

• Camera loses video when switching to night vision.

• Video is permanently black & white (even during day time).

• Video is unclear, soft, or distorted.

3. For more information on extension cables, visit lorex.com.

Before Installing the Camera

• Decide whether to run the cables through the

wall / ceiling (drilling required) or along the

wall / ceiling.

• If you run the cables along the wall / ceiling,

you must run the cable through the cable

notch on the base. This will keep the camera

base ﬂush to the surface when mounted.

Cable Notch

4. Feed the camera cable through the camera base.

5. Connect the video and power cable as detailed in the section

‘Setting up the Camera’.

6. Attach the camera base to the mounting surface using the

included screws.

7. Position the dome cover over the ball camera and twist

clockwise onto the camera base. Do not tighten completely.

8. Move the ball camera to the desired position. While holding the

ball camera in place, twist the dome cover the rest of the way

to secure it to the camera base. Holding the camera prevents it

from moving while tightening the dome cover.

9. Use the included Allen key to tighten the adjustment screw on

the dome cover.

10. Remove the vinyl ﬁlm from the camera lens when your

installation is complete.

LEV8532_QSG_EN_R2
