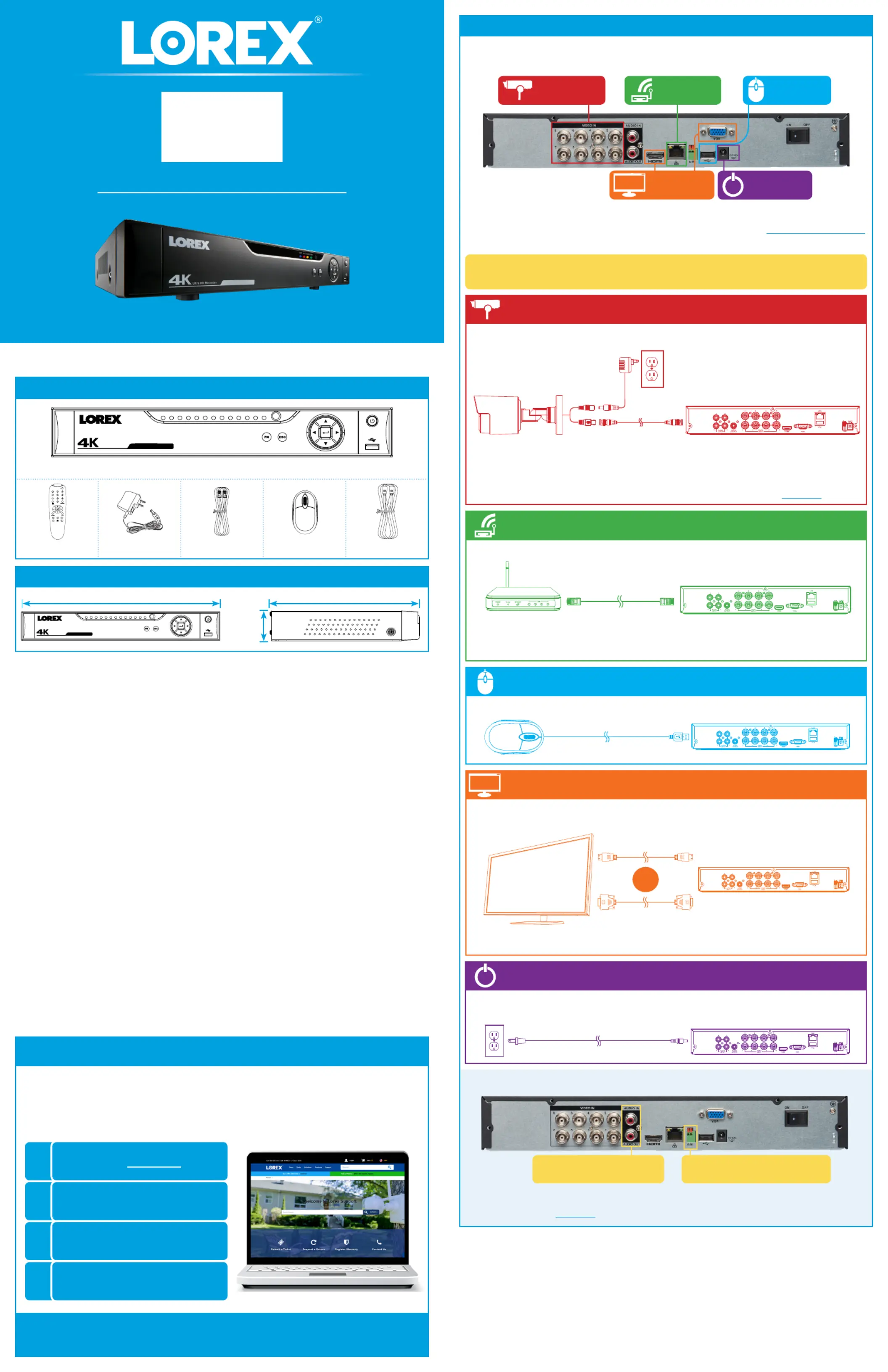

Package Contents

LHV5100_QSG_EN_R1

USB MouseEthernet CablePower Adapter HDMI Cable

4K MPX Security DVR

Remote Control

Dimensions

Connect your cameras (not included) to your recorder.

LHV5100 Series

Quick Setup Guide

Physical setup of recorder and essential system settings

1 / 2

Setting Up Your Recorder

Follow the steps below to complete physical setup of your recorder.

To set up your recorder:

STEP 1:

Connect cameras*

STEP 2:

Connect router*

STEP 3:

Connect mouse

STEP 5:

Connect power

STEP 1:

Connect cameras*

STEP 2:

Connect router*

STEP 4:

Connect monitor*

STEP 3:

Connect mouse

STEP 5:

Connect power

Connect the recorder to your router using the included Ethernet cable.

Connect the recorder to a monitor using the included HDMI cable or a VGA cable

(not included). The HDMI port supports up to 4K resolution, and VGA supports up to

1080p.

Connect the included mouse to a USB port on the recorder.

Use the included power adapter to connect the recorder to a nearby outlet. Turn the

recorder on using the power switch on the back panel.

Ultra HD Recorder

12.8” / 325mm

10.0” / 255mm

2.2”

55mm

* Not included / sold separately.

NOTES:

• The extension cable must be a single stretch of cable between the recorder and camera.

You cannot connect multiple extension cables to each other.

• This guide covers connecting cameras to your security recorder only. For full instructions on

installing your cameras, please refer to your camera’s documentation at lorex.com.

NOTE: To receive automatic ﬁrmware updates and enable remote viewing with computer and

mobile apps, a high speed Internet connection is required (minimum 3.5Mbps upload speed).

All other system features can be used without an Internet connection.

NOTE: To optimize picture quality, set the recorder’s video output to match the resolution of

your monitor.

8-channel conﬁguration shown. 16 channel will have the respective number of video inputs.

For camera compatibility information, visit lorex.com/compatibility.

Overview of extra ports:

NOTE: For full instructions on using the extra ports, please refer to your security recorder’s

instruction manual at lorex.com.

Audio In/Out

Connect microphone / speaker*

RS485

Connect Pan-Tilt-Zoom (PTZ) cameras*

Back panels shown below are for illustration only. Your recorder’s back panel

may appear different, with all the same ports in different locations.

As our products are subject to continuous improvement, Lorex reserves the right to modify product design,

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

STEP 4:

Connect monitor*

Ultra HD Recorder

LHV5100_QSG_EN_R1

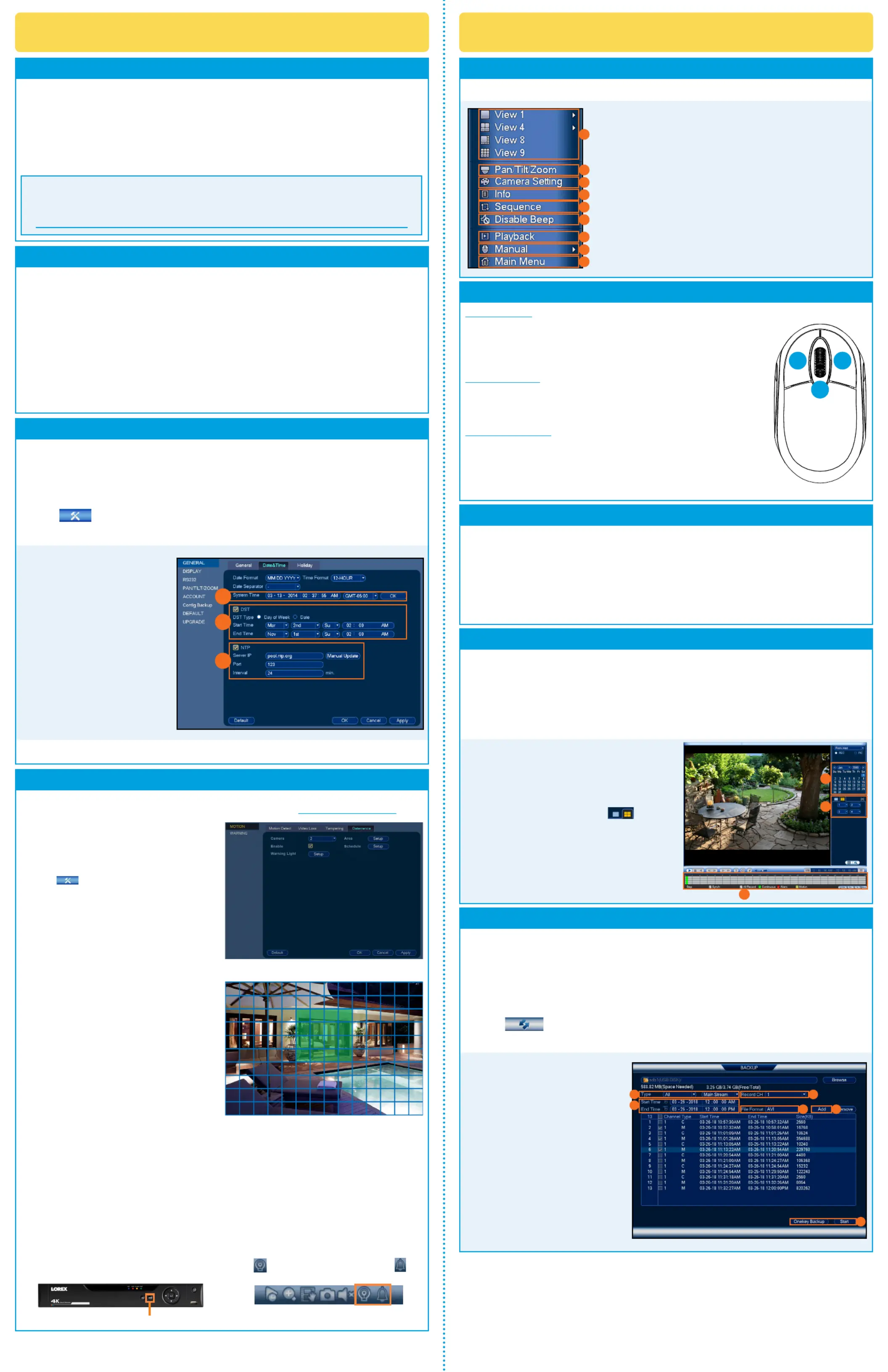

Once you have completed the physical setup of your recorder,

follow the steps below to conﬁgure essential system settings.

Now that you have set up your recorder, see the following

reference sections to learn more about using your system.

STEP 1: Creating a New Password

When using your system for the ﬁrst time, you will be prompted to create a new 6

character password.

To create a new password:

1. Connect your system according to the instructions on the front of this guide.

2. When the recorder turns on, create and conﬁrm your new, secure password. This

password will be used to connect to your system from now on.

Record your password below and store in a secure place:

STEP 2: Firmware Update

This system features automatic ﬁrmware upgrades for enhanced functionality. It is

required to upgrade your system to the latest ﬁrmware version.

To upgrade ﬁrmware:

1. After startup, a notiﬁcation will appear asking you to upgrade the ﬁrmware if a

newer version is available. Click to upgrade. OK

2. The system will download and install the ﬁrmware upgrade. Wait for the ﬁrmware

update to complete. The system may restart during the ﬁrmware upgrade process.

IMPORTANT: Do not power off the recorder or disconnect the power cable during

ﬁrmware installation.

STEP 3: Setting Date and Time

It is important to set the correct time to ensure accurate time stamps on recordings.

To set date and time:

1. In live view, right-click and click .Main Menu

2. Log in using the system user name (default: ) and your new, secure password.admin

3. Click

and select .Setting

4. Click General and select the Date & Time tab.

5. Click to save changes. Apply

a. Enter the current time and

select your time zone, and

click . OK

b. Check to enable auto DST

Daylight Savings Time

updates.

c. (Optional) Check NTP to

sync your system with an

Internet time server. Click

Manual Update to instantly

update the time.

NOTE: A constant Internet

connection is required to

use NTP.

1. LEFT-CLICK:

• During split-screen display mode: Click an individual channel

to view it in full-screen. Click again to return to the split-screen

display mode.

• While navigating menus: Click to open a menu option.

2. RIGHT-CLICK:

• Right-click anywhere on the screen to open During live view:

the Quick Menu.

• Right-click to exit menus.While navigating menus:

3. SCROLL WHEEL:

• During live view: Use the scroll wheel to zoom in / out.

NOTE: In live view, hover the mouse cursor over the top of the

screen to open the Navigation Bar. Move the mouse cursor away

from the top of the screen to close the Navigation Bar.

To quickly open a window that displays vital system information such as device ID,

model number, ﬁrmware version, and IP address:

• Press the button on the front panel. ENTER

• Right-click to open the Quick Menu and click . If prompted, enter the system user Info

name (default: ) and your new, secure password.admin

Reference: Using the Quick Menu

Right-click anywhere on the live viewing screen to open the Quick Menu.

a. Select camera/live display view.

b. Control PTZ cameras (not included).

c. Adjust camera color and image settings.

d. View system information.

e. Start/stop sequence mode.

f. Disable current audible warning.

g. Search and playback recordings.

h. Open manual recording controls.

i. Open Main Menu.

Reference: Using the Mouse

Reference: Quick Access to System Information

Search through and play video recordings from the hard drive.

To search for and play back recordings:

1. From live view, right-click and then click . Playback

2. Log in using the system user name (default: ) and your new, secure password.admin

3. Conﬁgure the following:

Reference: Playback and Search

a. Use the calendar on the right to select

the date to playback.

b. Use the drop-down menus to select the

channels you would like to playback.

Click the display options (

)

to playback multiple channels

simultaneously.

c. Click inside the video bar to select

the playback time. Playback starts

immediately at the selected time.

Back up recordings from the hard drive to a USB ﬂash drive (not included).

To back up recordings:

1. Insert a USB ﬂash drive (not included) into a free USB port on the recorder.

2. From live view, right-click and then click . Main Menu

3. Log in using the system user name (default: ) and your new, secure password.admin

4. Click

, then click .BACKUP

5. Conﬁgure the following:

Reference: Backup

a. Select the type and quality of

recordings to search for.

b. Select the channel(s) to search

by.

c. Select a start and end time for

your search.

d. Choose a ﬁle format for your

backed up ﬁles.

e. Click Add to see recordings

that match your search.

f. Check boxes next to recordings

you want to back up, then

click . You may also click Start

Onekey Backup to back up all

ﬁles that match your search.

1 2

STEP 4: Conﬁguring Deterrence Settings

1. In live view, right-click and click .Main Menu

2. Log in using the system user name (default:

admin) and your new, secure password.

3. Click and select .Setting

4. Click > > Event Motion Deterrence

(see ).Figure 1

5. Select the channel of the deterrence camera to

conﬁgure next to .Camera

6. Click the checkbox to enable automatic Enable

warning light deterrence.

7. Click next to to set the active area Setup Area

for automatic deterrence:

To conﬁgure automatic deterrence using DVR:

Set preferences for the automatic warning light triggering on compatible Lorex deterrence

cameras. For a complete list of compatible deterrence cameras, see lorex.com/compatibility.

To activate deterrence features manually:

Figure 1: Deterrence Tab

Figure 2: Deterrence Active Area Example

10. Click to save changes.Apply

• Press and hold on the front panel for ESC

5 seconds. Warning lights and sirens will

be activated for all connected deterrence

cameras.

Press and hold for 5 seconds.

• From live display, hover near the top of

a channel to reveal the Mini Menu. Click

to activate warning light, or click

to activate siren.

8. Click next to to set a schedule Setup Schedule

during which automatic deterrence will be used:

• The camera image appears with a grid of green

boxes over top. The green area is the active area

for deterrence.

• Click or click-and-drag to add / remove boxes

from the active area.

• In , only motion around the doorway will Figure 2

trigger warning light.

• Right-click when ﬁnished.

• The default schedule is active during the night,

between 5pm and 7am.

• Right-click when ﬁnished.

9. Click Warning Light to set preferences for the warning light:

• Enter a time for the white light to be active up to 30 seconds.

• Select Warning Light for sustained light or for a ﬂashing light. Strobe

• Click to save and exit.OK
