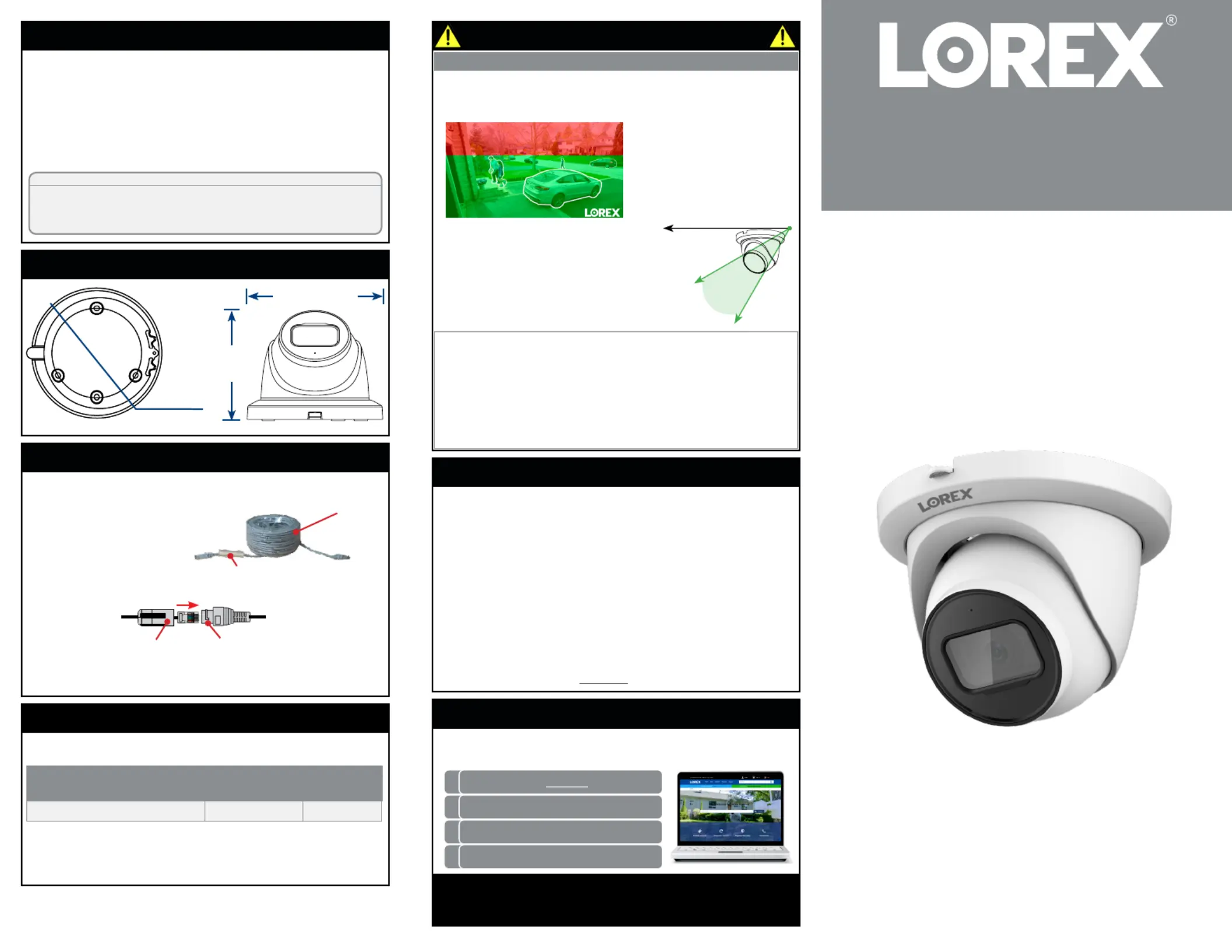

Side 1/2

• You can use a RJ45 coupler or switch (not included) to connect male

ends of Ethernet cable together.

• To extend the cable run beyond 300ft (92m), a switch will be required

(sold separately).

Need Help?

Visit us online for up-to-date software and complete instruction manuals

Click the tabDownloads

Visit lorex.com

Search for the model number of your product

Click on your product in the search results

LNE9252_QSG_EN_R4

4K HD IP Dome Security Camera

with Smart Motion Detection

and Listen-in Audio

• 4K HD IP Dome Security Camera with Smart Motion Detection

and Listen-in Audio

• Mounting Kit*

• Mounting Template*

• Ethernet Extension Cable with Pre-attached RJ45 Cable Gland*

• Allen Key*

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s specications.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of

intense light.

• Use only the supplied regulated power supply provided with the product.

Use of a non-regulated, non-conforming power supply can damage the

product and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use any

harsh, chemical-based cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall

and oor-to-oor installations are sold separately (CMR type). These and

other cables are available at .lorex.com

* Per camera in multi-camera packs.

As our products are subject to continuous improvement, Lorex reserves the right to

modify product design, specications and prices, without notice and without incurring any

Package Contents

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE switch. If

using a DC power adapter (not included) with the camera, a REGULATED power supply

is REQUIRED for use with this camera. Use of a non-regulated, non-conforming power

supply can damage this product and voids the warranty.

Safety Precautions

Dimensions

lorex.com

Extend the cable run for your camera. Additional extension cables sold

separately. See table below:

Cable Extension Options

Cable Type

Max Cable Run

Distance

Max # of

Extensions

CAT5e (or higher) Ethernet cable 300ft (92m) 3

4.7”

122mm

4.7”/122mm

3.8”

99mm

Ethernet

Extension

Cable

RJ45 Cable Gland

Using the RJ45 Cable Gland (Optional)

The RJ45 cable gland is pre-attached to the

included Ethernet extension cable.

The RJ45 cable gland covers the camera’s Ethernet connector and the RJ45 plug to

provide weather-resistance and protection from dust, dirt and other environmental

contaminants.

To use the RJ45 cable gland:

RJ45 Cable

Gland Barrel

Camera Ethernet

Connector

NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with silicone and/or

electrical tape for additional sealing if it will be exposed to precipitation regularly.

Twist the RJ45 cable gland barrel securely onto the camera Ethernet connector.

Important Installation Guidelines

Additional Installation Tips:

• Point the camera where there is the least amount of obstructions (e.g., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered location is

recommended.

• Smart motion detection is enabled by default. When enabled, the camera’s recording

frame rate is 20 frames per second.

• To obtain the maximum 30 frames per second, smart motion detection must be

disabled.

Optimizing Person and Vehicle Detection Accuracy:

• Angle the camera so that objects of interest appear in the bottom of the camera ⅔

image.

• Choose a location where objects of interest will be no further than 50ft (~15m) from

the camera.

Optimal accuracy for objects within

50ft (~15m) and in the bottom of the ⅔

image.

Lower accuracy for objects further away

than 50ft (~15m) and/or in the top of ⅓

the image.

• Angle the camera between 30~60° down from the

level position.

• Install the camera between 8-16ft (2.5-5m) off of

the ground.

Level position (i.e., ceiling)

Optimal

angle

range

NOTE: Accuracy of person and vehicle detection will

be inuenced by multiple factors, such as the object’s

distance from the camera, the size of the object, and

the height and angle of the camera. Night vision will

also impact the accuracy of detection.

Nocturnal Series

Lorex N10

LNE9252

Quick Start Guide

To install your camera:

Installing the Camera

ATTENTION:

Test your camera prior to selecting a permanent mounting location by temporarily

connecting the camera and cable to your NVR.

Before Installing the Camera

• Decide whether to run the cables through the wall / ceiling

(drilling required) or along the wall / ceiling.

• If you run the cables along the wall / ceiling, you must run the

cable through the on the base. This will keep the cable notch

camera base ush to the surface when mounted.

Cable

Notch

Mounting Surface

Camera Base

Dome Camera

1. Use the included mounting template to mark holes for the mounting

screws and camera cable.

2. Drill holes for the mounting screws and camera cable.

3. Feed the camera cable through the camera base. If you are running the

cables against a wall or ceiling, make sure to pass the cable through

the cable notch as shown above.

4. Connect the cables as shown in the section ‘Connecting the Camera’.

5. Mount the camera base to the mounting surface using the included

screws and optional drywall anchors.

6. Angle the dome camera as shown below.

7. Use the included Allen key to tighten the dome camera all the way.

8. Remove the vinyl lm from the camera lens when your installation is

complete.

Drywall Anchors

Mounting Screws

• Point the camera where there is the least amount of obstructions (i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered location is

recommended.

Installation Tips

Connect the Ethernet cable to the

camera.

Connect the other end of the

Ethernet cable to the NVR’s PoE

ports. The camera may take a

minute to power up after

being connected.

Connecting the Camera

LNE9252_QSG_EN_R4

Problem Solution

No picture / signal • Ensure the camera is connected to a compatible NVR. For full camera

compatibility, visit . lorex.com/compatibility

• The camera may take up to 1 minute to power up after being connected to the

NVR. Wait two minutes before following the steps below.

• Ensure the camera is connected to your NVR or to your local network.

• If you are not using PoE, you must connect the camera to a 12V DC power

adapter (not included).

• If the camera is connected to the LAN, you must search your network for

cameras using the NVR. See the NVR’s instruction manual.

• Ensure your NVR is properly connected to a TV/monitor.

• There may be an issue with your extension cable run. Connect the camera to

the NVR using a different Ethernet cable.

Picture is too bright • Ensure your camera isn’t pointed directly at a source of light (e.g., sun or spot

light).

• Move your camera to a different location.

• Check the brightness and contrast settings on the NVR.

Picture is too dark • Check the brightness and contrast settings on the NVR.

Night vision is not

working

• The night vision activates when light levels drop. The area may have too much

light.

Picture is not clear • Check the camera lens for dirt, dust, spiderwebs. Clean the lens with a soft,

clean cloth.

• Make sure that the cable run is within the limitations specied in the section

‘Cable Extension Options’.

• Remove the vinyl lm from the camera lens when your installation is complete.

Bright spot in video

when viewing

camera at night

• Night vision reects when pointing a camera through a window. Move the

camera to a different location.

Picture is in color in

dark conditions

• This camera comes with an image sensor that is extra sensitive to light,

meaning that the camera stays in color mode at low-light conditions. For

instructions on how to make your camera switch to night mode, visit

lorex.com, and search for “How do I make my camera switch to night mode?”

No audio

• Audio is only supported on Lorex HD NVRs. For a list of compatible recorders,

visit .lorex.com/compatibility

• Ensure NVR volume is turned on / turned up.

• Ensure audio function on camera is turned on (see ‘Audio Settings’).

• Ensure audio is turned up on viewing device.

Low frame rate

(frames per second)

• To obtain the maximum 30 frames per second, you must connect to a

compatible recorder. For a complete list of compatible recorders, visit

lorex.com/compatibility.

• If your recorder is capable of supporting 30 frames per second, you will need to

disable smart motion detection in order to use the maximum frame rate.

Troubleshooting

Connect the other end of the

Ethernet cable to a router or switch

on your network. See your NVR

manual for details on connecting

the camera to your NVR using a

switch or router.

Camera

NVR

Setup Diagram

CameraHD NVR

Scenario 1: Connect Cameras to NVR

Scenario 2: Connect Cameras to Local Area Network (LAN)

Router

Camera

HD NVR

Router

PoE Switch

(Optional)

12V DC Power

ATTENTION:

This camera is only compatible with select NVRs. For a list of compatible

recorders, visit .lorex.com/compatibility

Ethernet Cable

NOTES:

• For weatherproong instructions,

see “Using the RJ45 Cable Gland

(Optional)”.

• A 12V DC power adapter (model#:

CVA4902, not included) is

only required if connecting the

camera’s Ethernet cable to a router

or switch that does not support

PoE.

Audio Settings

• For a full list of compatible recorders, visit .lorex.com/compatibility

• Not intended for submersion in water. Installation in a sheltered location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/

Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is

normal, and indicates that the camera lter is working.

Disclaimers

NOTE: These instructions are based on current NVR interface. For the most

up-to-date instructions, see your NVR’s instruction manual on . lorex.com

To enable audio recording and listen-in audio:

1. From Live View, right-click and click . Enter the system user name Main Menu

(default: ) and password.admin

2. Click and select .Camera Recording

3. Under , select the channel where the audio-capable camera is connected.Channel

4. Under , click the button. Main Stream More Setting

ATTENTION:

Audio recording and listen-in audio are disabled by default. Audio recording and/or use of listen-in

audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of

its products that does not conform with local laws.

5. In the window: More Setting

A. Audio EncodeEnable for audio

recording and listen-in audio.

NOTE: Listen-in audio requires a

monitor with speakers or speakers

connected to the NVR.

B. Select the format that will be

used to record audio.

ACC is recommended.

6. Click to save changes.OK

Produkt Specifikationer

Mærke:	Lorex
Kategori:	Overvågningskamera
Model:	LNE9252

Har du brug for hjælp?

Hvis du har brug for hjælp til Lorex LNE9252 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Overvågningskamera Lorex Manualer

Lorex LNB9383 Manual

9 August 2025

Lorex C831CD Manual

9 August 2025

Lorex Vantage LZC7091 Manual

9 August 2025

Lorex C861XC-E Manual

9 August 2025

Lorex Live Ping LNC204 Manual

9 August 2025

Lorex LNE9252 Manual

9 August 2025

Lorex E894ABB Manual

9 August 2025

Lorex U471AA-F Manual

8 August 2025

Lorex LNB9252 Manual

8 August 2025

Lorex E841CAB Manual

8 August 2025

Overvågningskamera Manualer

Nyeste Overvågningskamera Manualer

Burg Wächter SFC-244KSIA Manual

10 August 2025

Sony ILME-FR7K Manual

10 August 2025

Burg Wächter SFC-241KBIFS Manual

10 August 2025

Burg Wächter SFC-240KBIFI Manual

10 August 2025

Burg Wächter IPC868ER-VF18-B Manual

9 August 2025

Burg Wächter BWFC-541KNN Manual

9 August 2025

Burg Wächter SFC-851KBIA Manual

9 August 2025

Burg Wächter BWFC-260KEIF Manual

9 August 2025

Planet ICA-4480F Manual

9 August 2025

Planet ICA-M3580P Manual

9 August 2025
