HD Wi-Fi Active Deterrence Camera

Quick Start Guide

www.lorex.com

Package Contents

HD Wi-Fi

Camera

Mounting Kit

ATTENTION:

A REGULATED UL / CSA APPROVED power supply is REQUIRED for use

with this camera (included). Use of a non-regulated, non-conforming

power supply can damage this product and voids the warranty.

Camera Overview

Lens

Motion (PIR) Sensor

Microphone

Spotlights

Speaker

Reset Button: Press and hold

for 10 seconds to restore default

settings.

microSD Slot: microSD card pre-

inserted (expandable up to 128GB).

F G

Mounting

Stands

USB Power

Adapter Mounting Kit

Safety Precautions

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use and handling of the product.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s speciﬁcations.

• Do not disassemble the camera.

• Do not point the camera directly at the sun or a source of intense

light.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

any harsh, chemical-based cleaners.

Visit us online for up-to-date software and

complete instruction manuals.

Click on the Downloads tab

Visit lorex.com

Search for the model number

of your product

Click on your product in the

search results

As our products are subject to continuous improvement, Lorex reserves the

right to modify product design, speciﬁcations and prices, without notice and

• Place the camera as close to your Wi-Fi router or access point as possible.

• Reduce the number of obstructive materials between the camera and

the router or access point. Concrete, brick, metal and wood are the most

common materials in your house that can cause poor signal strength.

To ensure the best possible wireless performance, it is

recommended to keep the following installation tips in mind when

choosing a location for the camera:

• The camera uses the 2.4GHz band exclusively. Most new routers support

both 2.4GHz and 5GHz bands. It is recommended to use other Wi-Fi

devices on the 5GHz band when possible to ensure the 2.4GHz band is not

overcrowded.

• Other electronic devices such as microwaves, TVs, cordless phones, and

baby monitors can cause signal interference. It is recommended to install

the camera as far away from these devices as possible.

• Point the camera where there is the least amount of obstructions (i.e.,

tree branches).

• Install the camera where vandals cannot easily reach.

• This camera is rated for outdoor use. Installation in a sheltered location

is recommended.

Additional Positioning Tips

LNWCM23X_QSG_EN_R1

Installation Tips Troubleshooting

Problem Solution

Cannot set up

camera

• Ensure you are using a 2.4GHz Wi-Fi network to

conﬁgure the camera. The camera does not work

with 5GHz networks.

• Ensure your mobile device is within 1ft (30cm) of

the camera during setup.

No picture /

signal

• Ensure the LED indicator on the camera is

glowing steady green. See ‘LED Behavior’ section

for details if otherwise.

• Ensure the camera is properly connected to

power using the included USB power adapter.

• Try repositioning the camera, router, or both to

improve signal strength.

Picture is not

clear

• Check the camera lens for dirt, dust, spiderwebs.

Clean the lens with a soft, clean cloth.

• Remove the vinyl cover on the camera lens.

No audio • Ensure audio function on camera is turned on.

• Ensure audio is turned up on viewing device.

The warning

light is not

switching on

automatically

• Ensure that you have enabled and conﬁgured

white light deterrence.

The siren is not

switching on

automatically

• The camera siren cannot switch on automatically.

You can control the camera siren manually using

the Lorex Home app.

×9

×4

×1

LED Behavior

See table below for deﬁnitions of camera’s LED behaviors:

Behavior Meaning

Steady green Operating correctly

Flashing green Connecting to network

Steady red Device malfunction. Try resetting the camera

(see ‘Camera Overview’ for details) and

repeating the setup.

Flashing red Network connection failed. Try resetting the

camera (see ‘Camera Overview’ for details) and

repeating the setup.

Rapid ﬂashing red microSD error. Try removing and re-inserting

the included microSD card, or try a different

card.

Need Help?

Disclaimers

• Not intended for submersion in water. Installation in a sheltered location

recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera

changes between Day/Night viewing modes, an audible clicking noise may

be heard from the camera. This clicking is normal, and indicates that the

camera ﬁlter is working.

• Audio recording without consent is illegal in certain jurisdictions. Lorex

Corporation assumes no liability for use of its products that does not

conform with local laws.

* Use the included access tool to remove the

service compartment cover.

Access

Tool

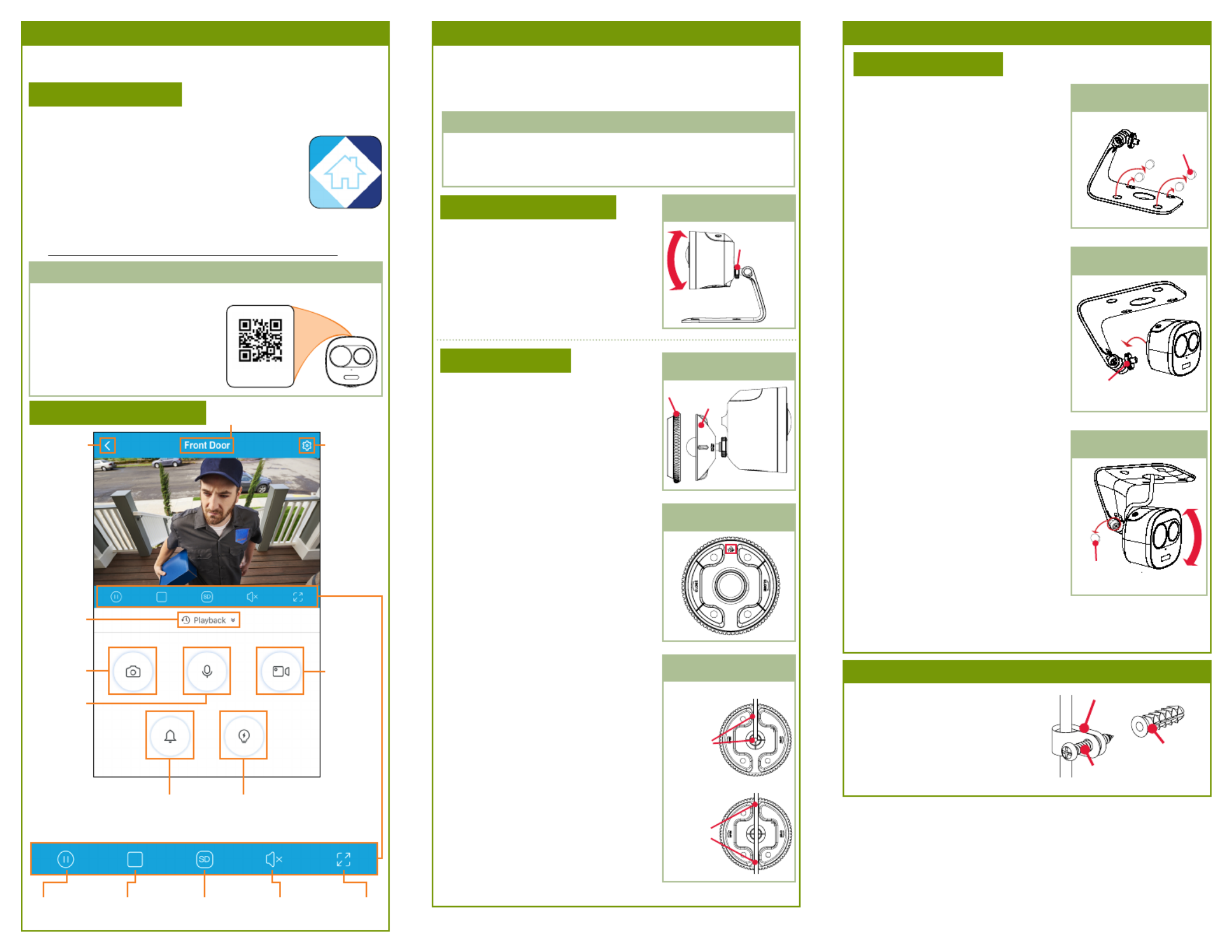

STEP 2: Installing the Camera

CEILING MOUNTING:

The camera comes with 2 mounts for 3 total installation

options: ceiling mounting, table top placement, or wall

mounting. Select a mounting option then follow the relevant

procedure below:

1. Remove the pre-inserted silicon plugs

(4×) from the base (see ).Figure 5

2. Set the ceiling mount in the desired

mounting position and mark holes

for screws and cables through the

mounting base, or use the included

mounting template.

NOTE: Adjusting the angle of the

camera is limited with this

installation. Ensure you angle the

ceiling mount towards the desired

viewing area.

3. Drill holes where marked. If required,

insert the included drywall anchors.

4. Secure the ceiling mount to the

mounting surface using the provided

screws (4×). Make sure all screws

are fastened tightly.

5. With the adjustment ring securely

fastened to the bolt on the ceiling

mount, screw the camera onto the

ceiling mount (see Figure 6).

6. Twist the camera onto the ceiling

mount until the camera is level, then

tighten the adjustment ring.

7. Angle the camera up-and-down as

needed. Remove the pre-inserted

silicon plug on the side of the ceiling

mount and tighten the screw using

a Phillips screwdriver. Replace the

silicon plug (see ).Figure 7

8. Feed the camera cable through the

cable opening on the ceiling mount

base and the mounting surface or

run the cables along the wall.

9. Connect the included USB power

adapter to the camera cable and

connect to a nearby power outlet.

Silicon

Plug

Adjustment

Ring

Silicon

Plug

Before Installing the Camera

• Review the “Installation Tips” section on the other side of the

guide to help you choose an ideal mounting location.

• Decide whether to run the cables through the wall or along the wall.

Figure 5

Figure 6

Figure 7

STEP 2: Installing the Camera (CONTINUED)

STEP 1: Connecting to Lorex Home

Connect to the camera using the free Lorex Home app on your

iPhone® or Android™ phone.

LOREX HOME SETUP:

1. Connect the camera cable to the included USB adapter and plug

into a nearby outlet.

Important Notes

LOREX HOME OVERVIEW:

Back to

screen

Camera

and system

settings

Camera name

When you are prompted to enter the camera’s Device ID:

Pause / Play FullscreenViewing

Modes

Mute /

Unmute

Video

Quality

Play back

recorded

video

Snapshot Manual

recording

2-way

audio: tap

to speak,

tap again

to disable

Siren: tap to

enable, tap again

to disable

Spotlights: tap to

enable, tap again

to disable

2. Download and install the free Lorex Home app

from the App Store or Google Play Store.

3. Tap the Lorex Home icon to launch the app.

Follow the on-screen instructions to complete

the setup.

Device ID: × × × × × × ××

LNWCM23X_QSG_EN_R1

• Scan the QR code on top of the

camera.

• If you are having trouble scanning

the QR code, tap Manually enter

Device ID and enter the sequence

written under the QR code.

NOTE: Ensure your mobile device is connected to the same

2.4GHz Wi-Fi network that will be used with for the camera.

The camera does not work with 5GHz Wi-Fi networks.

1. Attach the wall mount to the back of

the camera.

2. Twist the wall mount cover counter-

clockwise to separate it from the

base (see ).Figure 2

3. Set the base of the wall mount in

the desired mounting position with

the indicator pointing up (see TOP

Figure 3).

4. Mark holes for screws and cables

through the mounting base.

5. Drill holes where marked. If required,

insert the included drywall anchors

(4×).

6. (OPTIONAL) For a cleaner installation,

you may wish to run the camera

cable through the cable notches on

the back on the wall mount:

Figure 2

Figure 3

Figure 4

Cover

Base

• If you are running the cable through

the wall, feed it through the top cable

notch, then through the cable hole you

drilled in the mounting surface.

• If running the cable along the wall,

feed the cable through both cable

notches (see Figure 4).

Running

through

wall:

Use the

top cable

notch

only

1. With the adjustment ring securely

fastened to the bolt on the table top

stand, screw the camera onto the

table top stand (see ).Figure 1

2. Connect the included USB power

adapter to the camera cable and

connect to a nearby power outlet.

Figure 1

Adjustment

Ring

TABLE TOP PLACEMENT:

WALL MOUNTING:

7. Secure the wall mount base to the

mounting surface using the provided

screws (4×).

8. Twist the wall mount cover clockwise

onto the base. Adjust the angle of

the camera before fully tightening

the wall mount cover.

9. Connect the included USB power

adapter to the camera cable and

connect to a nearby power outlet.

Running

along

wall:

Use both

cable

notches

[OPTIONAL] If you run the cables

along the wall, you may use the

included cable guides with the

cable guide screws and optional

drywall anchors as needed.

Drywall

Anchor

Cable Guide

Screw

Cable Guide

STEP 3: Finishing the Installation

Produkt Specifikationer

Mærke:	Lorex
Kategori:	Overvågningskamera
Model:	LNWCM23X
Kode for international beskyttelse (IP):	IP65
Type:	IP-sikkerhedskamera
Bredde:	60 mm
Dybde:	105 mm
Højde:	175.5 mm
Vægt:	480 g
Produktfarve:	Black, White
Pakkevægt:	830 g
Pakkedybde:	120 mm
Pakkebredde:	232 mm
Pakkehøjde:	96 mm
Kompatible hukommelseskort:	MicroSD (TransFlash)
Wi-Fi:	Ja
Bluetooth:	Ingen
Formfaktor:	Terning
Understøttede videotilstande:	1080p
Indbyggede højttaler(e):	Ja
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Ethernet LAN:	Ingen
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Understøttede videoformater:	H.264, H.265
Driftstemperatur (T-T):	-20 - 50 °C
Maksimal opløsning:	1920 x 1080 pixel
Pakketype:	Kasse
Understøttede grafikopløsninger:	1920 x 1080 (HD 1080)
Forbindelsesteknologi:	Trådløs
Certificering:	CE, FCC
Strømkilde type:	DC
Monteringstype:	Loft/væg
Indbygget kortlæser:	Ja
Indbygget HDD:	Ingen
Understøttet placering:	Indendørs & udendørs
Understøttede mobile operativsystemer:	Android, iOS
Indbygget mikrofon:	Ja
Sensortype:	CMOS
Samlet antal megapixels:	2 MP
Digital zoom:	16 x
Maksimal størrelse på hukommelseskort:	16 GB
Progressiv scanning:	Ja
Kamerapanorering kontrol:	Ingen
Kontrol af kamerahældning:	Ingen
Minimumsbelysning:	- Lux
Antal sensorer:	1
Optisk sensorstørrelse:	1/2.7 "
Antal effektive pixels (HxV):	1920 x 1080 pixel
Maksimale blænderåbning tal:	2
Nattesyn:	Ja
Billedhastighed:	30 fps
Bevægelsessensor (video):	Ja
DC udgangsspænding:	5
DC-udgangsstrøm:	2 A
Antal kameraer:	1
Linse, diameter:	2.8 mm
Antal linser:	1
Nattesyn, afstand:	20 m
Region of Interest (ROI) kodning:	Ja
Objektivets synsvinkel, diagonal:	135 °
