Quick Set-up Guide

It’s all on the web

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

VISIT

www.lorexcctv.com

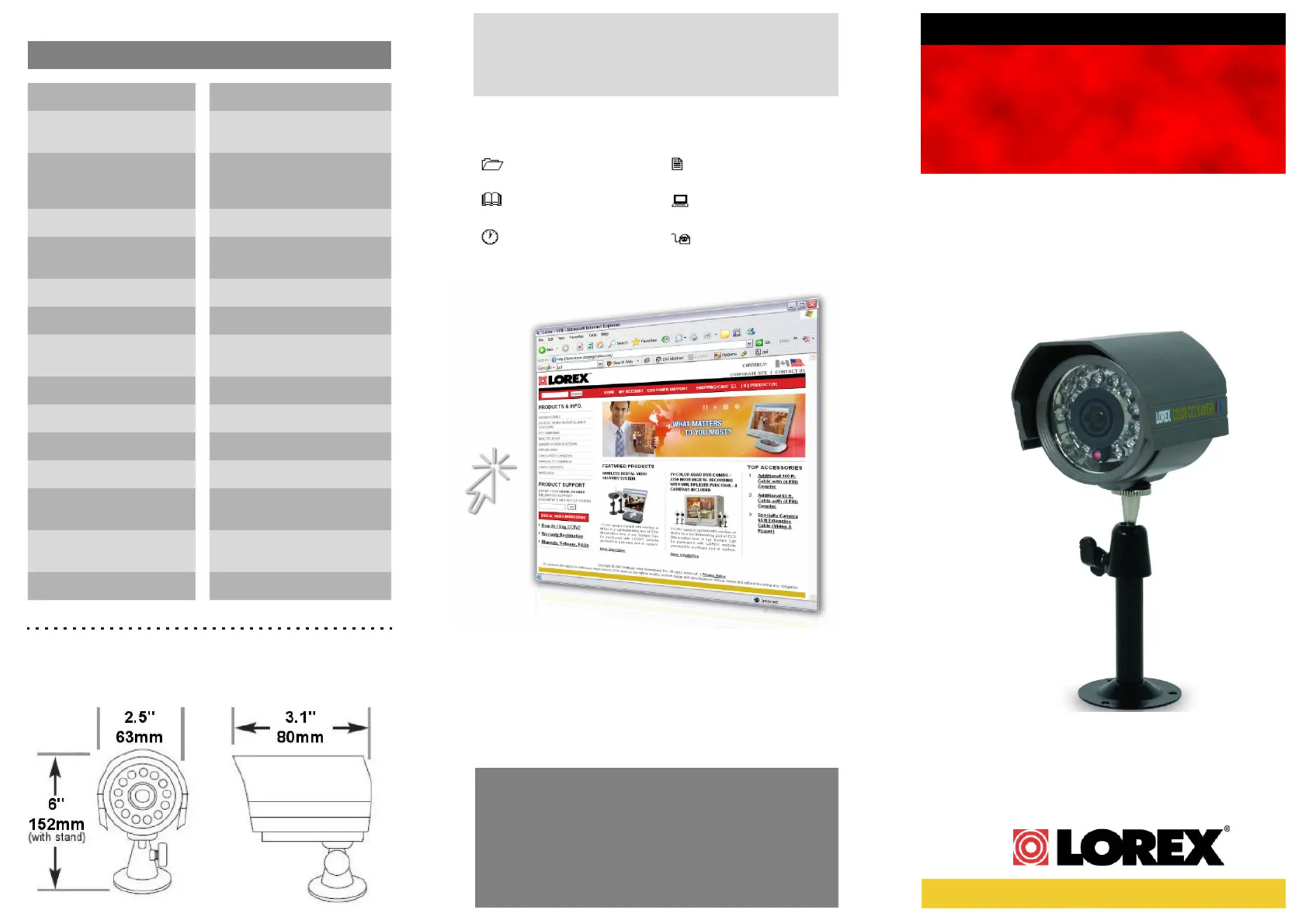

4. Camera Specifications

H O M E & B U S I N E S S S E C U R I T Y

COLOR DAY/NIGHT

CCD BULLET CAMERA

WITH AUDIO

Dimensions:

Image Device 1/4” Interline CCD

Effective Pixels NTSC:512Hx492V(252K)

PAL:512Hx582V(298K)

Scanning System

Resolution

Shutter Speed

S/N Ratio

Sync. System

Min. Illumination

White Balamce

Video Output

Lens

Power Supply

Power Consumption

Operating Temp

Operating Humidity

2:1 interlace

NTSC: 525 Lines

PAL: 625 Lines

Horizontal 420 TV lines

NTSC: 1/60 ~ 1/100,000

PAL: 1/50 ~ 1/100,000

More than 48dB (AGC off)

Internal

0.1 LUX @F1.2 (no LED)

0 LUX (with LED)

AWB

1.0 Vp-p (75 ohms)

Fixed Lens (3.6mm)

DC 12V ± 10%

100mA (LED OFF)

160mA (LED ON)

14°F ~ 122°F

(-10

° °~ 50 C)

90% HM Max.

Model: SG7520 Series

SG7520 (NTSC)

SG7520P (PAL),

Refer to Spec Sheet for specific UPC

and Packaging Configurations.

Features:

• 1/4” advanced CCD image sensor

provides superior image quality.

• Excellent low light sensitivity with12

infrared LED illuminators*.

• Professional Grade Weatherproof**

camera.

• 100 ft. (30m) cable included.

• Color video by day, automatically

switches to B&W at night.

* Night Vision Range up to 30ft. (10m) in ideal conditions.

** IP64, Not intended for direct exposure to rain, snow or

water.

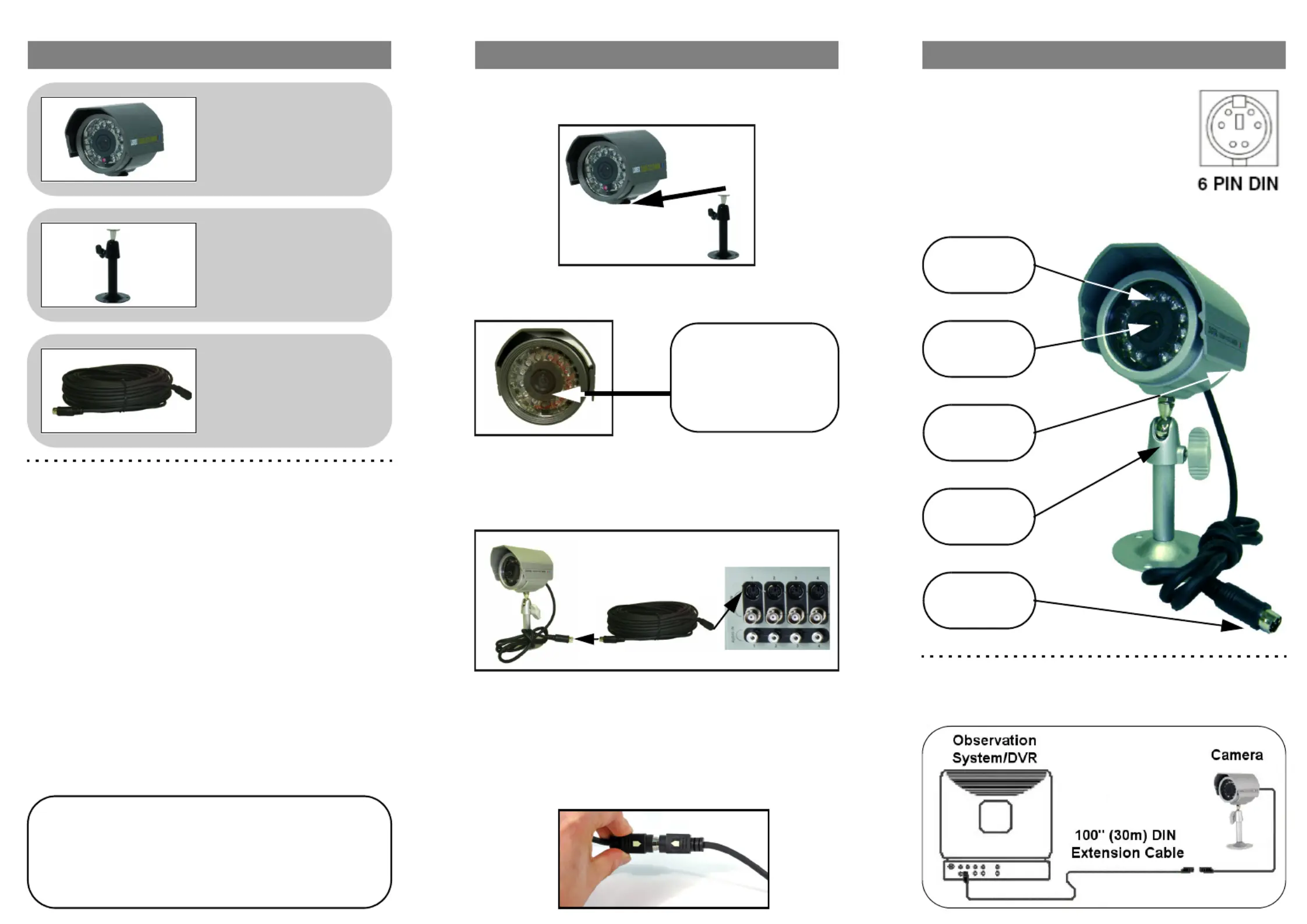

1. Package Contents 2. Installing the Camera 3. Camera Diagram

1 x 1/4” CCD Color

Day/Night Camera

1. Attach the camera to the supplied stand. Mount

the camera stand to the desired mounting surface

2. Aim the camera. Remove the protective film from

the lens.

3. Connect the 100ft Extension cable to the camera:

Connect the other end of the 100ft Extension

Cable to the Observation System or DVR.

NOTE:

Confirm that the arrows on the DIN

Extension cable are aligned with the Camera

Cable and Observation system ports when

connecting the cable. If the pins in the DIN Cable

are bent, the Camera will NOT function

System Connection Diagram:

1 x Camera Stand

1 x 100’ (30m) DIN

Extension Cable

Lift the plastic tab on

the lower edge of

the camera to

remove the

protective film.

Camera

Lens

Infra-Red

LEDs

Micro-

phone

Adjustable

Stand

DIN Input

Cable

Cameras with 6 Pin DIN connections

draw power from the Observation

System or DVR.

Additional power adapters are not

needed for these cameras.

Note:

Test the cameras prior to selecting a permanent

mounting location by temporarily connecting the

Cameras and Cables to the Observation System

or DVR.
