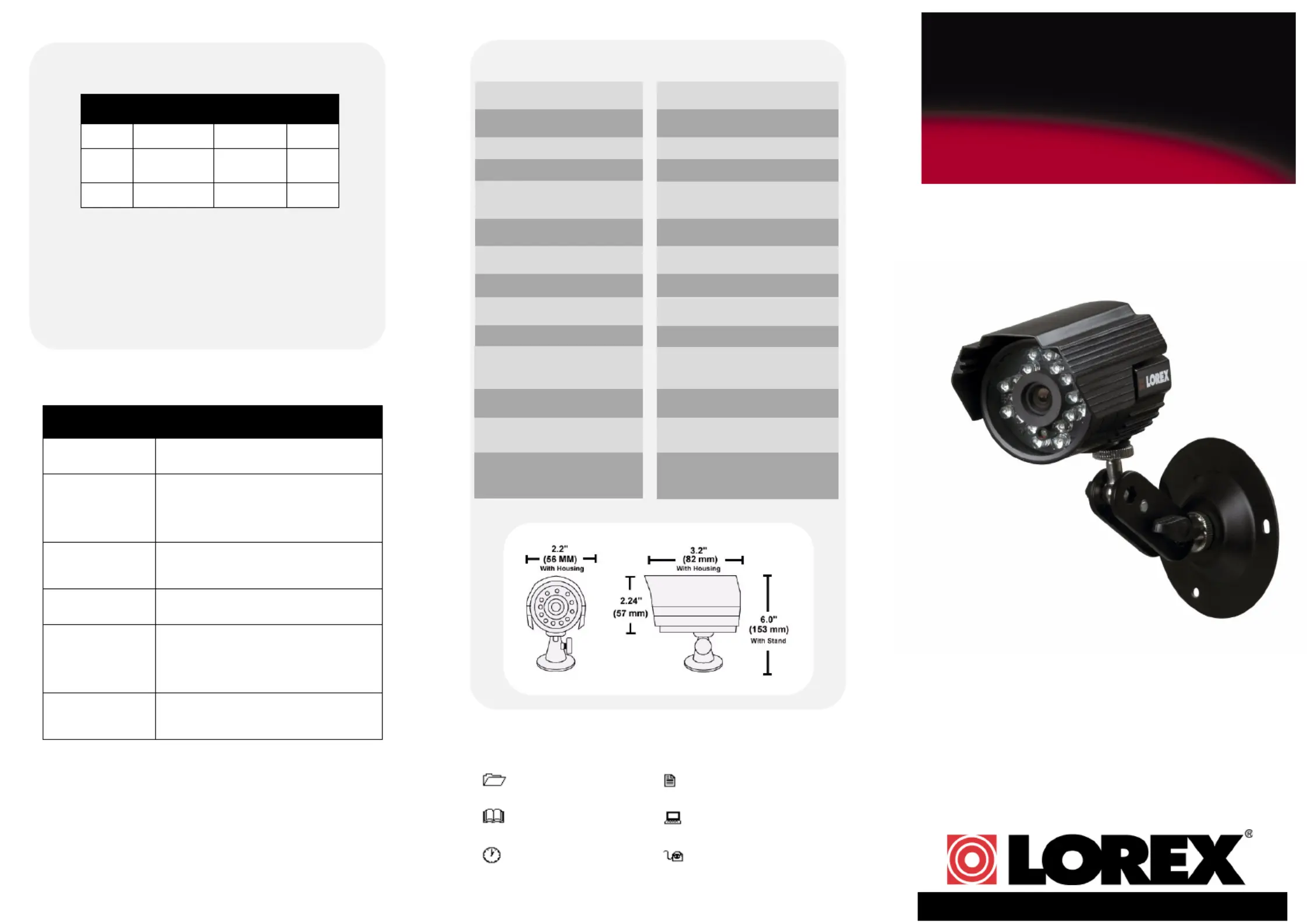

QUICK START GUIDE
www.lorextechnology.com
Lorex Technologies Inc.
Copyright © 2010 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
Cable Extension Options
INDOOR / OUTDOOR
Problem Solution
No Picture/Signal • Ensure connections are properly connected.
• Ensure the connector pins are not bent.
Picture is too bright • Ensure your camera isn’t pointed directly at a
source of light (e.g sun or spot light).
• Slide the sunshade (bullet cameras only)
forward to block excess light.
• Move your camera to a different location.
Picture is too dark • Check the brightness and contrast settings of
the device your camera connects to (TV/
Monitor/DVR).
Night Vision is not
working
• The night vision activates when light levels
drop. The area may have too much light.
Picture is not clear • Check the camera lens for dirt, dust or spider
webs. Clean the lens with a soft, clean cloth.
• Make sure that the cable run is within the
limitations specified in the section ' Cable
Extension Options'
Bright spot in video
when viewing camera
at night
• Night vision reflects when pointing a camera
to a window. Move the camera to a different
location.
Troubleshooting
Option Cable Type
1
60ft DIN
300ft / 92m 5
2
100ft DIN/
Universal
300ft / 92m 3
3
250ft DIN
250ft / 76m 1
Max. Extension
Distance
Max. # of
Extensions
MODEL: SG7560B
English Version 1.0
Image Sensor 1/4” Color
Video Format / Pixels
Horizontal Resolution
Environmental Rating
IR / Night Vision Range
Field of View (diagonal)
Minimum Illumination
Termination
NTSC: 656(H) x 492 (V)
480 TVL
IP 66
73 Degrees
0 LUX (IR LEDs on)
3 LUX @ F 1.2 (IR LEDs off)
6-Pin DIN
Lens / Lens Mount 3.6 mm F1.8/ Fixed
Camera Specifications
Notes:
1. Cable run recommendation based on typical camera power consumption (up
to 500mA). For specialty cameras with higher current consumption,
maximum cable run may be reduced. Consider providing power to the camera
at the camera side rather then at the end of the extension cable.
2. Indicators that your cable run may be too long:
• Video is permanently Black & White (even during day time)
• Video is distorted
Product Information
User Manuals
Quick Start Guides
Specification Sheets
Software Upgrades
Firmware Upgrades
www.lorextechnology.com
IT’S ALL ON THE WEB!
Extend the cable run for your camera up to 300ft depending on
the cable type used. See table below:
Operating Temperature
14°F ~ 122°F
(-10°C ~ 50°C)
Power Requirement
12V DC ±10%
Power Consumption With IR: Max 280mA
W/O IR: Max 90mA
18 IR LED/55 ft. (17 m)
Video Output
1.0 Vpp @ 75ohm
WITH NIGHT VISION AND AUDIO
Weight (with stand)
Weight (w/o stand)
0.75 lbs. / 0.34 kg
0.45 lbs. / 0.22 kg

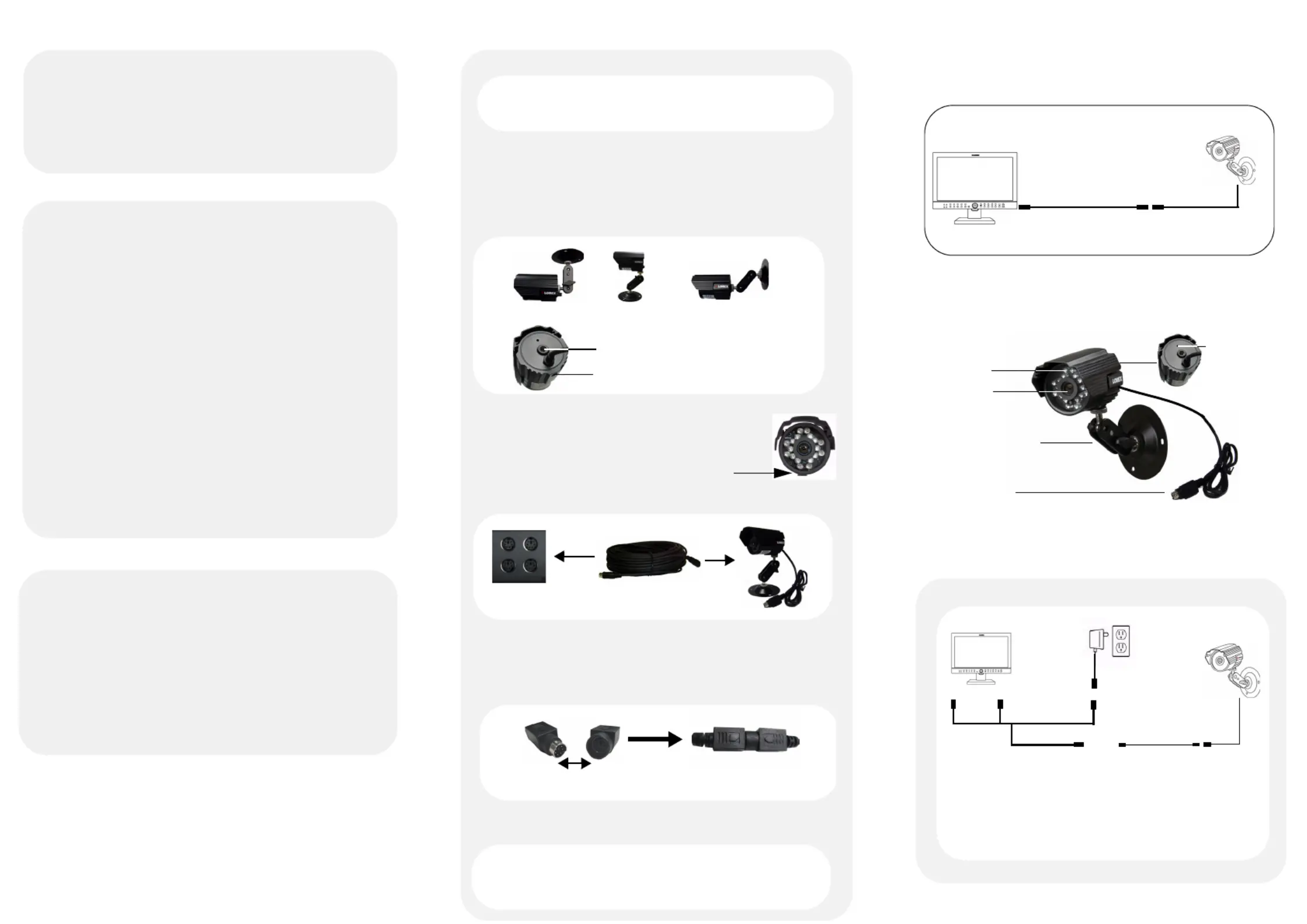

To install the camera:
1. Mount the camera stand to the desired mounting surface.
2. Attach the camera to the stand at either of the two
connection points at the back of the camera.
3. Aim the camera. Remove the
protective film from the lens.
4. Connect the extension cable to the
camera. Connect the other end of
the extension cable to the system.
NOTE: Confirm that the arrows on the DIN extension
cable align with the camera cable and system ports when
connecting the cable. If the pins in the DIN connectors are
bent, the camera will not function.
NOTE: Ensure the DIN connectors are firmly connected.
A tight seal weatherproofs the cable connection.
ATTENTION - Test all connections and ensure the camera is working
correctly prior to permanent installation by temporarily connecting the
camera and cable to a viewing/recording system.
Wall Mount
Ceiling Mount
Counter Mount
Top Thread - Ceiling Mount
Bottom Thread - Counter and Wall mount
Remove Film
System DIN Ports
DIN extension cable
Firmly connect the DIN connectors.
Lorex cameras with 6-pin DIN connectors draw power from the system.
Additional power adapters are not needed for DIN cameras that connect
to Lorex systems with DIN input.
DIN Extension Cable
System
DIN Camera
Contents
Features
• 18 High Intensity IR LEDs provide effective night vision
range up to 55ft (17m†).
• Day/Night mode: Picture automatically switches to
black and white delivering better clarity in low light
conditions.
• Weatherproof cameras and cables ideal for indoor and
outdoor applications (IP66)‡.
• All-in-one camera cable (audio, video, and power) plugs
directly to Lorex systems with DIN ports and eliminates
the need for a separate power adapter.
• Built-in microphone provides one-way audio from the
camera to the system.
• Ceiling, counter or wall mountable camera with 3D
versatile stand provides flexible mounting options.
• 1x Camera
• 1x Camera stand
• 1x 60ft (18m) DIN extension cable
• 1x DIN-to-BNC/RCA/ Power cable*
• 1x BNC-to-RCA Adapter*
• 1x Power adapter*
*Included with the SG7560B single pack only. This provides universal
compatibility with industry standard BNC and RCA ports.
Installation Tips
• Do not point the camera directly towards the sun or a
source of intense light.
• Point the camera where there is the least amount of
obstructions (ie tree branches).
• Install the camera in a location that is difficult for
vandals to reach.
• Secure cabling so that it is not exposed or easily cut.
• Connect your system to a back-up power supply. This
ensures the system continues to record during power
outtages.
Installing the camera
Warning / Caution Statements
1. Read this guide carefully and keep it for future reference.
2. Follow all instructions for safe use of the product.
3. Use the camera within given temperature, humidity and voltage levels noted
in Camera Specifications.
4. Do not disassemble the camera.
5. The supplied extension cable is rated for surface mounting only.
Cables for in-wall / floor-to-floor installations are sold separately.
Applicable only to SG7560B:
1. Use only the supplied regulated power supply. Use of a non-regulated, non-
conforming power supply can damage this product and voids the warranty.
Setup Diagram
ATTENTION: This camera includes an Auto Mechanical IR Cut Filter. When
the camera changes between Day/Night viewing modes, an audible clicking
noise may be heard from the camera. This clicking is normal, and indicates
that the camera filter is working.
DIN-to-BNC Connection Diagram
DIN-to-BNC/RCA/ Power Converter
DIN Extension Cable
System**
DIN Camera
Optional DIN-to-BNC/RCA/ Power Cable
Video***
Audio
Power Adapter*
Power connector
*Power adapter and DIN-to-BNC/RCA Power Cable are available in a single camera pack,
model SG7560B.
**This camera pack is designed to work with Lorex systems with 6-pin DIN ports. You can
convert the DIN connectors to industry standard BNC using a DIN-to-BNC/RCA/Power cable
and a power adapter, available as an accessory (model: ACC1511).
*** To connect to a TV, use the included BNC-to-RCA adapter.
Visit www.lorextechnology.com for more details.
Camera Diagram
Microphone
Adjustable 3D Flex Stand
IR Leds
Lens
Male DIN Connector
(RCA)
(BNC)
† IR illumination range under ideal conditions. Actual range and clarity may vary
depending on scene/object reflection and camera application.
‡ Not intended for submersion in water. Installation in a sheltered location
recommended.
