As our products are subject to continuous improvement, Lorex reserves the right to modify product design,

specifications and prices, without notice and without incurring any obligation. E&OE

2.6"/

66mm

Cable Extension Options

Problem Solution

No Picture/Signal

• Ensure your TV is on the correct input channel.

Common terms of an input channel: INPUT, AV

CHANNEL, LINE1, LINE2, AUX.

• If your camera is connected to a VCR/DVR,

ensure it is properly connected to your TV/

Monitor.

• Ensure connections are properly connected.

• Ensure the camera power supply is plugged in.

Picture is too bright

• Ensure your camera isn’t pointed directly at a

source of light (e.g sun or spot light).

• Slide the sunshade (bullet cameras featuring

adjustable sunshades only) forward to block

excess light.

• Move your camera to a different location.

Picture is too dark

• If using during the day, the camera may not be

getting enough light. Slide the sunshade (bullet

cameras featuring adjustable sunshades only)

backwards to let in more light.

• Check the brightness and contrast settings of the

device your camera connects to (TV/Monitor/

DVR).

Night Vision is not

working

• The night vision activates when light levels drop.

The area may have too much light.

Picture is not clear

• Check the camera lens for dirt, dust, spiderwebs.

Clean the lens with a soft, clean cloth.

• Make sure that the cable run is within the

limitations specified in the section ' Cable

Extension Options'

Bright spot in video

when viewing cam-

era at night

• Night vision reflects when pointing a camera to

a window. Move the camera to a different

location.

BNC connection

does not connect to

my TV

• Use a BNC to RCA adapter at the end of the

extension cable.

Troubleshooting

Option Cable Type

Regular BNC

(supplied with

camera)

180ft / 55m

'RG59' or 'Coax'

or ' Coaxial' BNC

(sold separately)

300ft / 92m

Lorex Universal

Cable

(sold separately)

300ft / 92m

Max. Cable

Run Distance

Notes:

1. For optimal performance, consider using option 2 or 3. Preference for using

the same cable type for the entire distance.

2. Cable run recommendation based on typical camera power consumption

(up to 500mA). For specialty cameras with higher current consumption,

maximum cable run may be reduced. Consider providing power to the

camera at the camera side rather then at the end of the extension cable.

3. Indicators that your cable run may be too long:

• Video is permanently Black & White (even during day time)

• Video is distorted

Max. # of

Extensions

www.lorextechnology.com

Extend the cable run for your camera up to 300ft or more

depending on the cable type used. See table below:

4.2"/

107mm

*IR Illumination range under ideal conditions. Objects at or beyond this range may be partially or

completely obscured, depending on the camera application.

SUPER RESOLUTION WEATHERPROOF

NIGHT VISION SECURITY CAMERA

English Version 3.0

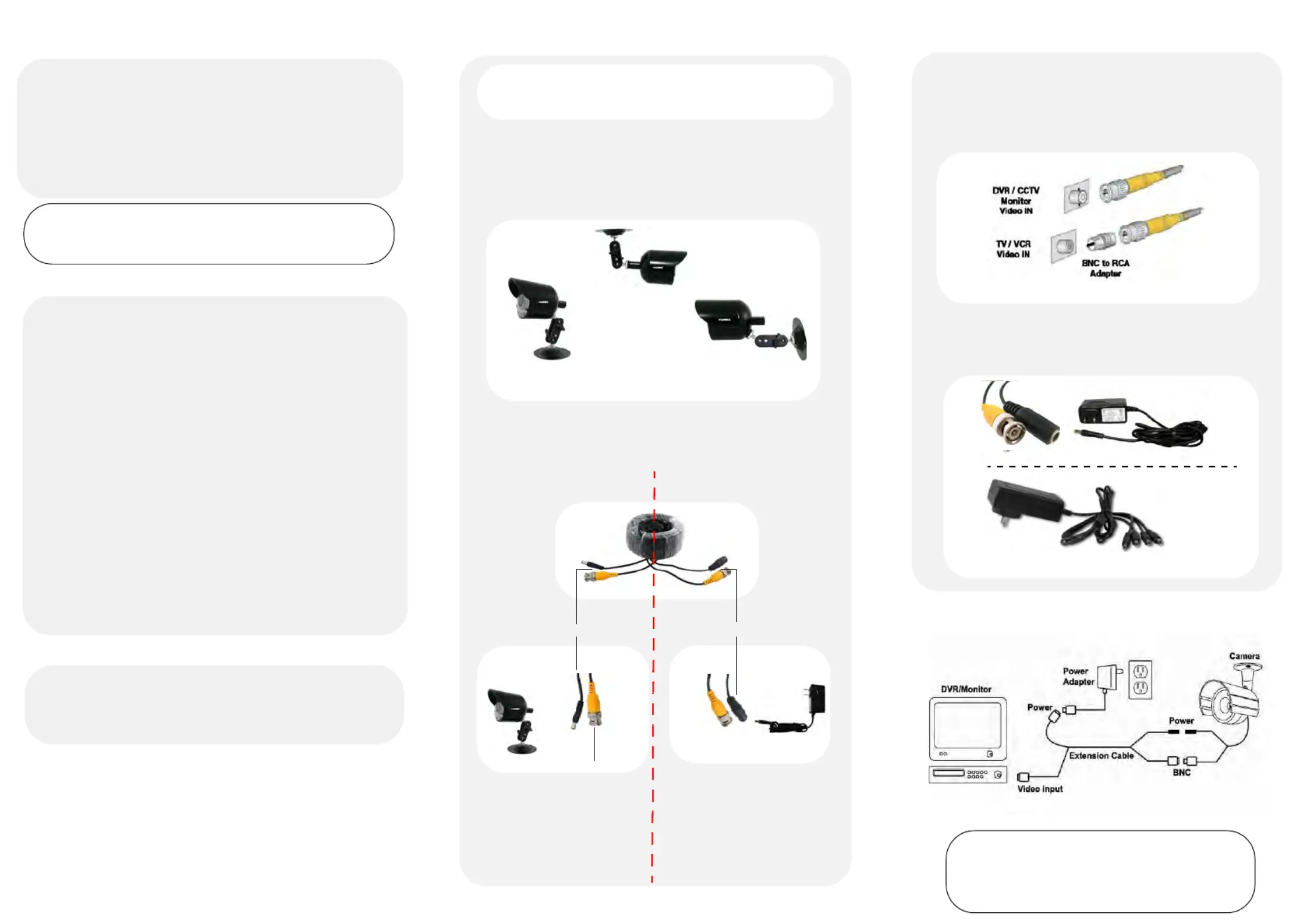

QUICK START GUIDE

Image Sensor 1/3" Color Image Sensor

Video Format NTSC

Effective Pixels H: 720 V: 480

Resolution 600+ TV Lines

Scan System 2:1 Interlace

Sync System Internal

S/N Ratio 48dB (AGC Off)

Iris AES

AES Shutter Speed 1/60 ~ 1/25,000 Sec.

Min. Illumination 0.1 Lux without IR LED

0 Lux with IR LED

Video Output Composite 1.0Vpp @75 ohm

Lens / Lens Type 3.6mm F2.0 / Fixed

FOV (Diagonal) 78°

Termination BNC Type

IR LED Qty / Type 18 pieces / 850nm

Night Vision Range* 60ft / 18m

Power Requirement 12V DC ±10%

Power Consumption Max. 240mA (w/IR)

Operating Temp. Range –22° ~ 122°F / –30° ~ 50°C

Operating Humidity Range < 90% RH

Environmental Rating** IP66

Weight (including stand) 0.6lbs / 0.3kg

5.2"/

132mm

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

**Not intended for submersion in water. Installation in a sheltered location recommended.

CVC7575 Series

WWW.LOREXTECHNOLOGY.COM

Camera Specifications

Contents

• Super Resolution with enhanced optics delivering crystal clear video at

600 TV lines of resolution

• Reliable camera operation coupled with patented ImageCool™

technology ensures optimal performance in extreme temperatures

(–22° ~ 122°F / –30° ~ 50°C)

• BrightNight viewing with enhanced low light image sensor

• Close-up recognition at night with auto light compensation prevents

wash-out effect

• Anti-glare feature ensures clear images under strong lighting conditions

• Accurate colors with Lorex‘s automatic light filtering technology

• 3.6mm wide-angle lens captures a 78° field of view (diagonal)

•Night vision range up to 60ft (18m)

• Day/Night mode: Picture automatically switches to B&W delivering

better clarity in low light conditions

•Weatherproof Design: ideal for outdoor & indoor applications (IP66)

• Integrated 3ft camera cable for flexible installation and protection from

the elements

• Versatile mounting options: ceiling, counter or wall mountable

• 60ft BNC/Power extension cable included per camera

• Energy-efficient CEC (California Energy Commission) compliant power

adapter included

• IR Night Vision Camera*

• Mounting kit*

• 60ft BNC/Power Extension Cable*

• Power Adapter**

Installation Tips

• Point the camera where there is the least amount of obstructions (i.e.

tree branches).

• Install the camera in a location that is difficult for vandals to reach.

• Secure cabling so that it is not exposed or easily cut.

• Camera rated for outdoor use. Installation in a sheltered location

recommended.

Installing The Camera

Warning / Caution

1. Read this guide carefully and keep it for future reference.

2. Follow all instructions for safe use of the product and handle with care.

3. Use the camera within given temperature, humidity and voltage levels noted

in Camera Specifications.

4. Do not disassemble the camera.

5. Do not point the camera directly towards the sun or a source of intense light.

6. Use only the supplied regulated power supply. Use of a non-regulated, non-

conforming power supply can damage this product and voids the warranty.

7. Periodic cleaning may be required. Use a damp cloth only. Do not use harsh

cleaners or aerosol cleaners.

8. The supplied extension cable is rated for surface mounting only.

Cables for in-wall / floor-to-floor installations are sold separately.

WARNING - A REGULATED UL/CSA APPROVED power supply is

REQUIRED for use with this camera. Use of a non-regulated, non-conforming

power supply can damage this product and voids the warranty.

Connecting The Camera

Disclaimers:

1) Infrared illumination range under ideal conditions. Actual range and clarity may vary

depending on scene/object reflection and camera application

2) Not intended for submersion in water. Installation in a sheltered location recommended.

*Model CVC7575PK4 is a 4-pack that includes four of the listed items.

** A "4-in-1" Power Adapter that provides power to four cameras may be

substituted for four individual power adapters, depending on product

configuration.

Features

To install the camera:

1. Mount the camera stand to the desired mounting surface.

2. Attach the camera to the stand at either of the two

connection points at the back of the camera.

3. Connect the extension cable to the camera:

ATTENTION - Test all connections and ensure the camera is working

correctly prior to permanent installation by temporarily connecting the

camera(s) and cable(s) to the viewing/recording solution.

Wall Mount

Ceiling Mount

Table Mount

Use the stand for ceiling, table, or wall mounting.

Connect the BNC

and power

connectors to the

camera.

Connect the BNC

connector to the video

input of the monitor/DVR,

and connect the included

power connector to a

power adapter.

Male power connector

Female power connector

BNC Connector

To Monitor/ DVR:

To Camera:

Setup Diagram

ATTENTION: This camera includes an Auto Mechanical

IR Cut Filter. When the camera changes between Day/

Night viewing modes, an audible clicking noise may be

heard from the camera. This clicking is normal, and

indicates that the camera filter is working.

4. Connect the BNC end of the Extension Cable to the

DVR / Observation System or to a TV/VCR.

NOTE: Connect a BNC-to-RCA Adapter (optional,

Lorex model # BNCB) to connect the extension cable

to RCA inputs (i.e. for a TV connection).

5. Connect the A/C Power Adapter to the 60ft

Extension cable (Black connector). Plug the Power

adapter to a wall outlet.

Connect the BNC cable to a DVR, CCTV monitor, or TV.

AC Power Adapter

4-in-1 Power Adapter

(optional)

Connect an AC power adapter.
